Basic anti-fall kit SAFETOP with positioning belt ELBRUS 71B

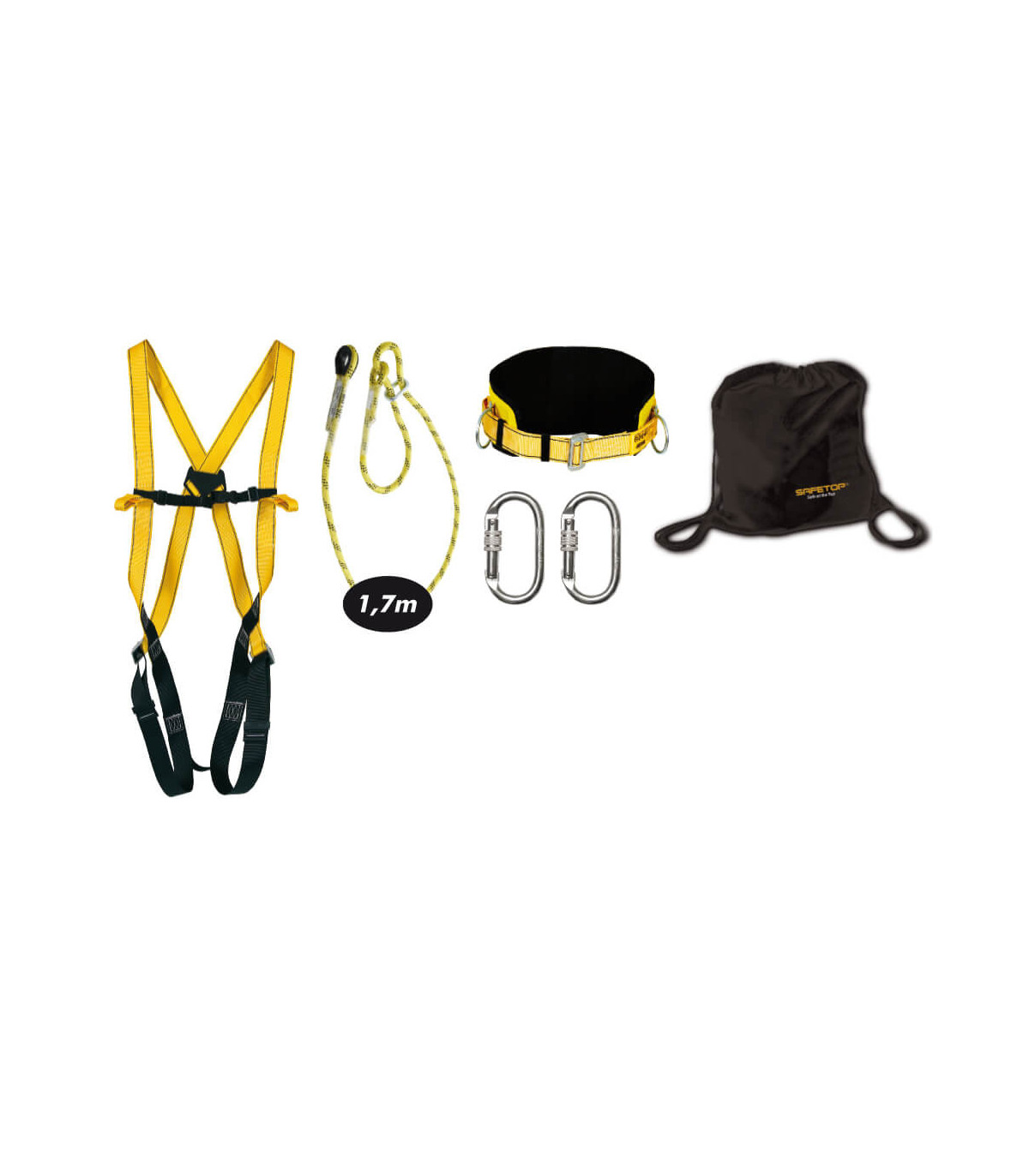

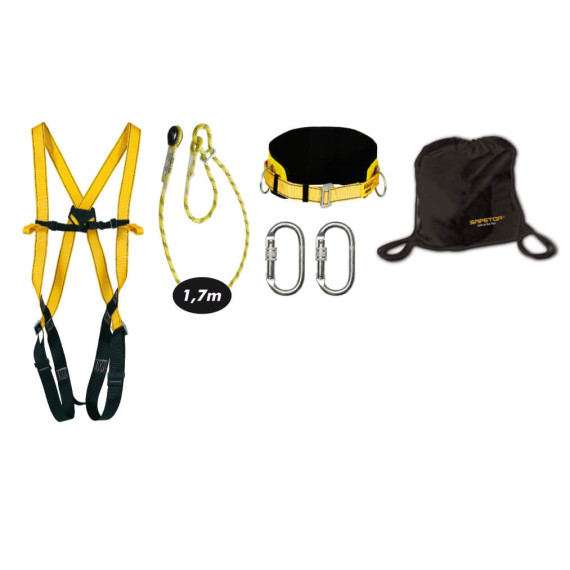

Fall protection kit consisting of Trevinca harness 80071B, adjustable rope 1.7 m 80107, belt 80048, 2 carabiners 80112, backpack 80124.

CHARACTERISTICS OF POSITIONING BELT

• PPE category III
• Positioning belt for work in fastening
• Two fixation points with metal rings, located at the ends of the belt.
• Padded comfort belt of great comfort
• Adjustable on front wall
• Once adjusted with metal pins, it is very easy and quick to connect.
• Sewn loops at both ends of the front part of the belt to secure the adjustment strap.
• Dimensions: 61 cm (length) x 18 cm (height, at the highest point)
• Maximum length of the adjustment strap: 120 cm
• Materials:100% polyester - Zinc buckles covered with steel

CHARACTERISTICS OF THE ADJUSTABLE STRING

• PPE category III
• Braided polyester rope in yellow-black color for easy visibility.
• Anchor or fastening element in a working position.
• Adjustable via metal ring
• Adjustable uses 1.7 meters.
• Braided rope with a diameter of 12 mm.
• Made of polyamide and polyester.
• Connection to horizontal lifelines or fixed anchor points that can support a force of at least 15 kN.
• The anchor point must be located above the connection point of the fall protection harness.
• The safety rope can be used as: * In connection with an energy absorber as a safety lanyard, according to standard EN354. * As a positioning lanyard, according to standard EN358.

FEATURES OF THE HARNESS

• PPE category III
• Full body harness with three anchor points
• Dorsal hook using a metal ring
• With dorsal attachment ring for placement of damping element.
• Dorsal strap of 40 cm for connection of shock absorber subassembly.
• Buckle for closure and chest adjustment
• Front knots for pectoral attachment with connector
• Buckle closures and adjustments for thigh straps, shoulder straps, and chest straps.
• Gluteal band connecting the two thigh bands.
• 4 personal adjustment points, two for the chest and two for the legs.
• Valid for the use of a single person.
• Galvanized steel metal parts
• 44 cm wide polyester ribbons

FEATURES OF THE EQUIPMENT CARRYING BAG

• Polyester bag, designed to store fall protection equipment.
• In black
• High-strength fabric
• Waterproof
• Measurements: 40x37 cm
• Packaging:1 unit (individually packaged)

WORK AREAS OF THE ANTI-FALL KIT

Surface suspension, installation of collective protections, attachment to horizontal lifelines, among others.

STANDARDS/ REGULATIONS

EN361 (full body harness)

EN354(tie-down equipment)

EN358 (positioning belt)

EN362(carabiner)
