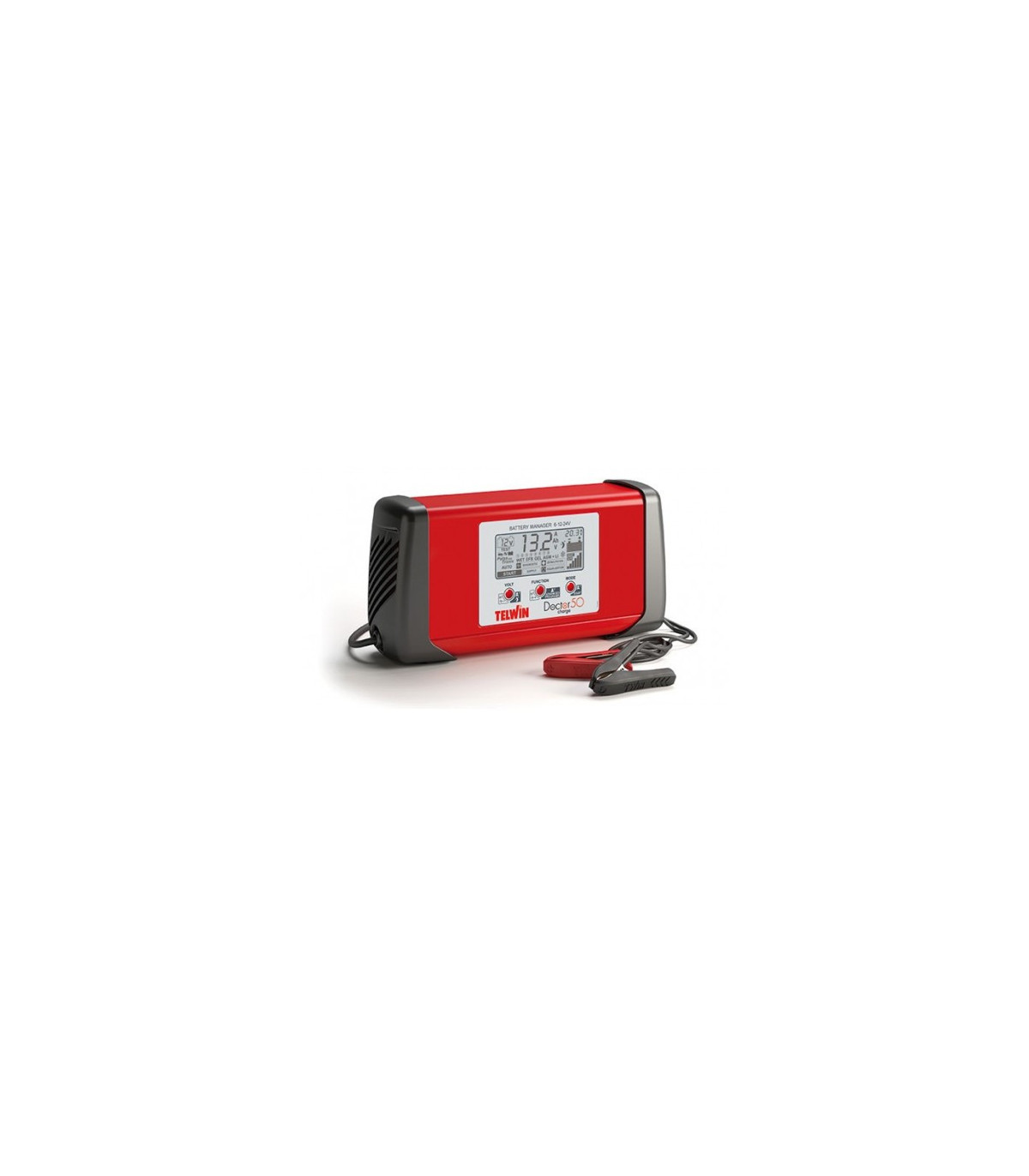

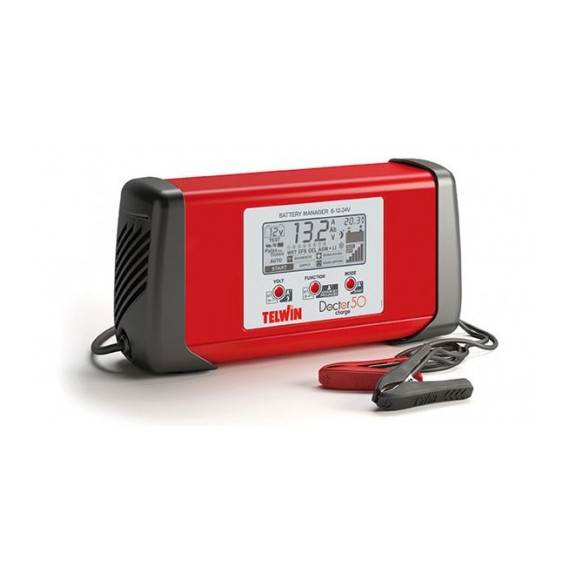

Battery chargers Doctor Charge 50 TELWIN

Doctor Charge 50 TELWIN battery chargers. Multifunction electronic battery charger (BATTERY MANAGER) for the complete maintenance of WET, GEL, AGM, MF, PbCa, EFB, Li batteries of 6V/12V/24V and for support activities during interventions, including diagnostics, in vehicles carried out in workshops, body shops, and dealerships. Pulse Tronic technology ensures optimal battery charging through 8 phases.

FEATURES

• Professional multifunction electronic battery charger (battery manager) for WET, GEL, AGM, MF, PbCa, EFB, Li batteries of 6V/12V/24V. With LCD screen.
• Automatic charging and maintenance in Pulse Tronic according to the selected battery technology. Automatic recognition of battery type (AUTO mode).
• Stable power supply for diagnostic activities (BSU), during battery changes (SUPPLY), and to keep the batteries of vehicles displayed in showrooms in good health; RECOVERY function for recovering sulfated or deeply discharged batteries and EQUALIZATION function for restoring optimal functionality with periodic regeneration.
• Advanced functions: BOOST for fast recharging; COLD for charging and maintaining batteries at low temperatures; TEST for alternator, starting, and battery charge status. Aids in starting.
• Compensation function for extended cables; integrated PFC (Power Factor Correction) for reduced absorption and greater stability of the charging current.
• With cables with clamps.

TECHNICAL DATA

NETWORK FREQUENCY 50 / 60 Hz

CHARGING VOLTAGE 6 / 12 / 24 V

CONVEN. CHARGE CURRENT EN60335-2-29 40 / 40 / 20 A

MIN CAPACITY NOM.REFEREN. 10 Ah

PROTECTION CLASS IP33

WEIGHT 3.77 kg

SINGLE-PHASE MAINS VOLTAGE 230 V

POWER ABSORBED IN CHARGE 610 W

EFFECTIVE CHARGE CURRENT 45 / 45 / 23 A

STARTING CURRENT 1V/C EN60335-2-29 50 (12V) A

MAX CAPACITY NOM.REFEREN. 600 Ah

DIMENSIONS 9.2x20x33 cm

NORMS

CE: The product complies with the standards and regulations of the Eurasian Economic Union (EAEU)

EAC: The product meets the safety, health, and environmental protection requirements of the European Union (EU)

FOR WHAT TYPE OF WORK IS IT SUITABLE

The Doctor Charge 50 TELWIN battery chargers are suitable for:

• Cars
• Motorcycles
• Industrial vehicles
• Workshops
• Construction
