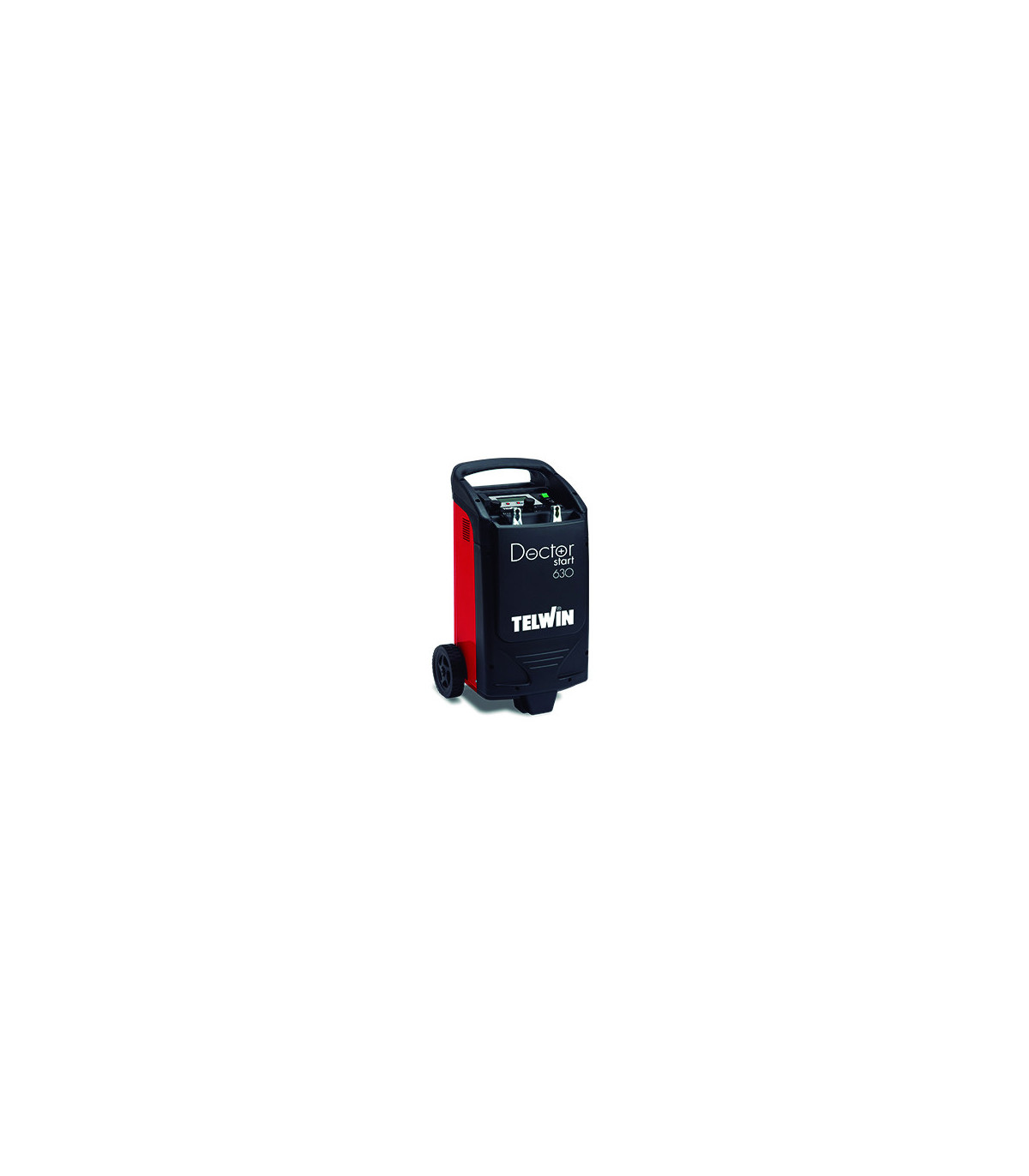

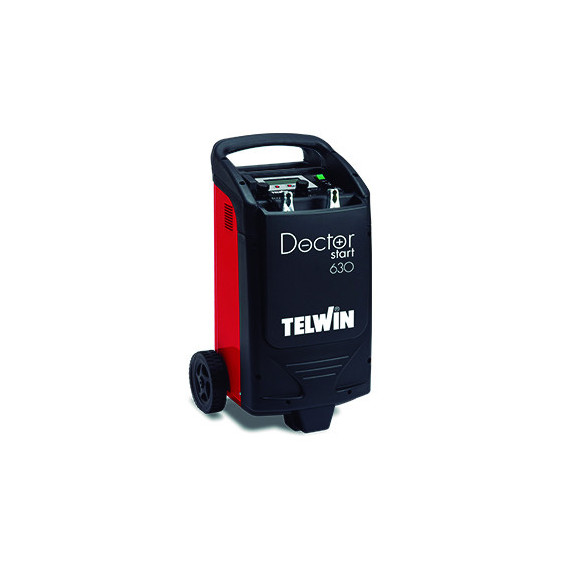

Doctor Start 630 TELWIN Chargers Starters

Doctor Start 630 TELWIN Starter Chargers. Multifunction electronic charger, starter, and tester for WET, GEL, AGM, PbCa, EFB batteries with a voltage of 12/24V. Ensures complete maintenance of WET, GEL, AGM, PbCa, EFB batteries and quick starting of all types of cars, vans, light trucks. It is an essential tool for stable power supply during battery changes. Easy and intuitive to use thanks to the LCD graphic display.

FEATURES

• Battery manager for complete maintenance and quick starting of WET, GEL, AGM, MF, PbCa, EFB, and Li batteries of 12V/24V. 570A max start.
• With LCD screen.
• Automatic charging and maintenance in Pulse Tronic according to the selected battery technology.
• Battery, starter, and alternator testing; regeneration and recovery of batteries; stable power supply for battery changes; starting.

TECHNICAL DATA

NETWORK FREQUENCY 50 / 60 Hz

STARTING POWER 10 kW

EFFECTIVE CHARGE CURRENT 90 A

START CURRENT 1V/C EN60335-2-29 360 A

MIN CAPACITY NOM.REFEREN. 10 Ah

DIMENSIONS 36.5 x 46 x 75.5 cm

SINGLE-PHASE NETWORK VOLTAGE 230 V

CHARGE POWER 2 kW

CHARGE VOLTAGE 12 / 24 V

CONVEN. CHARGE CURRENT EN60335-2-29 70 A

MAX STARTING CURRENT 570 A

MAX CAPACITY NOM.REFEREN. 1050 Ah

WEIGHT 23.4 kg

NORMS

FOR WHAT TYPE OF WORK IS IT SUITABLE

The Doctor Start 630 TELWIN Starter Chargers are suitable for:

• Battery testing
• Starting and alternator
• Regeneration and recovery of batteries
• Stable power supply for battery changes
• Starting
