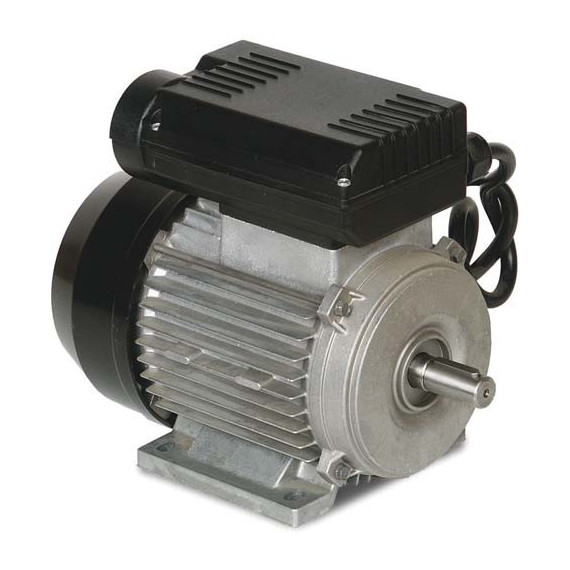

2.2 kW motor and 230 V with AIRCRAFT circuit breaker

2.2 kW and 230 V motor with AIRCRAFT circuit breaker. The 2.2 kW and 230 V motor with AIRCRAFT circuit breaker, weighing approximately 15.5 kilograms, is ideal for lightweight machinery, ventilation systems, pumps, compressors, and small production lines. With a nominal speed of 2800 rpm and IP55 protection, it offers reliable performance.

TECHNICAL SPECIFICATIONS

Dimensions and weights

Approx. weight 15.5 kilograms

Electrical data

Rated power 2.9 kW

Nominal operating mode T3

Duty cycle 50%

Protection class IP55

Power factor 0.95 cos phi

Nominal motor speed 2800 min¯¹

Nominal current 12.8 A

Connection voltage 230 V

Network frequency 50 Hz

PU 1

COMPONENTS/PACKAGING

Unit box: piece

Packaging unit: 1

FOR WHAT TYPE OF WORK IT IS SUITABLE

The 2.2 kW and 230 V motor with AIRCRAFT circuit breaker is suitable for:

• Light machinery
• Ventilation systems
• Pumps
• Compressors
• Small production lines

CERTIFICATION

Stürmer Group Quality Management System certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its assessment basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
