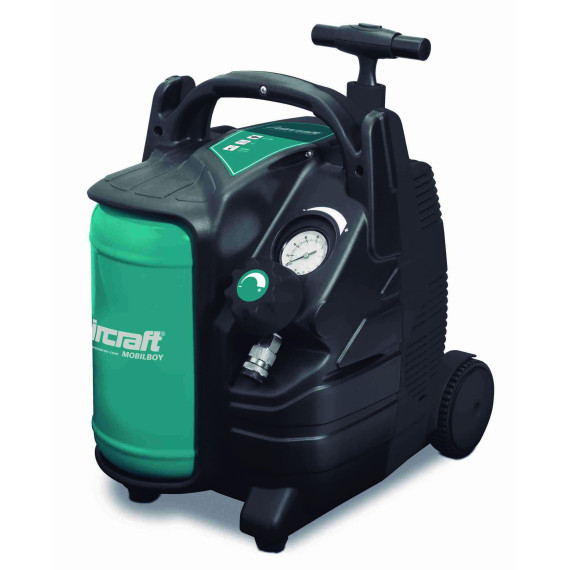

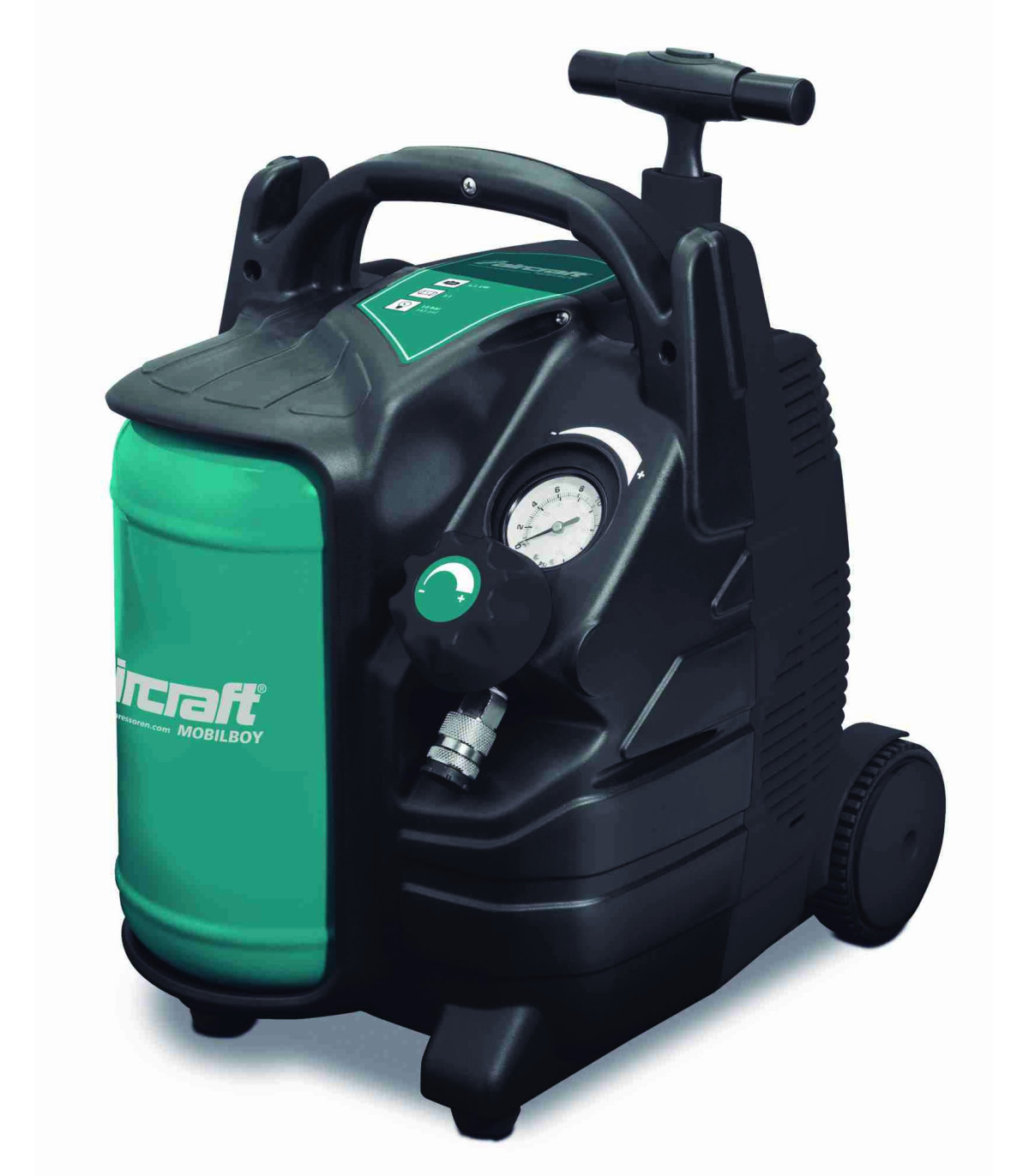

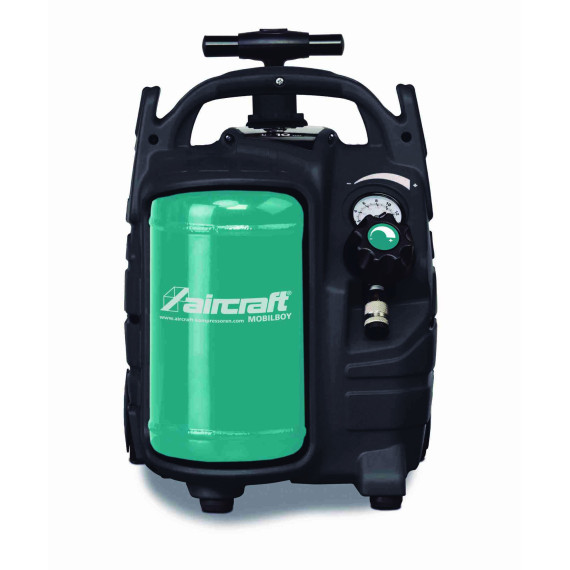

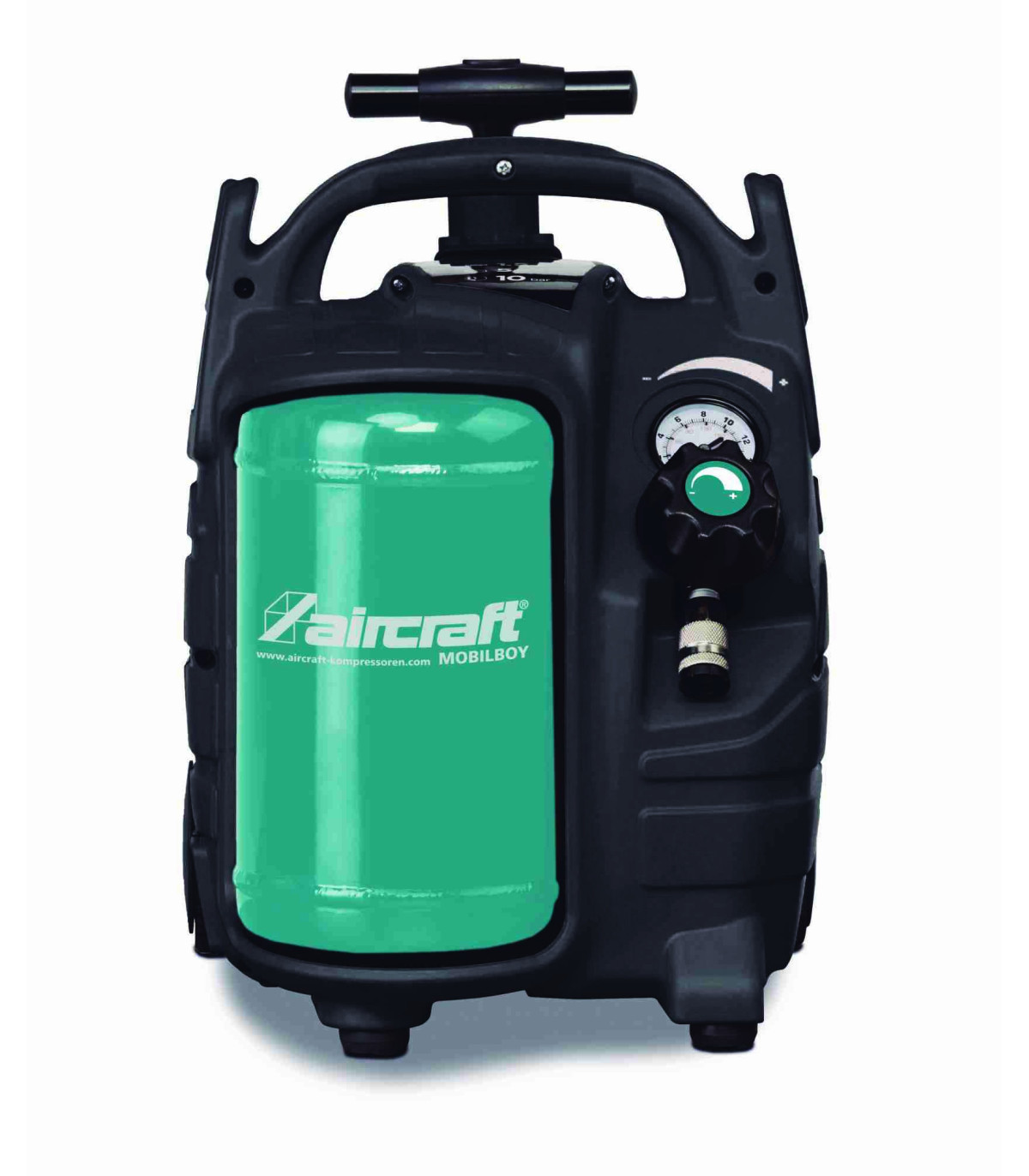

Oil-free piston compressor Mobilboy 185 OF E AIRCRAFT

The Mobilboy 185 OF E AIRCRAFT oil-free piston compressor is a practical and versatile model, designed with a cart that makes it easy to transport. Ideal for universal use, it can reach up to 10 bar of pressure, making it perfect for a variety of tasks. Its pressure vessel capacity is 5 liters, providing efficient performance for both domestic and professional projects.

Being oil-free ensures minimal maintenance and clean operation, making it an excellent choice for those seeking convenience and efficiency in their work.

FEATURES

Oil-free compressor

• No need to change the oil
• For better work quality and a long lifespan of pneumatic tools.

User-friendly design

• Compact model, thus portable and easy to move.

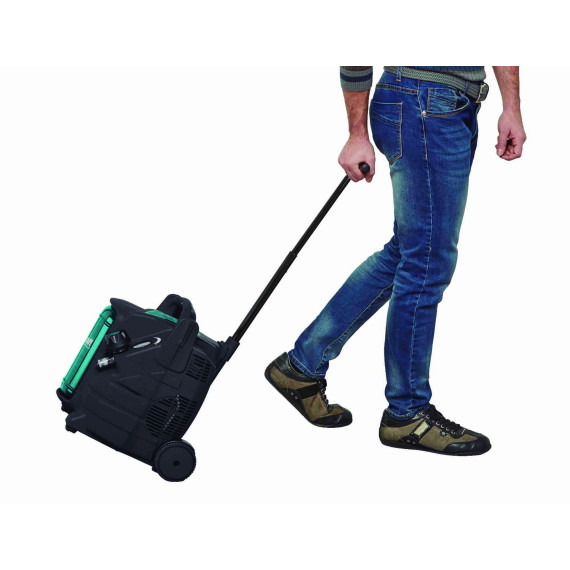

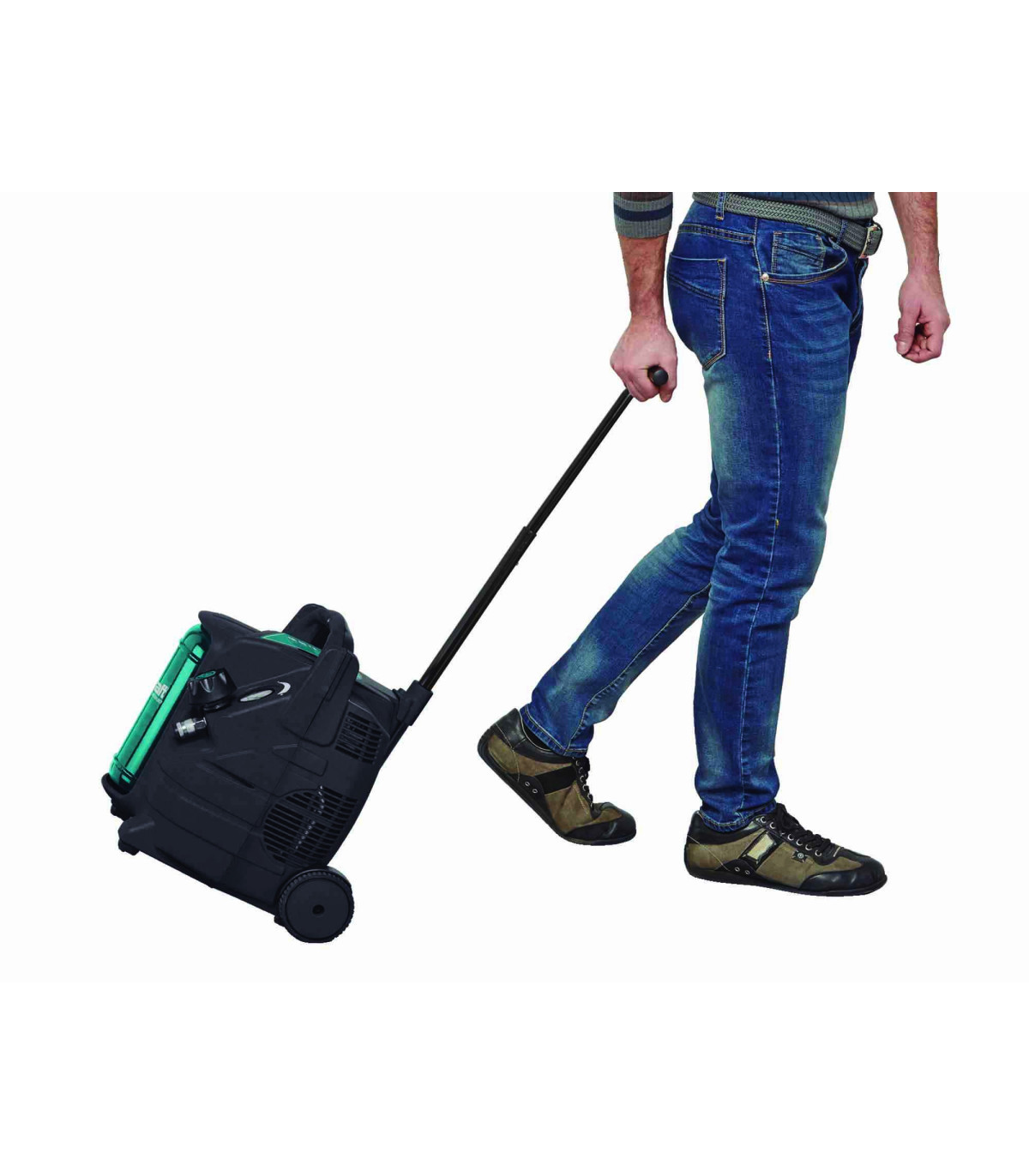

• Durable plastic wheels and extendable handle for easy transport.

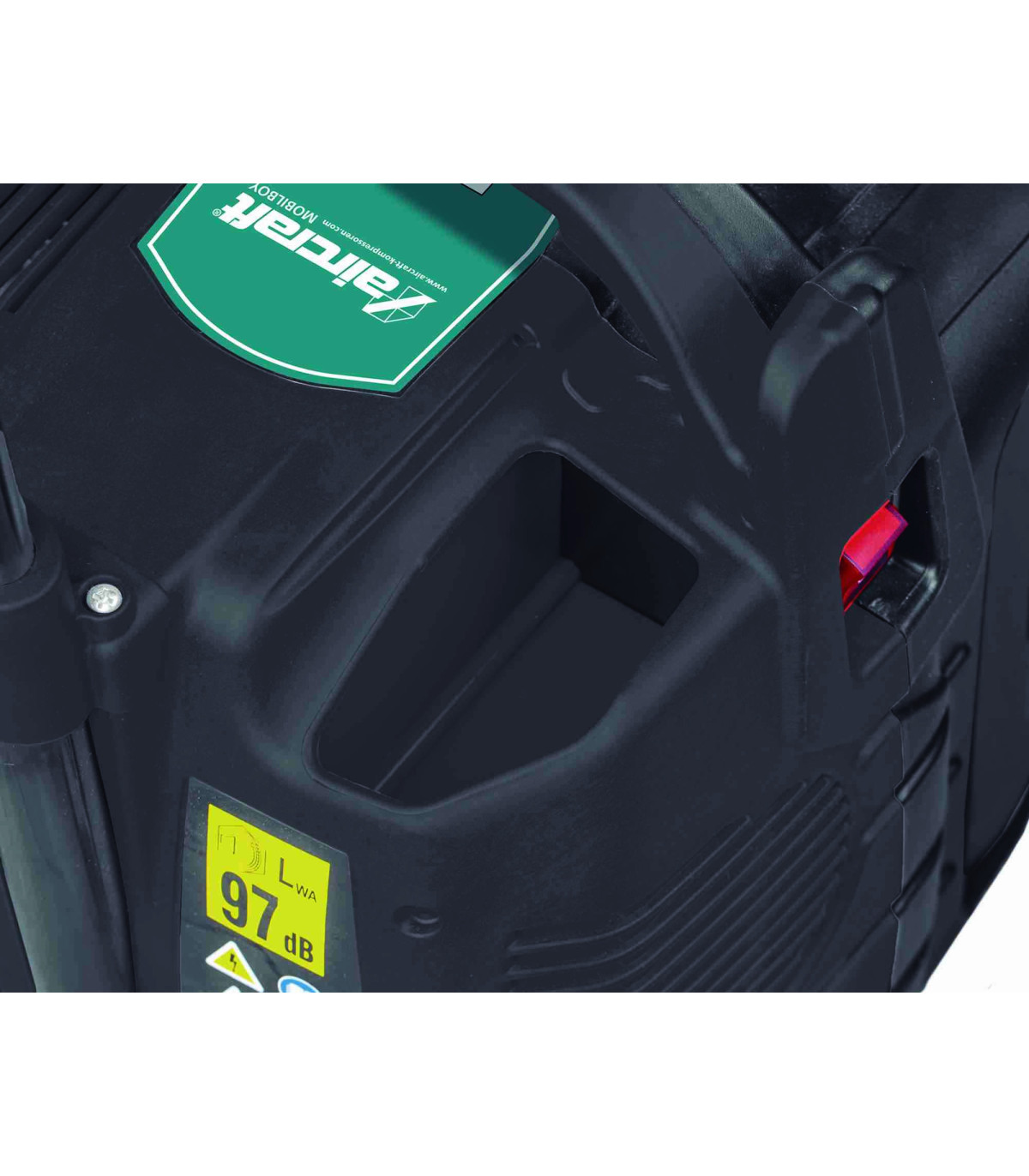

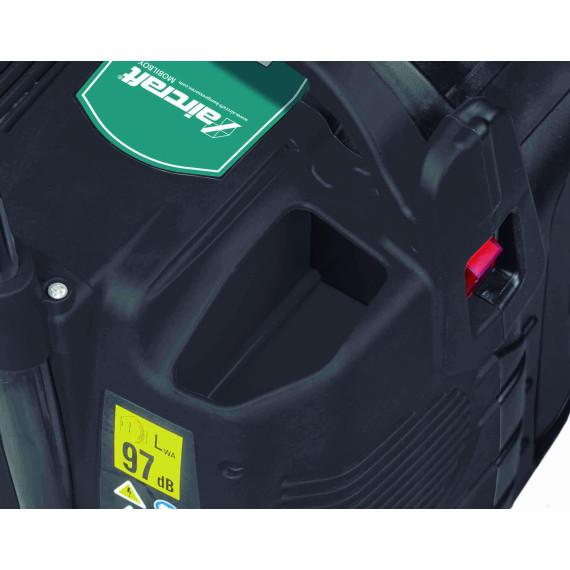

• Practical storage compartment integrated into the housing.
• Storage compartment for the power cable

Complete equipment

• A pressure gauge for working pressure.
• Quick release with one hand
• Pressure regulator for continuous working pressure setting.
• Condensate drain valve in the compressed air tank

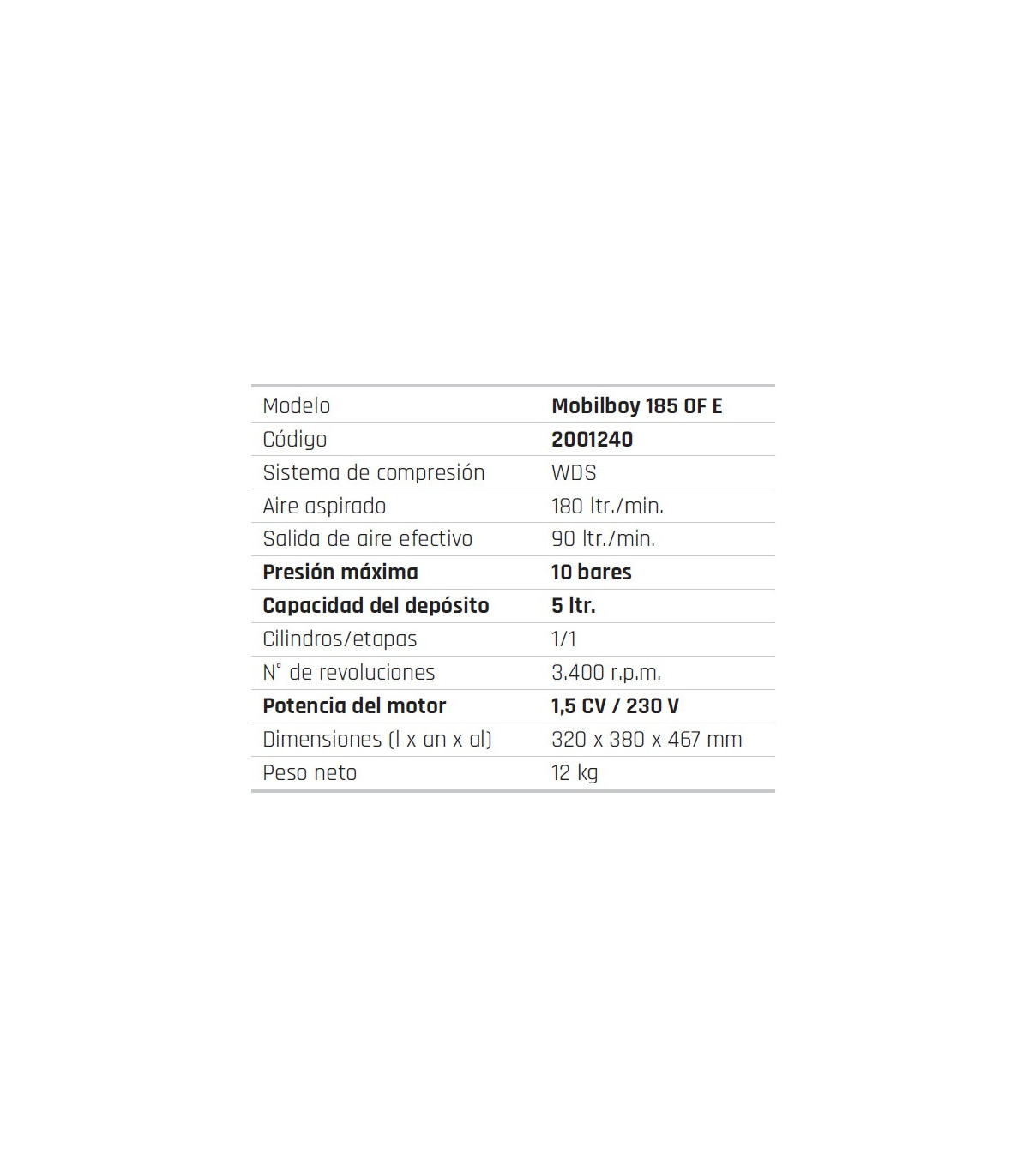

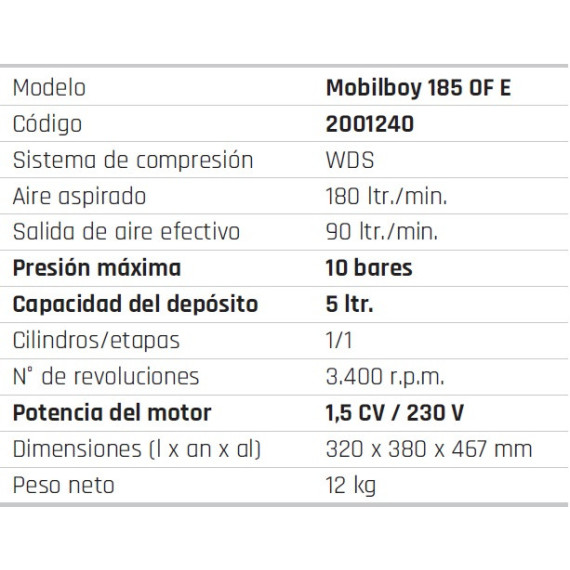

TECHNICAL SPECIFICATIONS

Compressed air tank

Maximum pressure 10 bars

Pressure vessel capacity 5 liters

Compressor

Compressor system WDS

Approx. suction capacity 180 l/min

Approx. filling capacity 90 l/min

Explanation of filling capacity at 6 bar working pressure

Number of cylinders 1

Number of compressor stages 1

Dimensions and weights

Approx. length 320 millimeters

Approx. width/depth 380 millimeters

Approx. height 467 millimeters

Approx. weight 12 kilograms

Electrical data

Supply voltage 230 V

Network frequency 50 Hz

Noise emission

Acoustic power level Lw 97 dB(A)

Explanation of the acoustic power level Lw Acoustic power level according to DIN EN ISO 3744 (RL 2000/14/EG)

VPE 1

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

Blowing gun

5 m spiral hose

EQUIPMENT

Pressure regulation     Pressure regulator

Automatic pressure switch ✔

Drive transmission V-belt

Compressed air outlet One-hand quick coupling

Pressure vessel Powder-coated

Compressor base Two wheels, two rubber stops.
