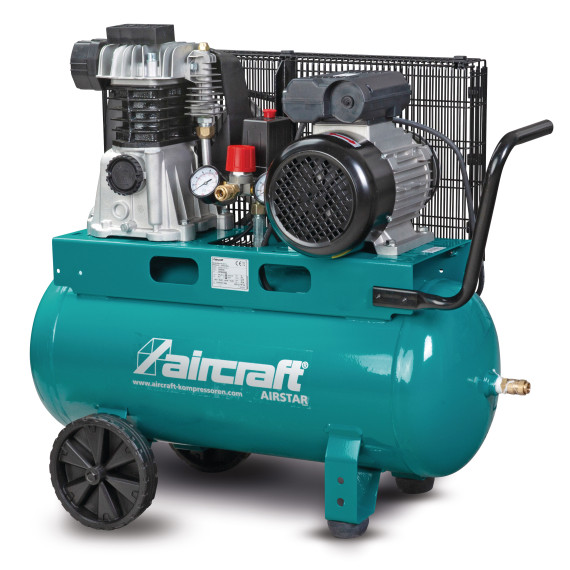

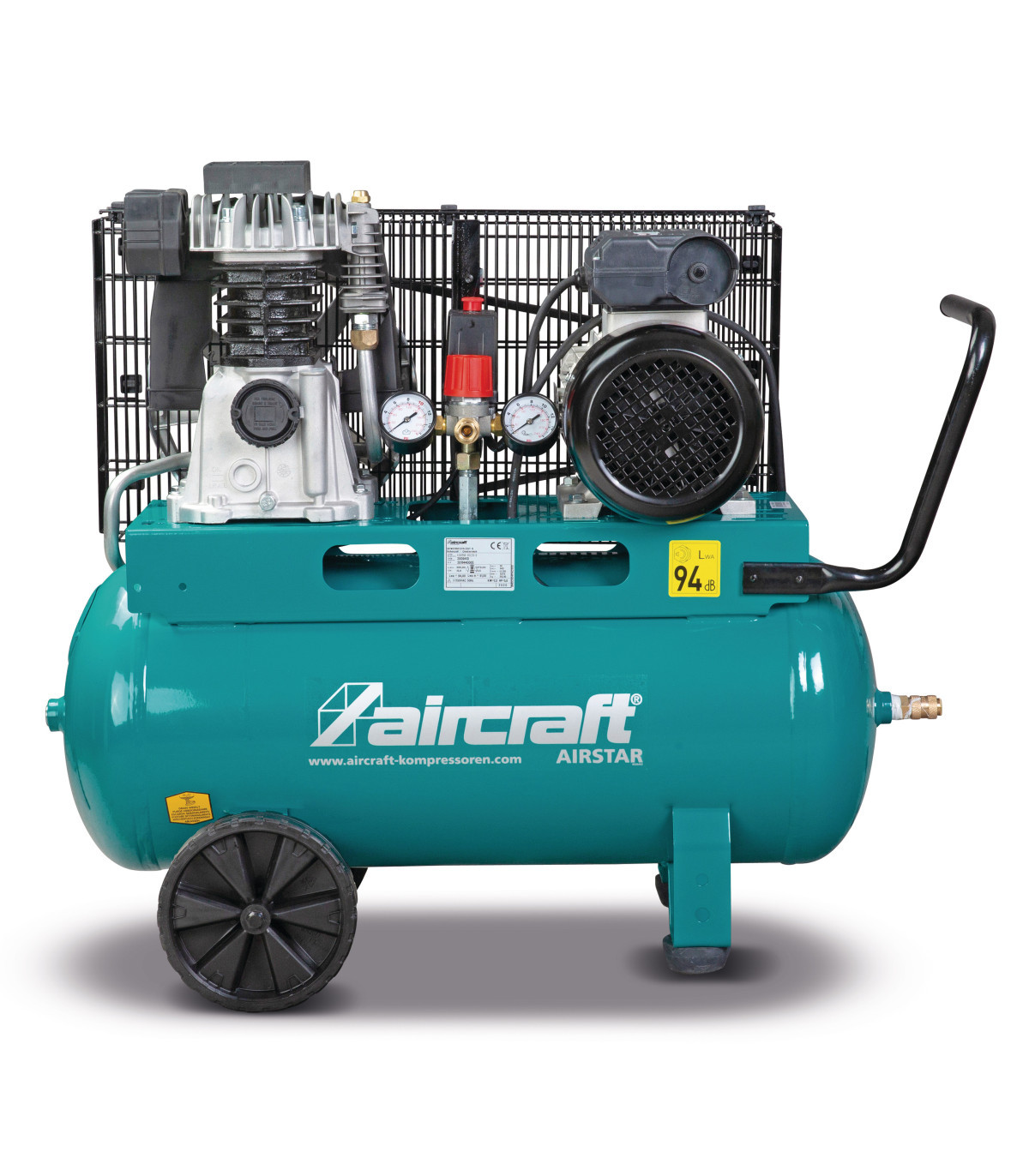

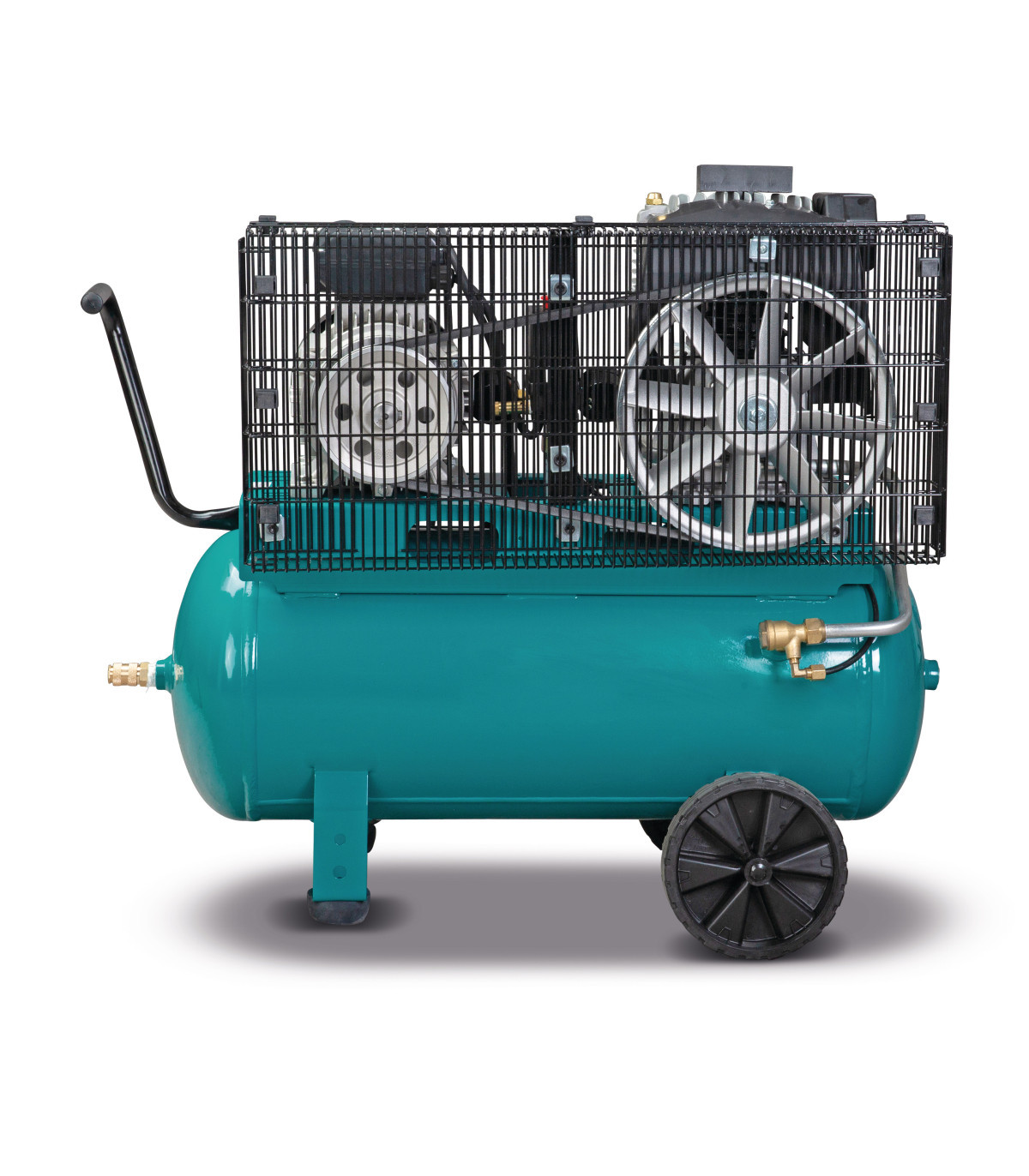

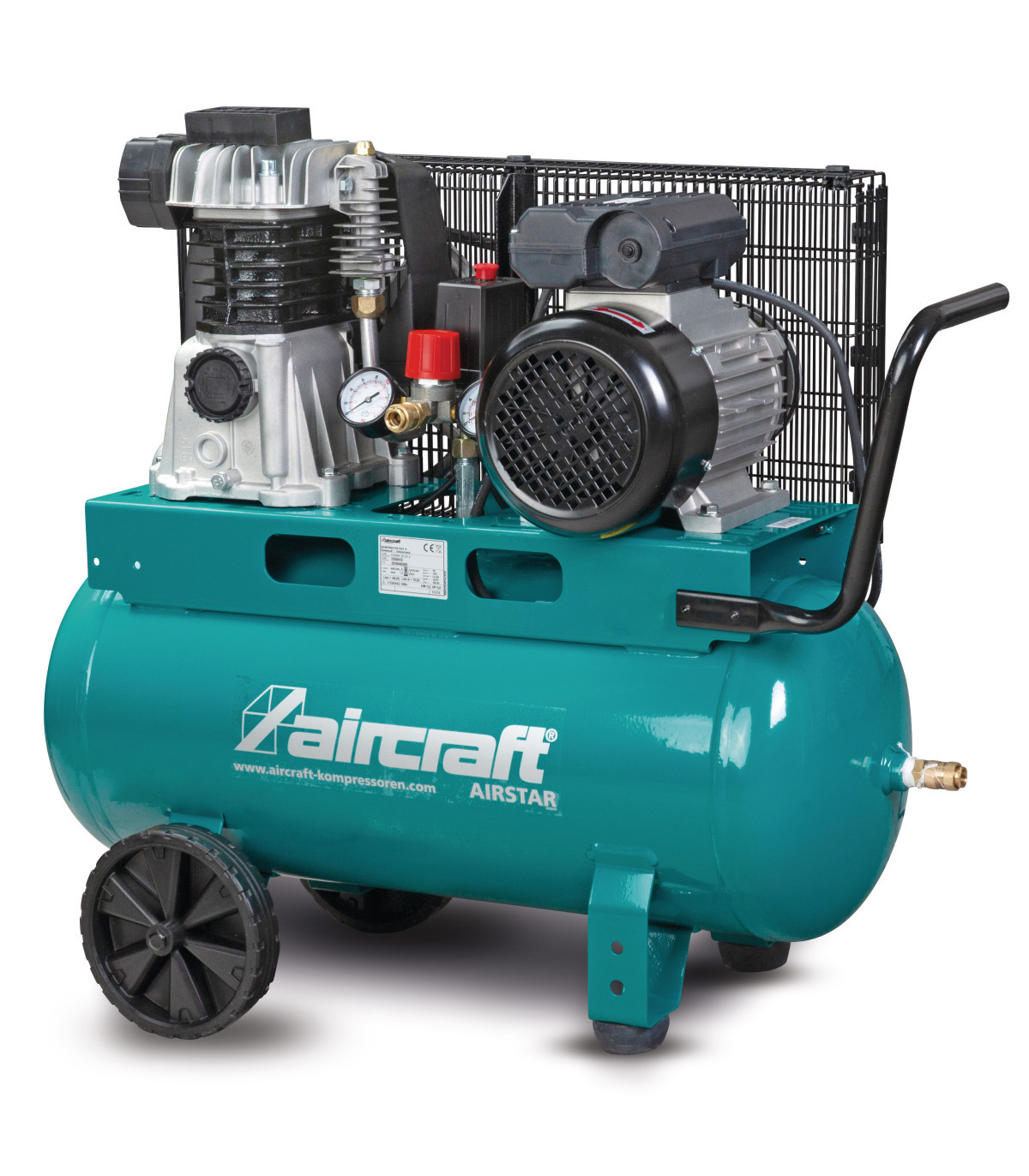

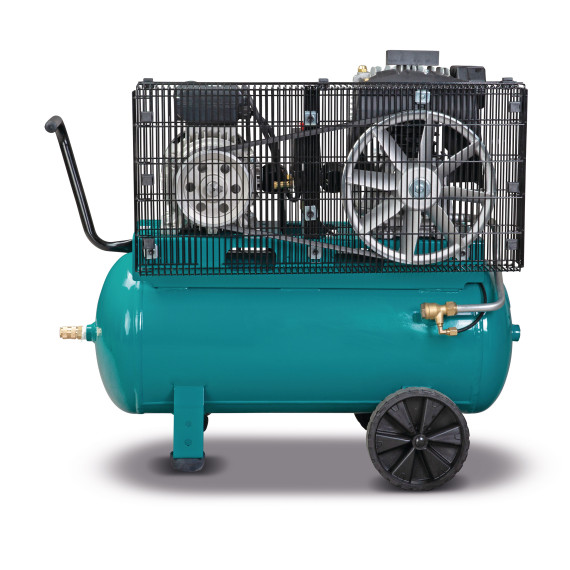

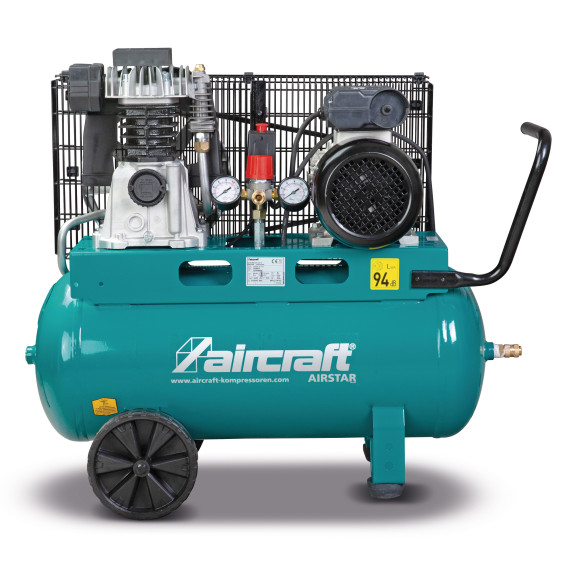

Mobile piston compressor AIRSTAR 401-50 E AIRCRAFT

The AIRSTAR 401-50 E AIRCRAFT mobile piston compressor is a powerful tool, designed with a HOS compression system that ensures efficient performance. With an air intake of 365 liters per minute, it is ideal for various applications, allowing for quick and effective work.

Its mobile design facilitates transport and use in different environments, making it an excellent choice for both professionals and DIY enthusiasts.

FEATURES

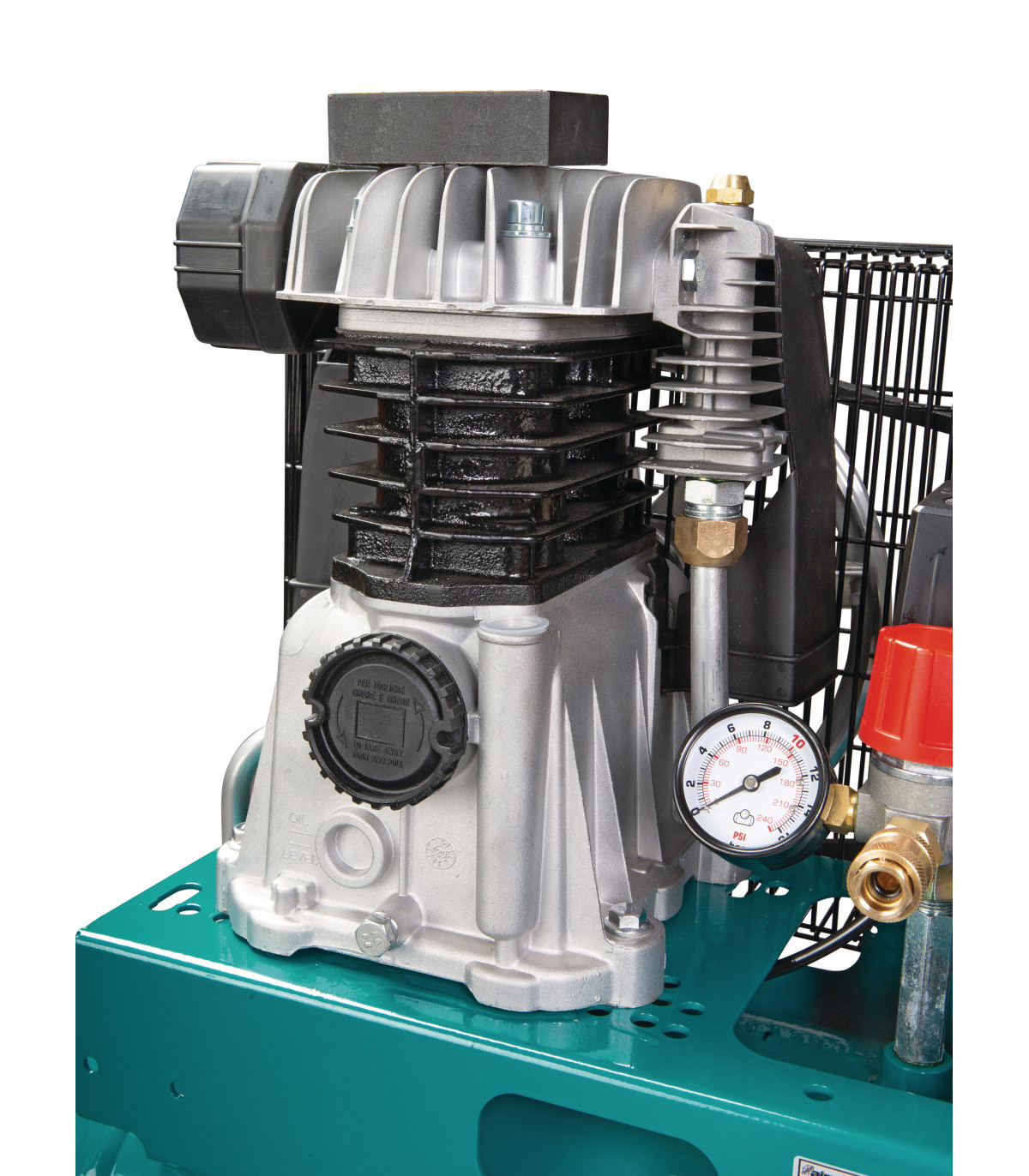

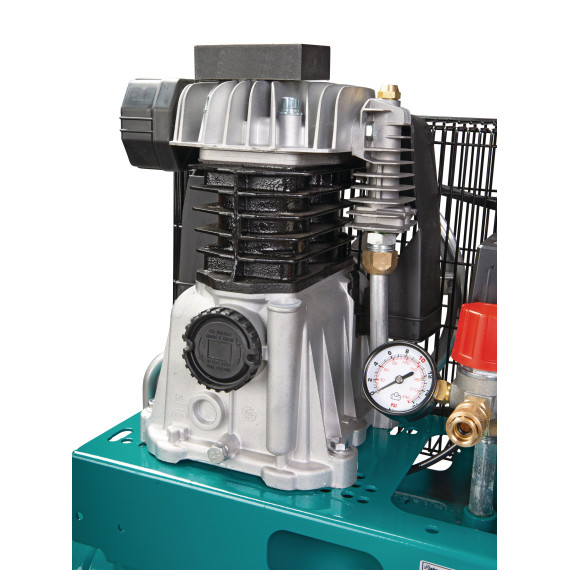

• High-performance 2-cylinder generators made of cast iron for a long service life.
• Large fan wheel and air deflector for optimal cooling of the compressor cylinder.

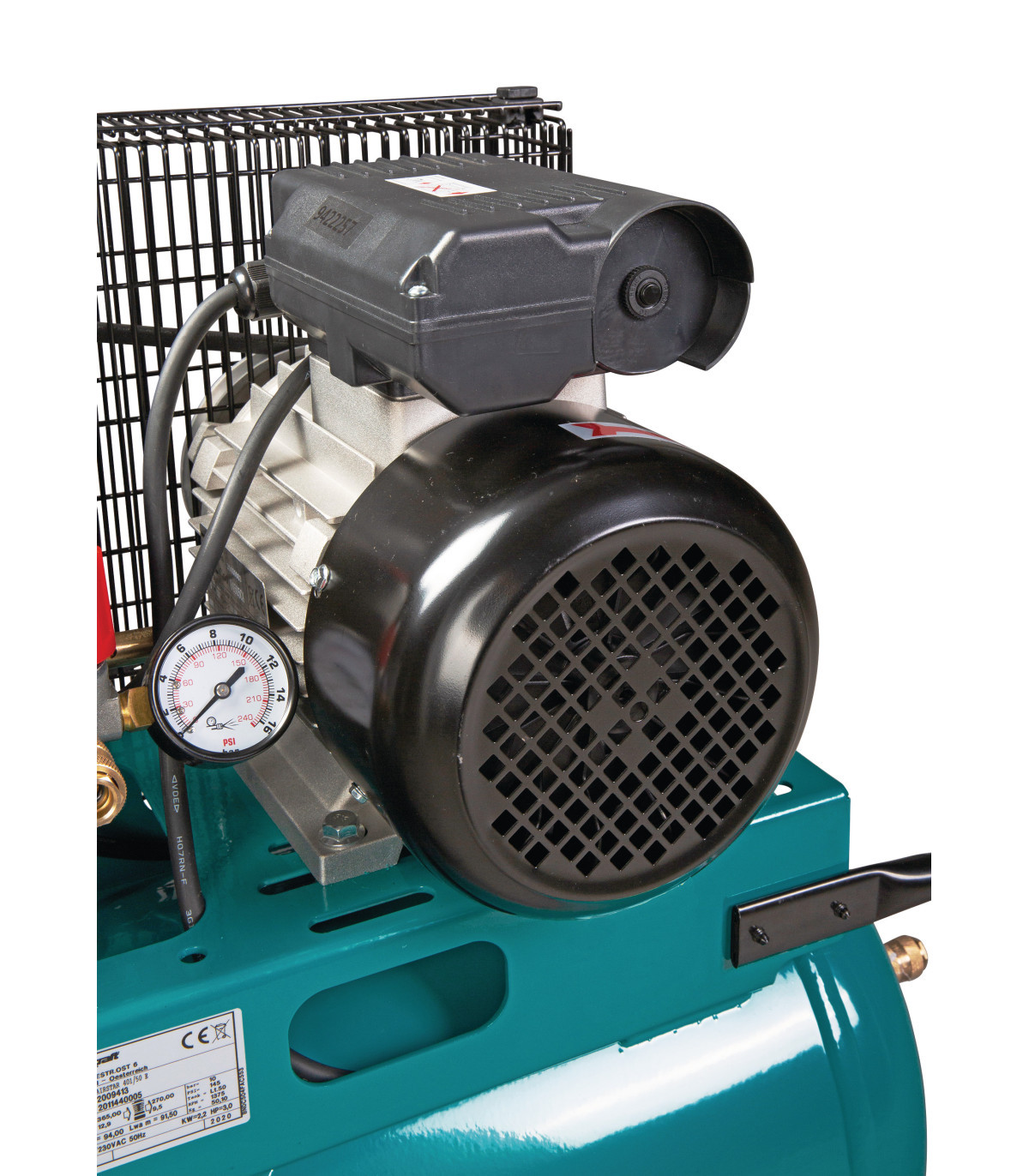

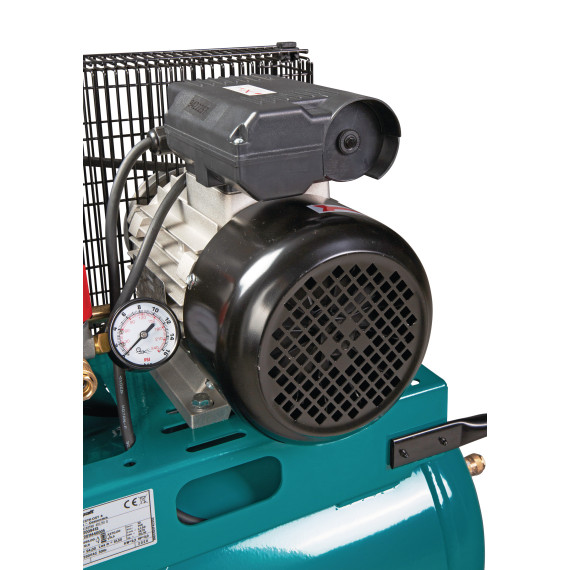

• Quality electric motor with high starting torque.
• Electric motor equipped with motor protection switch.
• The aftercooler with cooling fins ensures a low inlet temperature of the tank and, therefore, less moisture in the compressed air.
• Durable metal belt guard.
• The starting capacitor and starting relief valve ensure easy starting in 230-volt models.
• 400-volt models with phase inverter included for easy direction reversal.
• Air tank equipped with safety valve, tank pressure gauge, and condensate drain valve.
• With all safety devices.
• Completely ready for connection.

Equipment of model E

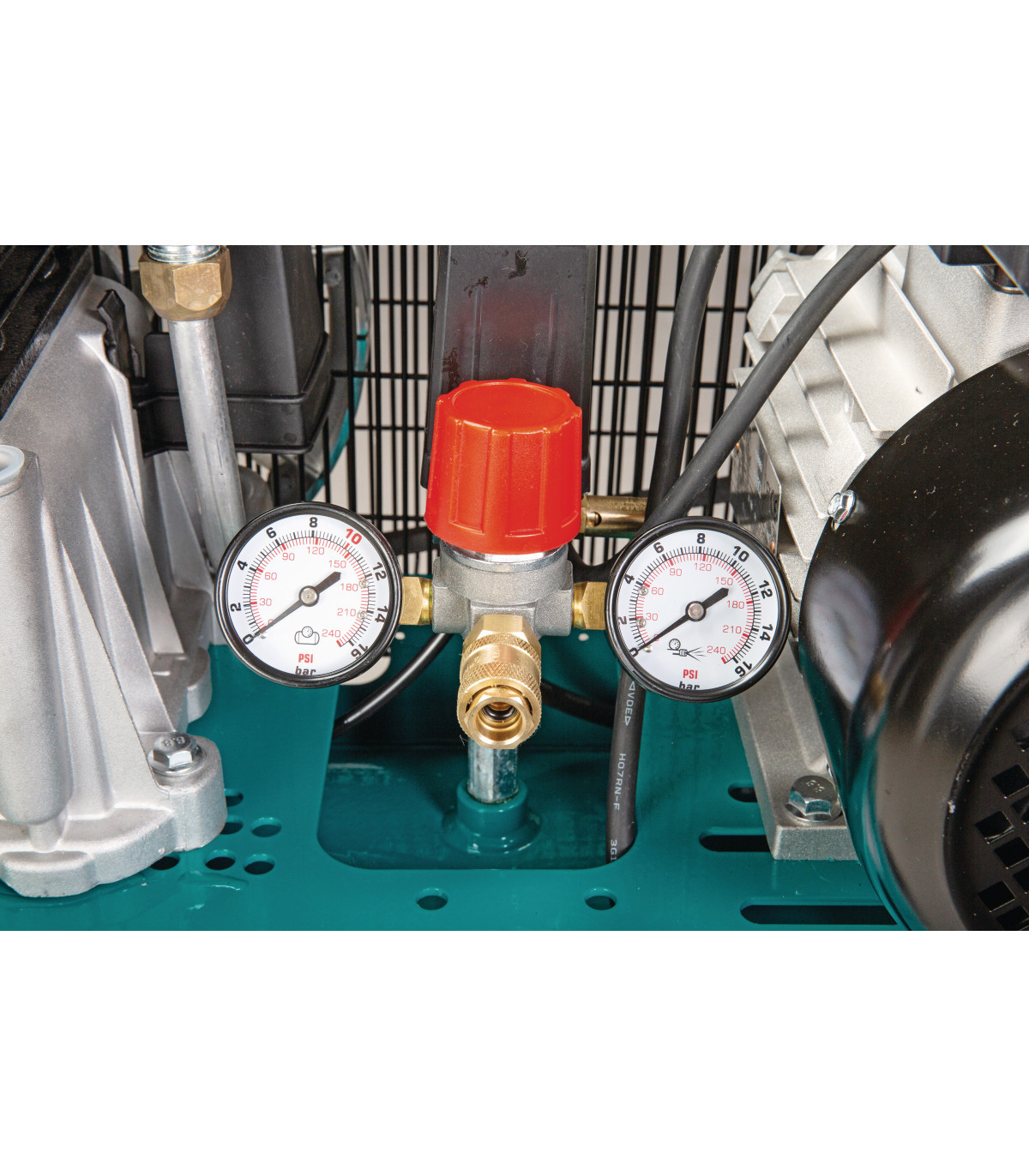

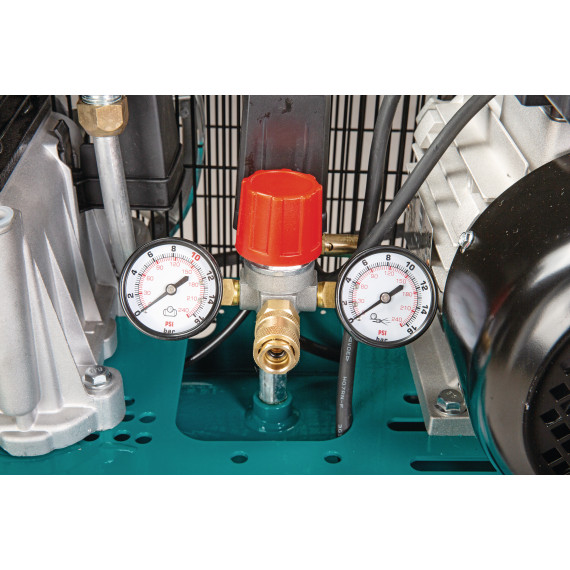

• Pressure reducer for continuous adjustment of the desired working pressure.
• A pressure gauge to indicate the tank pressure and working pressure.
• Simple one-hand quick coupling.
• Automatic pressure switch.

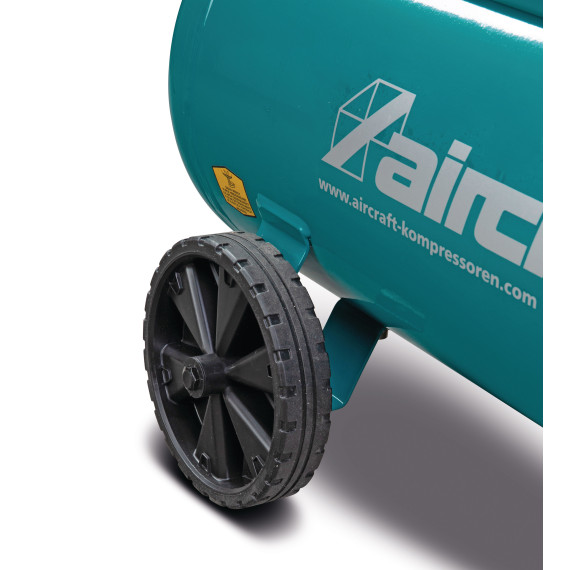

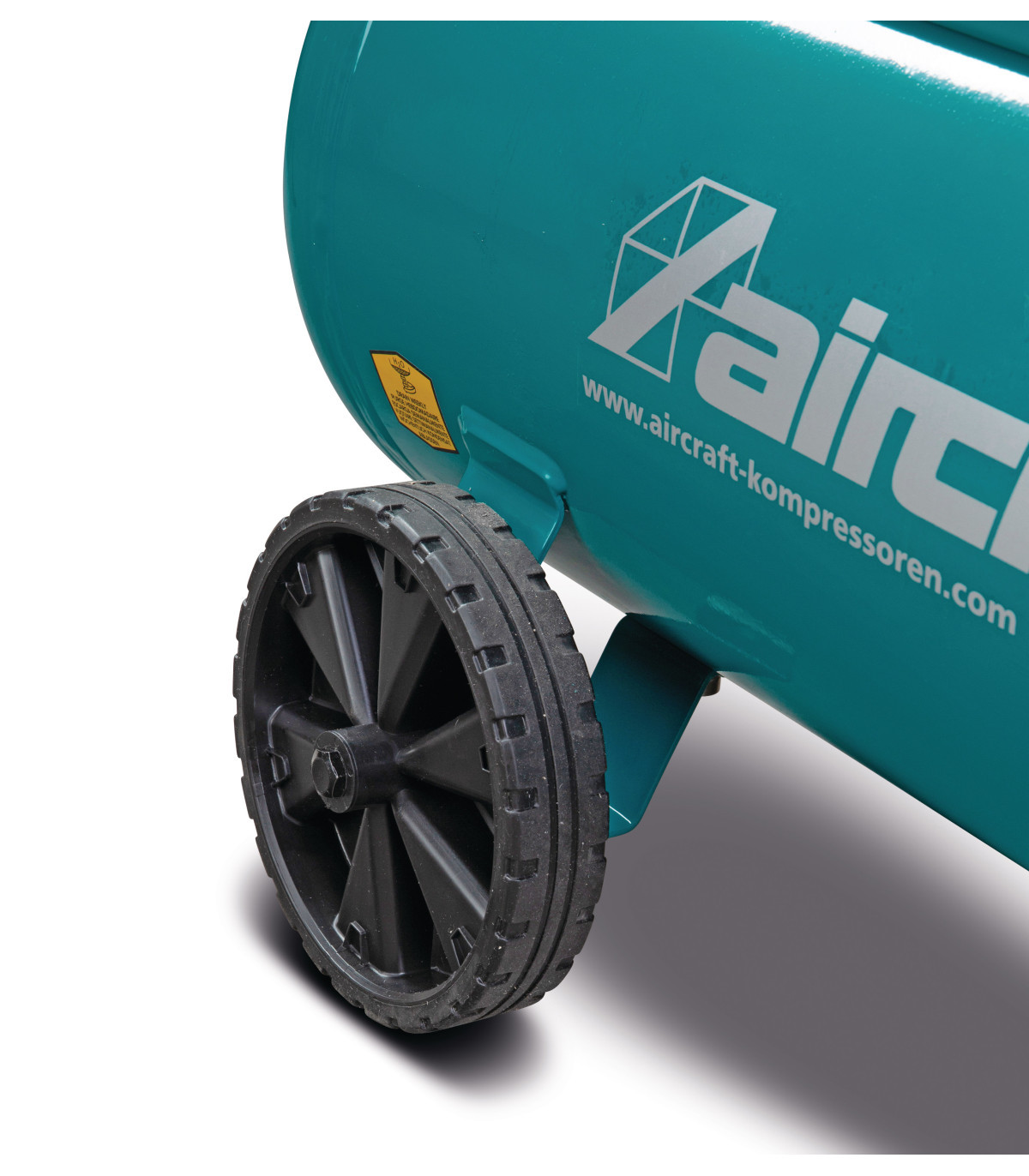

• Plastic wheels at the rear.
• Rubber feet with suction cups at the front.

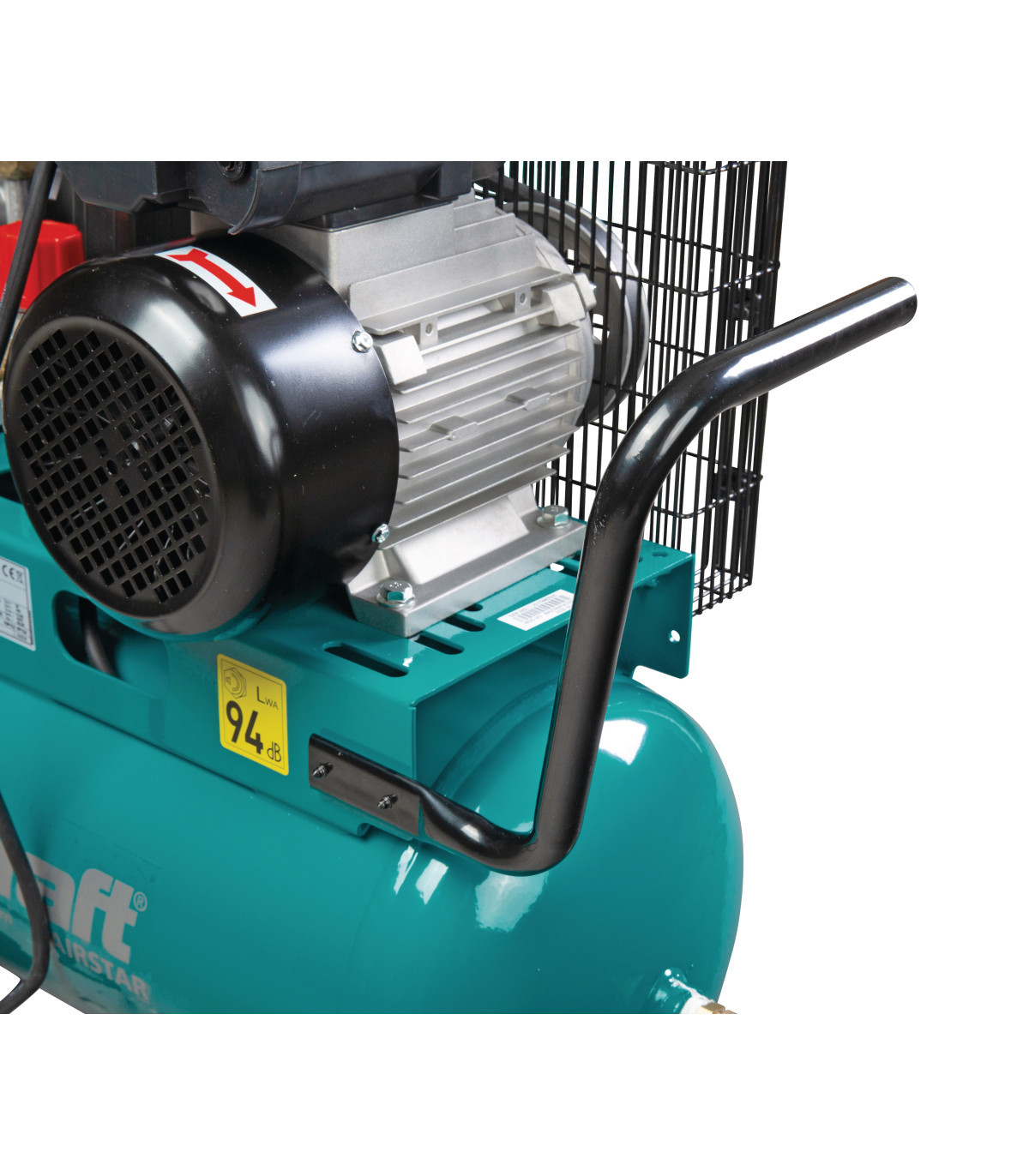

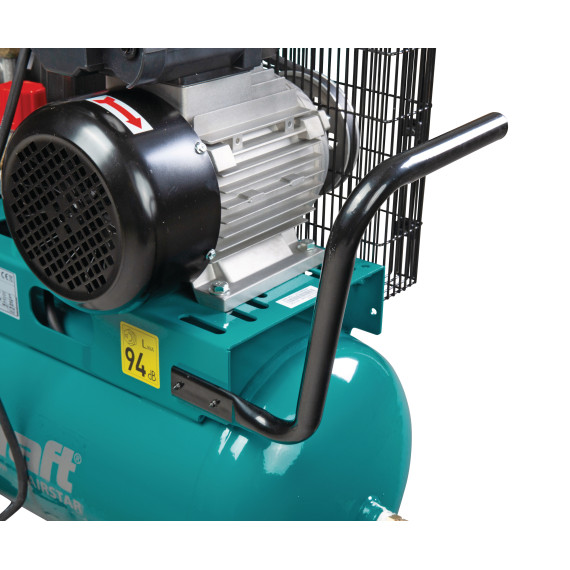

• Detail illustration of a single handle similar.

TECHNICAL SPECIFICATIONS

Compressed air tank

Maximum pressure 10 bars

Pressure vessel capacity 50 liters

Compressor

Compressor system Service hours

Approx. suction capacity 365 l/min

Approx. filling capacity 270 l/min

Explanation of filling capacity at 6 bar working pressure

Number of cylinders 2

Number of compressor stages 1

Dimensions and weights

Approx. length 810 millimeters

Approx. width/depth 365 millimeters

Approx. height 710 millimeters

Approx. weight. 50.1 kilograms

Electrical data

Output power 2.2 kW

Supply voltage 230 V

Network frequency 50 Hz

Noise emission

Acoustic power level Lw 94 dB(A)

Explanation of the acoustic power level Lw Acoustic power level according to DIN EN ISO 3744 (RL 2000/14/EG)

VPE 1

COMPONENTS/PACKAGING

Unit: pce(s).

Packaging unit: 1

• Automatic pressure switch
• Pressure reducer
• Pressure gauge for tank pressure
• Pressure gauge for working pressure
• 1 one-hand quick coupling
• Starting capacitor and starting relief valve in the 230 V model
• Manual phase inverter for the 400 V model
• Plastic wheels at the rear.
• Rubber feet at the front
• Simple design arch
• Compressed air tank with safety valve and condensate drain valve.
• All safety devices
• Completely wired

EQUIPMENT

Pressure regulation     Pressure regulator

Automatic pressure switch ✔

Drive transmission V-belt

Material of the compressed air line Aluminum

Compressed air outlet One one-hand quick coupling

Condensate drainage Condensate drain valve

Pressure vessel Powder-coated

Tested by ZÜS Tests before commissioning can also be carried out by a qualified person.

Compressor base Two wheels, two rubber stops.
