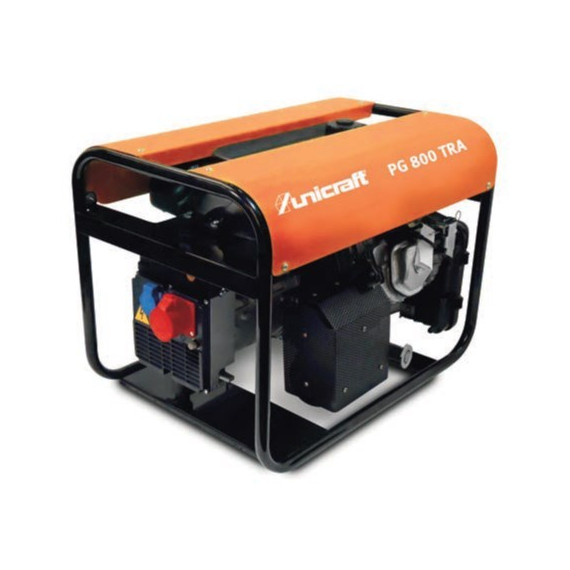

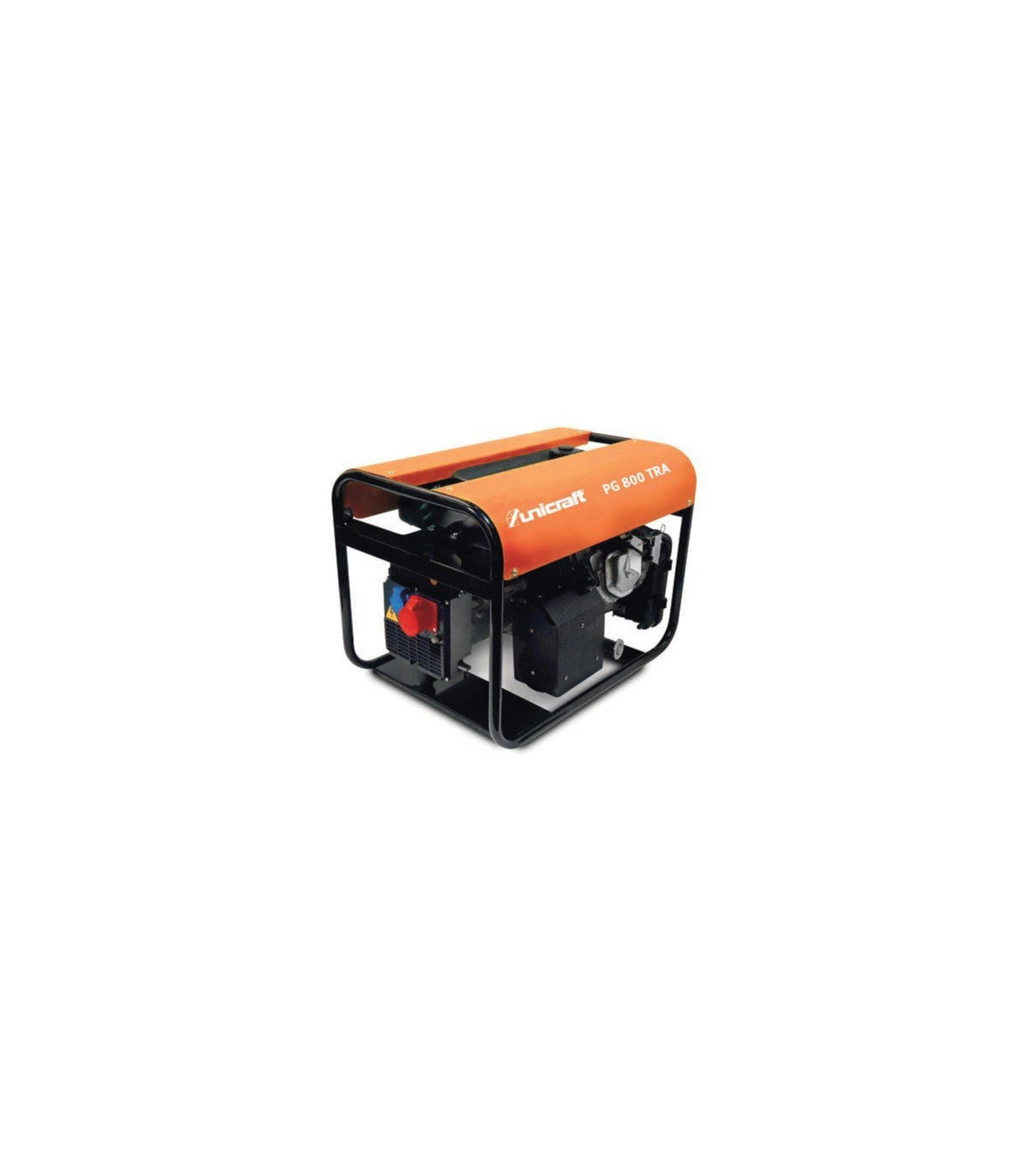

Synchronous power generator PG 800 TRA UNICRAFT

Synchronous power generator PG 800 TRA UNICRAFTG. Synchronous generator, designed for demanding customers and professional use. Very suitable for machines with high starting current and for powerful tools.

Especially suitable for machines and electric tools that are difficult to start.

Long operating times thanks to the large 11l tank.

Electronic voltage control AVR Splash and impact protection through sheet metal covers.

Ergonomically favorable connections at the end.

Overload protection via thermal protection switch.

Shutdown due to lack of oil.

Short-term power of up to 3 times the rated power.

Universal use for 230 V and 400 V consumers.

Quality Made in Europe.

FEATURES

Great autonomy thanks to an 11 l tank.
Electronic voltage regulation AVR.
Sheet metal coating for impact protection.
Ergonomic connections at the front.
Overload protection via thermal switch.
Automatic disconnection due to lack of oil.

TECHNICAL DATA

Dimensions and weights

Approximate length: 729 mm

Approximate width/depth: 500 mm

Approximate height: 536 mm

Approximate weight: 81 kg

Drive

Drive: Honda GX390

Performance factor: 0.8 / 0.9 Cos ɸ 230V/400V

Starter: Manual start

Fuel: Gasoline

Tank capacity: 11 l

Sound pressure level Lp: 72 dB(A)

Sound power level Lw: 97 dB(A)

Maximum tilt load: 30 %

Power generator

Nominal voltage: 230 / 400 V

Apparent power in LTP: 4 / 8.3 kVA

Power in LTP: 3.4 / 6.6 kW

Apparent power in COP: 3.7 / 7 kVA

Power of the COP: 3.15 / 5.6 kW

Generator protection class: IP 23

Plug version: 1 x 230 V Schuko, 16 A / 1 x 400 V, 16 A

Plug protection class: IP 44

VPE: 1

WHAT TYPE OF WORK IS IT SUITABLE FOR

Construction: Ideal for powering heavy electric tools, such as saws, drills, and compressors. Its high starting current makes it suitable for this type of machinery.

Outdoor events: Used to power sound equipment, lighting, and other temporary installations at concerts, fairs, and festivals.

Agriculture: Can be used to power water pumps, agricultural machinery, and other devices during outdoor activities.

Emergencies: In power outage situations, this generator can provide a reliable power supply for homes and businesses, ensuring continuity of operations.

Maintenance and repair: Used by technicians and contractors who require power at sites where there is no access to the electrical grid.

CERTIFICATION

Stürmer Group Quality Management System certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
