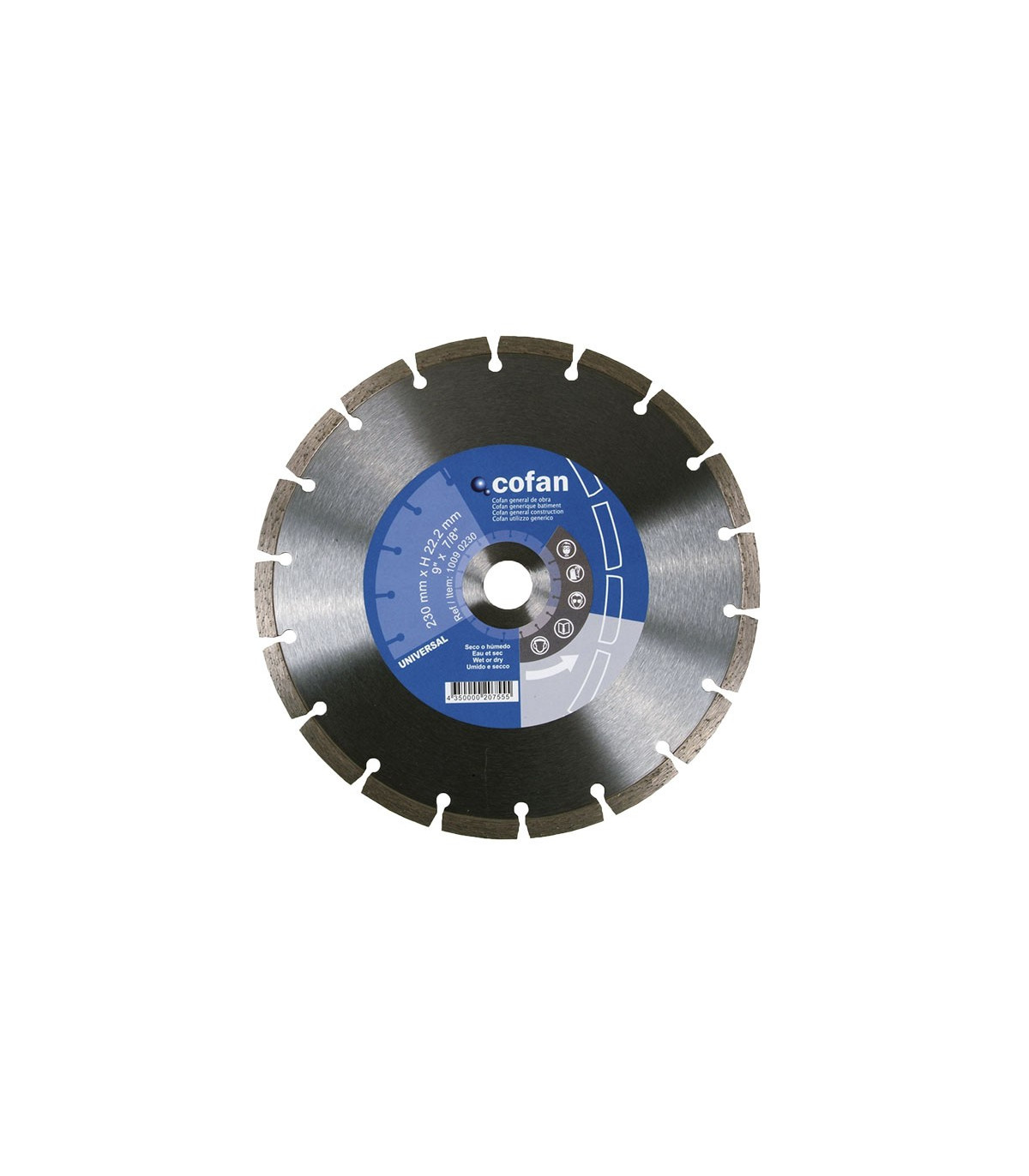

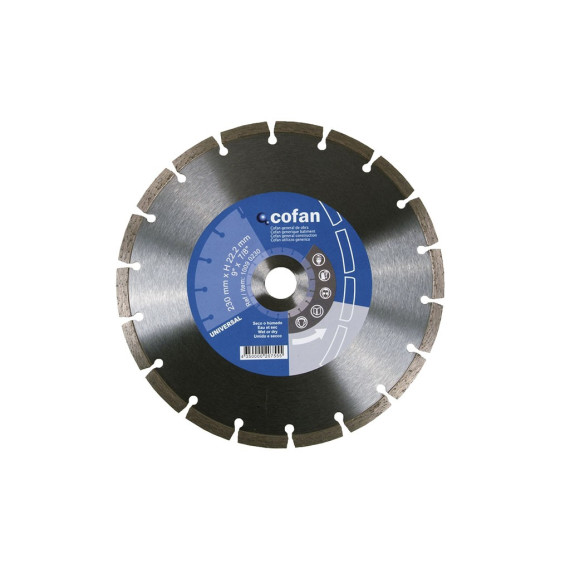

Universal base diamond discs COFAN

The Segmented Diamond Discs Cofan Universal Standard Base offer you a versatile and efficient cutting solution for a wide range of construction materials, both dry and wet. Their robust design and manufacturing with high-quality materials ensure precise, fast, and durable cuts, making them the ideal tool for construction and masonry professionals.

Excellent cutting in dry or wet conditions. 22.2 mm shaft

FEATURES

• Manufactured with selected diamonds and a durable metal matrix that ensures precise, clean, and long-lasting cuts in various construction materials.
• Their robust and well-distributed segments optimize cutting capacity and dust removal, improving the performance and cooling of the disc.
• Suitable for cutting a wide range of construction materials, including brick, block, concrete, natural stone, tiles, ceramics, among others.
• Can be used both dry and wet, adapting to the user's needs and preferences.
• Universal 22.2 mm shaft: Compatible with most angle grinders on the market, providing wide compatibility and ease of use.

TECHNICAL DATA

The discs must conform to the dimensions and shapes defined in plan No. 2-03-001.

The core must be free of cracks, folds, and any type of surface defects that could cause any mishap.

NORMATIVE

ISO 9001:2000

International standard for IT service management. This standard has been published by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC).

EN 12413

The EN 12413 standard, titled "Safety requirements for bonded abrasive products," establishes safety requirements for rotating bonded abrasive products such as grinding wheels, cutting discs, and mounted points. Its aim is to prevent accidents and injuries during the use of these products.

WHAT TYPE OF WORK IS IT SUITABLE FOR

For angle grinders of any power.

Simply applying light pressure achieves very good cutting quality in construction materials.

The cutting discs are very resistant to impacts and prevent fragmentation during continuous cutting operations.

USES AND APPLICATIONS

• Grinding and leveling of weld beads on all types of metals, removal of burrs.

• Grinding of hard layers on surfaces and deep oxidations. They are designed to be used on polishing or cutting tools, both pneumatic and electric, with a maximum rotational speed of 8,500 to 13,300 RPM (depending on size).

USAGE INSTRUCTIONS

Do not use cutting discs on tools without protective guards. The guard must cover at least half of the disc. Never exceed the maximum rotational speed of the disc. Do not tighten the disc too much when installing it on the machine, as this could cause breakage.

The disc should not be forced against the workpiece during the cutting process until it reaches the point of stopping or halting the machine's motor. Only make straight cuts; do not bend the disc. Do not rest the machine on the disc when storing it. Before installing the disc, check it for cracks.

STORAGE

This product should be stored in its original packaging, in a place where the temperature is between 15°C and 26°C and the humidity is between 35% and 50%.

It should also be kept away from the ground, windows, and external walls. Improper storage can lead to a significant reduction in the quality of this product.

EXPOSURE CONTROLS AND PERSONAL PROTECTION

1. Eye protection: Use safety glasses to prevent metal particles or disc debris from entering the eyes during the cutting or grinding process.

2. Hand protection: Wear gloves.

3. Skin protection: Avoid contact with skin from dust and metal shavings generated.

4. Respiratory protection: Use authorized respirators. In this case, a dust respirator.

5. Ingestion: Not applicable

6. Recommended ventilation: Provide adequate extraction

PRODUCT LIFESPAN

5 years from the date of manufacture.
