Universal milling and drilling machine MH 35 V OPTIMUM

Universal milling and drilling machine MH 35 V OPTIMUM. The universal milling and drilling machine MH 35 V OPTIMUM stands out for its robustness and precision. It features a 60° swiveling head, an industrial motor with two speeds, and functions such as threading. Its design includes a spacious work table, tapered bearings for excellent concentricity, and an easy-to-use control panel.

FEATURES

• Robust and solid construction made of high-quality cast iron.
• Excellent concentricity thanks to tapered roller bearings, less than 0.015 mm measured at the spindle.
• 60° swiveling head.
• Optional cast iron base.
• Drill depth stop.
• Threading function.
• Height-adjustable protective screen with safety micro-switch.
• High-quality industrial motor with two speeds.

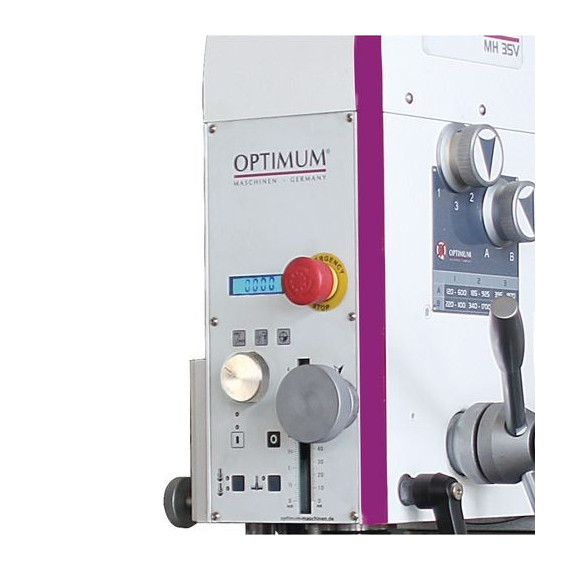

Control panel
· Easy to operate.
· Digital display.
· Emergency stop button.

Control panel functions
· Speed selection.
· Direction inverter.
· Threading function.

Rotary selector
· Spindle depth adjustment in mm/inches and reference point.

Tapered bearings
· Concentricity 0.015 mm at spindle.

Solid column
· Dove-tail guides.
· Maximum stability.
· Maximum precision.
· Protection with stainless steel sheet.

Manual spindle feed
· Coupling to switch from manual rapid feed to manual fine feed.

Work table
· Robust and large dimensions.
· Polished and precise finish.
· Adjustable with three handwheels.
· Adjustable stops.

Quick change anchoring system
· Milling head equipped with clamp for BT 30 x 45° bolts.
· Simple change by moving the spindle lever upwards.

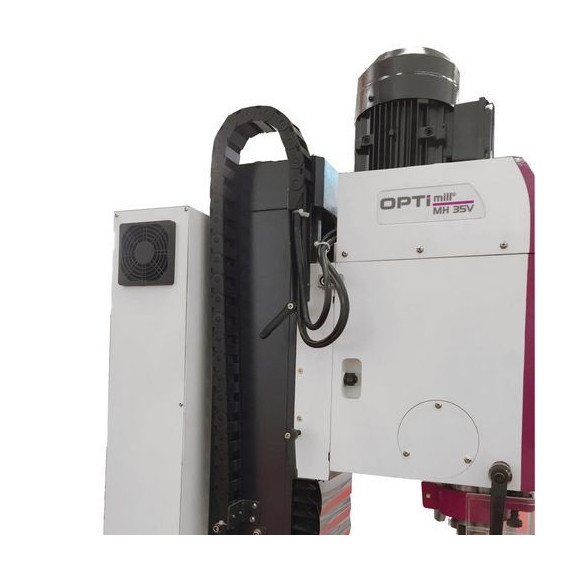

Articulated cable channel
· Chain-shaped for electrical wiring management.

TECHNICAL SPECIFICATIONS

WHAT TYPE OF WORK IS IT SUITABLE FOR

The universal milling and drilling machine MH 35 V OPTIMUM is suitable for:

• Manufacturing Mechanical Parts
• Machining Workshops
• Prototyping and Product Development
• Engineering and Industrial Design
• Maintenance and Repair of Machinery
