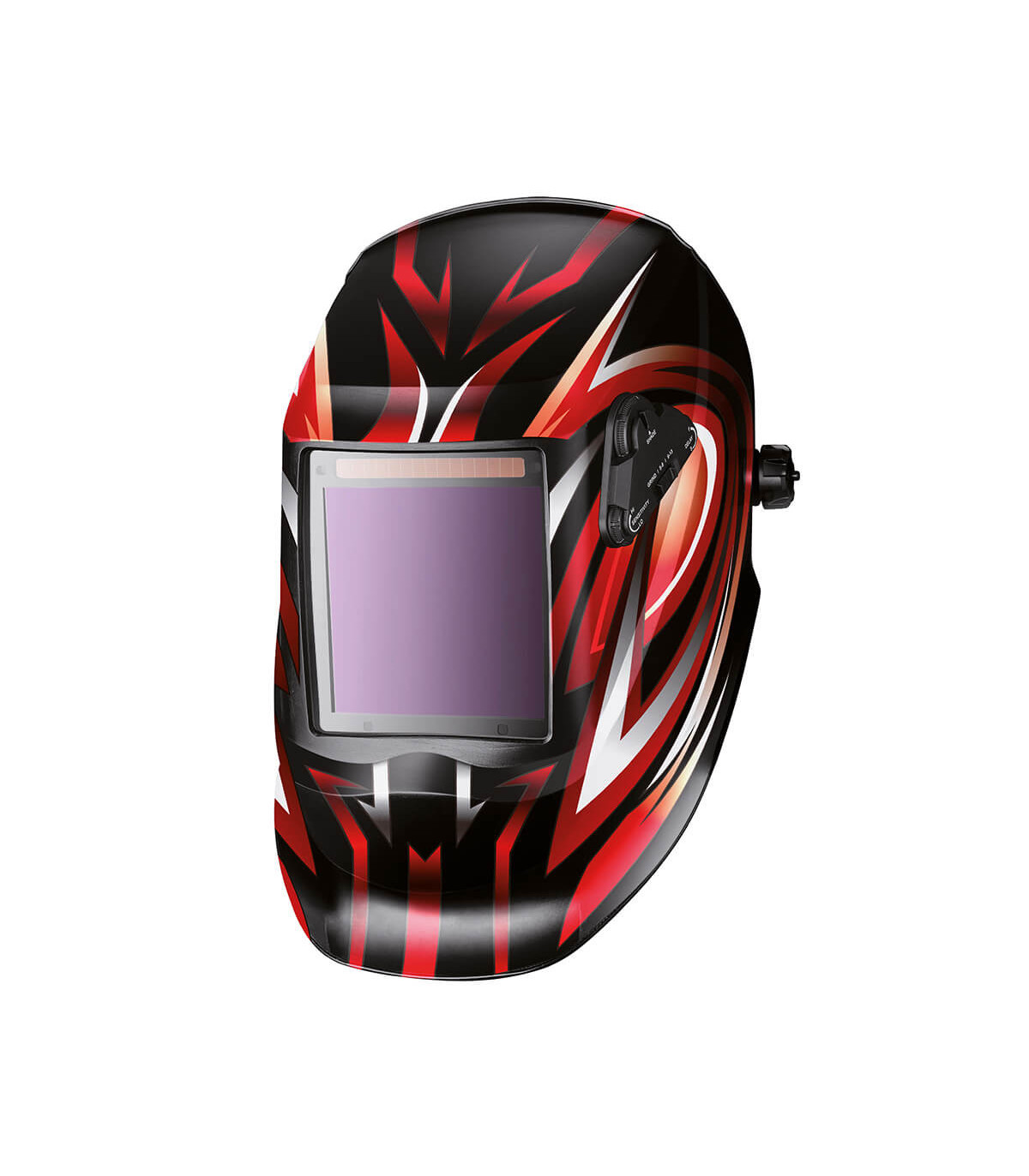

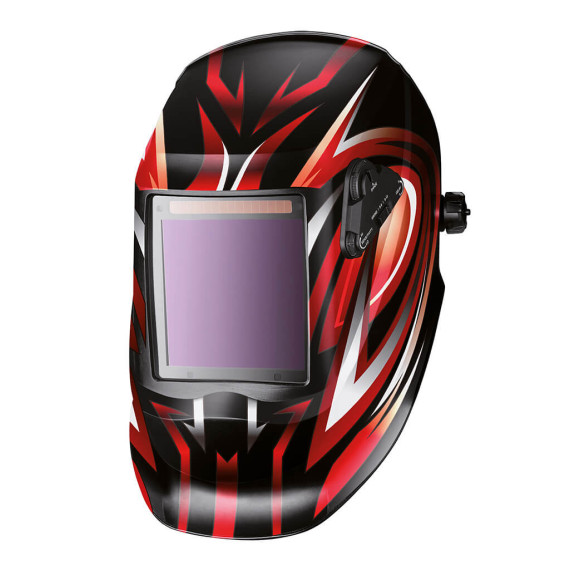

SAFETOP automatic welding screen with high-quality PROFILIGHT filter

Automatic welding helmet with maximum quality filter 1/1/1/1. Housing made of ABS and polyamide.

FEATURES

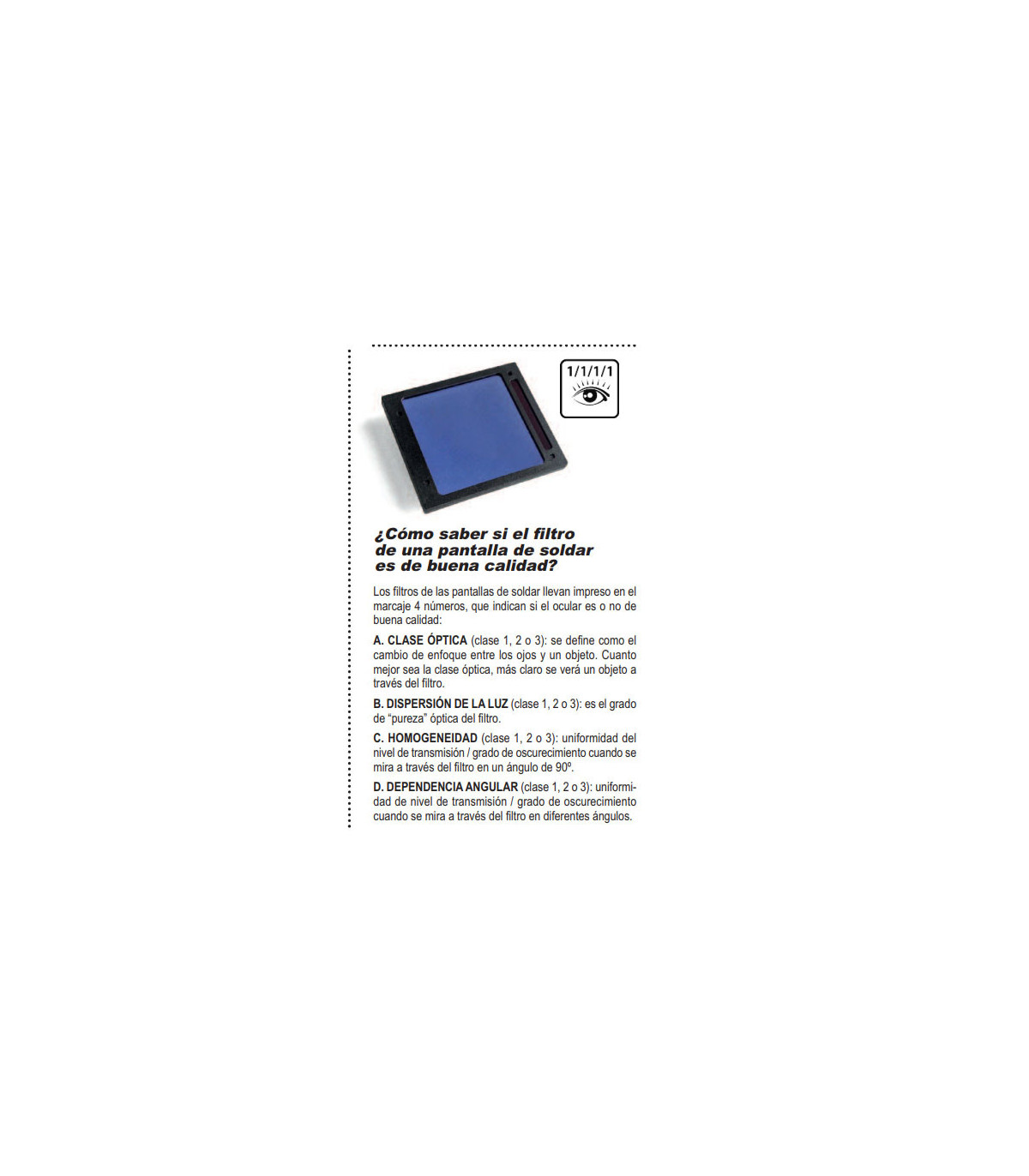

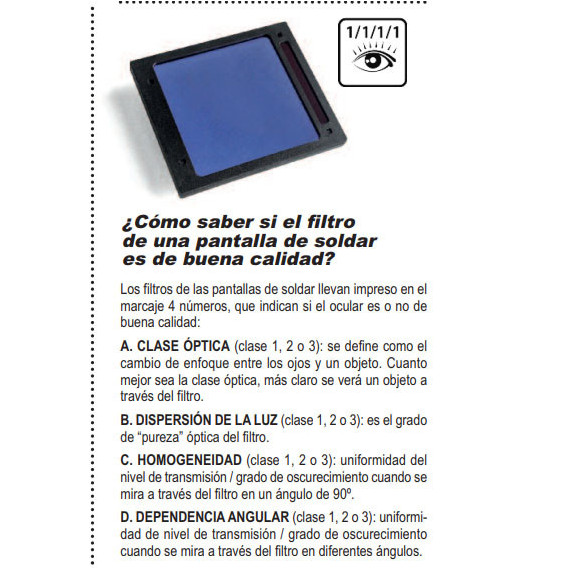

• Automatic welding helmet with maximum quality filter 1/1/1/1.
• Material: ABS and polyamide housing.
• Viewing area: 100x98 mm.
• Filter size: 133x115 mm.
• 4 sensors.
• UV/IR protection DIN 16.
• Variable shading scale DIN 5-8/9-13 (external).
• Grinding function: DIN 4 grinding function (external). Variable sensitivity (internal).
• Switching time: <1/30000 s
• Delay time: 0.1-1.0 s (variable, internal).
• Power supply: solar cell, no battery needed. UV/IR protection: DIN 16 (permanent).
• Operating temperature between -5ºC and 55ºC.
• Auto-check function and low battery indicator.
• Power supply: solar cell and lithium batteries (2 pcs).

MATERIALS

ABS and polyamide housing

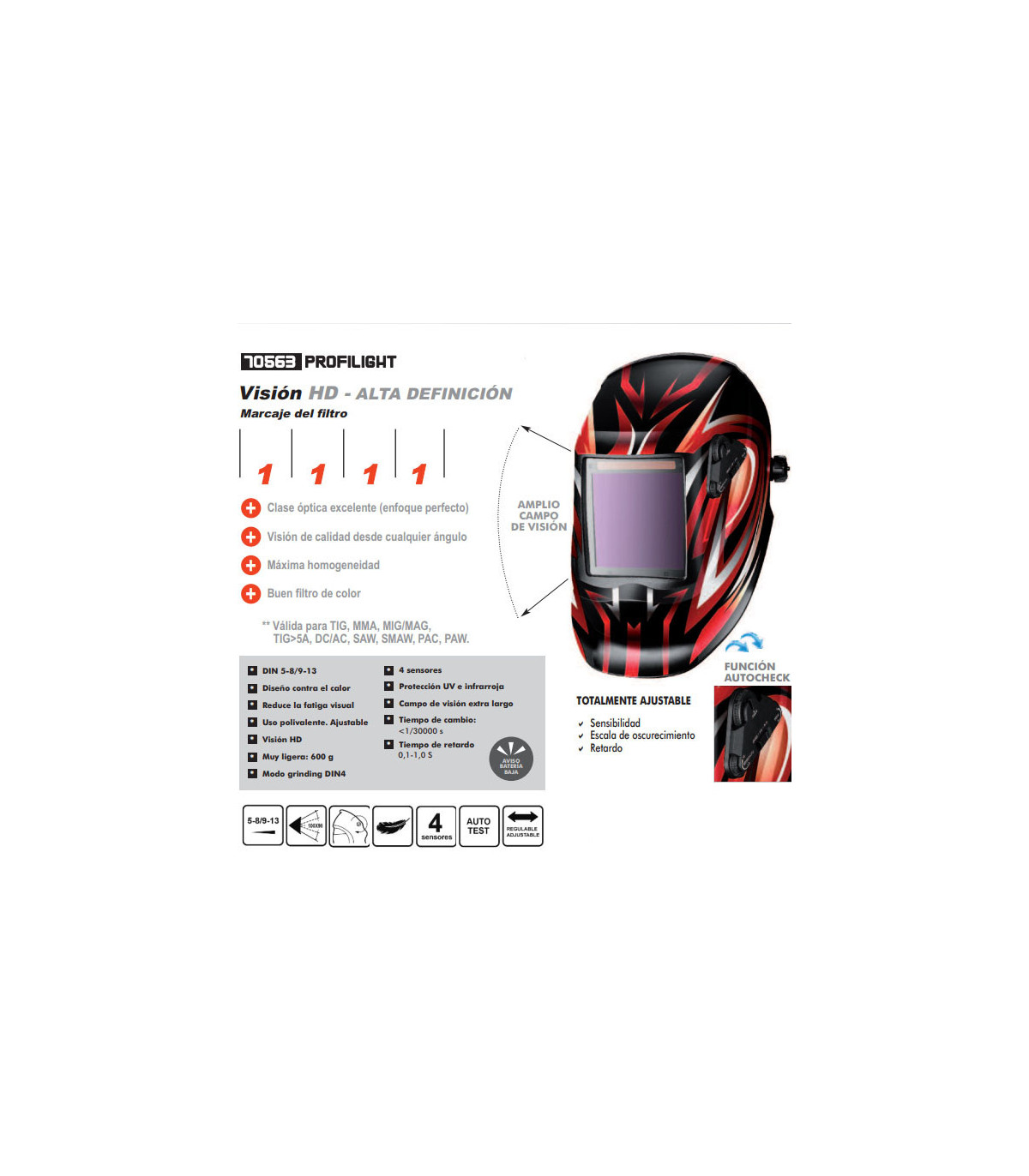

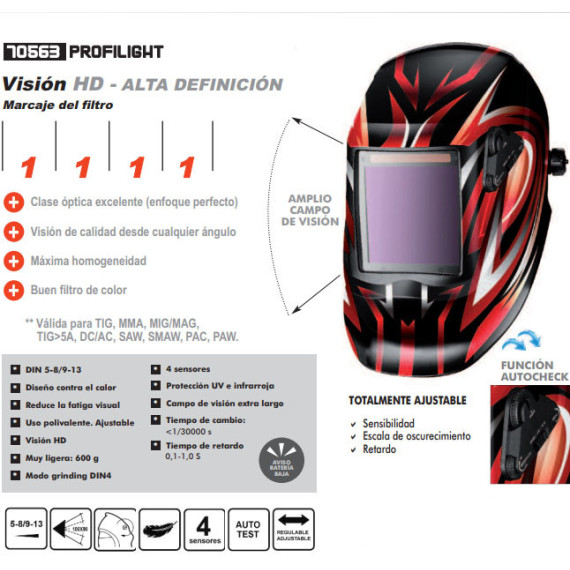

TECHNICAL DATA

• DIN 5-8/9-13
• Heat-resistant design
• Reduces visual fatigue
• Versatile use. Adjustable
• HD vision
• Very lightweight: 600 g
• Grinding mode DIN4
• 4 sensors
• UV and infrared protection
• Extra long field of view
• Switching time: <1/30000 s
• Delay time 0.1-1.0 S

APPLICATIONS

Suitable for TIG, MMA, MIG/MAG, TIG>5A DC/AC, SAW, SMAW, PAC, PAW.

CERTIFICATION

EN 175 F EN379

SPARE PARTS

70563-S: Head suspension

70563-I: Inner filter cover

70563-E: Outer filter cover

70563-C: Cassette 1/1/1/

PACKAGING

1 pc/ 6 pcs
