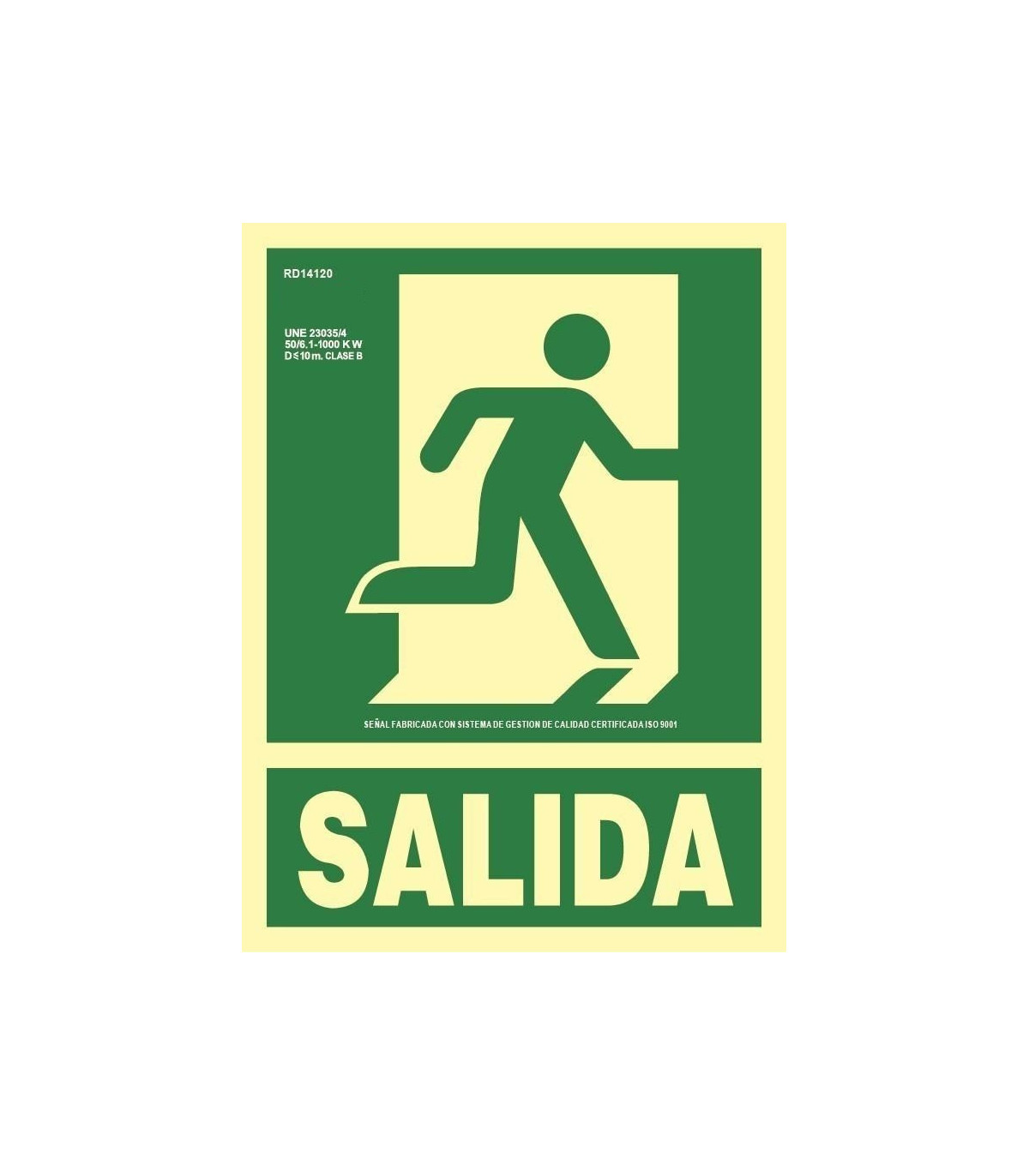

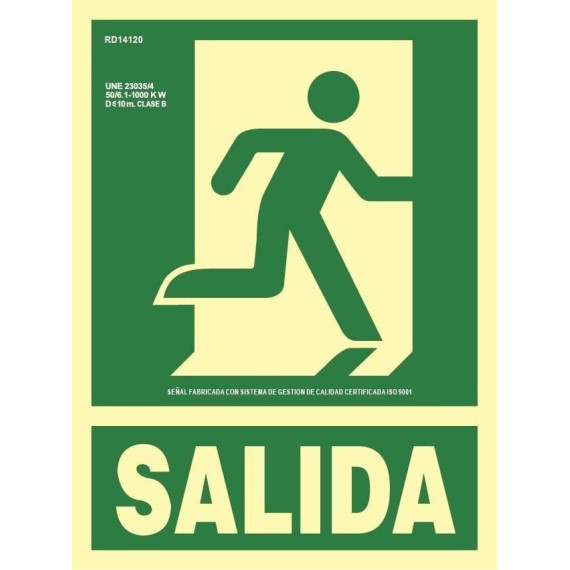

Exit sign right turn in aluminum Class A 210 x 300 mm SEKURECO

Right Exit Sign in aluminum Class A 224X300 SEKURECO.It is a durable and easy-to-install emergency and evacuation signal. The sign is made with a layer of photoluminescent pigment (after absorbing light, the product emits it in the dark, so it does not require any electrical source and the product can be charged an indefinite number of times).

The sign is used to indicate the doors and areas designated for emergency exits in buildings and enclosed spaces. It is suitable for industries.

An evacuation sign with the word "EXIT" serves to indicate the location of emergency exits in a building. These signs are essential for guiding people to the exits in case of an emergency situation, such as a fire, earthquake, or other dangerous situations.

The evacuation sign with the word "EXIT" is generally designed with large, clear letters, and is often placed in strategic locations, such as near exit doors or in hallways and corridors. This allows people to quickly identify the direction they should go to safely exit the building.

Additionally, these signs may also include arrows or directional indicators to show the exact route to the nearest exit. This helps people make quick and efficient decisions during an evacuation, especially in situations of panic or confusion.

In summary, evacuation signs with the word "EXIT" are essential for the safety of individuals in case of an emergency. They provide a clear and visible guide to the location of exits and help people evacuate quickly and safely from the building.

CHARACTERISTICS

• White PVC 1mm
• White lacquered aluminum with a thickness of 0.6mm.
• Stability with Ta < 55°
• Negligible water absorption (0.04, -0.01)%
• Without appreciable lead or phosphorus content (less than 0.01%)
• Non-toxic

FOR WHAT TYPE OF WORK IS IT APPROPRIATE

They must be installed in areas directly affected by sunlight or within the influence zone of lighting fixtures. A sign installed in a poorly lit area will not perform well.

BENEFITS

• Ink with great adhesion and resistance.

TECHNICAL DATA

• UNE23033/1:2019 (Extinction)
• UNE23033/2:2019 (Installations)
• UNE 23034/1998 (Evacuation)
• UNE 23035-1/2003
• UNE 23035-4/2003
• UNE 53127/2002
• UNE EN ISO 7010: 2012
• RD314//2006 (CTE)
• RIPCI2017 (Extinction)

PRODUCT IDENTIFICATION

According to standard UNE 23035/4:

• Name or brand of the manufacturer
• Manufacturing date
• Denomination (class A or class B as applicable)

According to RIPCI 513:

• Name or brand of the manufacturer

MINIMUM LUMINESCENCE VALUES AFTER SALT CHAMBER

CLASS A:

CLASS B:

CHARACTERISTICS

PVC SUPPORT MATERIALS

According to standard UNE 53127:

• White PVC 1mm for class A and transparent PVC 0.7mm for class B.
• White lacquered aluminum with a thickness of 0.6mm.
• Stability with Tª < 55º.
• Negligible water absorption (0.04 ± 0.01)%.
• Self-extinguishing.
• Without significant lead and phosphorus content (less than 0.01%)
• Non-toxic.

PICTOGRAMS

According to regulations:

• UNE EN ISO 7010
• UNE 23033/1

TEXTS

• According to standard UNE 23033/1

PHOTOLUMINESCENT PRODUCT

• Composed of pigments.
• Unlimited charge and discharge photo-luminescent cycles

COLOR

Tones according to standard:

• UNE EN ISO 7010
• UNE 23033/1
• Ink with great adhesion and resistance.
• It allows for great flexibility in the final product.
• Non-flammable. Non-toxic.

FINAL THICKNESS

Class A

• PVC 1.2 m/m (±10%).
• ALUMINUM 0.8 m/m (±10%).

Class B

• PVC 0.8 mm (±10%).
• ALUMINUM 0.7 m/m (±10%).

REFERENCE

• Printed on the sign

DIMENSIONS

• According to standard UNE 23033/1

COLOR PERCENTAGES

• According to standard UNE 23033-1

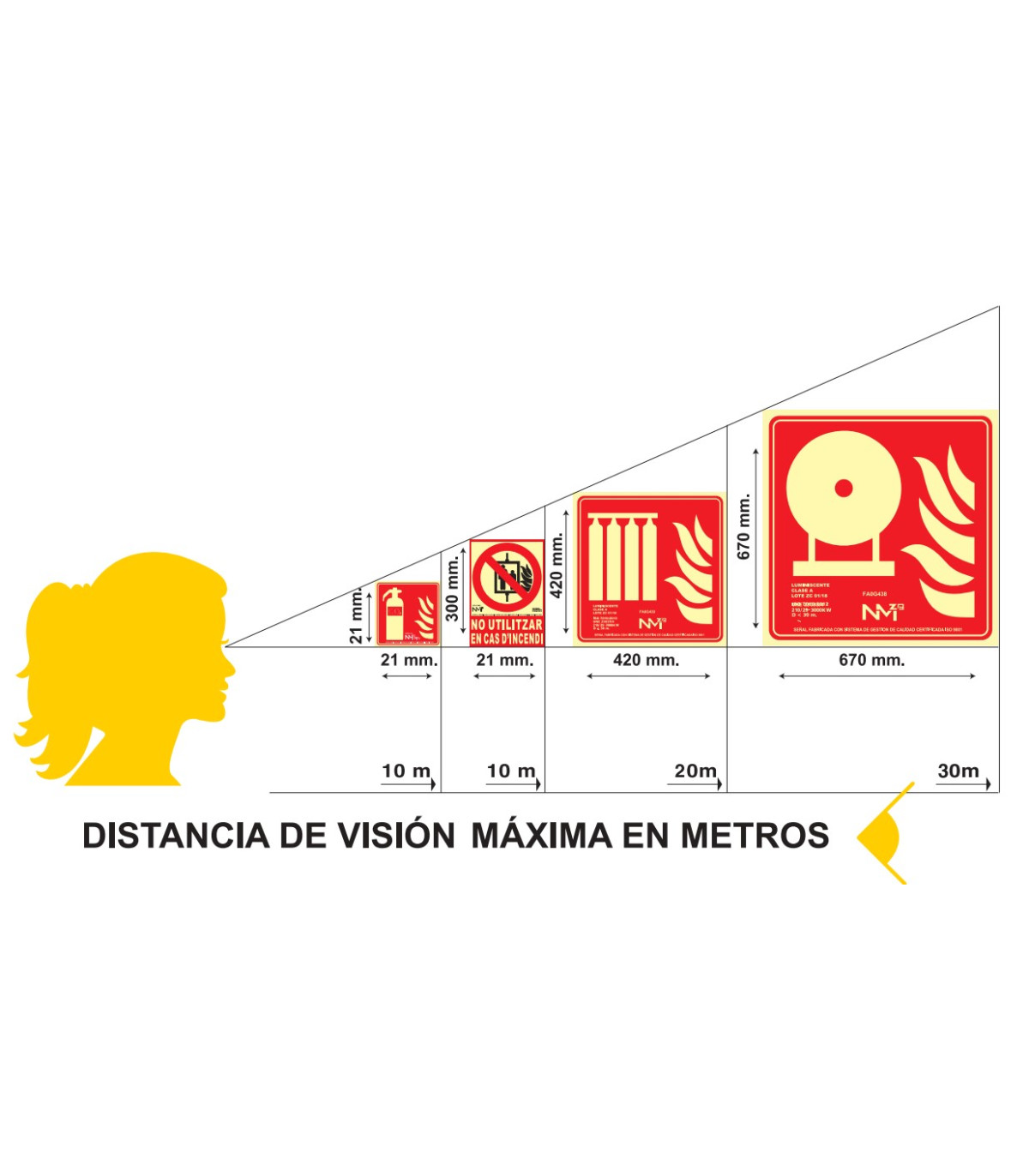

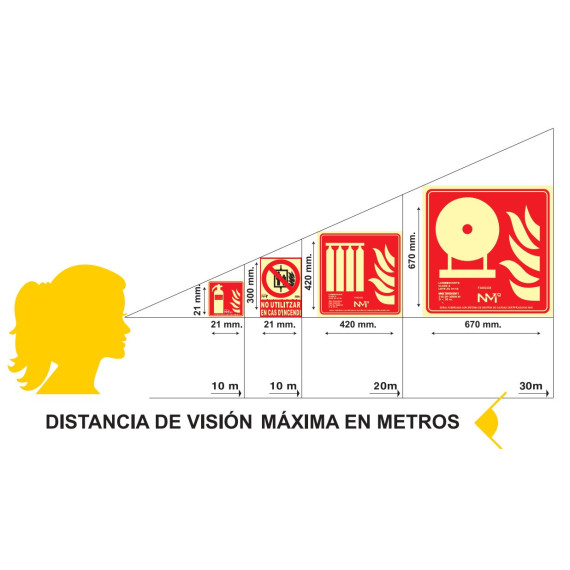

MAXIMUM VISION DISTANCE

• Printed on the sign.

To calculate the necessary dimensions of a signal, the following formula will be applied, up to a maximum distance of 50 m:

S ≥ L2 / 2000

"S" represents the surface area of the signal in square meters, and "L" the distance in meters from which the signal can be perceived.

MEASURES

• FA14920..............224X300

REGULATIONS

- UNE 23033/1:2019 (Extinction)

- UNE 23033/2:2019 (Installations)

- UNE 23034/1998 (Evacuation)

- UNE 23035-1/2003

- UNE 23035-4/2003

- UNE 53127/2002

- UNE EN ISO 7010: 2012

- RD 314/2006 (CTE)

- RIPCI 2017 (Extinction)

STORAGE, CLEANING, AND CONSERVATION

The working temperature should not exceed 45º C. Higher temperatures may deform the supporting material.

The optimal storage temperature will be between 15º C and 25º C, with a humidity of 10/50%.

Cleaning methods; avoid using abrasive products. It is recommended to clean them with water and neutral detergents.
