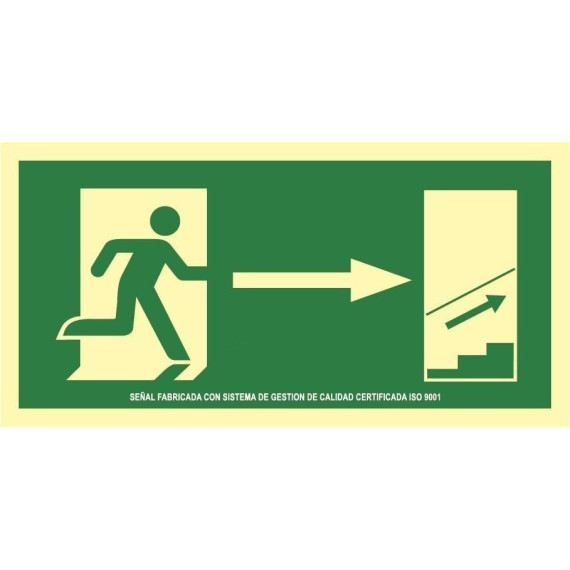

Evacuation signal Up Straw Stair in aluminum Class A SEKURECO

Evacuation sign Up Right step in aluminum Class A SEKURECO with luminiscent layer. It is a strong and easy-to-install emergency and evacuation signal. The signal is made with pigment layer photoluminiscent, (after absorbing light, the product emits it in the dark, so it does not need any electrical source and the product can be loaded an indefinite number of times).

The poster is used to signal walls and access spaces to stairs intended for emergency exit in closed buildings and spaces. Indicated for industries.

CHARACTERISTICS

• White PVC 1mm
• White lacquered aluminium of 0.6mm thick
• Stability with Ta . 55°
• Despicable water absorption (0.04, - 0.01)%
• No significant lead or phosphorus content (inferiors to 0.01%)
• Non-toxic

BENEFITS

• High adherence and resistance ink

TECHNICAL DATA

• UNE23033/1:2019 (Extinction)
• UNE23033/2:2019 (installers)
• UNE 23034/1998 (Evacuation)
• UNE 23035-1/2003
• UNE 23035-4/2003
• UNE 53127/2002
• UNE EN ISO 7010: 2012
• RD314//2006 (CTE)
• RIPCI2017 (Extinction)

FOR WHAT WORKING TIME IS ADOPTED

They must be installed in areas directly affected by sunlight or within a luminaire influence zone. A signal installed in a poorly illuminated area will not work with good performances.

BENEFITS

• High adherence and resistance ink

TECHNICAL DATA

• UNE23033/1:2019 (Extinction)
• UNE23033/2:2019 (installers)
• UNE 23034/1998 (Evacuation)
• UNE 23035-1/2003
• UNE 23035-4/2003
• UNE 53127/2002
• UNE EN ISO 7010: 2012
• RD314//2006 (CTE)
• RIPCI2017 (Extinction)

PRODUCT IDENTIFICATION

According to UNE 23035/4:

• Manufacturer name or brand
• Date of manufacture
• Denomination (class A or class B as appropriate)

According to RIPCI 513:

• Manufacturer name or brand

MINIMUM LUMINESCENCE VALUES AFTER THE SALT CHAMBER

CLASE A:

CLASE B:

CHARACTERISTICS

MATERIALS SOPORT PVC

According to UNE 53127:

• White PVC 1mm for class A and transparent PVC 0.7mm for class B
• White lacquered aluminium of 0.6mm thick.
• Stability with Ta . 55o.
• Absorption of despicable water (0.04 ±0.01)%.
• Self-extinguishing.
• No significant lead and phosphorus content (inferiors to 0.01%)
• Not toxic.

PICTOGRAMME

According to rules:

• UNE EN ISO 7010
• UNE 23033/1

TEXTS

• UNE 23033/1

PRODUCTO FOTOLUMINISCENTE

• Composed of pigment base.
• Unlimited upload and download photo-luminiscent cycles

COLOR

Tones according to standard:

• UNE EN ISO 7010
• UNE 23033/1
• High adherence and resistance ink.
• It allows great flexibility in the final product.
• Not self-inflammable. Non-toxic

FINAL SPACE

Class A

• PVC 1.2 m/m (±10%).
• ALUMINIO 0.8 m/m (±10%).

Class B

• PVC 0.8 m/m (±10%).
• ALUMINIO 0.7 m/m (±10%).

REFERENCE

• Print on the signal

DIMENSIONS

• UNE 23033/1

OF COLOR

• UNE 23033-1

MXIMA OF VISION

• Impresa on the signal.

To calculate the necessary dimensions of a signal, up to a maximum distance of 50 m, the formula:

S≥ L2 / 2000

“S” represents the surface of the signal in square meters, and “L” the distance in meters from which the signal can be perceived.

ACTION

Aluminium Class A

• FA11950...320x160
• FA18950.......632X316
• FA1K950.......948X474

NORMATIA

- UNE 23033/1:2019 (Extinction)

- UNE 23033/2:2019 (Instalations)

- UNE 23034/1998 (Evacuation)

- UNE 23035-1/2003

- UNE 23035-4/2003

- UNE 53127/2002

- UNE EN ISO 7010: 2012

- RD 314/2006 (CTE)

- RIPCI 2017 (Extinction)

AND CONSERVATION

The working temperature should not exceed 45o C. Higher temperatures can deform the supporting material.

The optimal storage temperature will be between 15o C and 25o C; and with a humidity of 10/50%.

Cleaning methods; avoid applying abrasive products. Clean them with neutral water and detergents is recommended.
