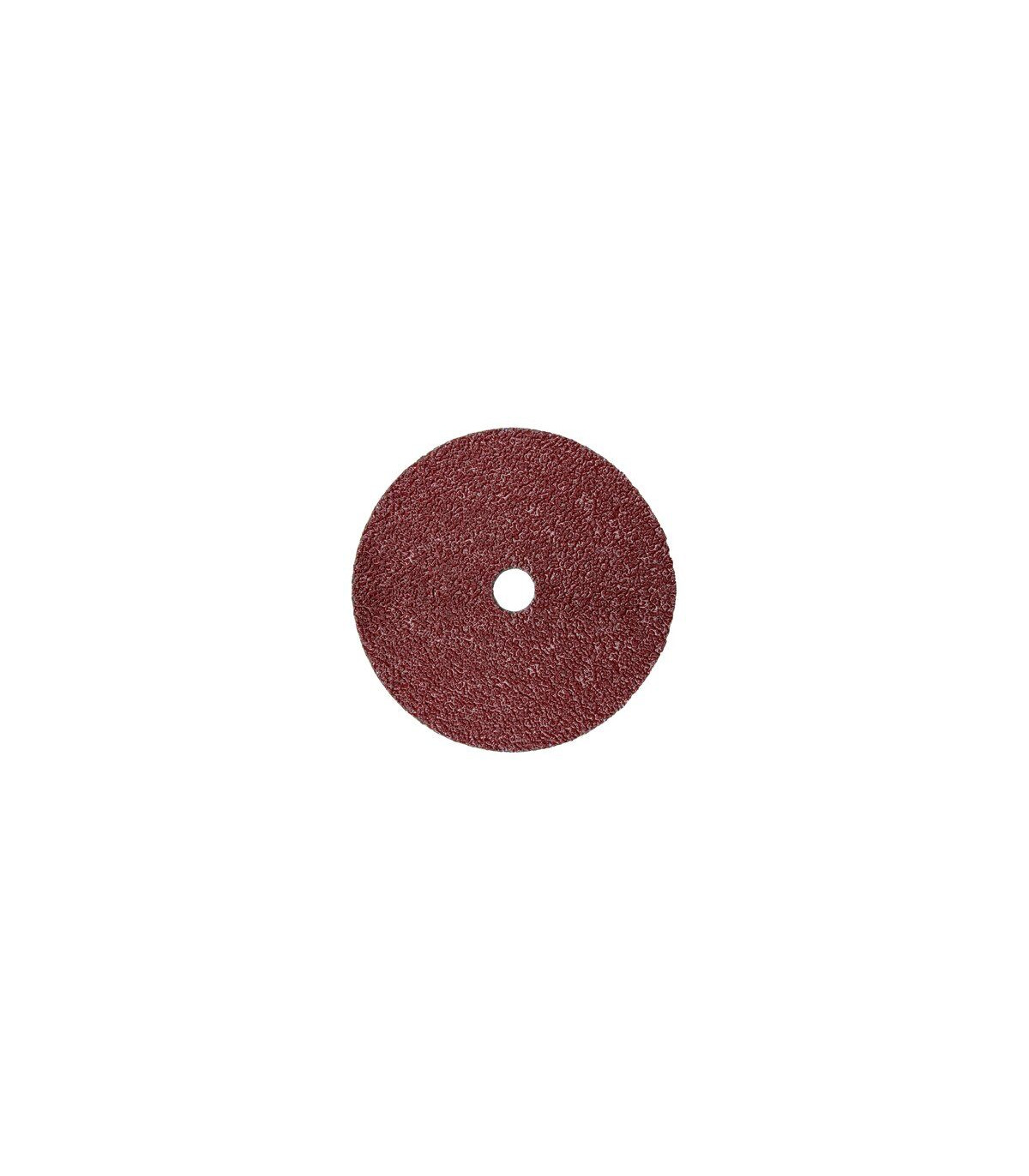

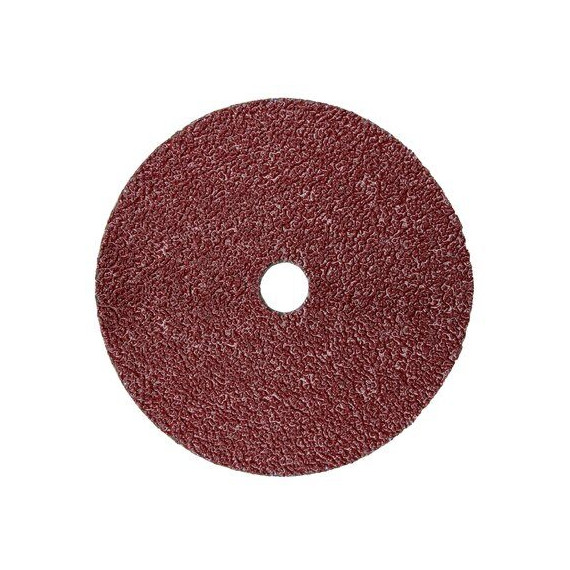

Fiber disc cubitron II 782C slotted with PSG 89714 (25 pcs) 3M

Fiber disc cubitron II 782C slotted with PSG 89714 (25 pcs) 3M.Different measures and grains.

The 782C disc 3Mtm is a fiber disk designed to offer an ultra fast cut in carbon steel. These discs present our advanced abrasive technology: the PSG precision grain 3M. Its rigid fiber support and adherence through a strong resin provide durability and wear resistance. These discs are compatible with disk supports and heads 3M (buy separately). Manufactured to offer ultra fast cut in carbon steel, 782C fiber disc 3Mtm offers exceptional cutting, duration and ease of use.

Our discs are an important advance in performance regarding conventional fiber discs. Thanks to advanced abrasive technology, they are an excellent choice for demanding applications, including the removal of welds, the outburst and the refinement of finishes. Its top-level performance allows you to face carbon steel applications Get a balance between cost and performance by selecting the abrasive that delivers the right amount of cutting and duration. These discs contain precision grain (PSG) to optimize the balance between speed and duration for many of your carbon steel operations. The manufacture of the disc includes a rigid fiber support and a strong resin that provides durability and tear resistance, which, together with the fast cutting grain, allows the operator to make more pieces with each disk and with less disk changes. The exceptional duration and cutting performance of 782C makes it one of the best sanding disks 3M for high-production environments, which provides significant advantages over conventional fiber disks. For those jobs in which an extra-premium fiber disc could be underutilized and when productivity is an important aspect of its final result, these discs offer exceptional performance. They are a great choice for a wide range of applications, including aspects such as edge slamming, biseding, swirling and welding removal.

Speed production with PSG precision grain 3M Developed to provide a better result of heavy materials removal, PSG precision grain technology 3M allows operators to perform finished tasks more quickly and with less effort. Since the grain is worn evenly and remains sharp, the PSG abrasives last significantly longer than their conventional ceramic counterparts, which ensures long-lasting performance in production applications. To achieve this level of performance, engineers 3M apply an exclusive micro-replication technology to create precise triangular structures of ceramic grain 3M and, later, they are electrostatically orientated in the support to form sharp peaks.

These ultra sharp peaks cleanly cut the metal instead of generating scratches or furrows as conventional abrasives do and continuously sharpen as the points break. Tips for optimal use Fiber discs are abrasives of intensive use that have rigid and resistant support made of vulcanized fiber that holds wear and is suitable for demanding sanding applications. For optimal performance, these disks should be used with a proper density support for the application, a lighter density support for lighter sanding applications and a harder density for more demanding sanding applications.

The use of the right support for the application ensures that the abrasive mineral is sharpened again, which increases the useful life of the abrasive. 3M designed for productivity peaks Engineers 3M Abrasives understand well the process of manufacturing abrasives. For over 100 years, 3M has been a leading supplier of abrasives of the metallurgical and timber industries and offers a full range of high-quality metallurgical solutions to meet the needs of your most demanding work. The 782C fiber disc is designed to allow operators to take production to a higher level by doing more work in less time. It's an excellent example of how science 3M provides advanced solutions to help industrial businesses act better and faster and more efficiently.

Previously confirmed with Sekureco.eu date of delivery approx.

CHARACTERISTICS

• High quality mineral ideal for demanding applications.
• Quick cut in carbon steel
• These discs present our advanced abrasive technology: the PSG precision grain 3M.
• These discs are compatible with disk supports and heads 3M (buy separately).

SPECIFICATIONS

22 mm

Total diameter (metric system)

115 mm

Product form

Disco

Grano

36+

Support material

Fiber

Sectors

Metal jobs

Sub Industries

Metal manufacturing

Type of hook

Central office

Mineral type

Ceramic with precise shape

Type of coating

Closed coating

Smaller unit for sale

Unit

Maximum speed

13300 rpm

BENEFITS

• The PSG precision grain 3M offers higher cutting rates.
• Reduce costs with durable abrasives: make more pieces than with conventional discs.
• Durable and resistant to tear.
• Its rigid fiber support and adherence through a strong resin provide durability and wear resistance.

APPLICATIONS

Use them for a wide range of applications, including aspects such as edge stinging, biseding, swirling and welding removal

For the 60+, 80+ and 120+ grains, the smooth red plate is preferably used as measured (PN64857, 64858 and 64859)
For grain 36+ it is recommended to use the hard red dish (striated) as measured (64860, 64861 and 64862).

TECHNICAL DATA

FOR WHAT TIPO OF TTRABAJO IS ADOPTED

Ideal for the most demanding applications, including the elimination of welding, biseding, cutting, bised and disbarred.

RECOMMENDATIONS OF ALMACENAMIENT

Store in the recommended conditions of (16-26°C / 35-50% rH) with a rotation “first in – first out”. Temperature and humidity conditions should be avoided outside these intervals. Note: The useful life of the product can be reduced if the original packaging is not properly closed or if the product is stored in an environment with high temperature or humidity.
