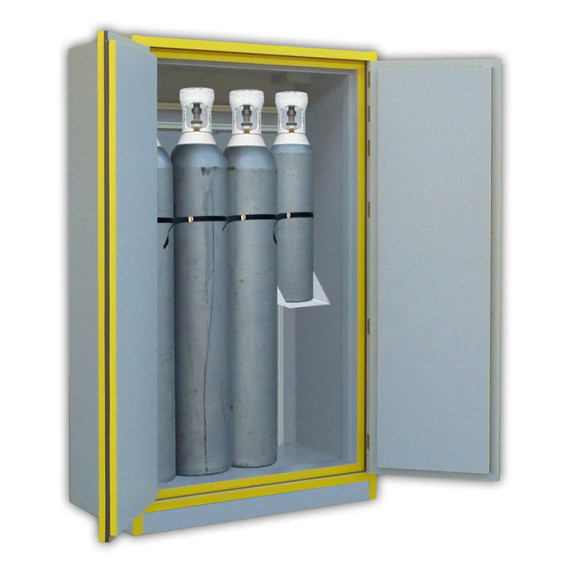

High security cabinet for compressed gas cylinders 2 Doors ECOSAFE

Tall safety cabinet for compressed gas cylinders 2 Doors - In 14470-2 7635BG. Type 30 tested and approved according to EN 14470-2 (04/2006) and EN 1363-1 (06/2000).

- Standardized labeling according to ISO 3864 and EN 14470-2. Regulations, and 92/58 / CEE

All models are delivered without interior equipment. They must, therefore, be equipped with rails to support the gas cylinders and access ramp.

FEATURES

• Tested and approved with the fire heating curve ISO 834 by a European laboratory.
• Non-manageable pedestal area by a forklift when removing the panel.
• Good overall chemical resistance.
• Passive safety:
• Air inlet and outlet ducts of Ø 100 mm for natural ventilation or connection with forced ventilation/filtration system.
• The thermoplastic seals of the door allow maintaining the interior.
• Non-combustible body.
• In case of fire, a fusible link automatically seals the ventilation system.
• Adjustable leveling feet to improve stability.
• Active safety:
• Built with double-walled melamine (thickness: 76 mm): good overall chemical resistance.
• Gray structure (RAL 7035), yellow edges (RAL 1023).
• Safety labeling according to EN 14470-2.

BENEFITS

• Fire resistance of 30 minutes according to the fire heating curve ISO 834.
• Door lock(s) with cylinder lock.

TECHNICAL DATA

• Type 30 tested and approved according to EN 14470-2 (04/2006) and EN 1363-1 (06/2000).
• Number of doors: 1
• Ventilation diameter (mm): 100
• Interior dimensions height x width x depth (mm): 1753 x 1048 x 458
• Storage capacity (L): 4
• Weight (kg): 447.00
• Standardized labeling according to ISO 3864 and EN 14470-2 regulations, and 92/58 / EEC of the European directive.
• Built with double-walled melamine (thickness: 76 mm)
• Gray structure (RAL 7035), yellow edges (RAL 1023).
• Safety labeling according to EN 14470-2.

CERTIFICATION AND REGULATIONS

Type 30 tested and approved according to EN 14470-2 (04/2006) and EN 1363-1 (06/2000).

Standardized labeling according to ISO 3864, EN 14470-2, and European directive 92/58/EEC.

APPLICATIONS

Fireproof cabinet for gas cylinders
