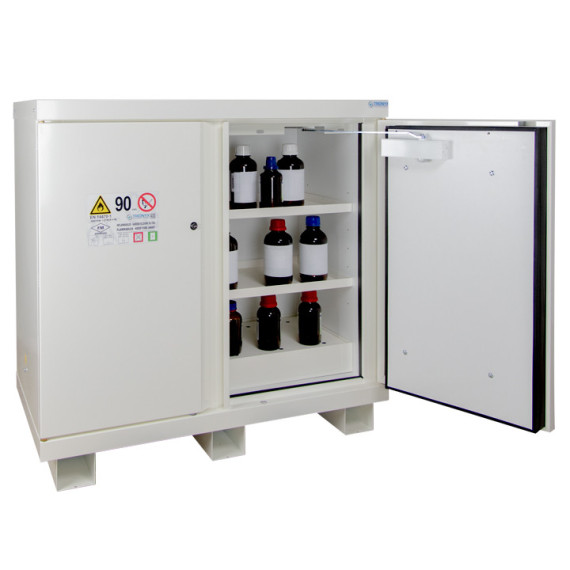

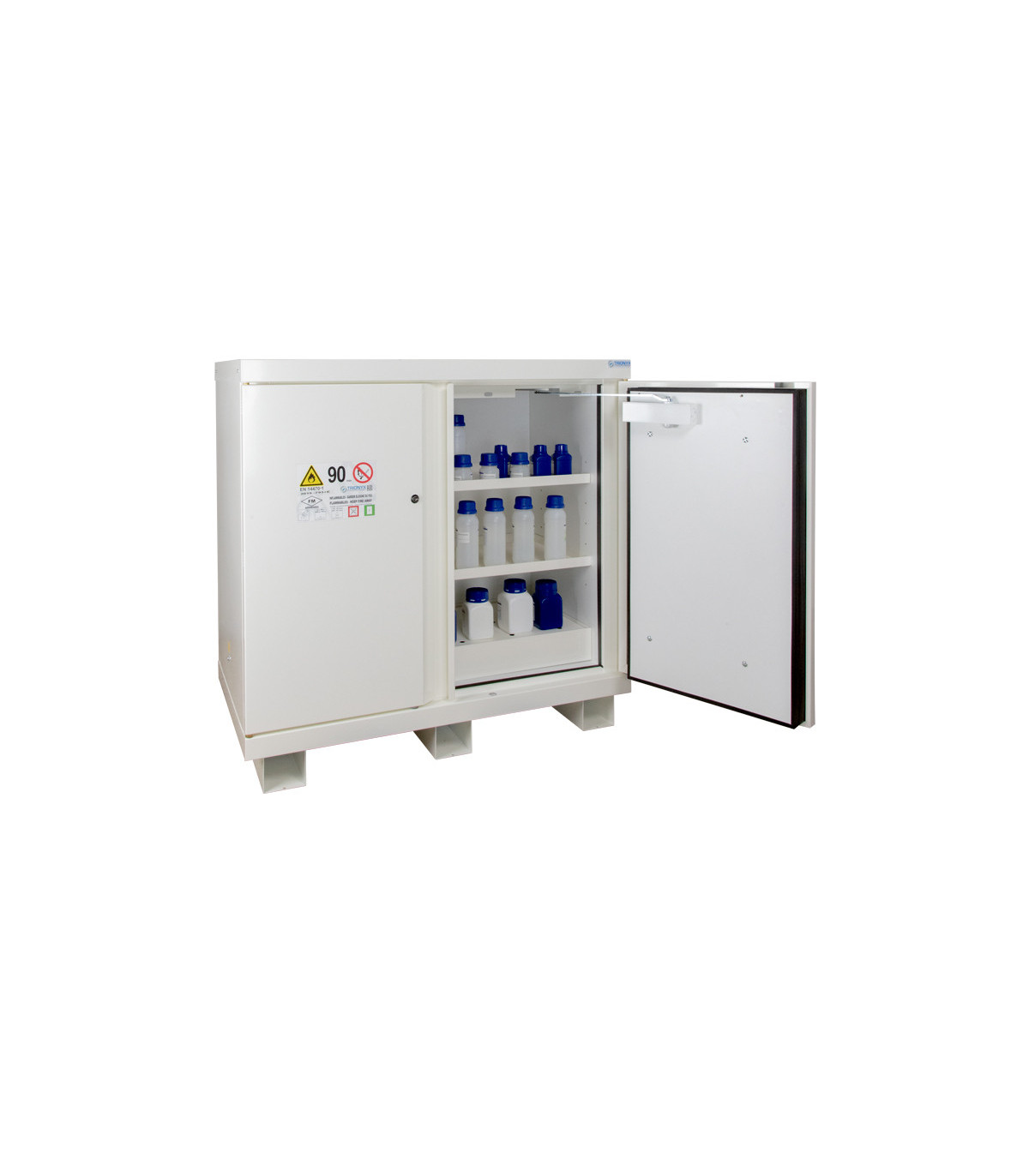

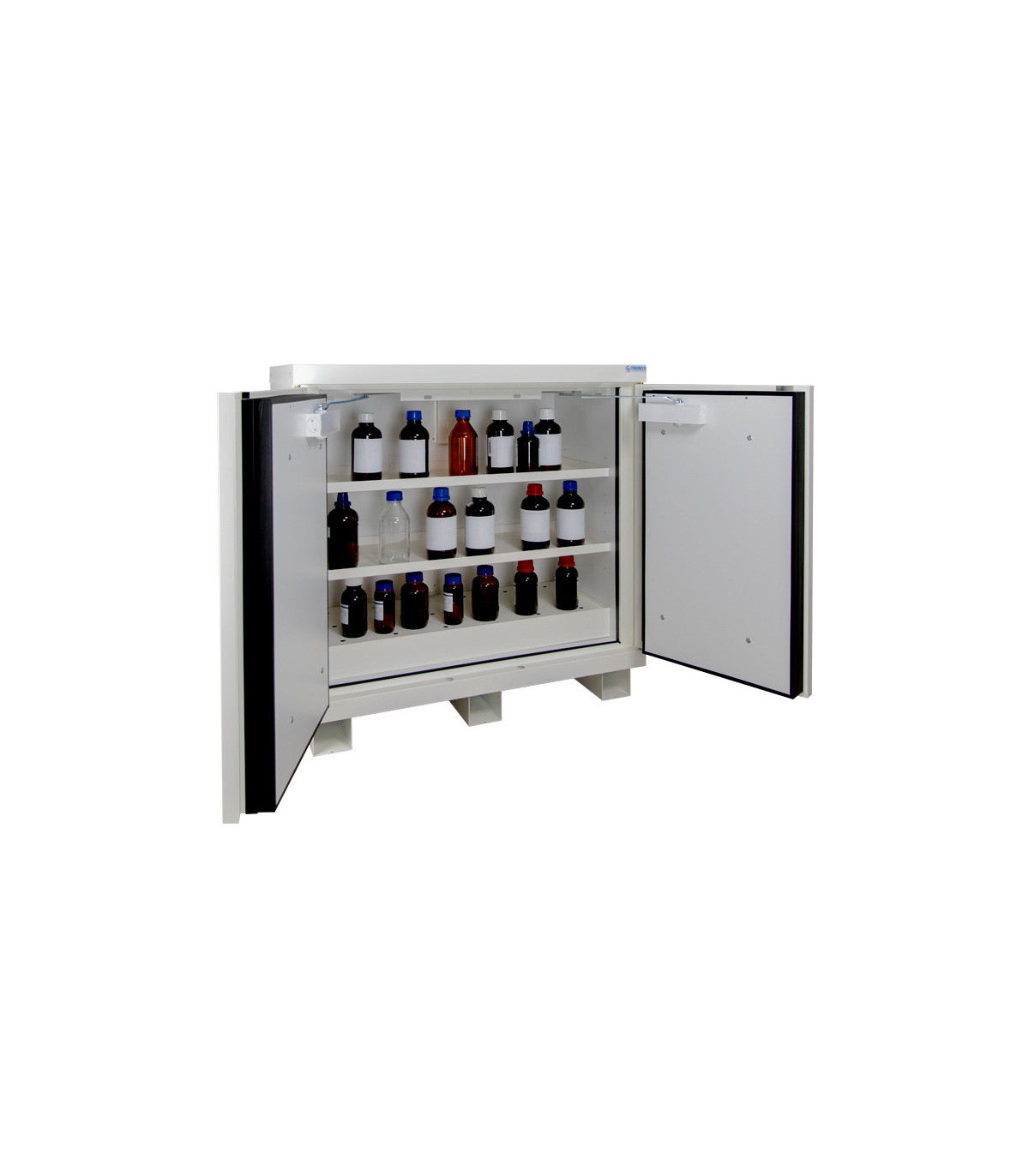

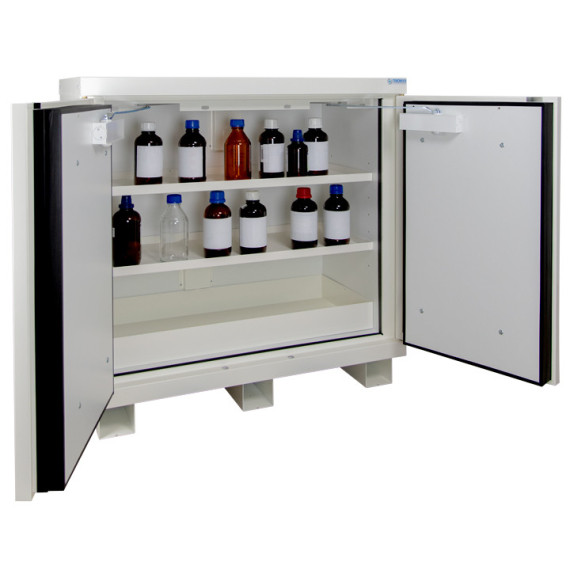

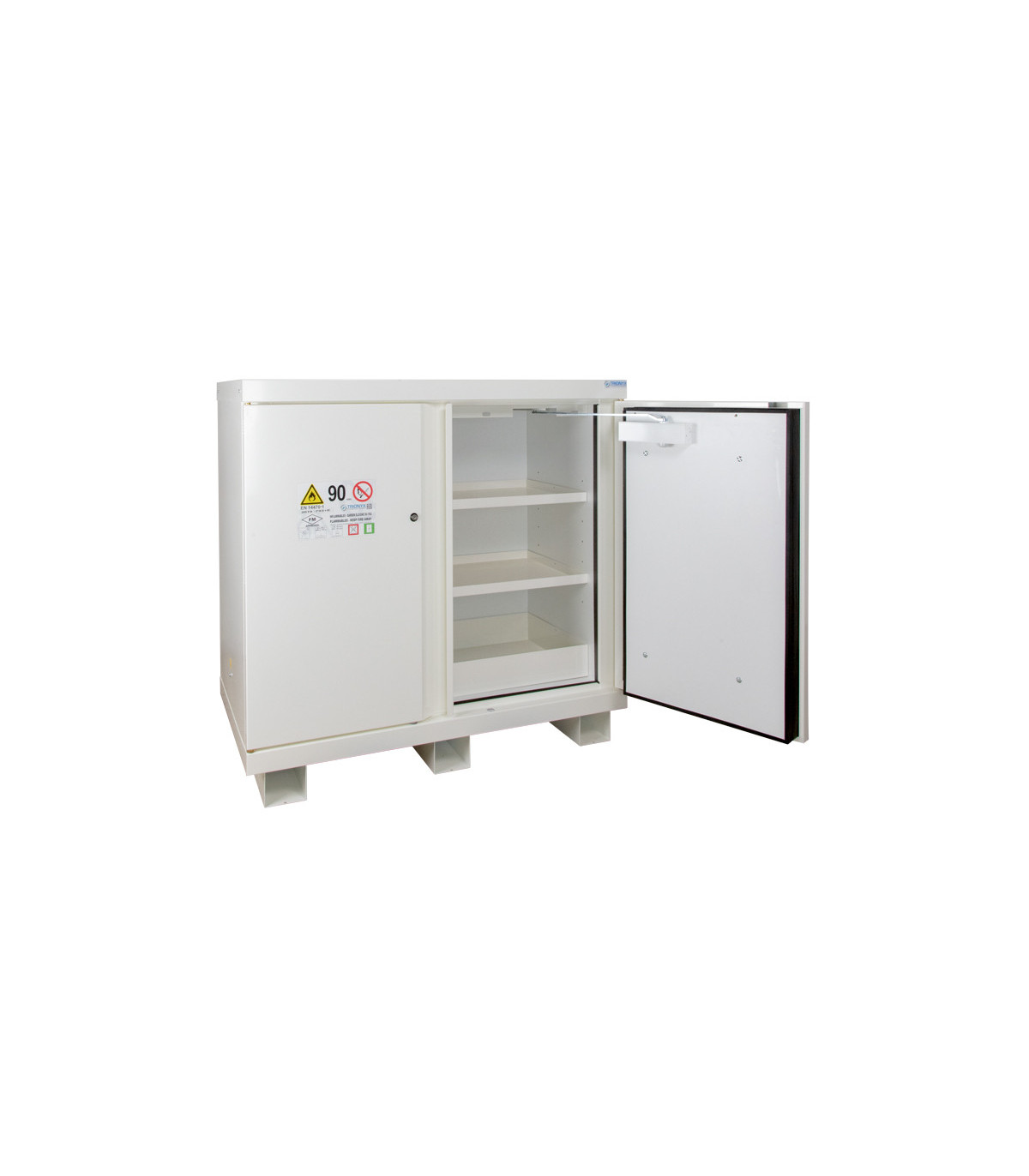

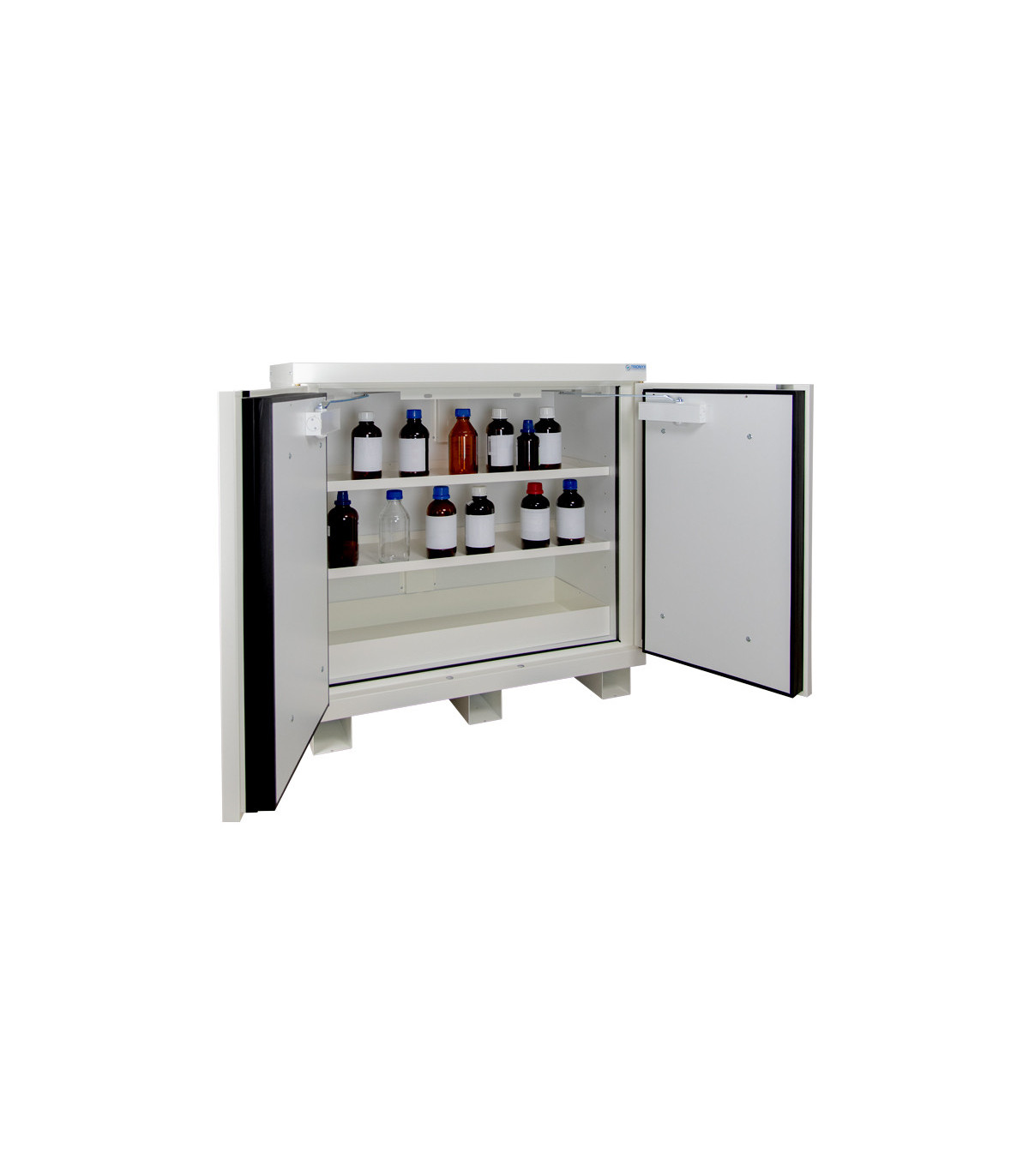

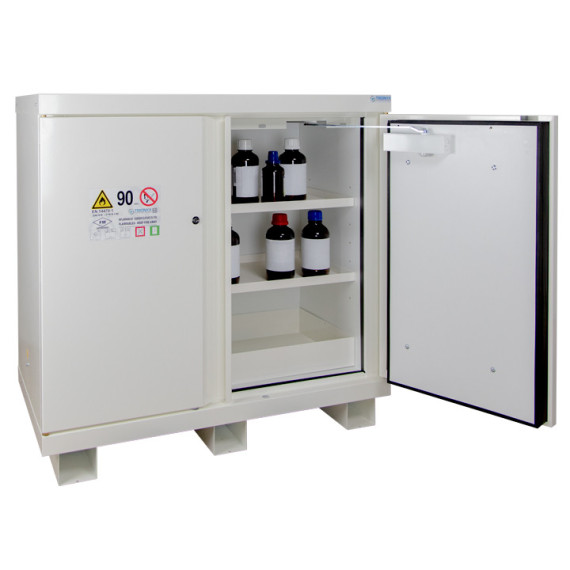

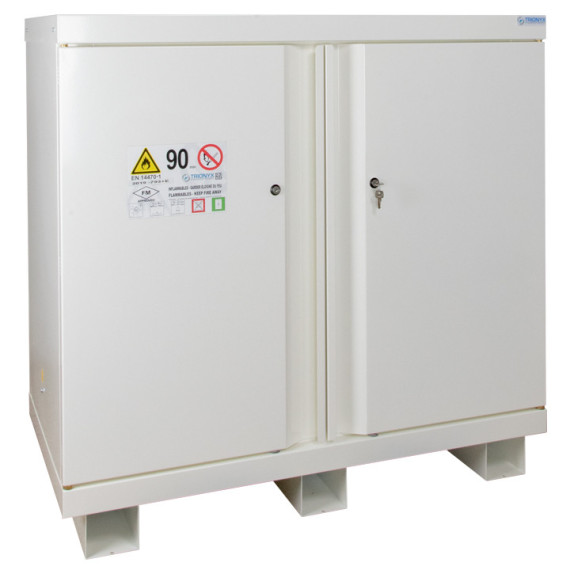

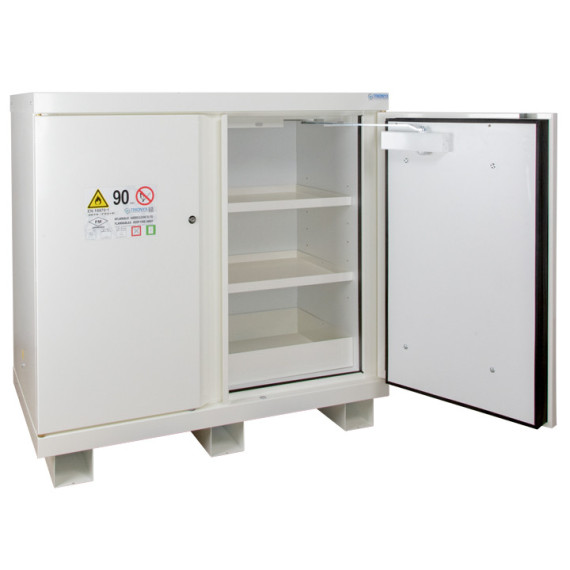

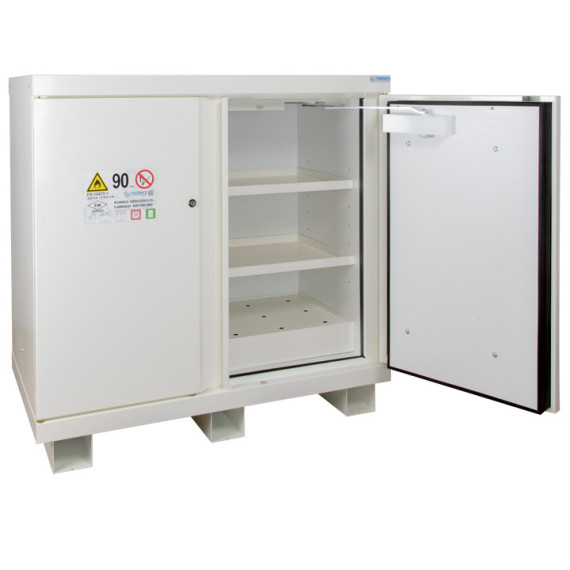

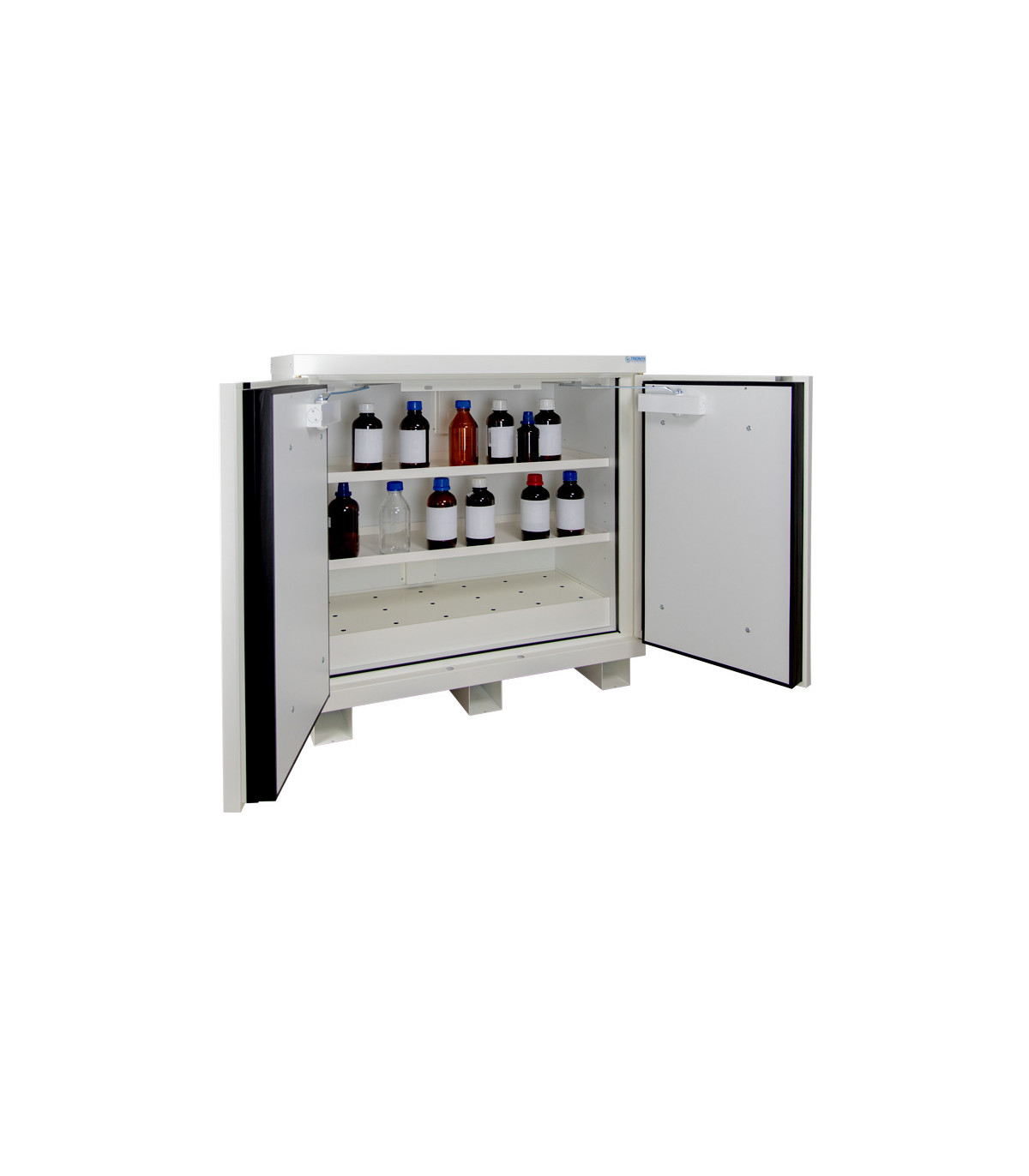

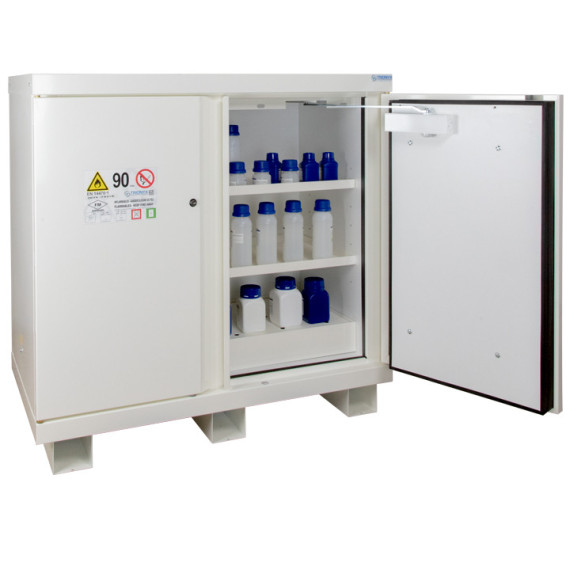

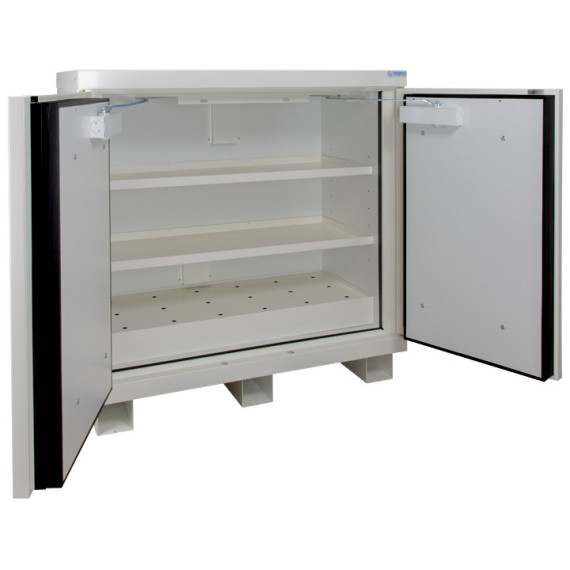

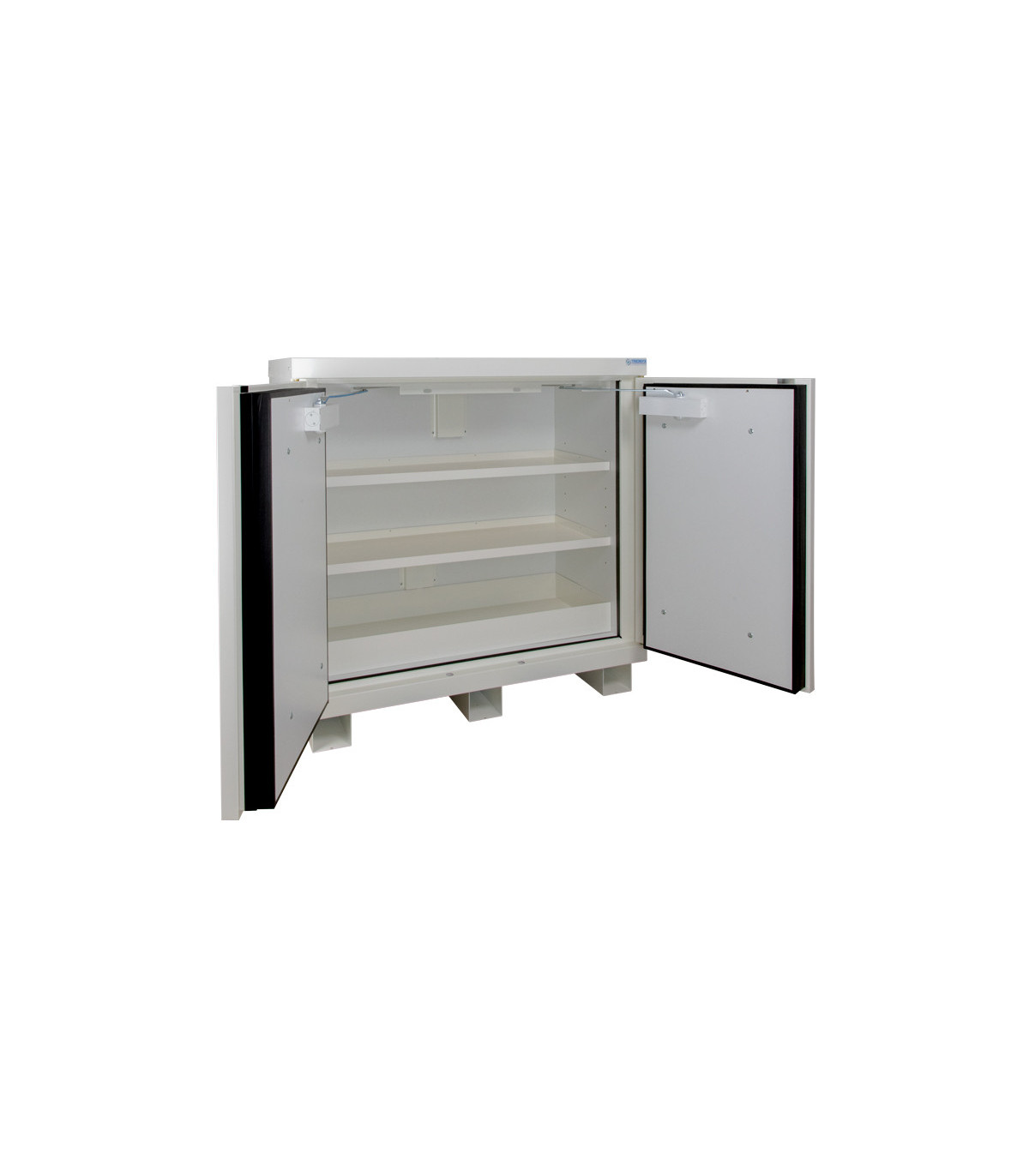

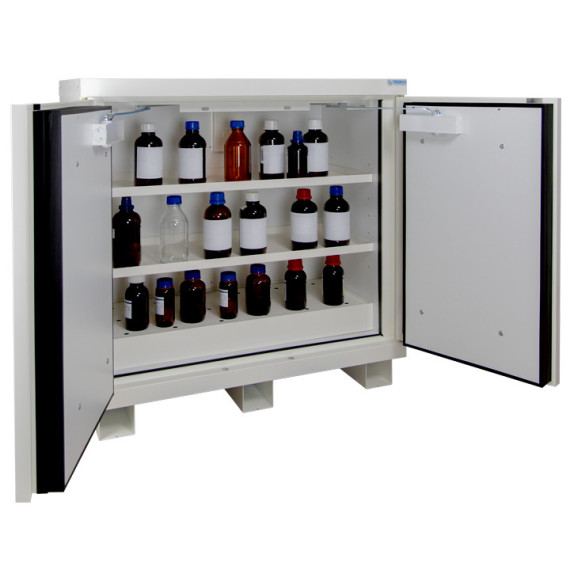

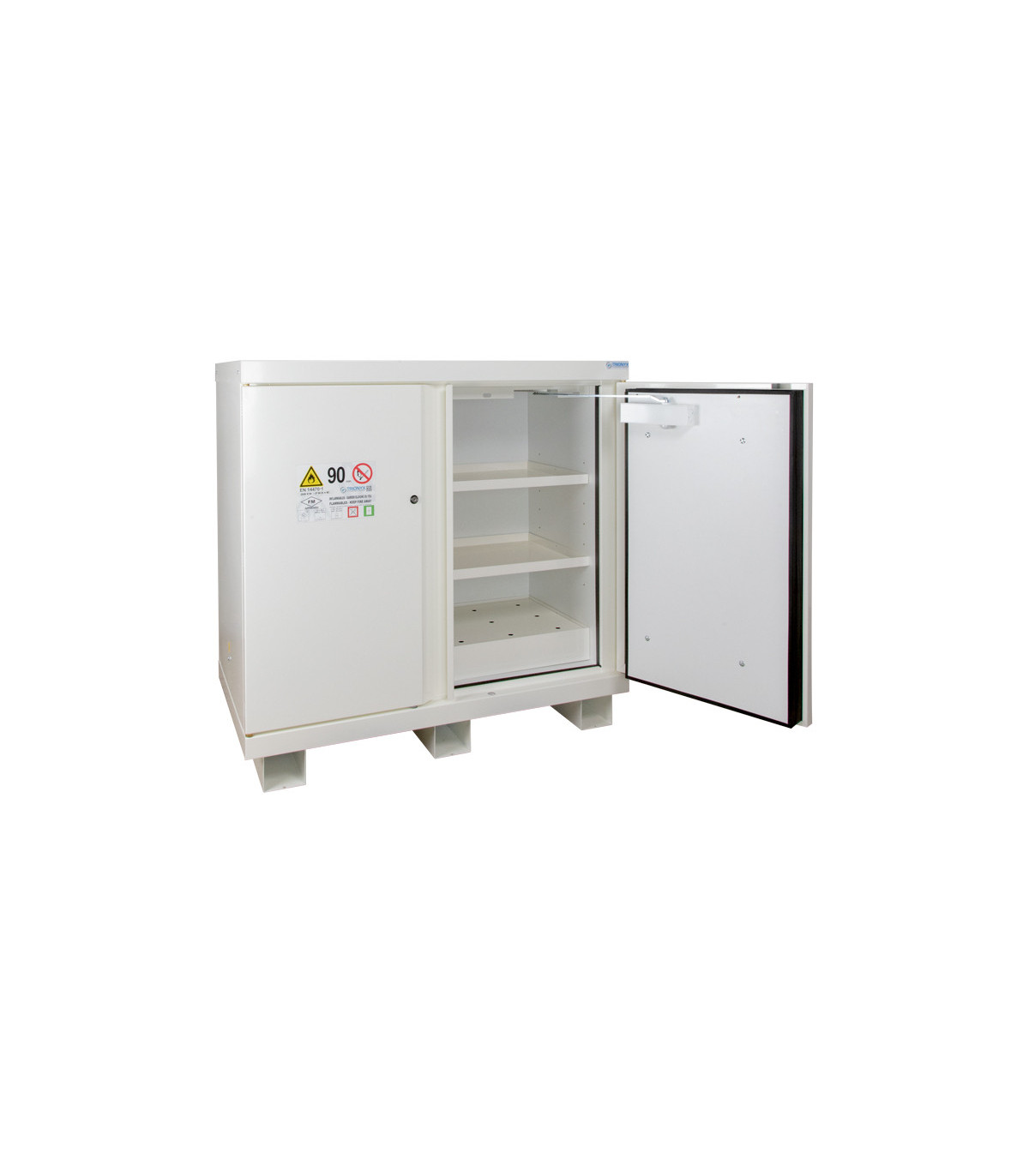

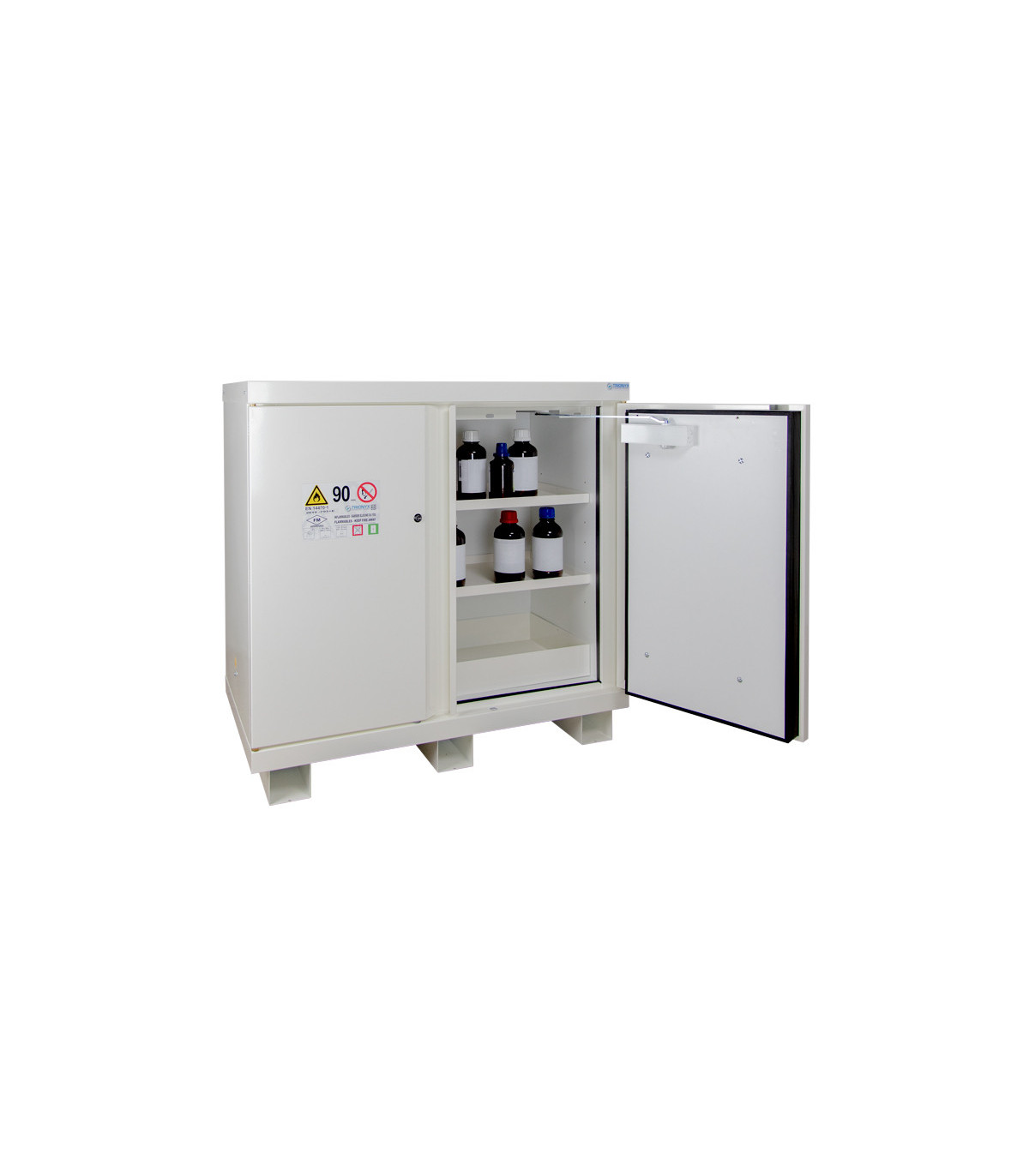

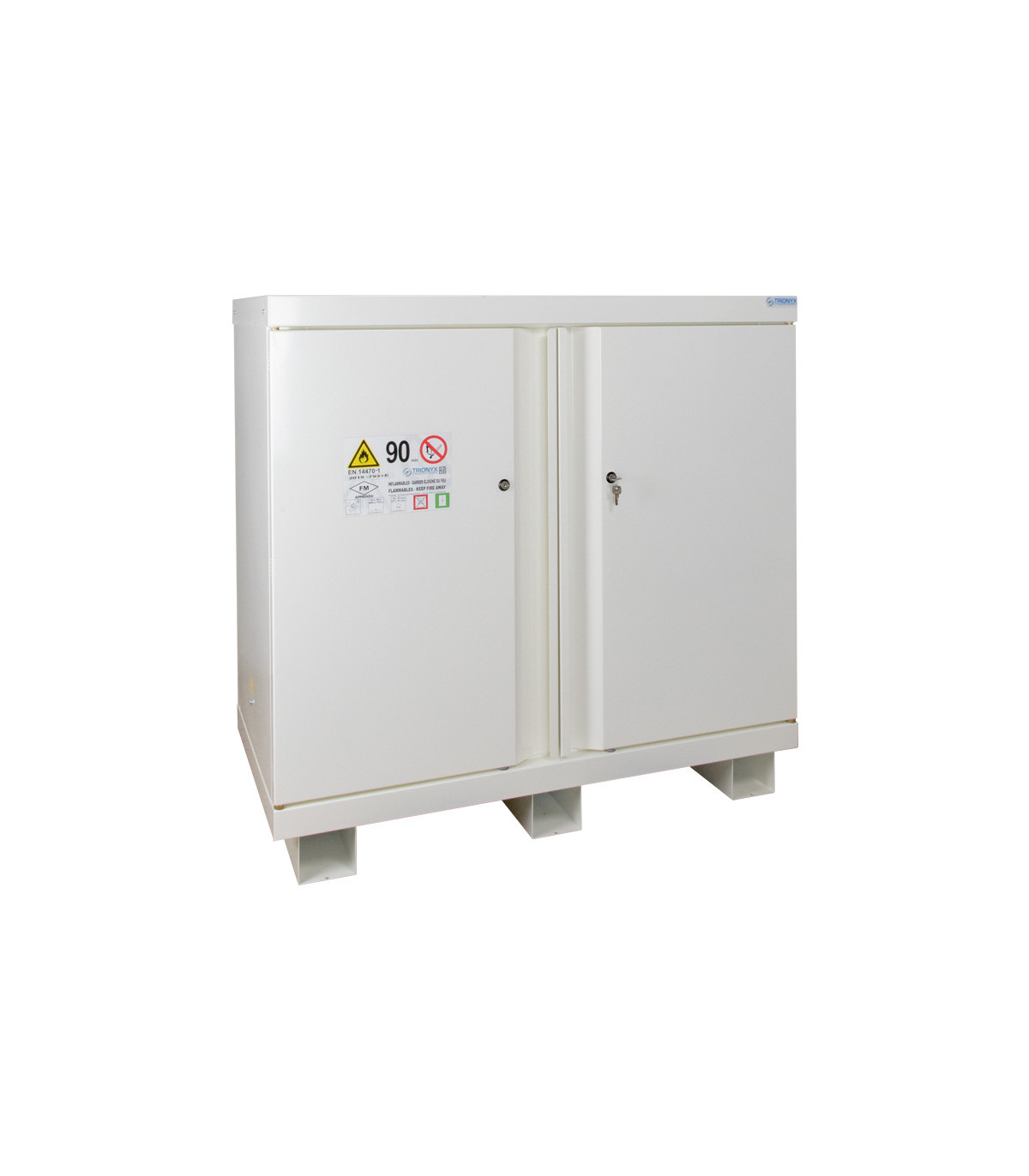

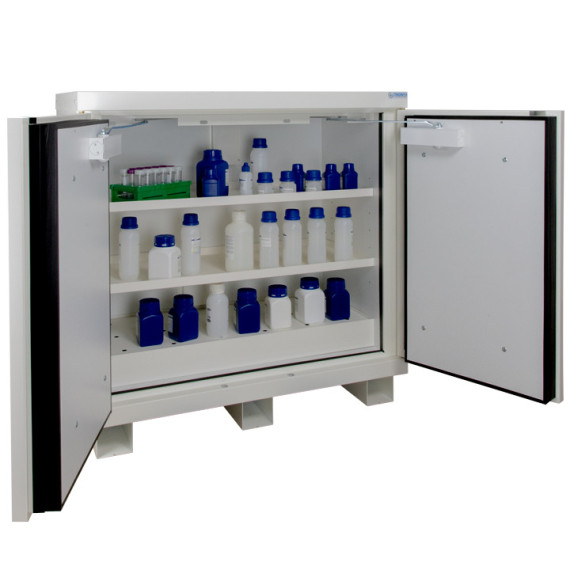

105-minute cabinet with 2 shelves, 1 bin, and 2 doors for flammable materials ECOSAFE.

Cabinet 105 minutes with 2 shelves, 1 sump, and 2 doors for flammable materials ECOSAFE 793 E.

(1) Type tested and approved for 10 minutes according to FM 6050 (Factory Mutual International). Tested and approved by an independent European laboratory.

FEATURES

• Double wall construction: • Outer casing made of high-quality steel sheet (12/10).
• Epoxy coating RAL 9010.
• Internal body constructed in white (RAL 9010) melamine wood.
• Thermal insulation panel between the walls to prevent heat bridges.

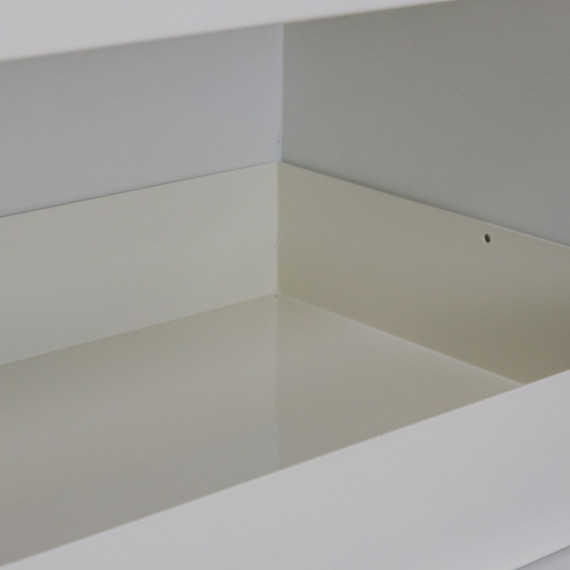

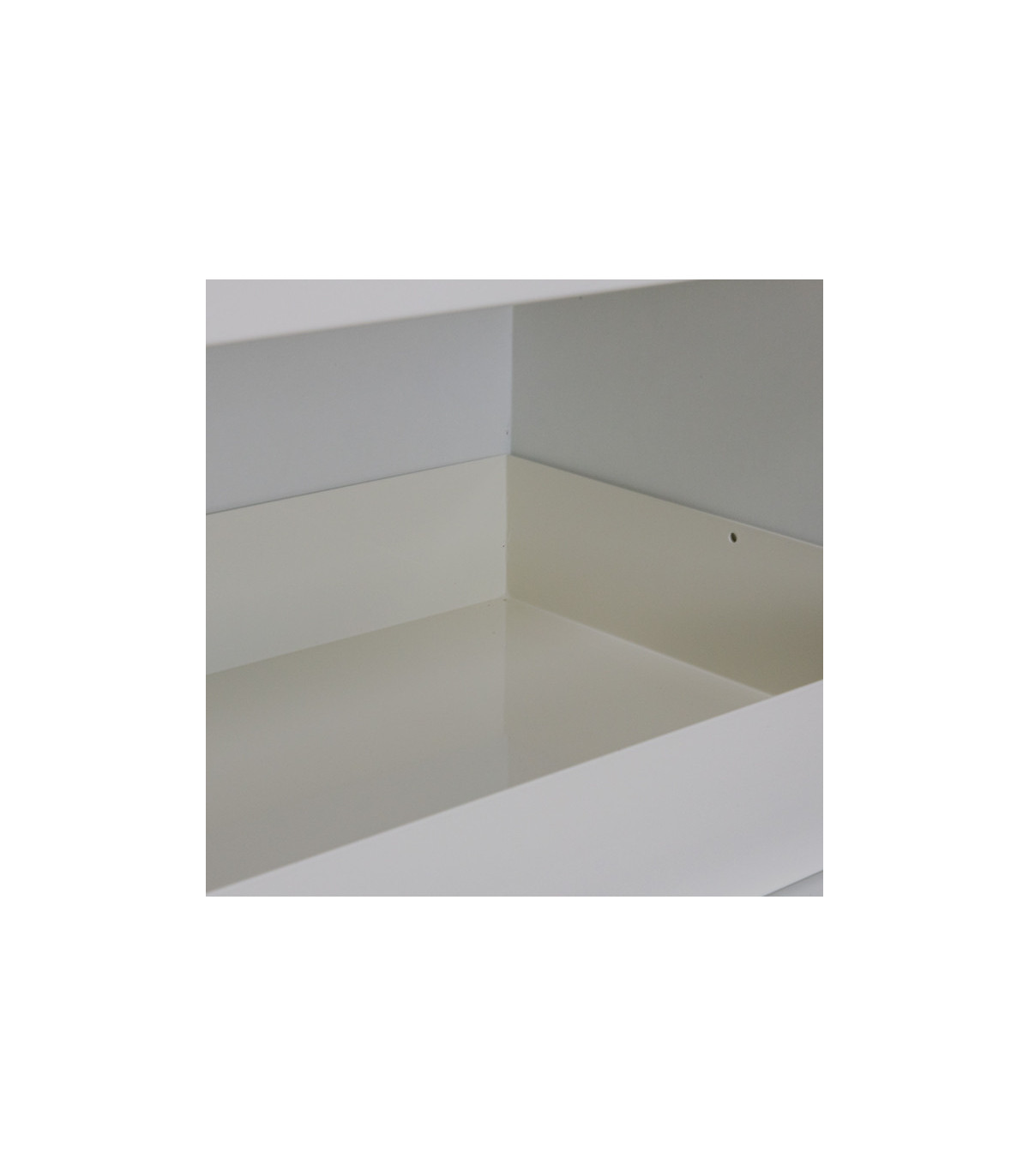

• Removable lower containment sump.

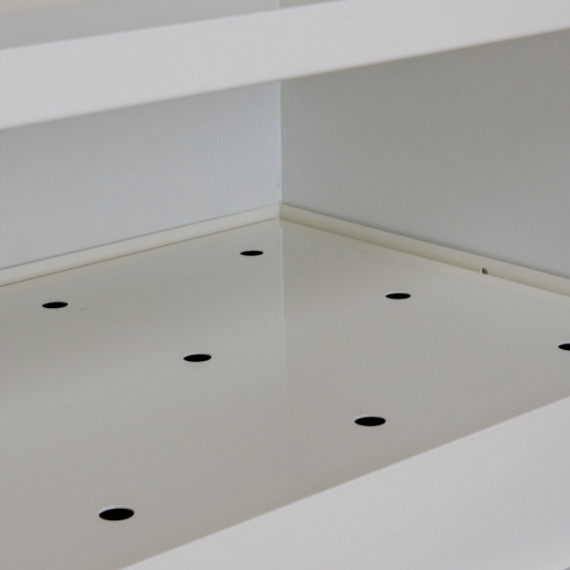

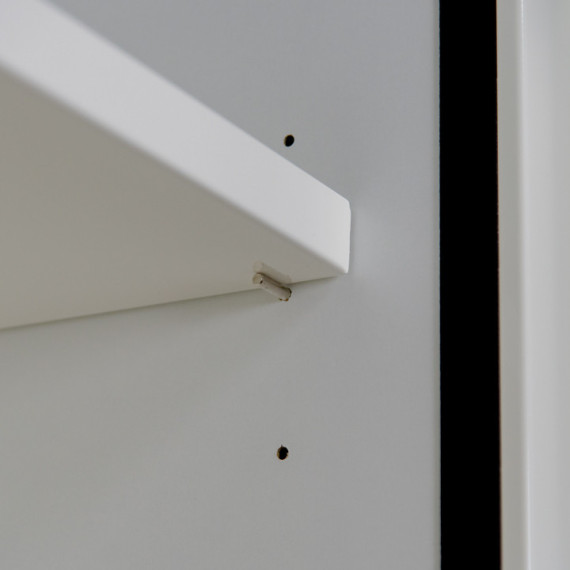

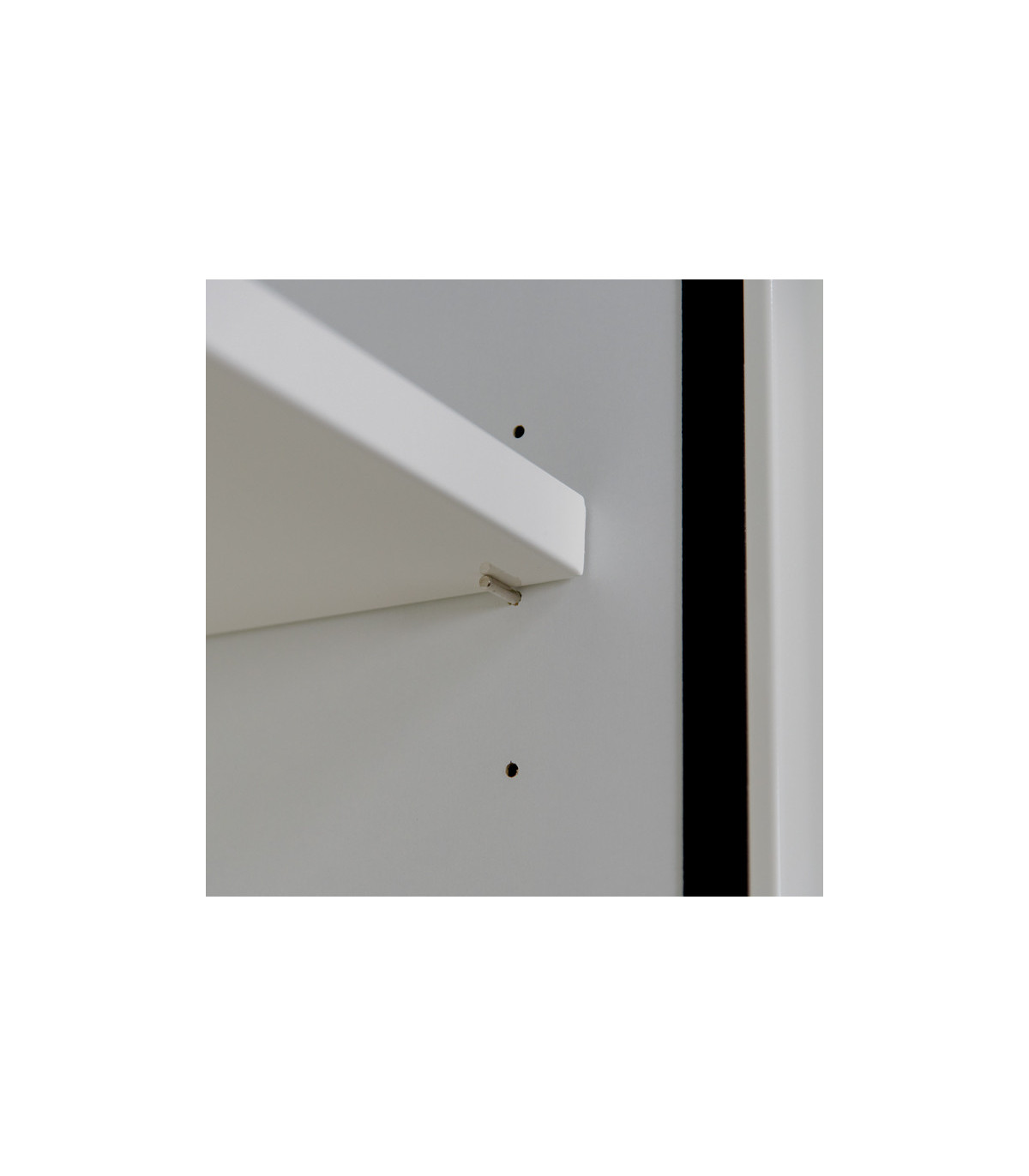

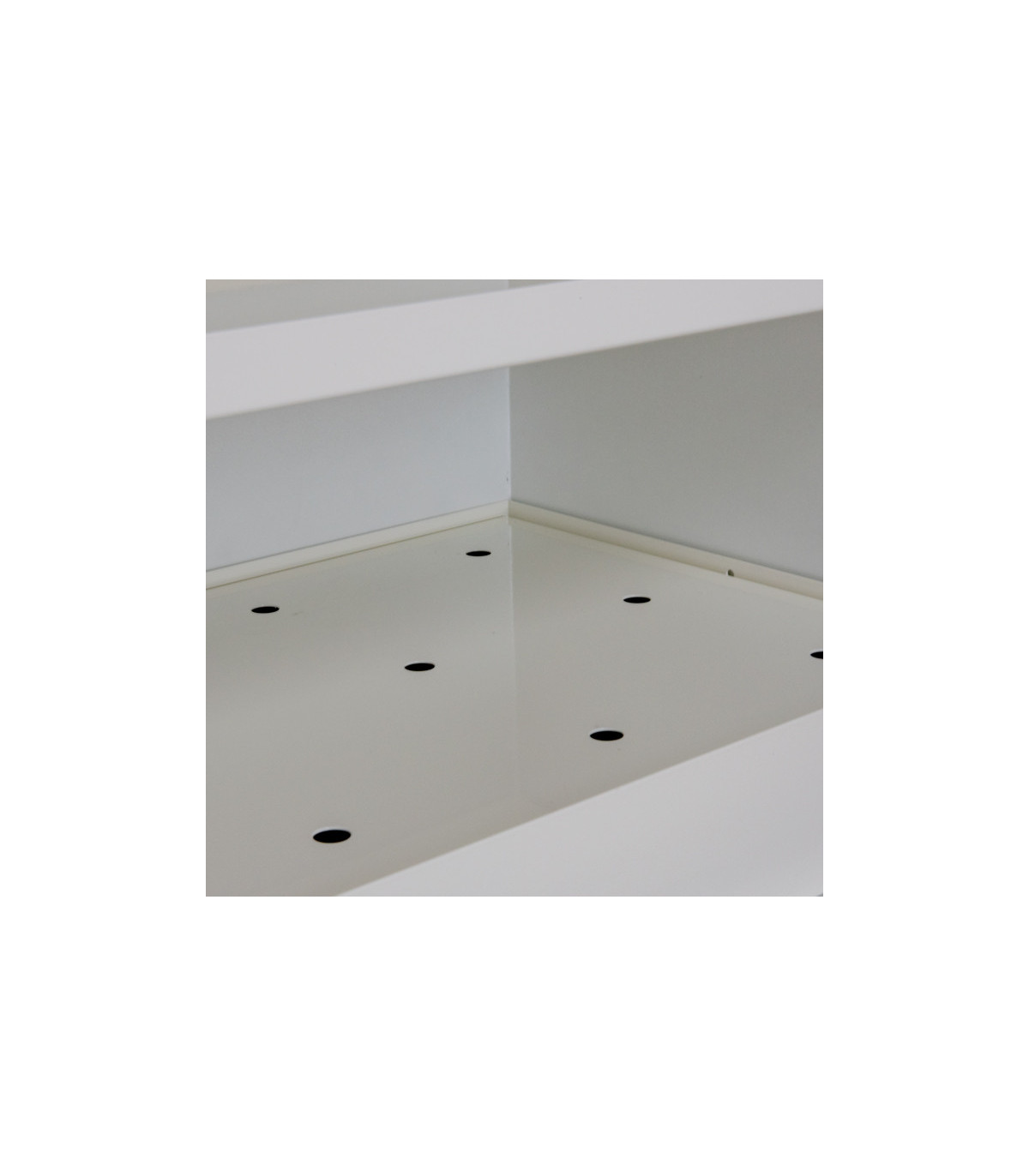

• Adjustable containment shelves.
• Ground connection.
• Air intake and exhaust ducts of Ø 100 mm for natural ventilation or connection with forced ventilation/filtration system.
• In case of fire, a thermal fuse automatically seals the ventilation system.
• The thermo-expandable seals of the doors help maintain the internal body fireproof.
• Separate door locking with cylinder locks.

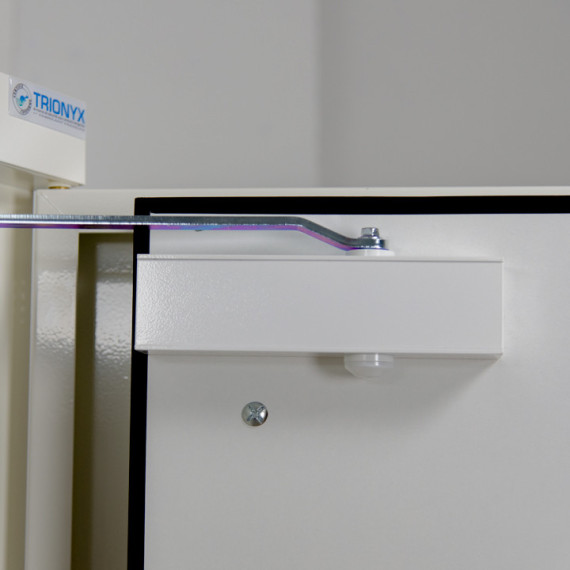

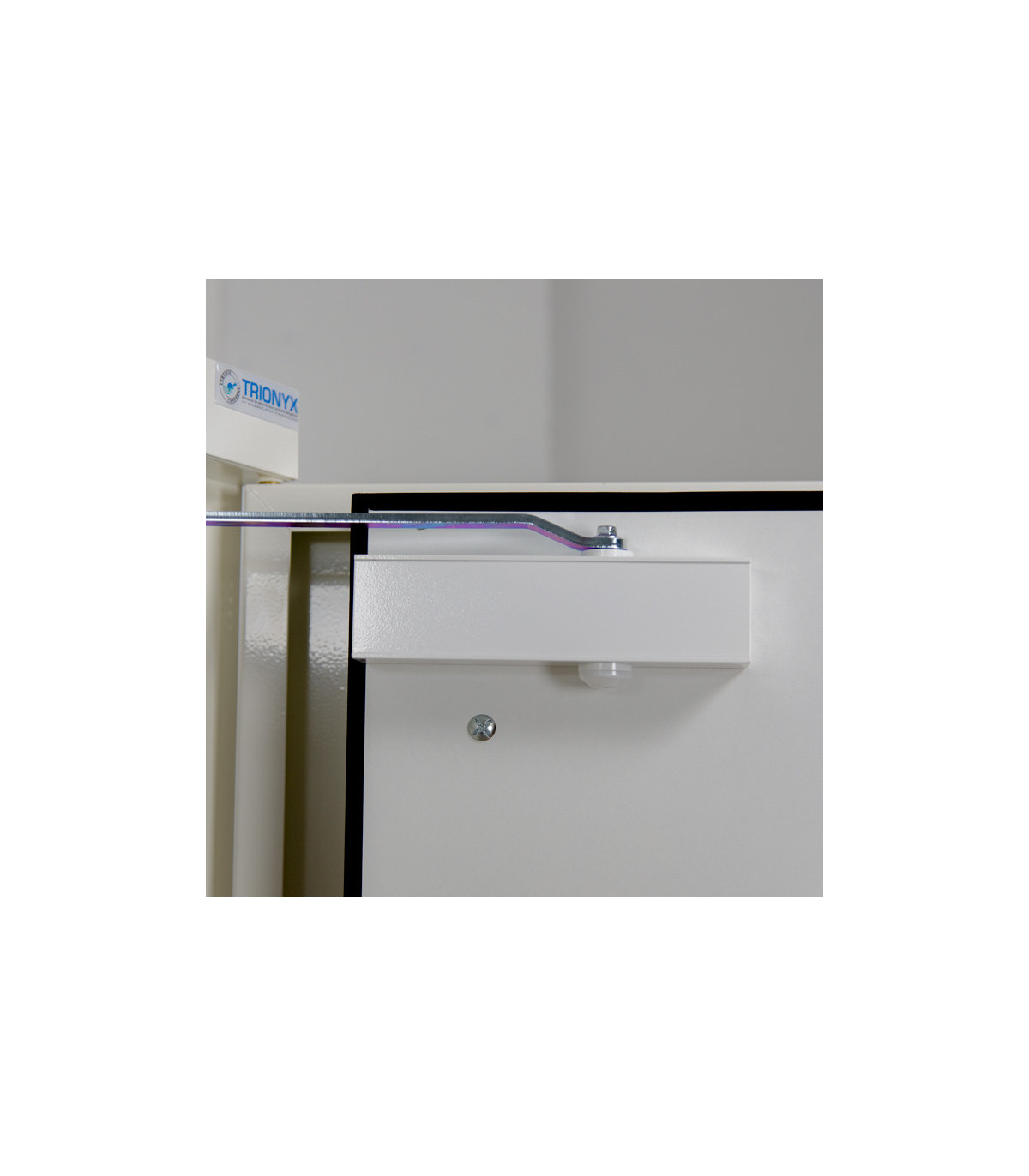

• Automatic closing door(s) with the possibility to keep the door(s) open. If the temperature rises to 47 °C, the fuse link automatically closes the door(s).

BENEFITS

• Fire resistance for 105 minutes (type 90 approved) regarding the ISO 834 fire heating curve.

TECHNICAL DATA

• Tested and approved according to EN 14470-1 (04/2004) and EN 1363-1 (06/2000).
• Compliance: EN 14470-1, EN 1363-1
• Cabinet materials: steel 12/10 and internal walls in melamine
• Door color: white RAL 9010
• Number of doors: 2
• Type of doors: swinging doors
• Hinges: left and right hinges
• Door closure: automatic locking
• Ventilation diameter (mm): 100
• Number of compartments: 1
• Shelves: 2
• Retention sump: 1
• Retention capacity (L): 41
• External dimensions h x w x d (mm): 1100 x 1137 x 670
• Internal dimensions h x w x d (mm): 820 x 1000 x 410
• Shipping dimensions h x w x d (mm): 1300 x 1200 x 800
• Permissible load: 50
• Storage capacity (L): 115
• Weight (kg): 297.00

CERTIFICATION AND REGULATIONS

- Tested and approved according to EN 14470-1 (04/2004) and EN 1363-1 (06/2000).

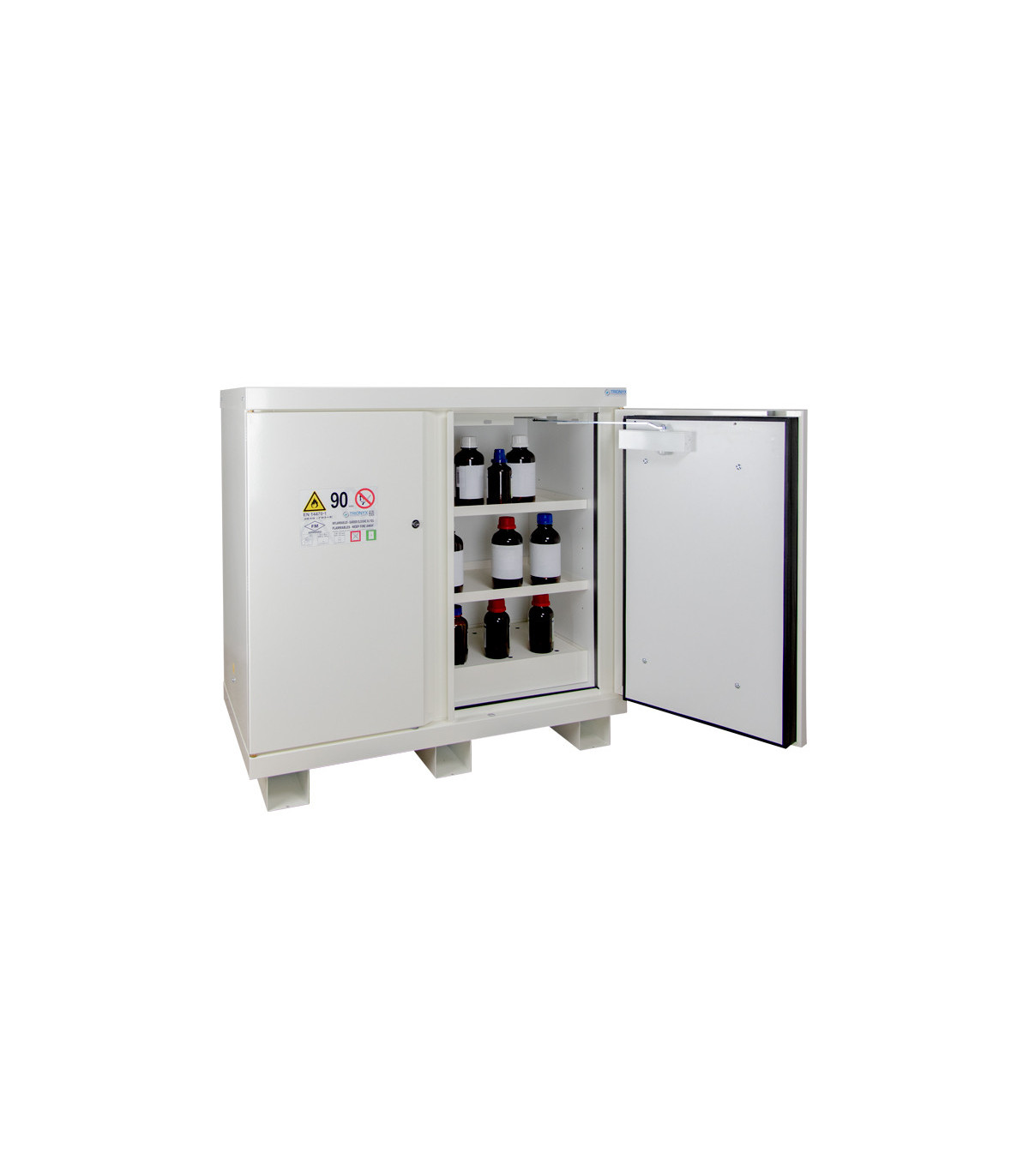

- Standardized labeling according to ISO 3864 and EN 14470-1 (04/2004) and European directive 92/58/EEC.

- (1) Type 10 minutes tested and approved according to FM 6050 (Factory Mutual International).

OPTIONS

Doors available in different colors for models 794 and 795:

• structure and shelves in white (RAL 9010); doors in yellow (RAL 1023)

APPLICATIONS

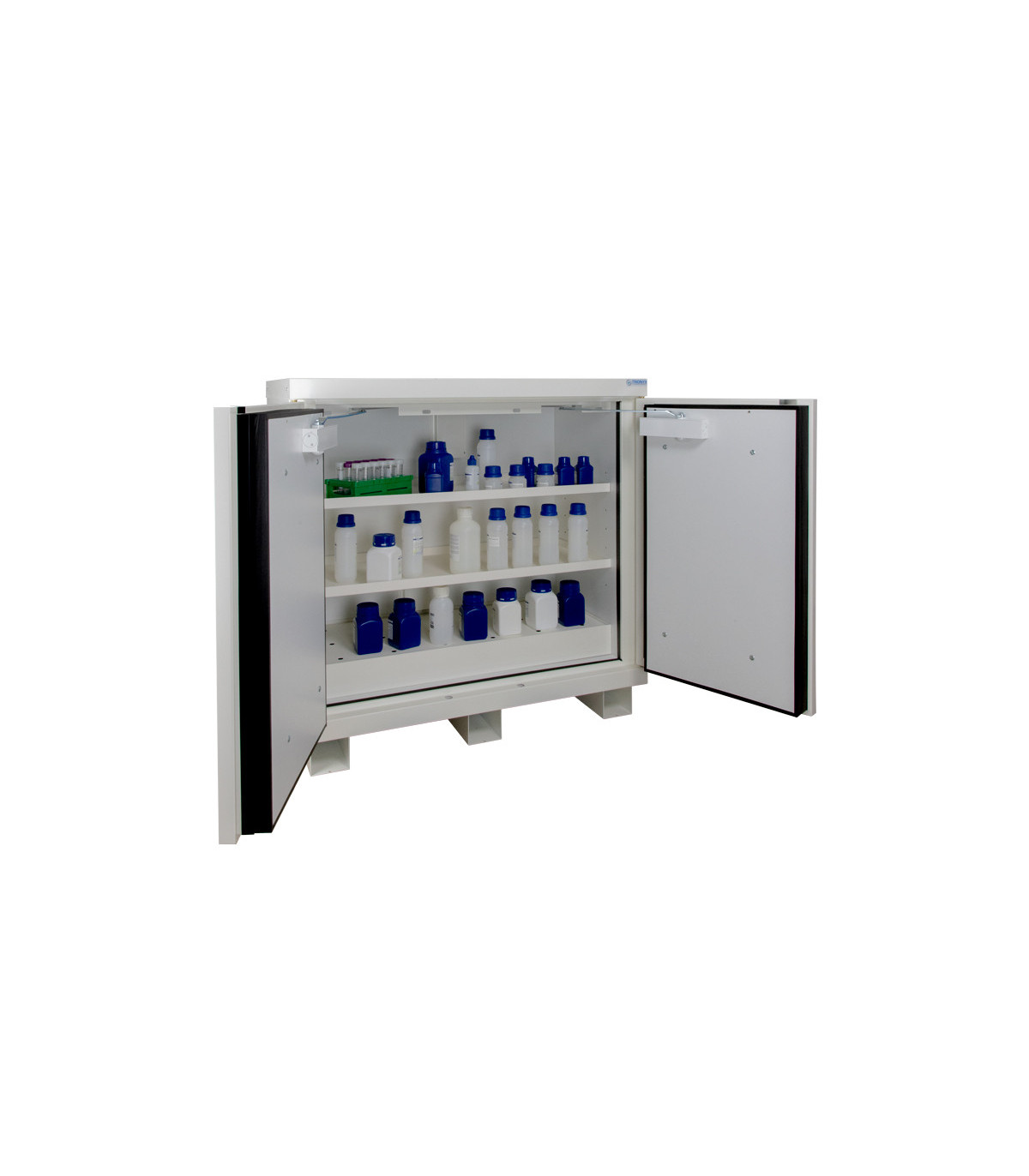

• Storage of flammable, corrosive, and toxic materials.
