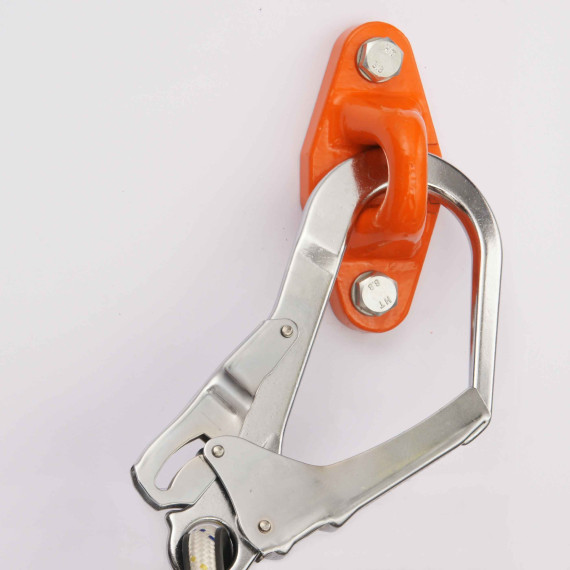

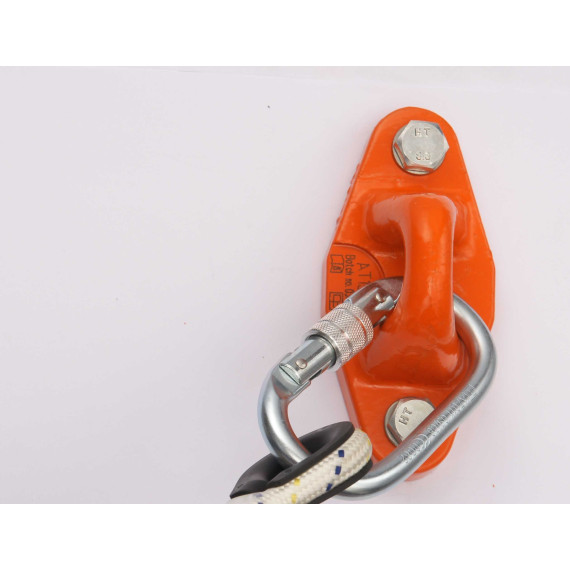

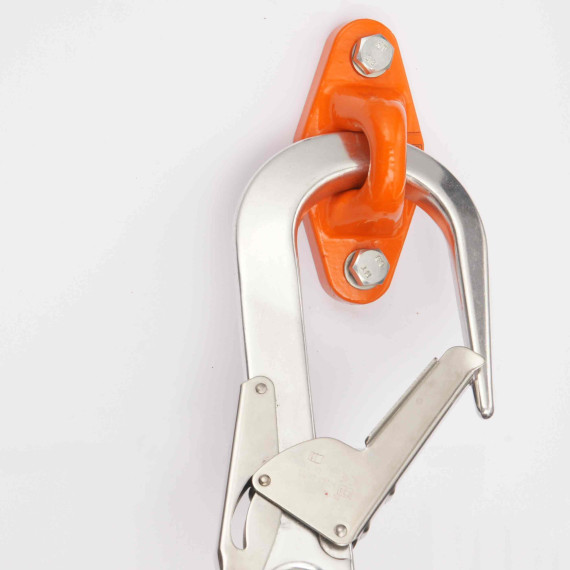

Anchor point / permanent eye bolt EN795 class A - FARU PT150 (ref. AT150) PT150

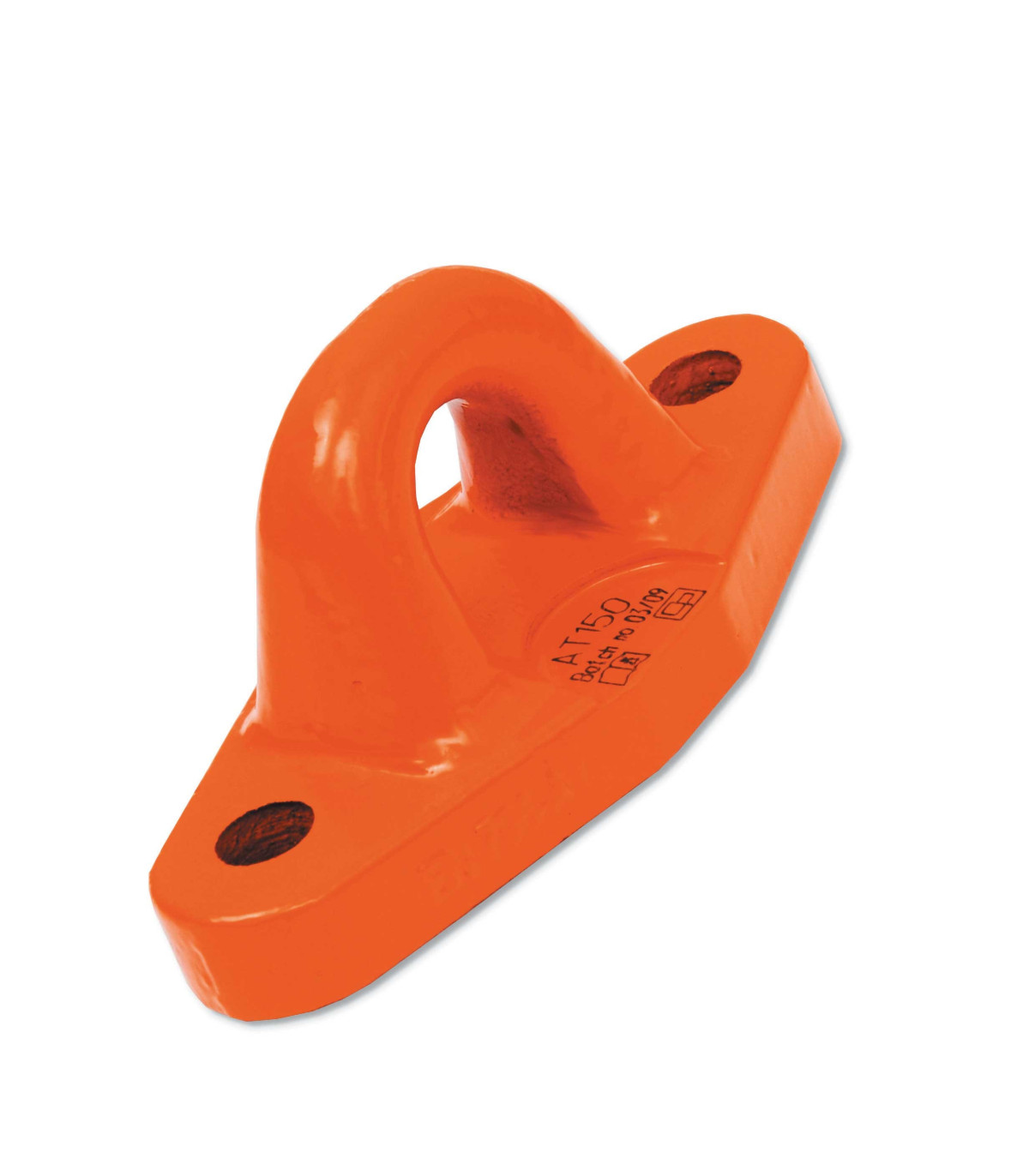

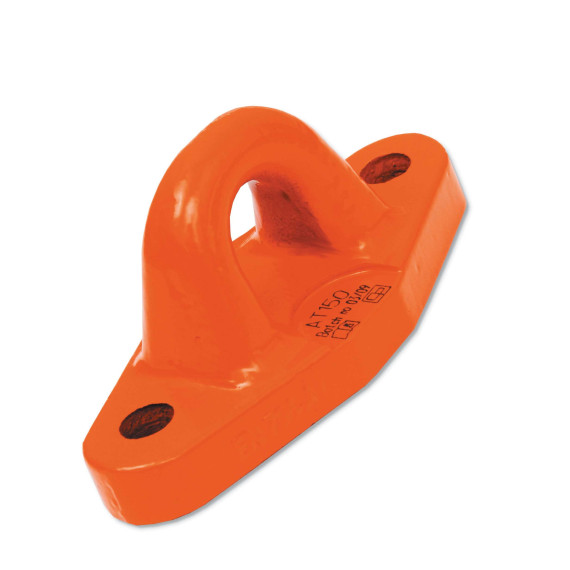

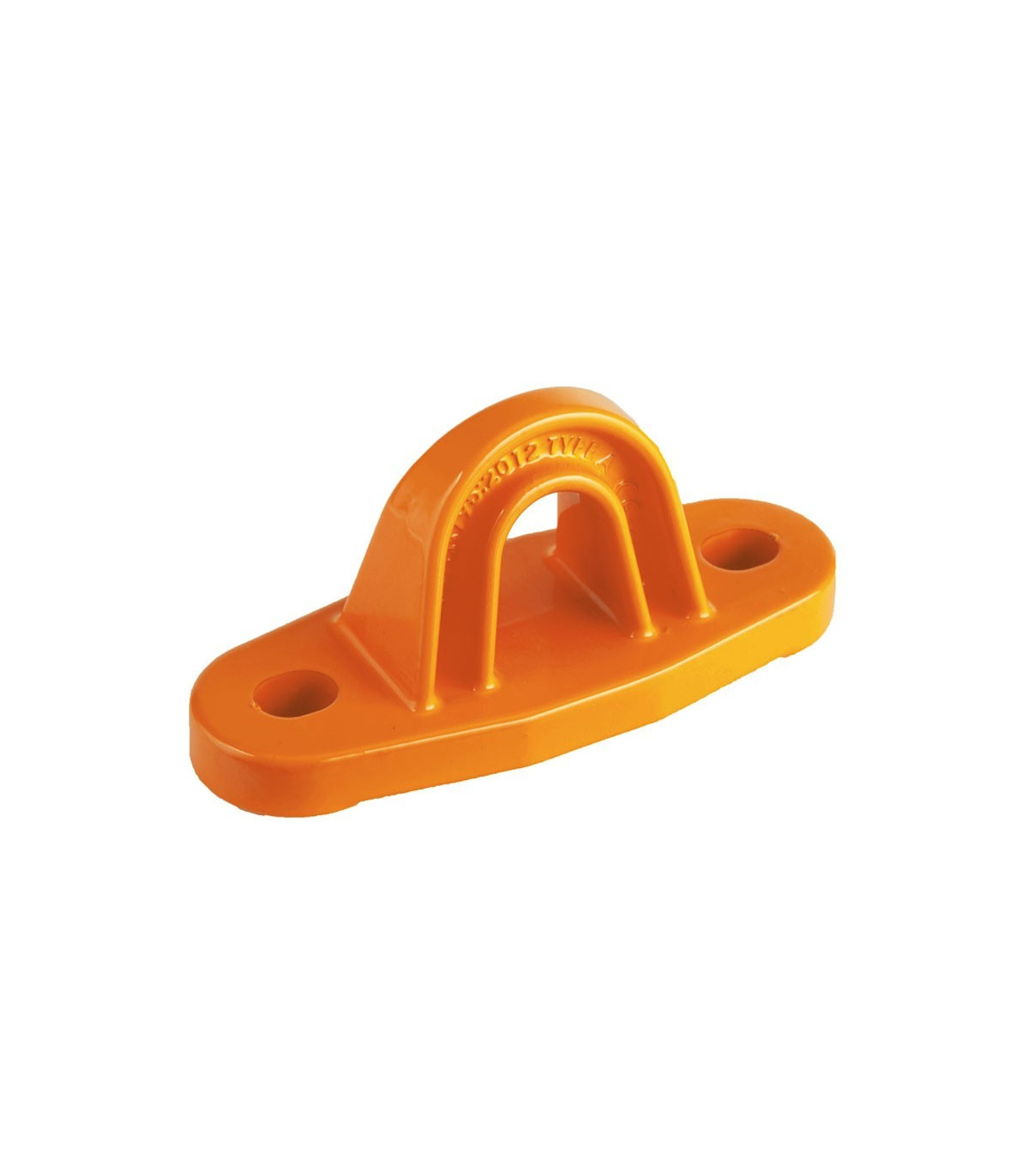

Anchor point / permanent eyelet made of aluminum alloy. Various working positions. Dimensions: 135x60x60 mm. EN795 Class A.

----------------------------------

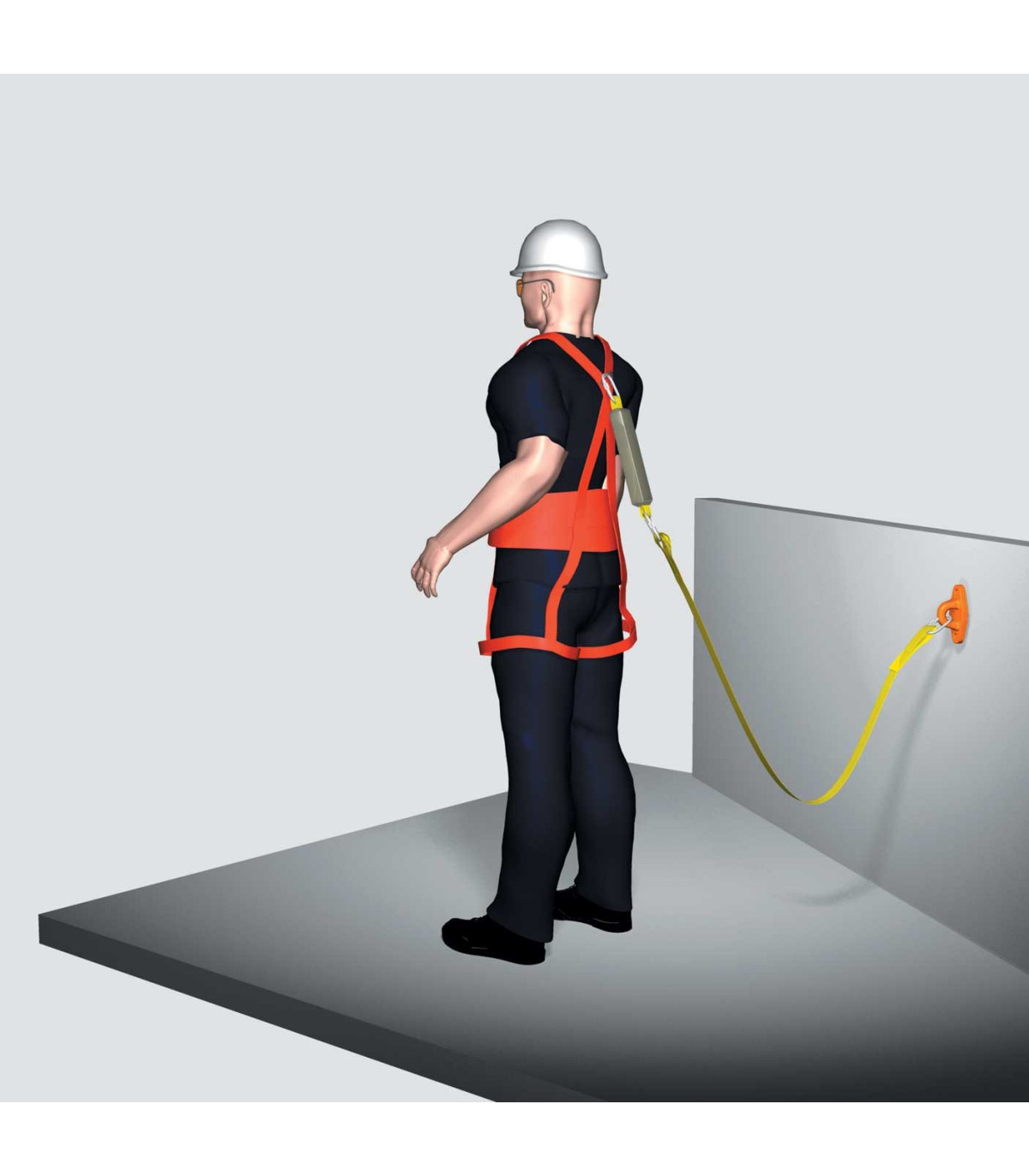

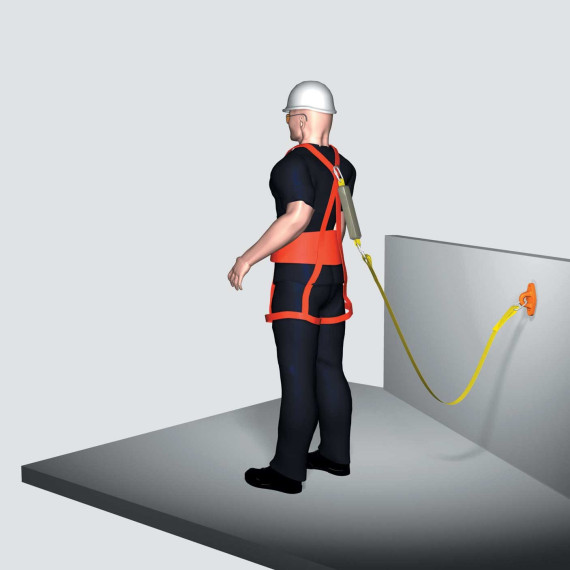

Work at height requires that all workers have a good number of elements and appropriate Personal Protective Equipment to perform their respective tasks with the highest possible degree of safety, considering that in all these areas there is a risk of falling from different heights, which could have fatal consequences for the worker, exposed to serious injuries that could even lead to death in the most severe cases. One of the common elements for height protection is anchor points, which can be installed, depending on their type, either temporarily or permanently, and are responsible for facilitating a person's work by allowing them to secure their fall protection system, thus enabling them to perform their work at height or in confined spaces. At Sekureco, you can find different options, such as the Anchor point / permanent eyelet EN795 class A (ref. AT150).

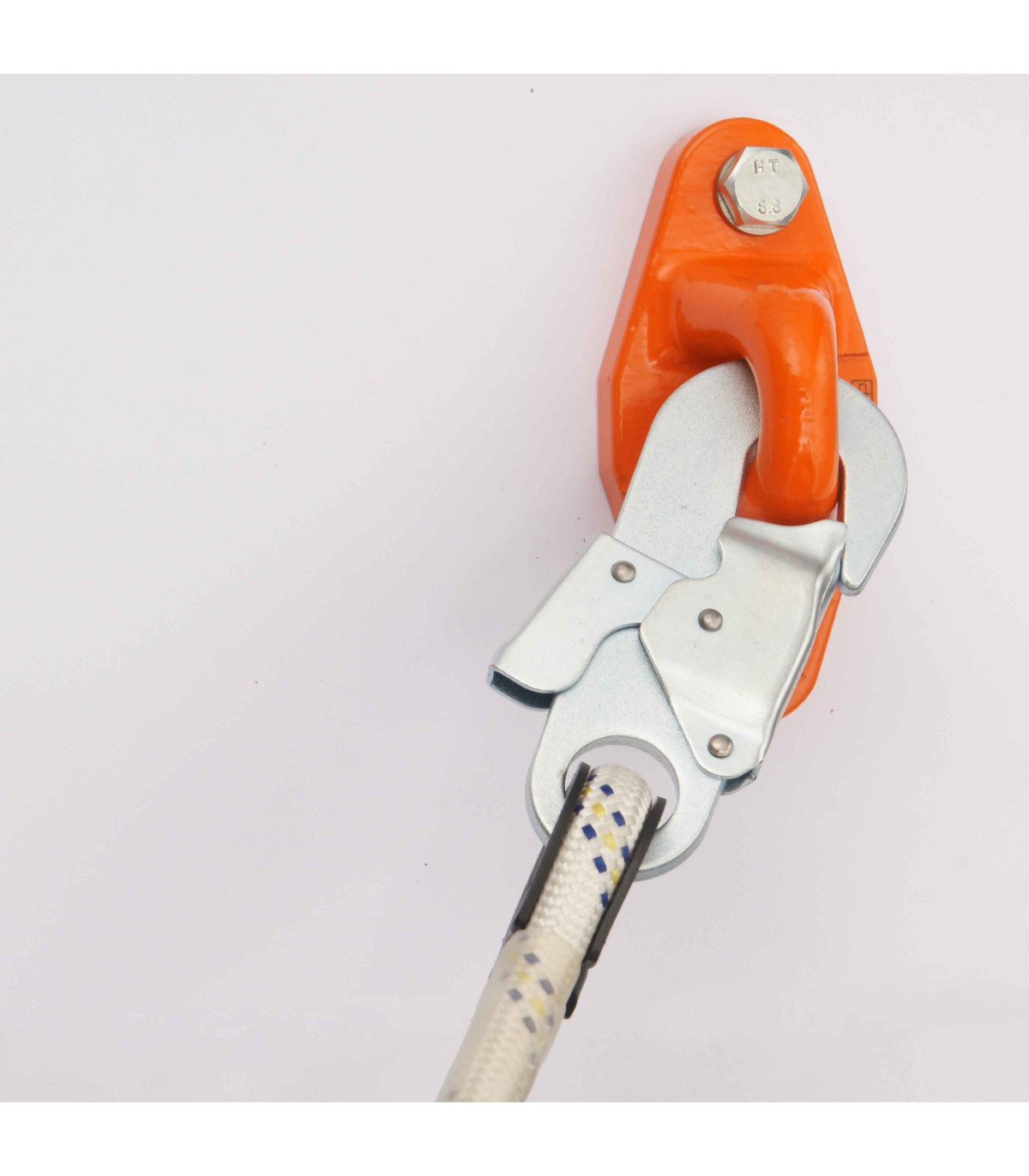

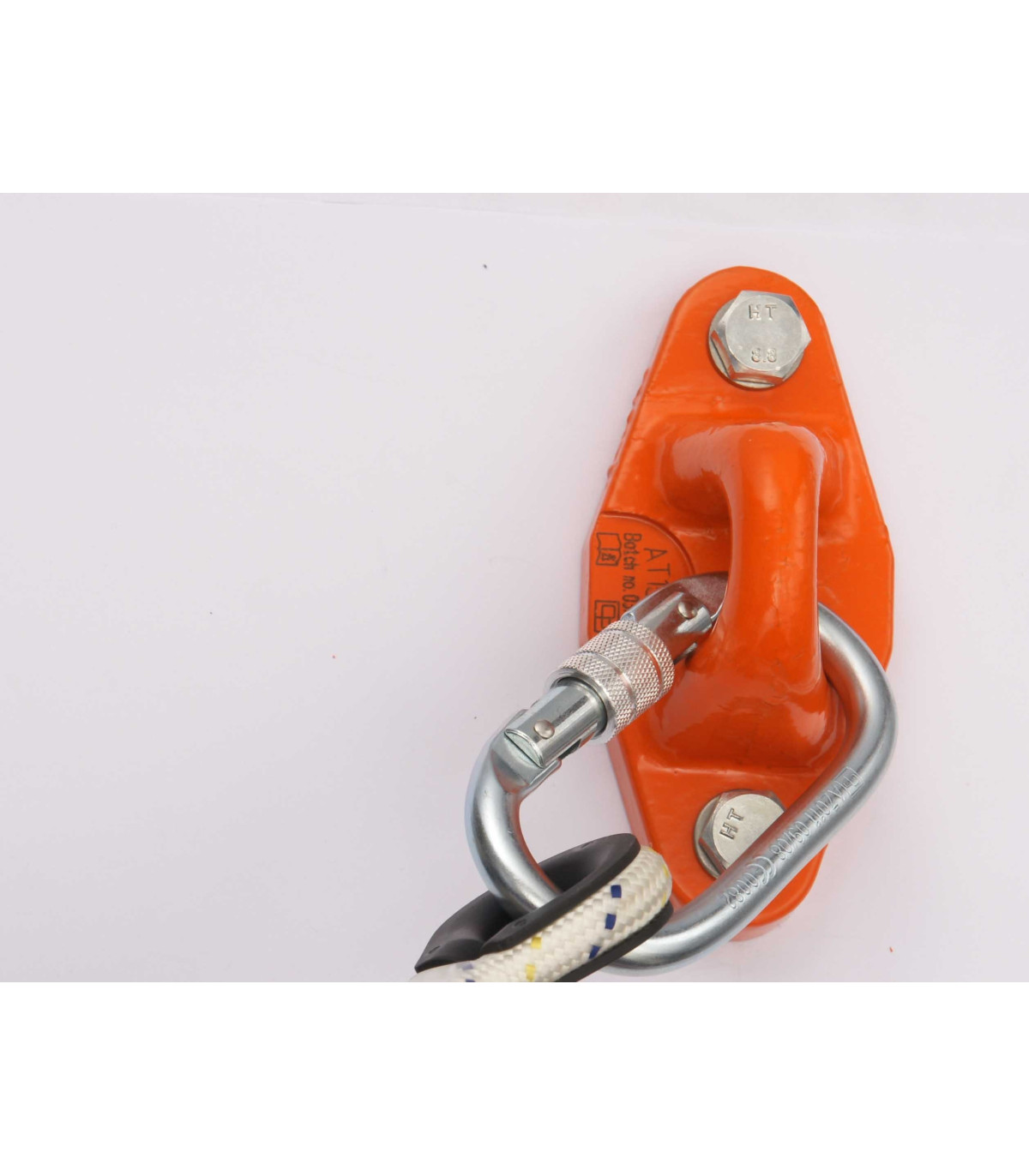

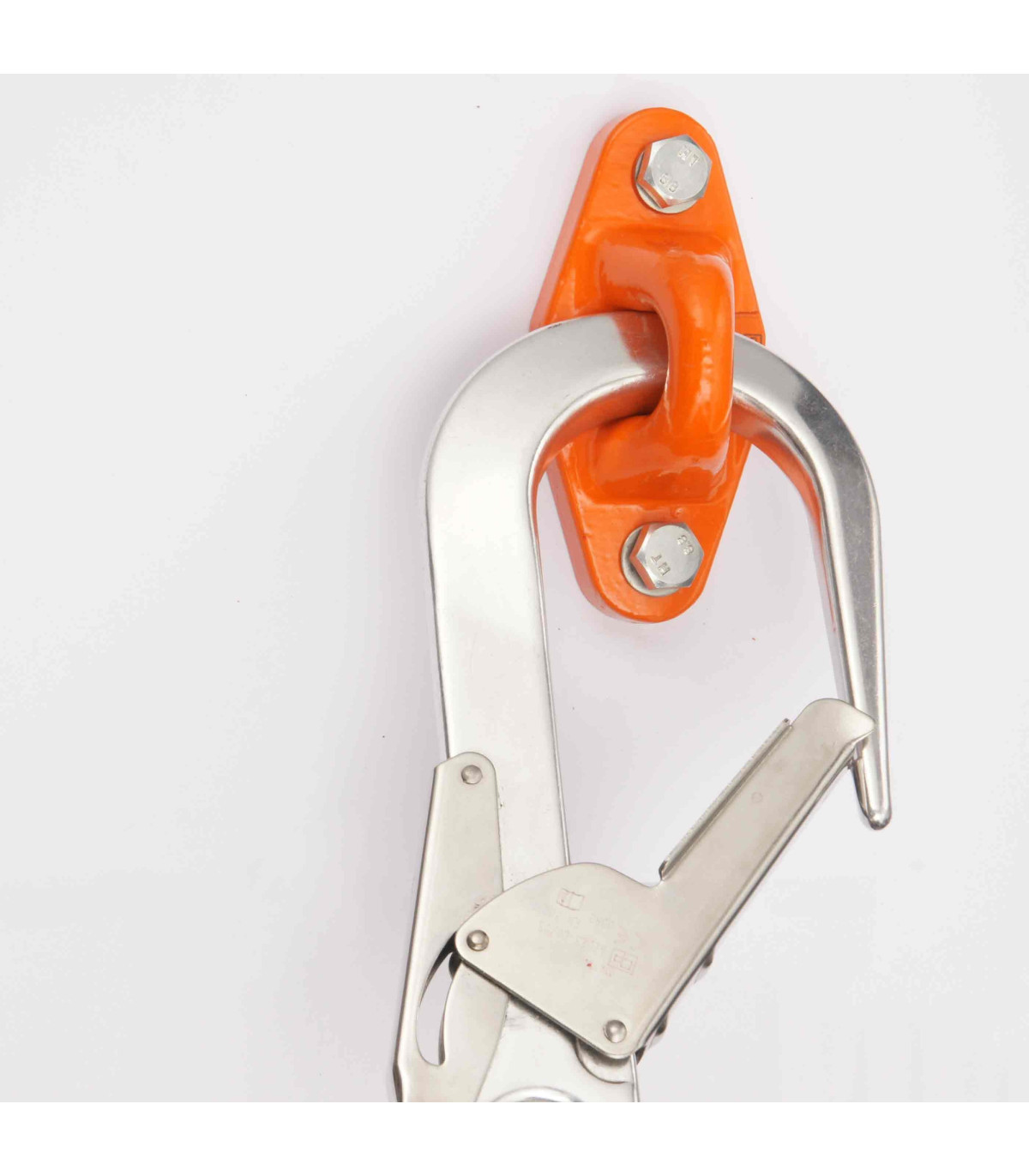

The Anchor point / permanent eyelet EN795 class A (ref. AT150), which is made of an aluminum alloy, has dimensions of 135 x 60 x 60 mm and complies with the EN975 Class A standard, allowing for different working positions and being specifically designed for use by a single person. The eyelet can be placed on a horizontal, vertical, or inclined surface and must be secured to the structure using two screws or anchors.

Installation of the Anchor point / permanent eyelet EN795 class A (ref. AT150)

• Before proceeding with its installation, it must be stored in a clean and dry place, under conditions that prevent any chemical or mechanical damage.
• The installation of the Anchor point / permanent eyelet EN795 class A (ref. AT150) must be carried out based on the principles of mechanical and construction joints, using M12 stainless steel screws, at least of type A2 and strength class 70, depending on the length of the screw and the thickness of the elements to be joined.
• The conditions of the environment in which the installation is carried out and their possible influence on the corrosion of the anchor point and the different joining elements must be taken into account.
• The connection to the concrete floor must be made using chemical or mechanical anchors with a threaded piston diameter of M12, on a concrete floor with a compressive strength greater than 20 MPa.
