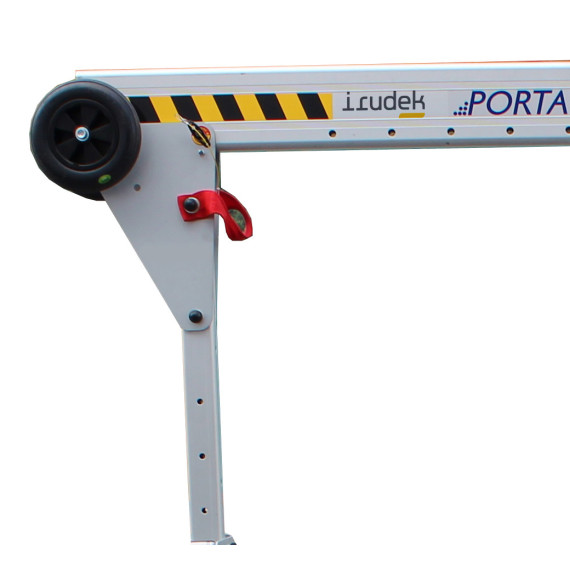

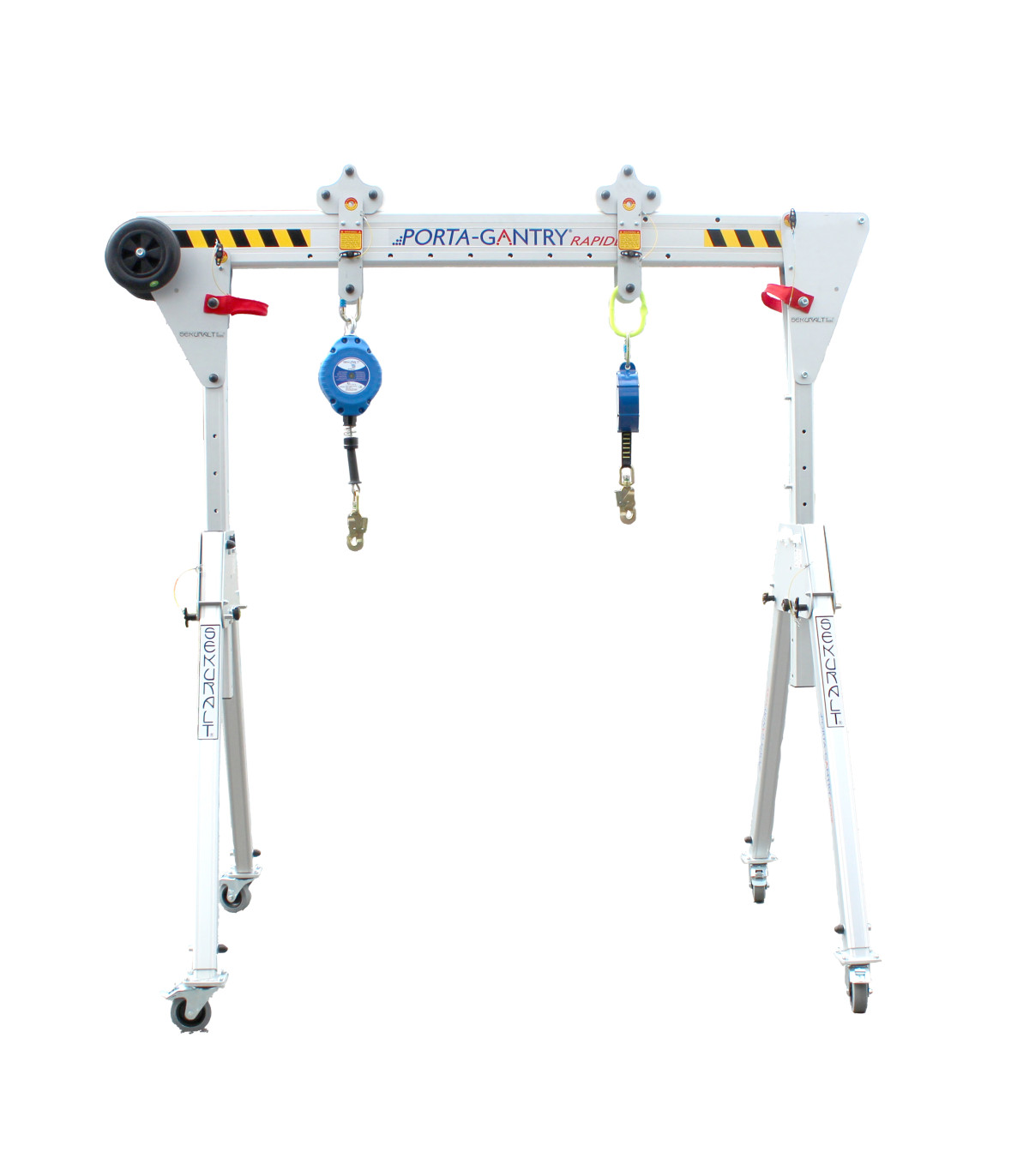

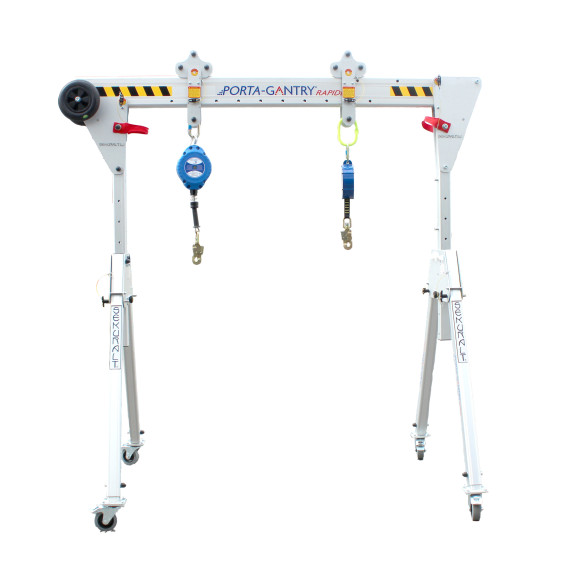

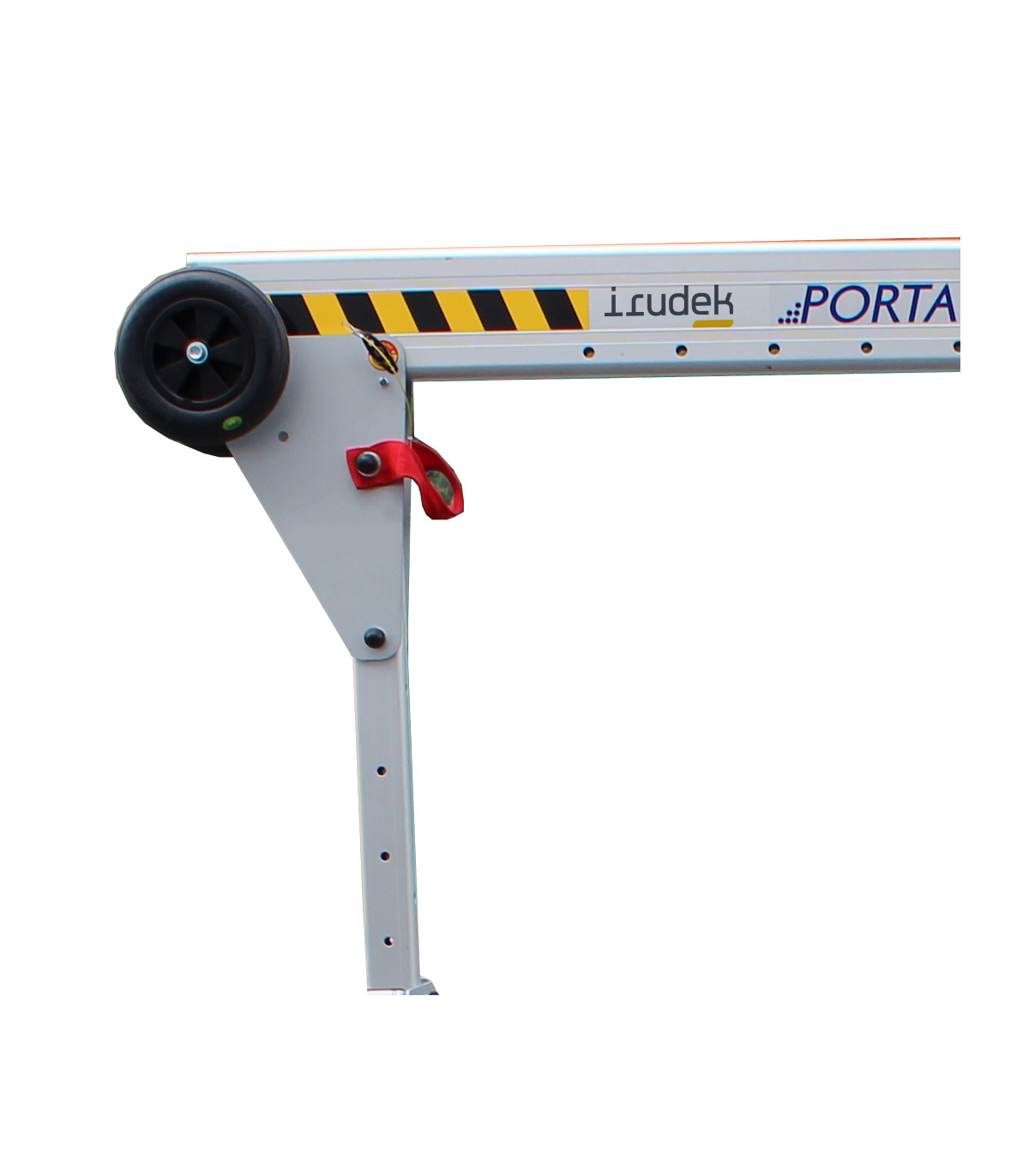

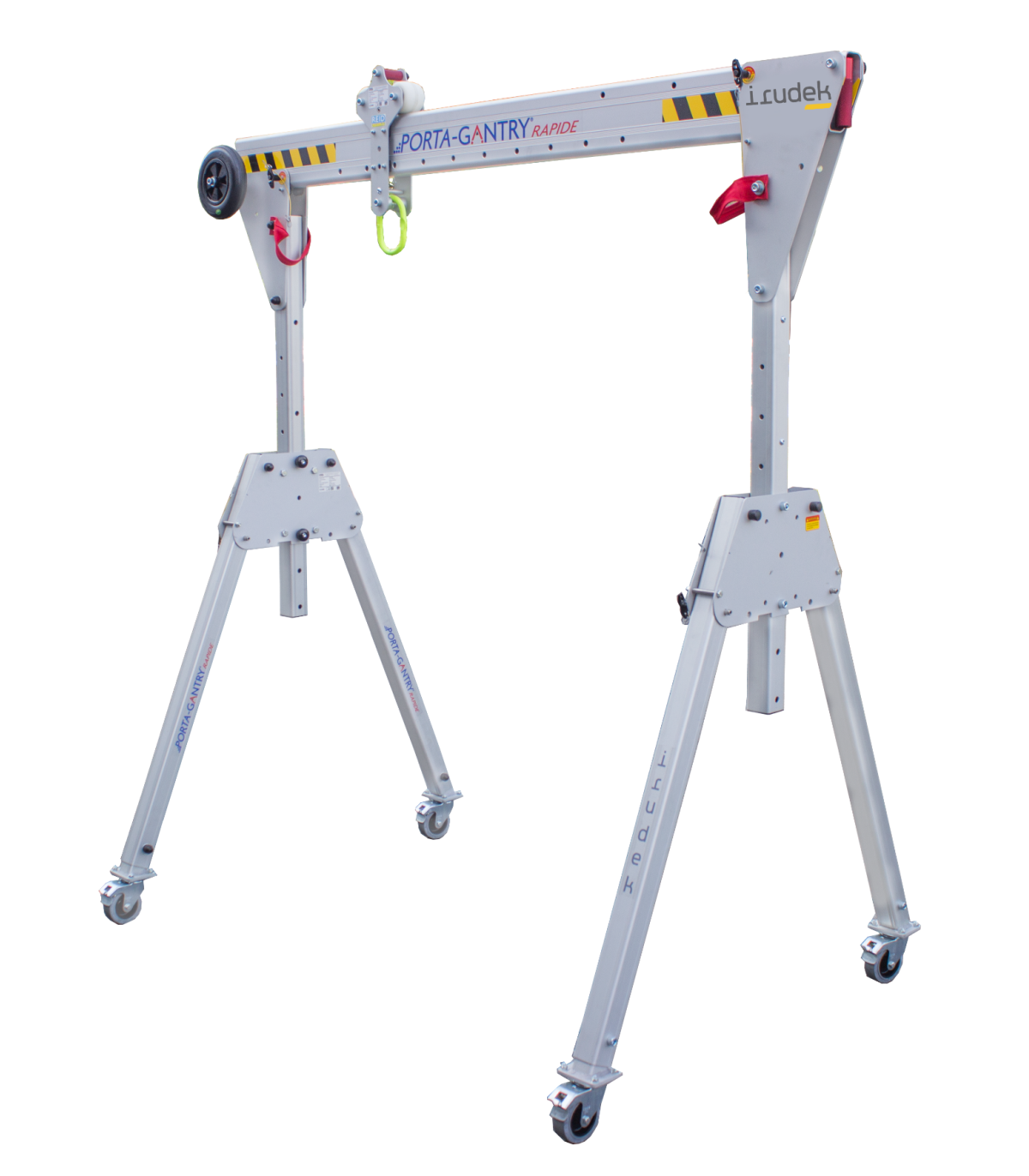

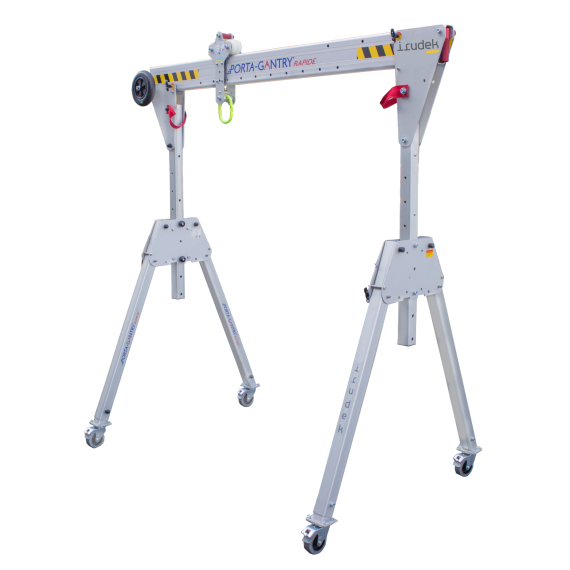

Portico Irudek Rapid Gantry Port

Innovative, lightweight, portable, unique one-piece system, foldable and quick to install:

Please confirm with Sekureco.eu the approximate delivery date.

FEATURES

• Dual use, protection against falls from height and lifting of materials and people.
• Load capacity of up to 500kg.
• Certified according to EN 795 Class B standard.
• Fall protection for up to 3 people.
• Total system weight from only 33 kg.
• Adjustable height, lifting increments of 200mm.
• Optional storage box.
• Different beam lengths and configurations are available.

BENEFITS

• Unique quick anchoring cart options.
• Adaptable, multi-use carts to assist with the toughest challenges in confined spaces and load movement.

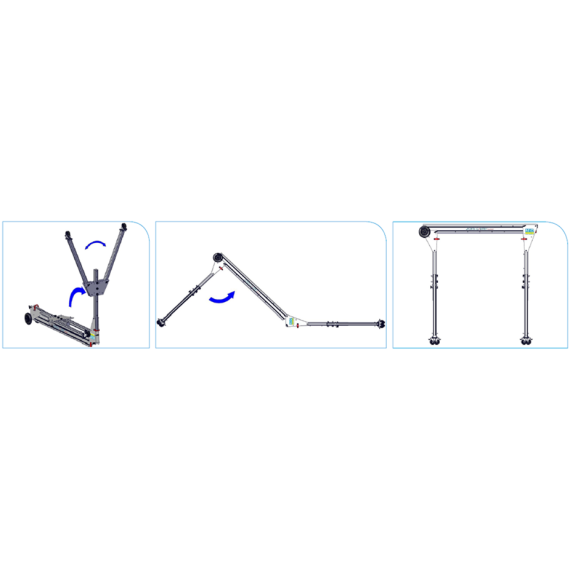

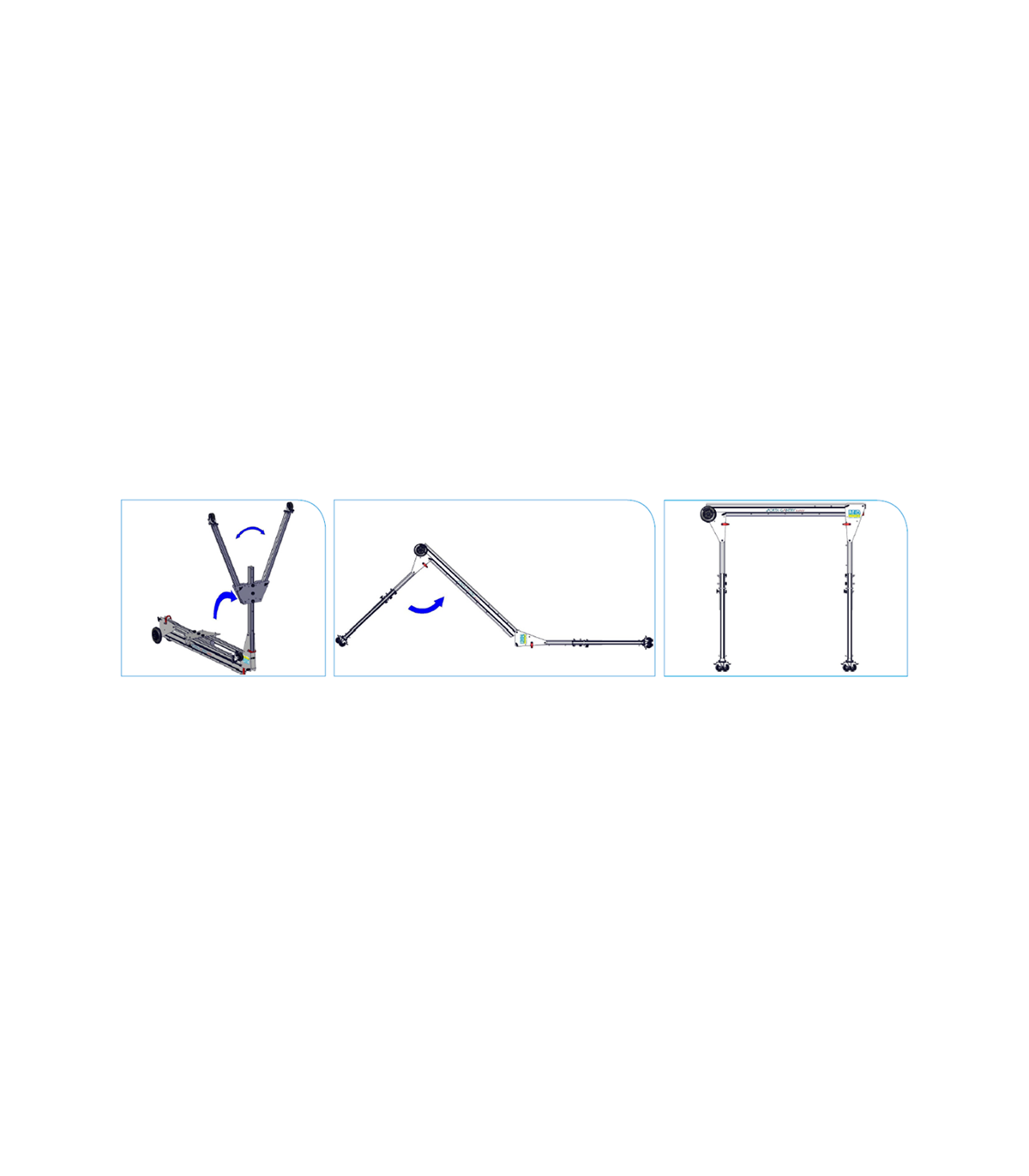

• Quick assembly by one person in less than a minute.
• No screws or tools required.
• Wheels for easy transport:
  Folds perfectly, is transportable, and one person can carry it.
  Equipped with 2 handles for transport by 2 people.
• Compact for storage and easily transportable in a van.
• Option to use with a winch for lifting materials/people (manual).

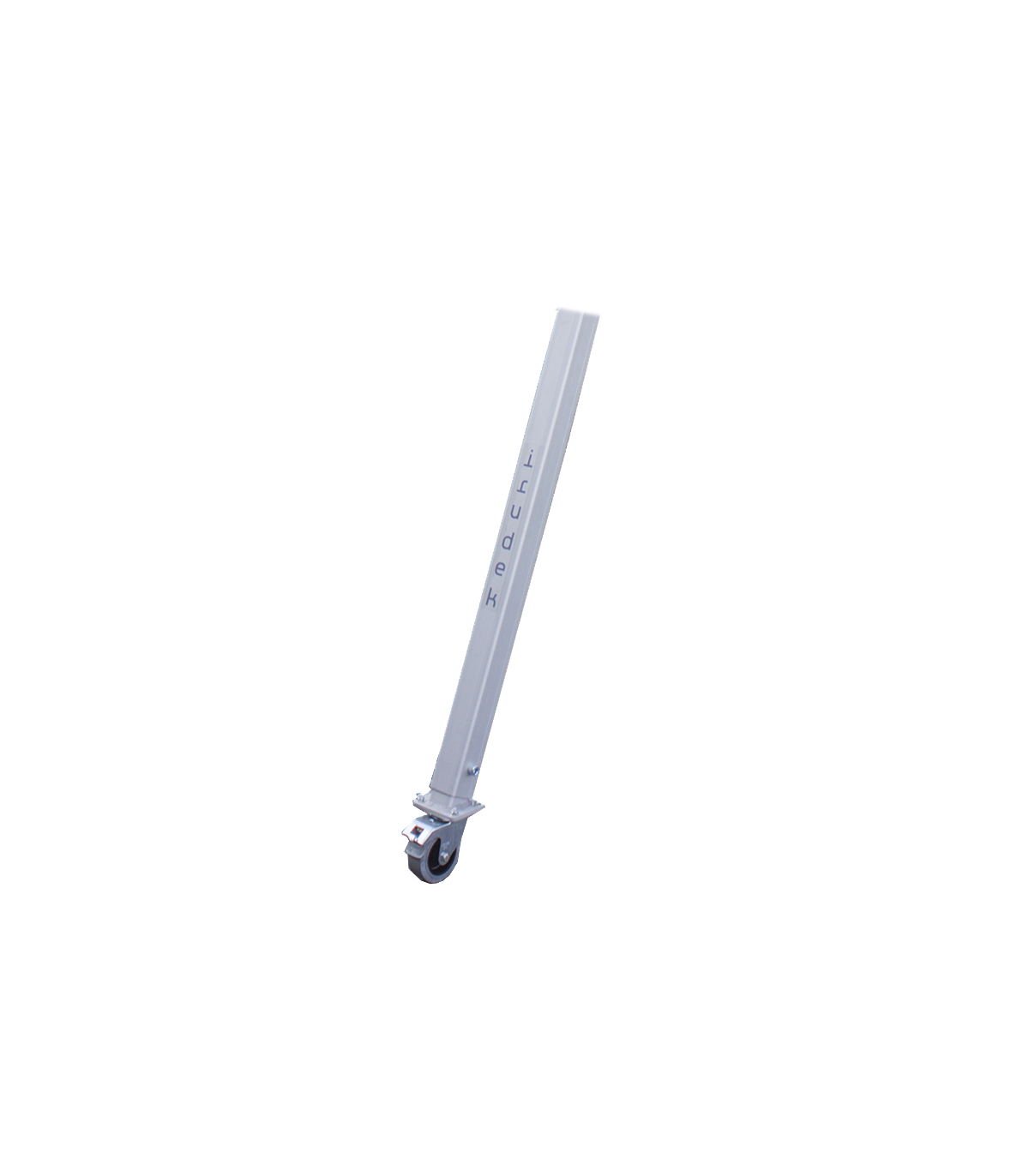

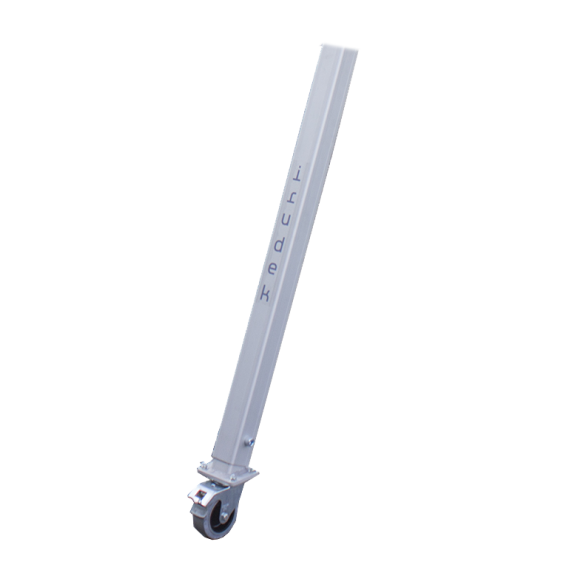

• 360º rotation, swivel wheels or articulated feet with adjustable height option.
• Wheels with brakes for easy positioning.

TECHNICAL DATA

Standard system configurations:

Standard (S) - Height under lifting ring from 1738mm to 1938mm

Medium (M) - Height under lifting ring from 1642mm to 2042mm

Tall (T) - Height under lifting ring from 1916mm to 2816mm

Standard beam options 2000, 2300, and 4000mm and custom sizes

2000mm (500kg); 2300mm (400kg); up to 4000mm (250kg)

* Reduced capacity for fall protection when used with loads simultaneously.

ABOUT IRUDEK

Irudek Group works for safety specializing in fall protection and lifelines. Innovation and product development have been constant since its inception, with an R&D department that provides a wide range of products known for their design, quality, ergonomics, comfort, and adaptation to customer needs, exceeding the strictest European Standards.
