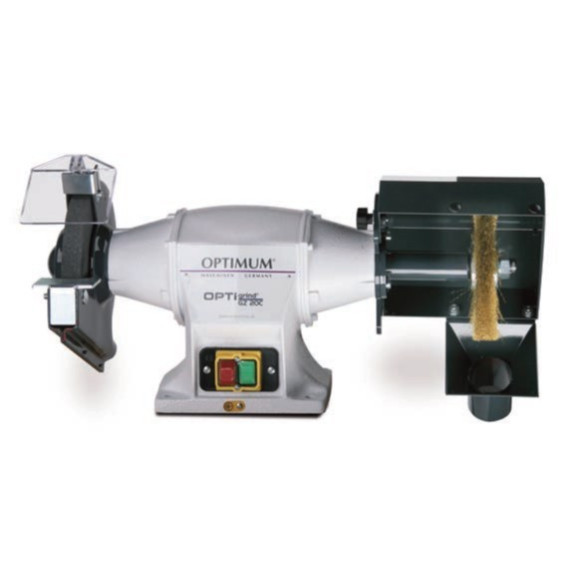

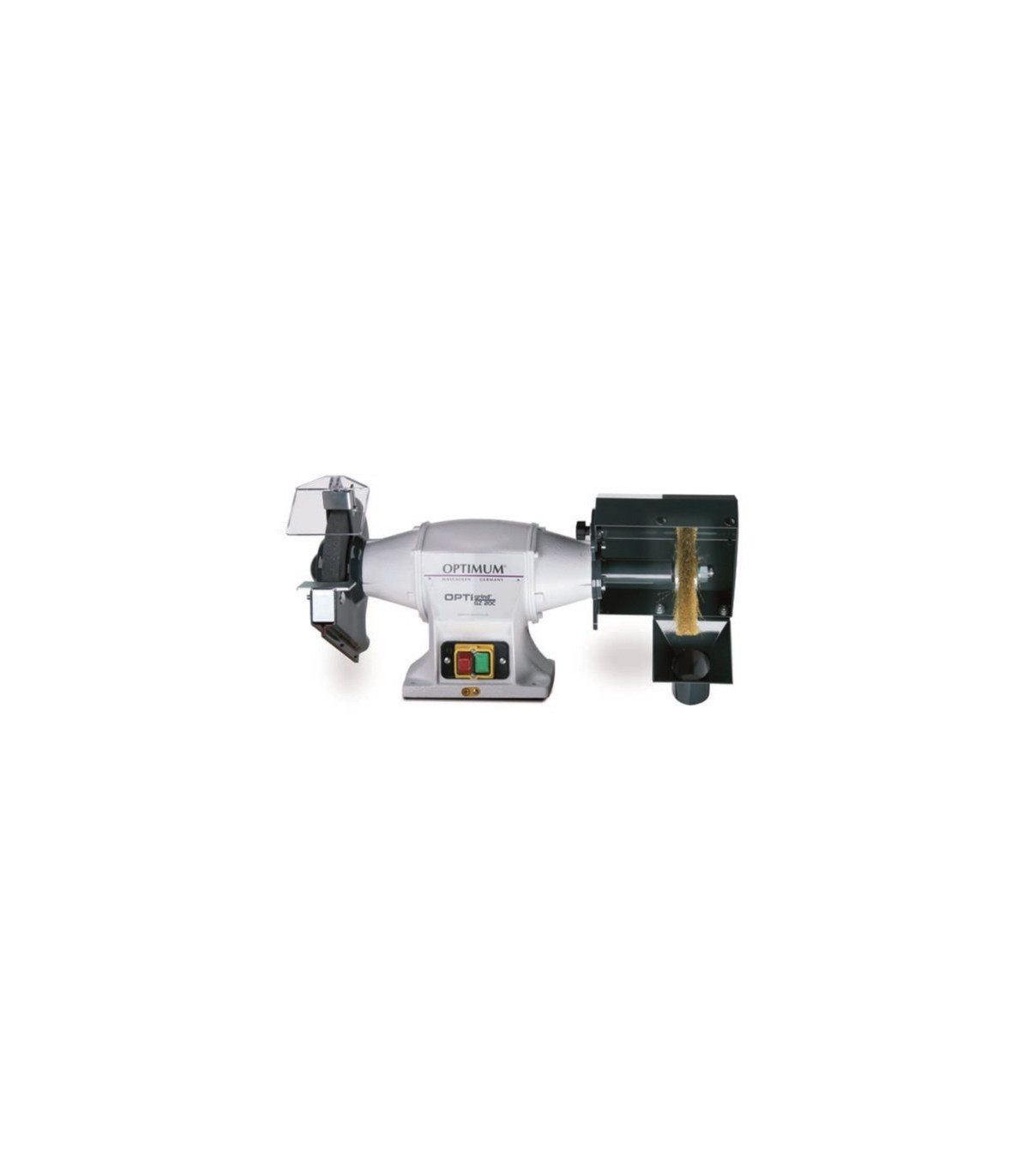

Premium combined grinder GZ 20C OPTIMUM

Premium combined grinder GZ 20C OPTIMUM. The premium combined grinder GZ 20C OPTIMUM is ideal for metallurgy, industrial maintenance, carpentry, and DIY. Its durable induction motor and cast iron housing ensure stable and efficient operation. Weighing 26.5 kg, it absorbs vibrations and withstands intense pushing forces. Additionally, it features a rotating brush and extraction nozzle to facilitate work. Perfect for use in technical education as well.

FEATURES

• The heavy industrial combined grinding machine absorbs low vibrations thanks to its high weight.
• It is also suitable for very strong pushing forces on the wheel and brush.
• Durable, maintenance-free induction motor with smooth operation.
• Cast iron housing.
• Stable and adjustable workpiece support.
• Wheel and brush not included in the standard delivery.

Multipurpose wire brush

• High-strength steel wire available in accessories in various thicknesses.

Brush housing

• Rotating
• Extraction nozzle for connecting a suction device.

TECHNICAL SPECIFICATIONS

Brushes

• Outer diameter of round brush 200 mm
• Width of round brush 25 mm

Dimensions and weights

• Approx. length 650 mm
• Approx. width/depth 300 mm
• Approx. height 360 mm
• Approx. weight 26.5 kg

Electrical data

• Drive motor output 0.75 kW
• Power supply voltage 400 V
• Network frequency 50 Hz

Abrasive wheel(s)

• Outer diameter 200 mm
• Width 25 mm
• Hole drill 20 mm
• Speed 2800 min¯¹
• VPE 1

WHAT TYPE OF WORK IS IT SUITABLE FOR

The premium combined grinder GZ 20C OPTIMUM is suitable for:

• Metallurgy
• Industrial maintenance
• Carpentry
• Home and DIY
• Technical education
