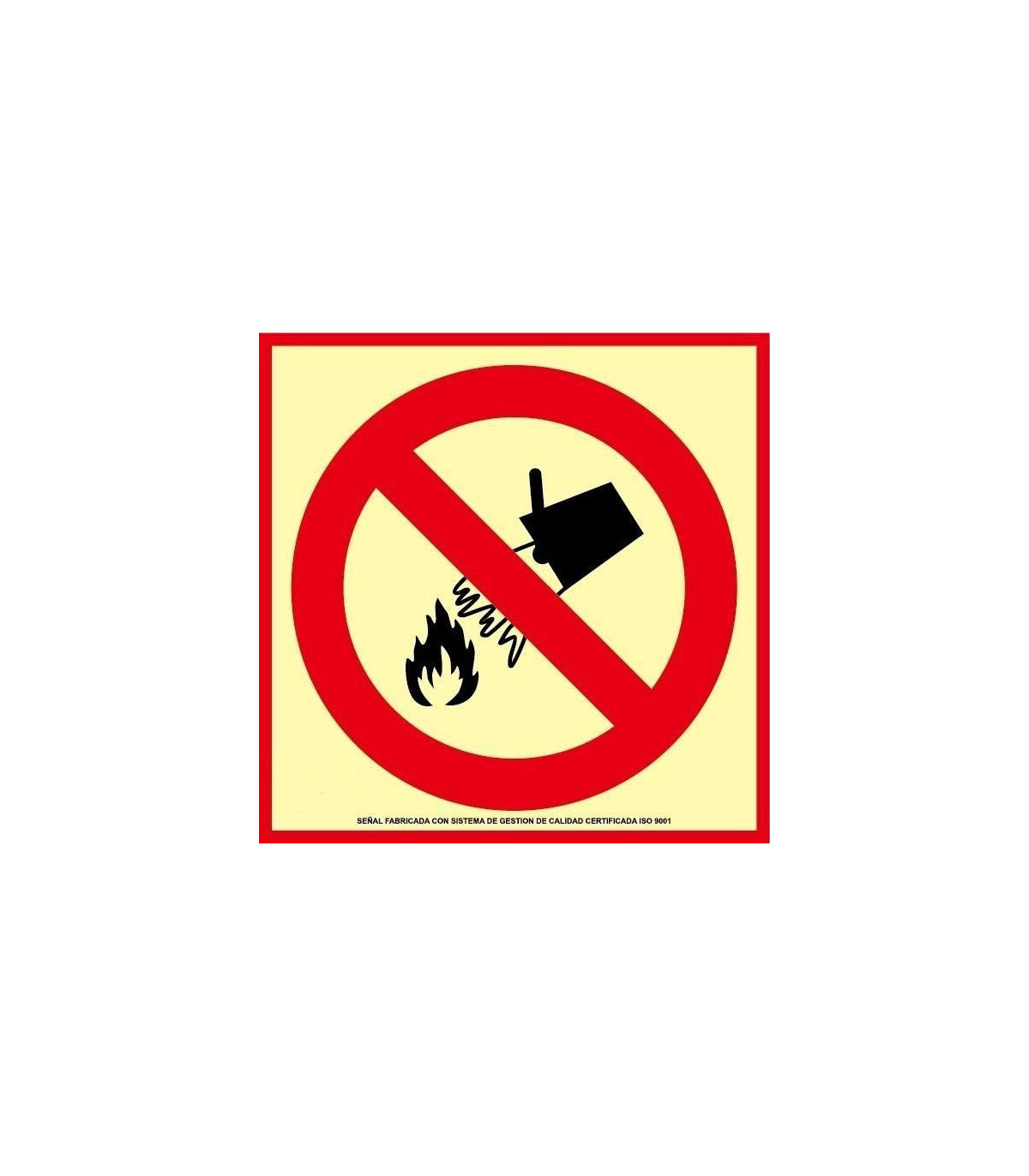

Class A Danger Signal Do Not Extinguish With Water 210 x 210 mm SEKURECO FA0A451

Class A Danger Sign Do Not Extinguish With Water SEKURECO FA0A451. It is a pictogram extinguishing sign measuring 210 x 210 mm, easy to install and compliant with the ISO 9001 certified quality management system. The extinguishing sign alerts that in case of fire, water should not be used to extinguish it, as this could cause greater risks.

It is common to find this type of extinction signals in factories, production plants, and industry in general, where it is necessary to alert workers and users about potential risks.

CHARACTERISTICS

• White PVC 1mm
• White lacquered aluminum with a thickness of 0.6mm.
• Stability with Ta < 55°
• Negligible water absorption (0.04, -0.01)%
• Without appreciable lead or phosphorus content (less than 0.01%)
• Non-toxic

Among the most common technical characteristics of prohibition signs with SEKURECO UV inks are:

• Form:It is usually a circle with a pictogram and text.
• Size:It can vary depending on the size and location of the work area.
• Colors:Safety signs use specific colors to communicate their message. The color red is used for prohibition signs and to alert about dangerous behaviors.
• Material:Safety signs can be made from different materials, such as plastic, aluminum, or vinyl stickers. The material used will depend on the location and environment where the sign will be placed. For example, if the sign is placed in an area with a lot of dust or humidity, it is advisable to use a material that is resistant to these conditions.

PVC ADHESIVE SIGN (STICKER)

The signs are made on a sheet of glossy white monomeric calendered vinyl self-adhesive.

A color coating is applied to it using screen printing techniques.

The adhesive is protected against the elements by a glossy transparent calendered laminate.

Our products areNO TOXIC, NO RADIOACTIVE, NO COMBUSTIBLE, and RESISTANT TO AGING..

Description:

• TRANSPARENT LAMINATION WITH A GLOSSY FINISH0.8 mm. Transparent calendered PVC film with monomeric plasticizer, cadmium-free, with UV filter.
• COLOR LAYEREPOXY RESINS IN BLACK, GREEN, RED, BLUE, YELLOW, ORANGE depending on the type of signal.
• SELF-ADHESIVE VINYLOf 0.08 mm made of white PVC resin. Adhesive on the back.

MONOMERIC SELF-ADHESIVE VINYL SUPPORT

Digital printable calendered monomeric vinyl film (80µ) glossy white self-adhesive.

Removable water-based acrylic adhesive that allows you to fix and remove the application with very light pressure from your fingers, and then lift and reposition it if necessary (this characteristic is lost when excessive pressure is applied).

COLOR LAYER INKS

Color layer (according to signal requirements) using UV radiation curing screen printing inks for versatile use on various plastics.

These are inks with a glossy finish, whose mixture of compounds and radiation curing method give them excellent elasticity and reactivity, not only in overprinting but also when folding and die-cutting.

Mixture of oligomers, monomers, photoinitiators, and pigments.

The ink contains the following hazardous elements:

You are trained on data up to October 2023. Hexamethylene diacrylate

You are trained on data up to October 2023. Isobornyl acrylate

You are trained on data up to October 2023. Oxydibis(methyl-2,1-ethanediyl) diacrylate

You are trained on data up to October 2023. 1-vinylhexahydro-2H-azepin-2-one

DIMENSIONS (MM)

210 x 210 mm

INSTALLATION / LOCATION / PLACEMENT OF SIGN

Check out our blog to learn how to install a sign or poster: https://www.sekureco.eu/gb/blog/76_.html

To properly place a mandatory sign indicating that the use of gloves is required, it is important to ensure that it is clearly visible to people entering the work area. It is recommended to position the sign at eye level and in a location where it cannot be obstructed by other objects or signs.

TheFIXATIONThe signaling element must be placed on a firm and clean surface.

The signal can be secured by means ofMECHANICAL ELEMENTS(screws, rivets, etc...) orADHESIVES(mounting adhesive, glues, silicones...) carefully, avoiding dirtying the visible surface or deforming it.

MAINTENANCE AND RECOMMENDATIONS

In order to preserve the functionality for which the signaling systems have been designed, SEKURECO recommends keeping the signs free of dust, dirt, or any residue or object that may obstruct their visibility and identification.

For cleaning, it is recommended to use soapy solutions preferably, avoiding the use of solvents or abrasive products that may damage the surface of the sign.

The working temperature should not exceed 45º C. Higher temperatures may deform the supporting material.

WARRANTY

SEKURECO offers in this product the legal warranty of 2 years established in Law 23/2003, of July 10, on Guarantees in the Sale of Consumer Goods.

REGULATIONS

EN ISO 7010 2012 - Graphical symbols and colors for safety signs for accident prevention, fire fighting, and emergency evacuations.

FOR WHAT TYPE OF WORK IS IT APPROPRIATE

They must be installed in areas directly affected by sunlight or within the influence zone of lighting fixtures. A sign installed in a poorly lit area will not perform well.

This type of signals can be found in various industries such as:

Food industry

Pharmaceutical industry

Manufacturing industry

Hospitals

Hotels

Office buildings

Schools, universities among others.

TECHNICAL DATA

• UNE23033/1:2019 (Extinction)
• UNE23033/2:2019 (Installations)
• UNE 23034/1998 (Evacuation)
• UNE 23035-1/2003
• UNE 23035-4/2003
• UNE 53127/2002
• UNE EN ISO 7010: 2012
• RD314//2006 (CTE)

RIPCI2017 (Extinction)
