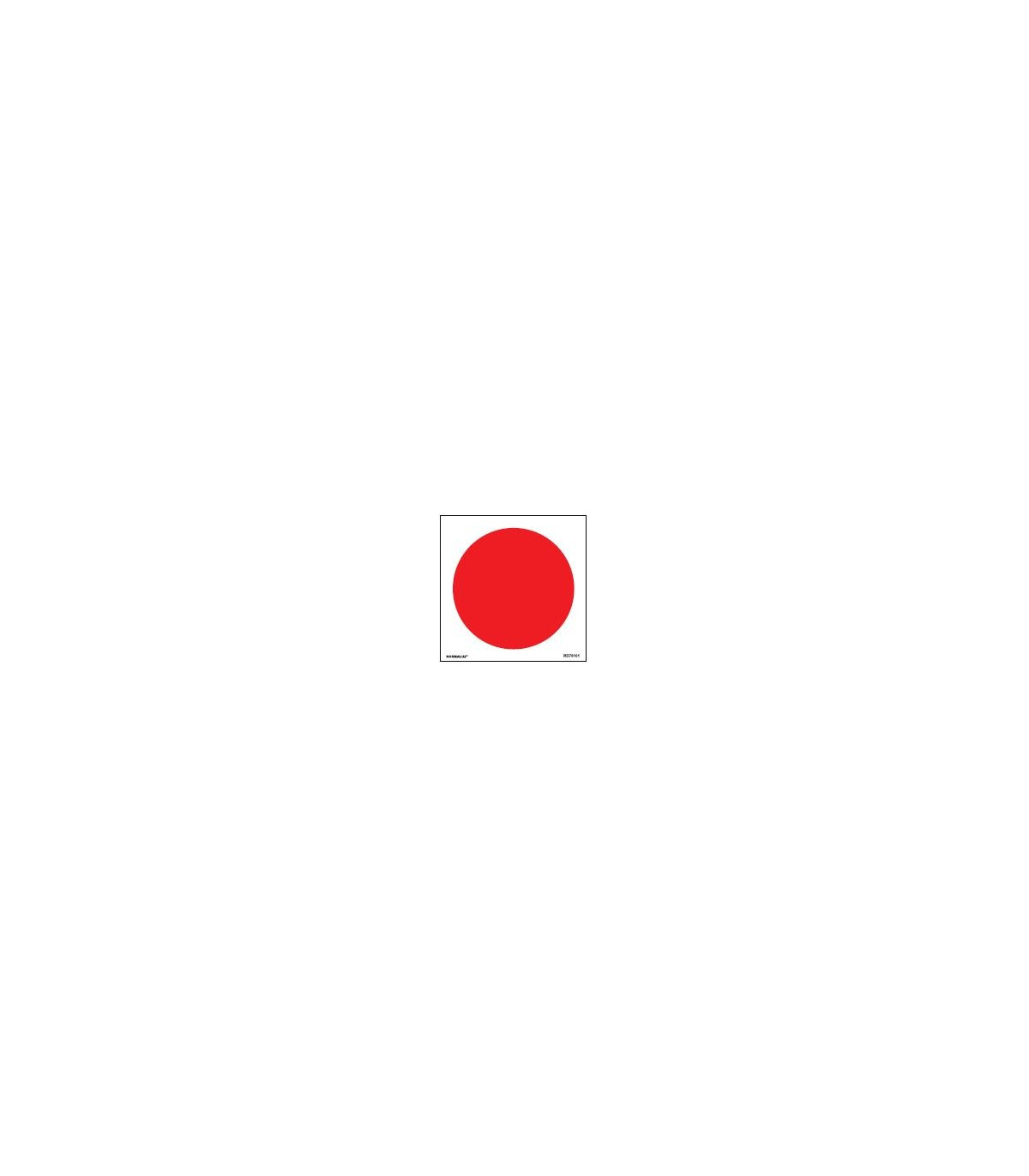

Red Adhesive Vinyl 100 mm SEKURECO

Informative signal red adhesive vinyl of 100 mm SEKURECO, the sign is square-shaped and made of stainless steel. It consists of a pictogram related to the message.

The sign is located in common and work areas to inform people about the prohibitions of smoking in certain places. It is used to provide information and guidance to people in a specific location. Its design and location may vary depending on local regulations and standards.

FEATURES

Denomination (according to ISO Standard 7010/2012)

Materials: support stainless steel

According to UNE 53127:

Stainless steel 0.8 mm thick.

Stability with T° < 55°.

Negligible water absorption (0.04 ‡ 0.01)%.

Self-extinguishing.

No appreciable lead and phosphorus content (less than 0.01%)

Non-toxic.

OUTER PROTECTIONS:

Protection against UV rays (does not blacken in the sun).

COLOR:

Ink with high adhesion and resistance.

Allows for great flexibility in the final product.

Non-flammable. Non-toxic.

FINAL THICKNESS:

0.8 mm (=10%).

PRODUCT REFERENCE: RD707000 A RD797027

INFORMATIVE SIGN

DIMENSIONS:

FORMAT

Pictogram Image

DIAMETER MEASUREMENTS: 100 mm

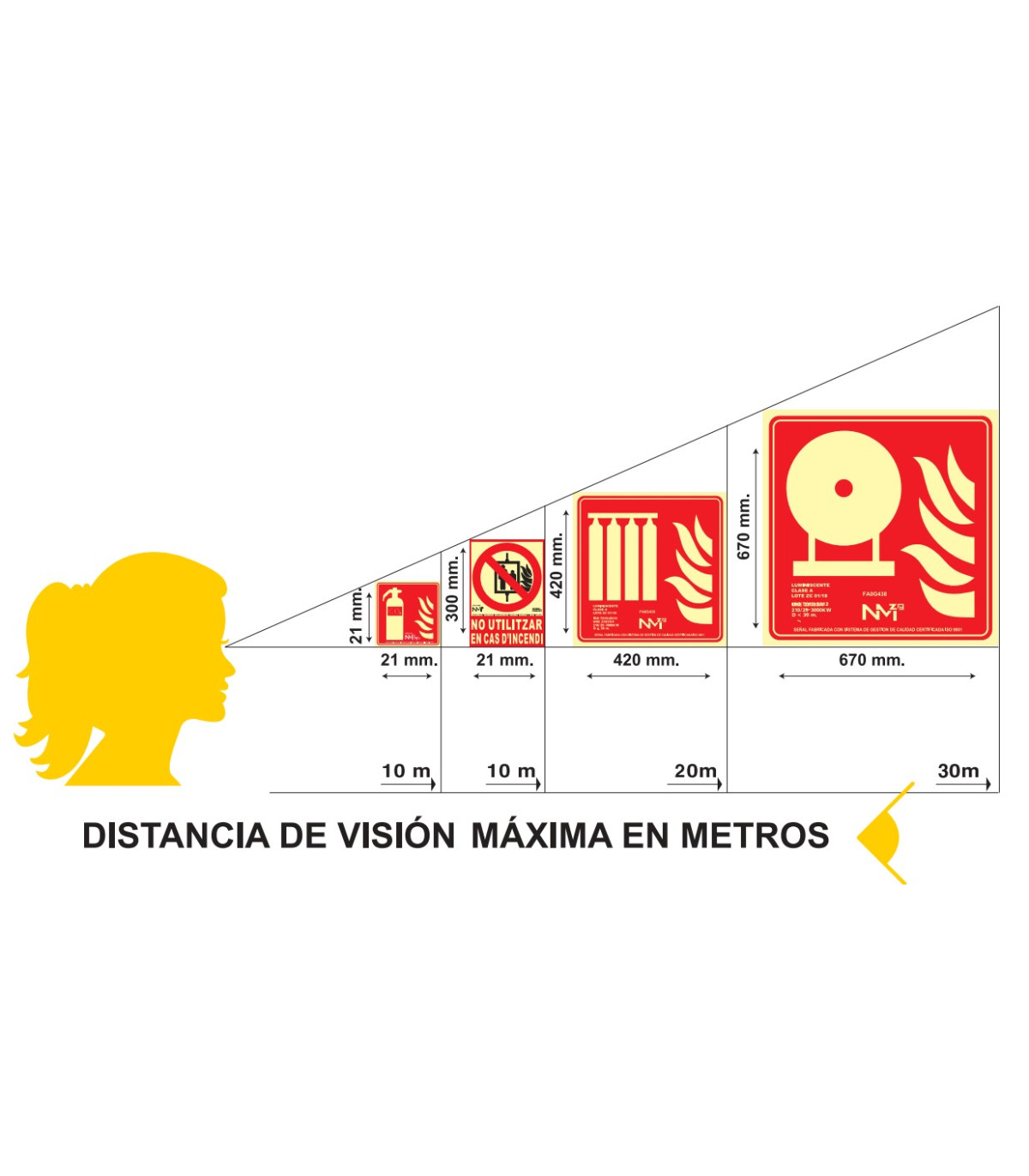

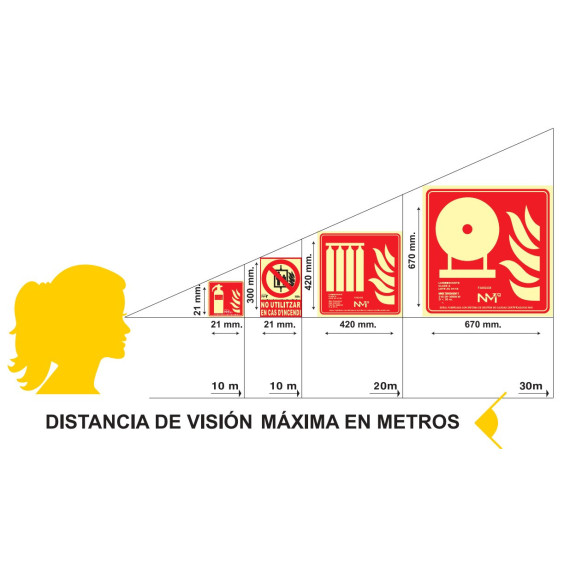

OBSERVATION DISTANCE:

Signal surface m2: 0.01 102/2000=0.05 m2

To calculate the necessary dimensions of a sign, the formula will be applied, up to a maximum distance of 50 m2:

S≥ L2 / 2000

**s* represents the surface area of the sign in square meters, and "L” the distance in meters from which the sign can be perceived.

REGULATIONS, TESTING, AND LEGISLATION

RD 2267: 2004

RD 393 2007

RD 485:1997

RD 486 1997

RD 681/2003

RD 2267/ 2004

RD UNE 1115/ 1985

RD ISO 7010: 2012

RD UNE 53127/ 2002

RD 314: 2006, RD 1371: 2007

RD 173: 2010 (CTE)

INSTALLATION

For all signage to be effective and fulfill its purpose, it must be placed in the appropriate location to:

- Attract the attention of those who are the intended recipients of the information.

- Provide the information with sufficient advance notice to be complied with.

- Be clear and have a unique interpretation.

- Inform about the course of action in each specific case.

- Offer a real possibility of compliance. Signage should remain as long as the situation that motivates it persists and be removed when the situation that motivated it disappears. The presence of multiple signs or any other circumstance that hinders perception or understanding should be considered so that it does not affect the effectiveness of the signage. When in a specific work area, there is a generalized need to signal different safety aspects, the signs may be located together at the entrance to that area, grouping them by types of series, for example, prohibitions separated from danger warnings and obligations, as long as such groupings do not lead to misinterpretation or obscure the necessary information intended to be conveyed. This system does not replace the necessary signage of specific risk points that may exist within the work area. Signage means and devices must be maintained and supervised so that they retain their intrinsic qualities and functionality at all times. When the sign requires a power source for its effectiveness, it must have an alternative emergency supply system in case of interruption of the main source. A maintenance and periodic review program must be established to control the correct state and application of the signage and ensure regular cleaning, repair, and/or replacement, as well as supervision of its application, always considering any changes in working conditions. This program should be included in the general periodic review program of the workplaces. Before implementation, all workers should be trained and informed so that they are aware of it. The training or information that must be provided for the correct application of the signage does not replace the employer's obligation to train and inform workers about risks, as established in articles 18 and 19 of Law 31/1995, of November 8.

Signs can be installed using adhesives, neutral silicones, or mechanical means, depending on the surface on which they need to be installed. If adhesives are used, ensure that the area where it will be applied is free of dust, grease, and roughness, as these are the archenemies of any type of adhesive.

Other installation options, to increase the viewing angle of the sign, would be the installation of banners or panoramic signs made of plastic or aluminum. If you would like more information about these supports, please request it from us.

STORAGE, CLEANING, AND CONSERVATION

The working temperature should not exceed 45º C. Higher temperatures may deform the supporting material.

The optimal storage temperature should be between 15º C and 25º C; and with a humidity of 10/50%.

Cleaning methods; avoid using abrasive products. It is recommended to clean them with water and neutral detergents.

DIMENSIONS

Stainless steel

70 mm

APPLICATIONS

• Factories
• Deposits
• Industry in general
