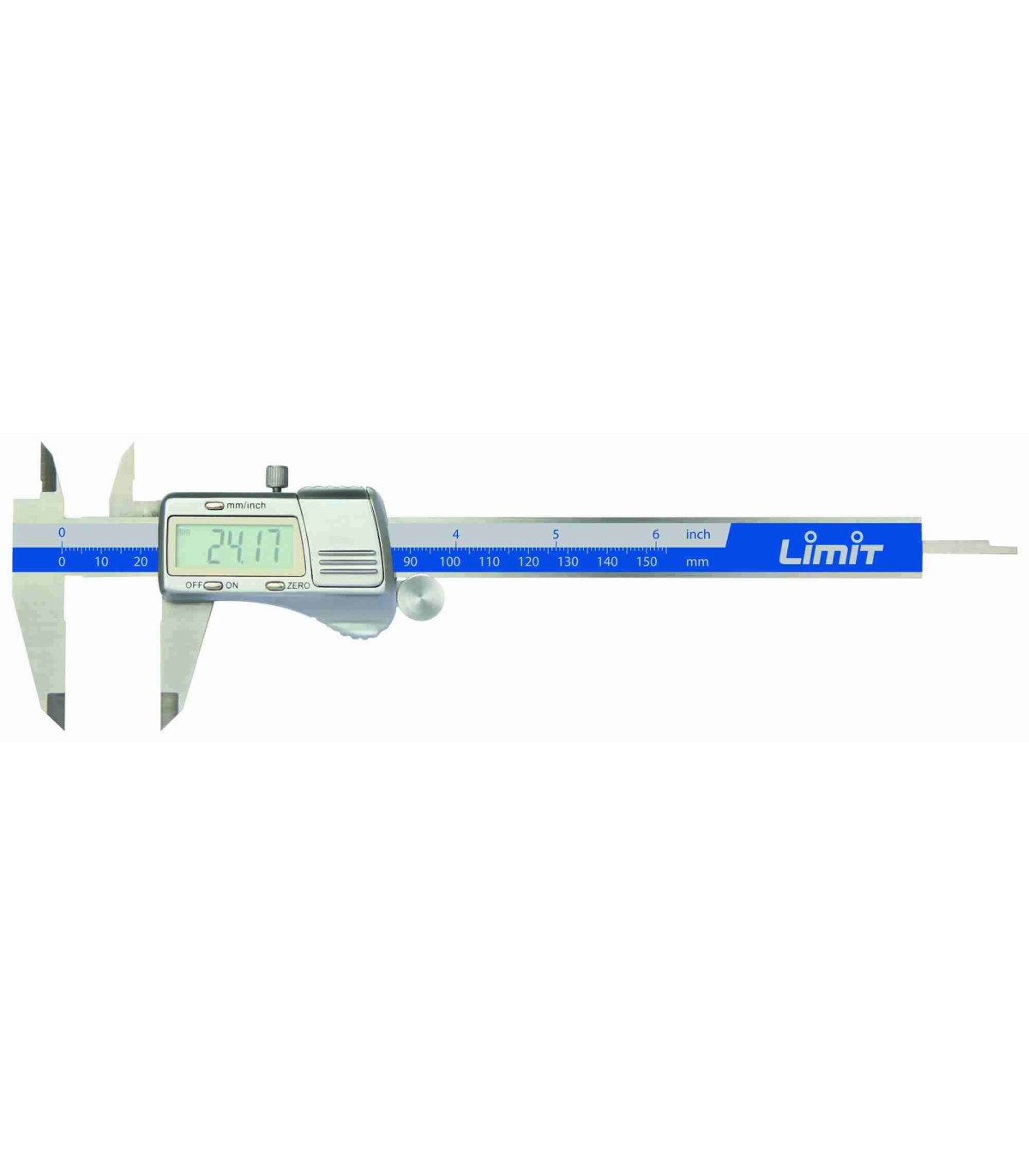

Digital King Size PRO DIN 862 LIMIT

Digital Caliper PRO DIN 862 LIMIT. The Digital Caliper PRO DIN 862 LIMIT features a superior quality design with a metal electronic unit. Its stainless steel jaws are hardened and ground for smooth movement.

The LCD screen displays clear 9 mm digits and allows switching between metric and imperial units. With advanced functions, it includes a rectangular depth gauge and offers precise measurements with an inaccuracy of ±0.02 mm. It comes in a case with an inspection certificate and a CR2032 battery.

Length of: 150 mm / 200 mm / 300 mm

FEATURES

• Digital Caliper with metal electronic unit.
• Superior quality, with special attention to detail and finish.
• Very smooth jaw movements thanks to the multi-stage grinding of its components.
• Measurement jaws made of stainless steel, hardened and precisely ground.
• Jaw thickness of 3.5 to 4 mm providing great stability.
• LCD screen with clear 9 mm high digits.
• 4 functions.
• Automatic shut-off.
• Processor with high update speed (3 m/s).
• Switching between metric and imperial units.
• Equipped with a rectangular depth gauge and tips for internal measurements.
• Manufactured according to DIN 862.
• Supplied in a case with an inspection certificate.
• CR2032 battery included.

TECHNICAL DATA

Depth gauge: Rectangular

Measuring length: 150 mm / 200 mm / 300 mm

Resolution: 0.01 mm

Leg thickness: 3.5 mm / 4 mm

Update speed: 3 m/s

External leg length: 40 mm / 50 mm / 60 mm

Digit height: 9 mm

Internal leg length: 21 mm / 24 mm / 28 mm

Measurement units: mm, inches

Inaccuracy: ±0.02 mm / ±0.03 mm / ±0.04 mm

Repeatability: ± 0.01 mm

ETIM class code: EC000157

Lock type: Locking screw

Design: Digital

STANDARDS

- DIN 862: This standard ensures that measuring tools are accurate and reliable, which is essential in various industrial and construction applications. Rules and tapes that comply with this standard must have a clear and legible graduation, as well as a durable material to ensure longevity.

FOR WHAT TYPE OF WORK IS IT SUITABLE

The Digital Caliper PRO DIN 862 LIMIT is suitable for:

• Mechanical engineering
• Metallurgy
• Carpentry
• Parts manufacturing
• Quality control
• Prototype design
• Electronics
