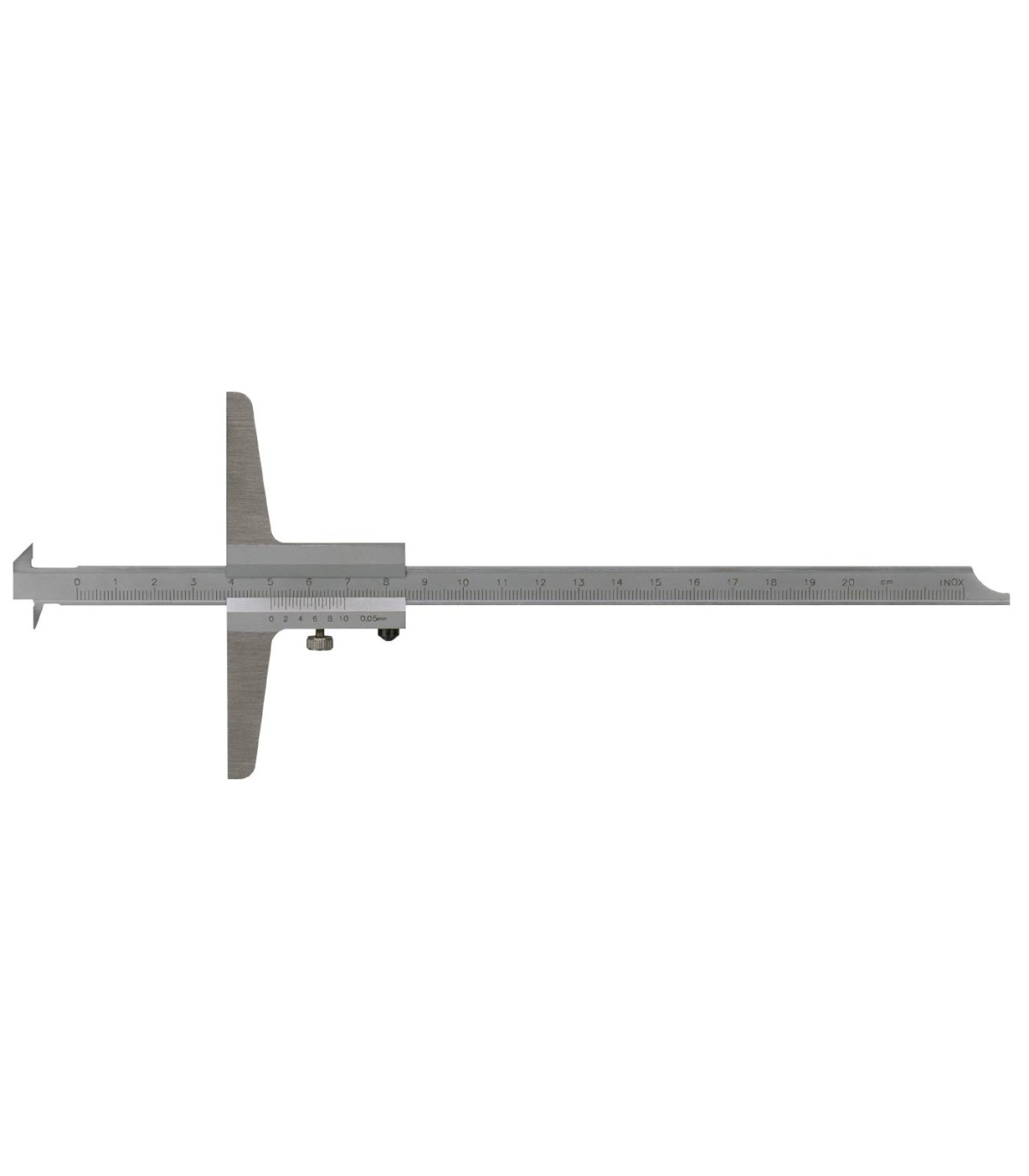

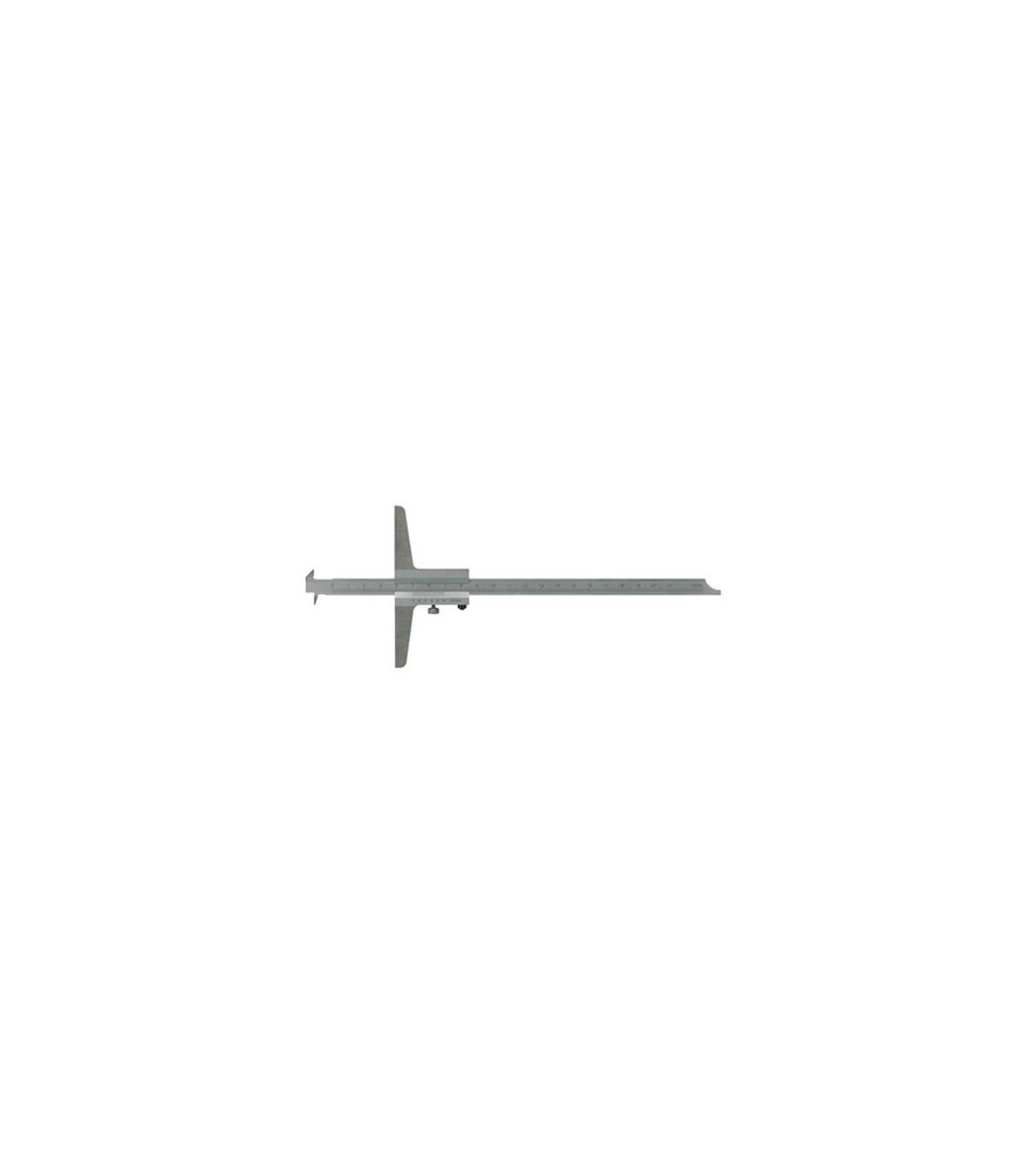

Analog depth gauge with double hook LIMIT

Analog depth gauge with double hook LIMIT. The analog depth gauge with double hook LIMIT, made of stainless steel, features a matte chrome scale and a reversible scale for measuring hook or tip. Graduated in mm with a Vernier of 0.05 mm, it has a stop length of 100 mm and a hook length of 6 mm. It complies with DIN 862 tolerance and allows measuring depths of up to 200 mm. Its analog design is ideal for precise and versatile applications.

FEATURES

• Made of stainless steel.
• Matte chrome scale.
• Reversible scale for hook or tip measurement.
• Graduated in millimeters.
• Vernier scale of 0.05 mm.
• Stop length: 100 mm and hook length: 6 mm.
• Tolerance according to DIN 862.

TECHNICAL DATA

Measurement units: mm

Head length: 100 mm

Measuring depth: 200 mm

Design: Analog

STANDARDS

- DIN 862: This standard ensures that measuring tools are accurate and reliable, which is essential in various industrial and construction applications. Rules and tapes that comply with this standard must have a clear and legible graduation, as well as a durable material to ensure their longevity.

FOR WHAT TYPE OF WORK IS IT SUITABLE

The analog depth gauge with double hook LIMIT is suitable for:

• Mechanical or automotive industry
• Metallurgy
• Carpentry
• Manufacturing of parts
• Quality control
