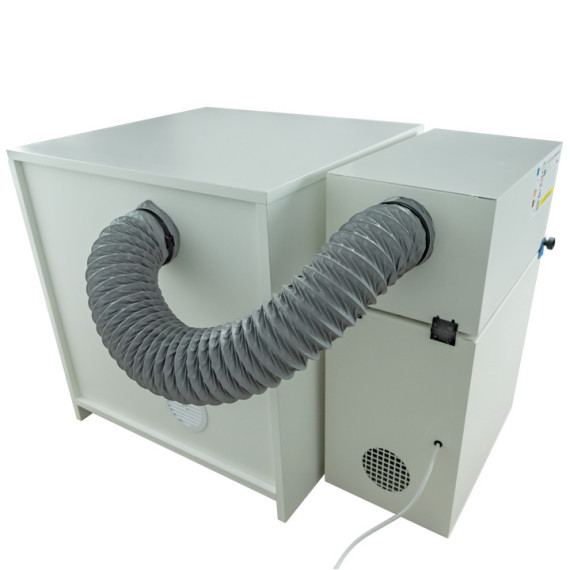

Vertical recycling air box (delivered without filter) H40 for toxic vapors ECOSAFE

Vertical recycling air box (delivered unfiltered) H40 for toxic fumes.

Adaptability to all types of cabinets, and especially to cabinets under a counter, easy to install and connect.

OPERATIONAL PROCESS

• The fan extracts harmful and toxic fumes from the cabinet.
• The carbon filter purifies the fumes before safely disposing of them into the environment. conformity
• The adsorption capacity of the activated carbon filters and the filtration system are tested and certified NF X 15-211.
• Electric fans comply with the European EC specification.

ADVANTAGES

• Labopure technology
• Adaptability to all types of cabinets, and in particular under-bench cabinets
• Easy installation and connection.
• The warning light ensures the proper functioning of the ventilation system.
• The front control window immediately indicates whether the filter is inside and well suited to your needs.
• High efficiency activated carbon filter specialised and treated according to stored products according to NF X 15-211.
• Dust pre-filter, 92% efficiency for particles larger than 3 μm.
• Easy replacement of the activated carbon filter.
• Wheels at the rear to facilitate movement technical specifications
• Structure of steel 12/10.
• Epoxy paint: white RAL 9010, blue RAL 5015.
• Soft and silent electric fan: 220-240 volts - 20 watts, 0,1 A, 43 db (A) (not including air flow)
• Air flow rate 86 m3/h - Protection: IP54.
• Input air flow diameter: 100 mm.

CHARACTERISTICS

• EC certificate
• Complies with NF X 15-211
• Storage of flammable, corrosive and toxic materials.
• Adsorption capacity of activated carbon filters and filtration system certified NF X 15-211
• Activated carbon filter tested according to standard NF X 15-211
• Simple and aesthetic installation
• No modification of the building structure is required
• Fan according to EC specifications

TECHNICAL DATA

• External dimensions alt x anch x pro (mm): 630 x 270 x 460
• Weight (kg): 18.00

OPTIONS

• Activated carbon filter: boxes are supplied without an activated carbon filter. You have to select the filter type on the next shipment, depending on the products stored.
• Connection kit.
• Monitoring of the saturation level of the filter by test tubes:. • Easy use of specialised test tubes. • Use of hand pump for testing. • Control of filter efficiency by reading the color codes of the test tubes.

ON ECOSAFE

ECOSAFE is the leading Swiss supplier of safety cabinets for hazardous products and specialises in the handling and storage of hazardous products for industry, the laboratory and local authorities.
