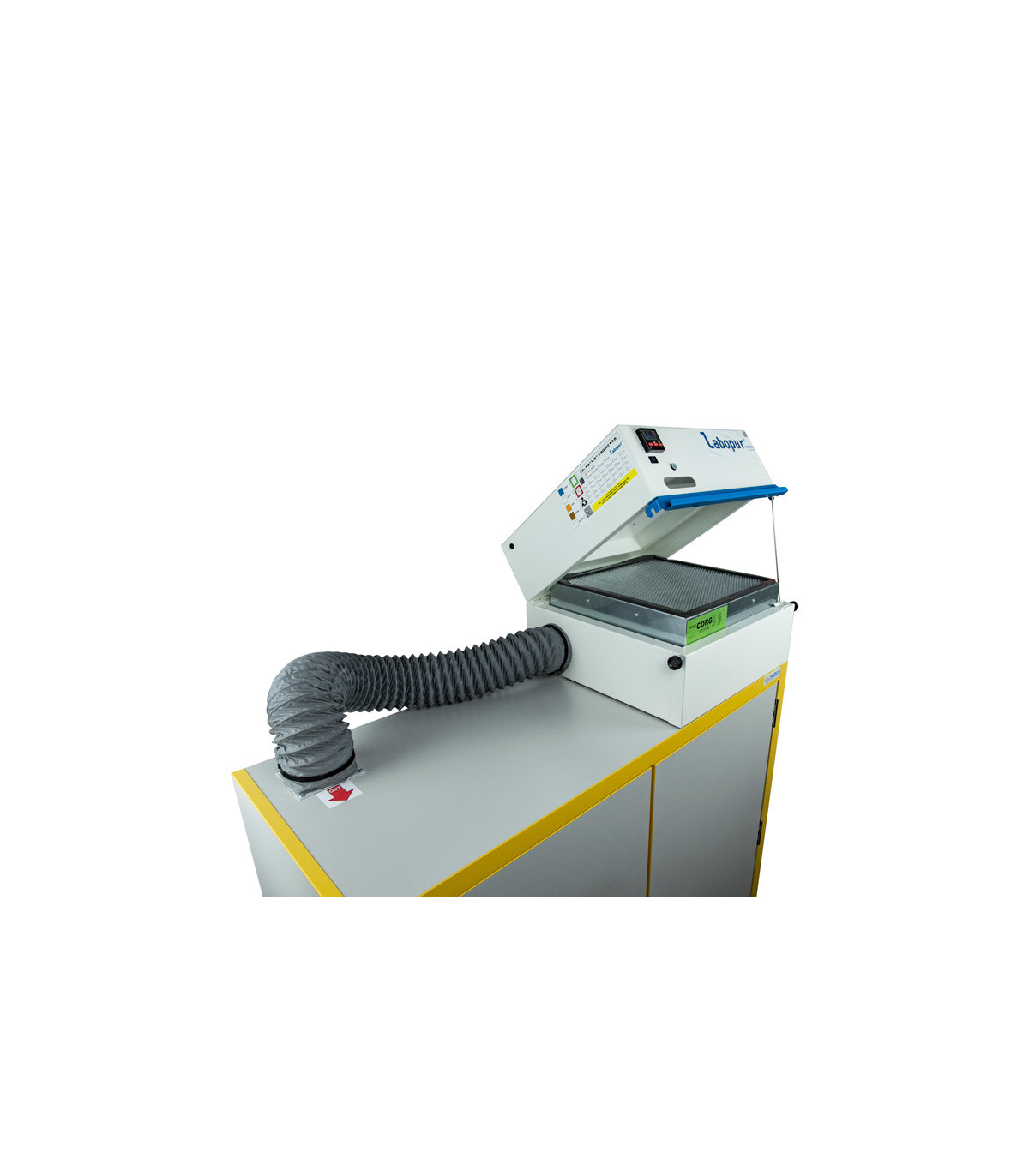

Filtration-filtering airbox (less filtered) for ECOSAFE cabinets

Recycle Air Box (delivered without filter) H50C. Tension: 220-240 volts. Labopure technology. Adaptability to all types of cabinets, with 3 connection inputs. Easy installation and connection.

*We remind you that you can use the filter for specific applications.

CHARACTERISTICS

• CE Certificate
• NF X 15-211
• Storage of flammable, corrosive and toxic.
• Capacity for adsorption of active carbon filters and certified filtration system NF X 15-211
• Active carbon filter tested according to NF X 15-211
• Simple and aesthetic installation
• No modification of building structure required
• Ventilator according to the specifications CE

BENEFITS

• Labopure technology.
• Adaptability to all types of cabinets, with 3 connection inputs.
• Easy installation and connection.
• The warning light ensures the good functioning of the ventilation system.
• The front control window immediately indicates whether the filter is inside and well suited to your needs.
• High efficiency active carbon filter specialized and treated according to the products stored according to the NF X 15-211.
• Anti-pollute prefilter, 92% efficiency for particles of more than 3 μm.
• Easy replacement of active carbon filter.
• The standard timer supplied with your recycling airbox indicates the total use of your box. After programming, every 60 hours, a sound alarm invites you to check the saturation of the active carbon filter.

OPERATIVE PROCESS

The fan extracts harmful and toxic vapours from the closet.

The carbon filter purifies the smokes before discarding them safely in the environment.

TECHNICAL DATA

• Conformity: EC
• Dimensions exterior alt x anc x pro (mm): 310 x 505 x 485
• Alt x anc x pro (mm): 700 x 500 x 500
• Volt: 220-240
• Air flow rate (m3/h): 86
• Electric power (watts): 20
• Acoustic power of the fan: 43.00
• Weight (kg): 15.00

INFORMATION

Conformity: EC

The adsorption capacity of active carbon filters and filtration system are tested and certified NF X 15-211.

Electric fans meet the European CE specification.

APPLICATIONS

• Recycling air box (delivered without filter) H50C compatible with cabinets for storage of flammable, corrosive and toxic.

OPTIONS

- Active carbon filter: boxes are supplied without active carbon filter. You have to select the filter type in the next shipment, according to the stored products.

- Connection kit.

- Control of the filter saturation level by TUBOS REACTIVES: Control port on the front of the box. Easy use of specialised reactive tubes. Use of manual test pump. Control of filter efficiency by reading the color codes of the reactive tubes.
