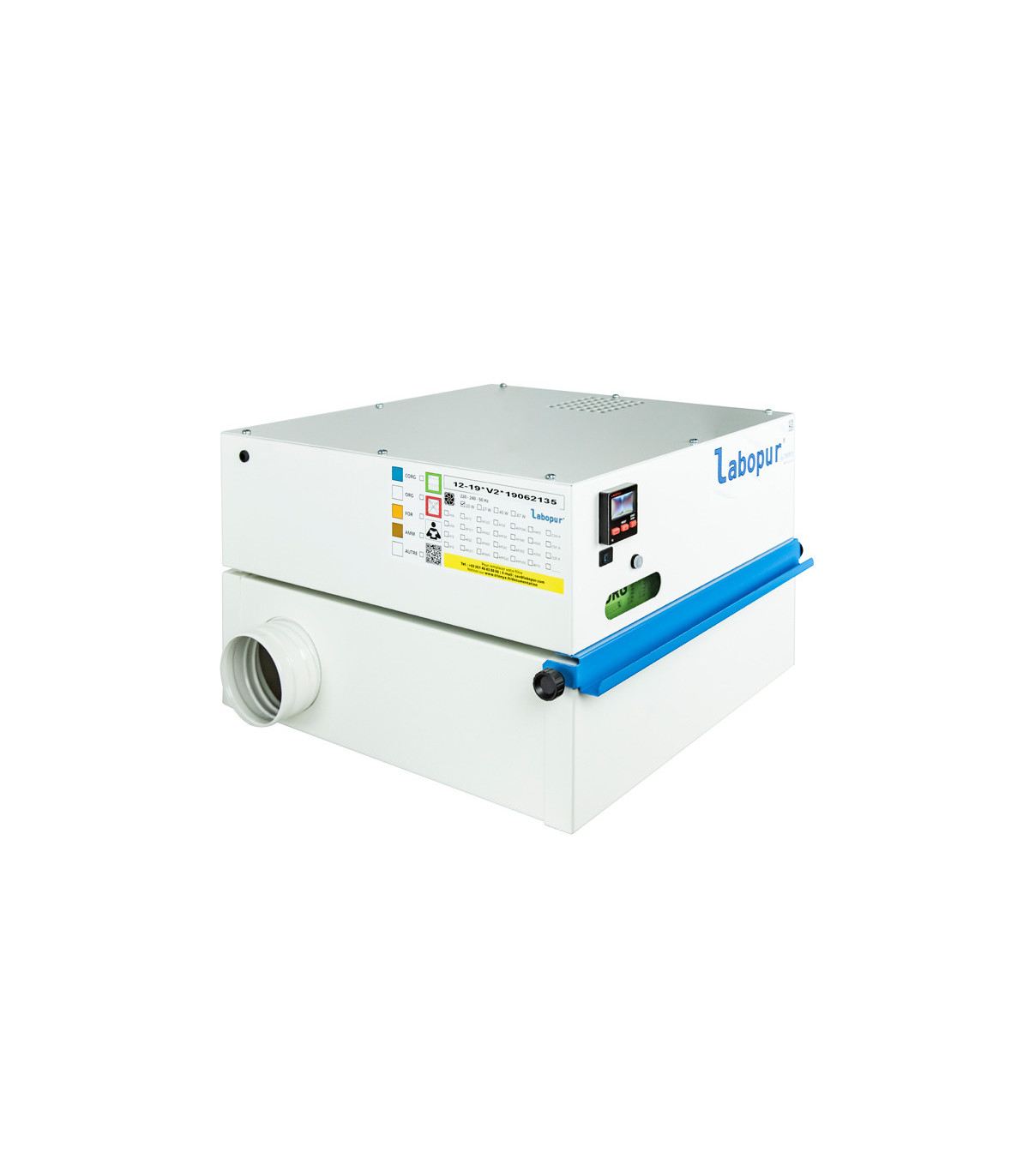

Recycling air filter box - filtration (delivered without filter) for ECOSAFE cabinets.

Recycling air box (delivered without filter) H50C. Voltage: 220-240 volts. Labopure technology. Adaptable to all types of cabinets, with 3 connection ports. Easy installation and connection.

*We remind you that you can use the filter for specific applications.

FEATURES

• CE certified
• Complies with NF X 15-211
• Storage of flammable, corrosive, and toxic materials.
• Adsorption capacity of activated carbon filters and filtration system certified NF X 15-211
• Activated carbon filter tested according to NF X 15-211 standard
• Simple and aesthetic installation
• No modification of the building structure is required
• Fan according to CE specifications

ADVANTAGES

• Labopure technology.
• Adaptable to all types of cabinets, with 3 connection ports.
• Easy installation and connection.
• The warning light ensures the proper functioning of the ventilation system.
• The front control window immediately indicates if the filter is in place and well-suited to your needs.
• High-efficiency specialized activated carbon filter treated according to the stored products in accordance with NF X 15-211.
• Dust pre-filter, 92% efficiency for particles larger than 3 μm.
• Easy replacement of the activated carbon filter.
• The standard timer supplied with your recycling air box indicates the total use of your box. After programming, every 60 hours, an audible alarm invites you to check the saturation of the activated carbon filter.

OPERATING PROCESS

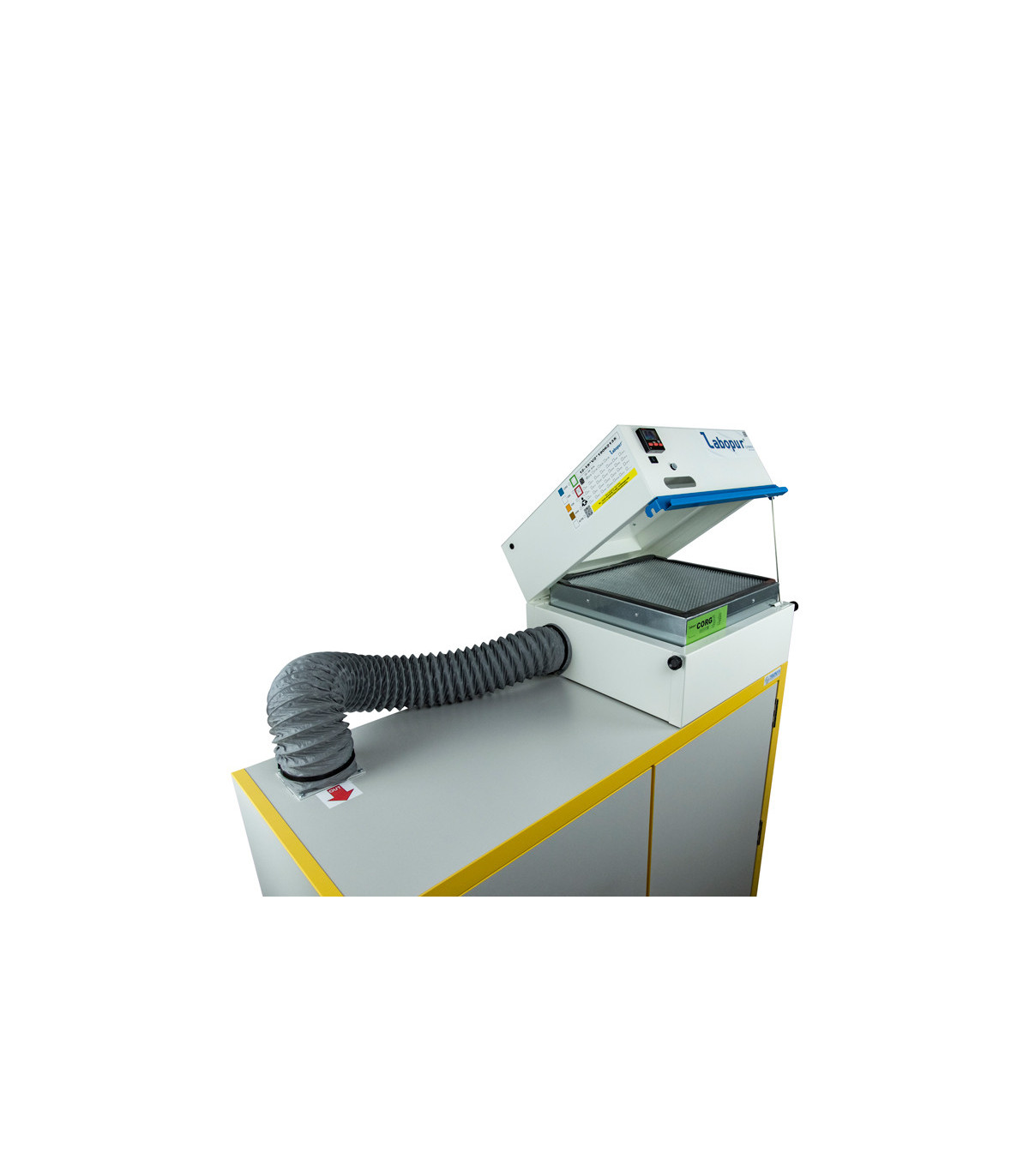

The fan extracts harmful and toxic vapors from the cabinet.

The carbon filter purifies the fumes before safely disposing of them in the environment.

TECHNICAL DATA

• Compliance: CE
• External dimensions h x w x d (mm): 310 x 505 x 485
• Shipping dimensions h x w x d (mm): 700 x 500 x 500
• Voltage (volts): 220-240
• Air flow (m3/h): 86
• Electrical power (watts): 20
• Fan acoustic power: 43.00
• Weight (kg): 15.00

COMPLIANCE

Compliance: CE

The adsorption capacity of the activated carbon filters and the filtration system are tested and certified NF X 15-211.

Electric fans comply with the European CE specification.

APPLICATIONS

• Recycling air box (delivered without filter) H50C compatible with cabinets for the storage of flammable, corrosive, and toxic materials.

OPTIONS

- Activated carbon filter: the boxes are supplied without activated carbon filter. You need to select the type of filter in the next shipment, according to the stored products.

- Connection kit.

- Filter saturation level control by REACTIVE TUBES: Control port on the front of the box. Easy use of specialized reactive tubes. Use of manual pump for testing. Control of filter efficiency by reading the color codes of the reactive tubes.
