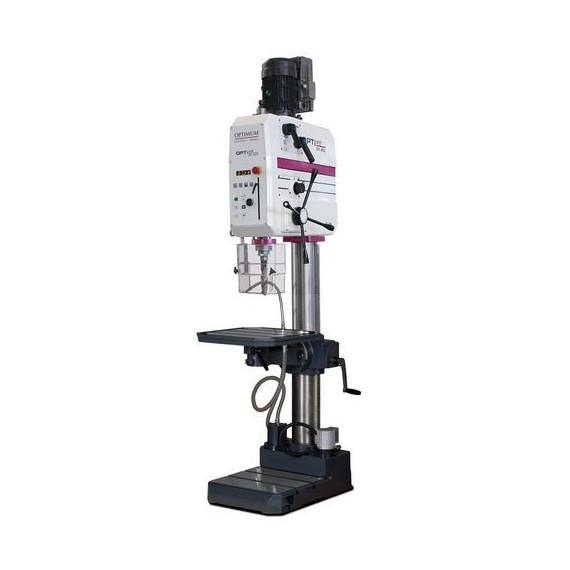

Industrial Gear Drill 4 speeds DH 45 V OPTIMUM

Industrial Gear Drill 4 speeds DH 45 V OPTIMUM. The industrial gear drill DH 45 V OPTIMUM has 4 speeds, a waterproof keyboard, and automatic lubrication. It includes a solid table with T-slots, integrated light, and a digital display, ideal for precise drilling.

FEATURES

• Waterproof and dirt-resistant membrane keyboard, easy to clean.
• 24 V DC electronics
• Drilling depth stop
• Automatic gear lubrication via oil pump
• Thread cutting device
• Integrated machine light in the drilling head
• Main switch
• Large safety grid with adjustable height and safety switch for maximum operator protection.
• Solid drilling table, large dimensions, precisely machined with parallel T-slots and circumferential cooling water channel, heavily striated at the back, laterally tiltable ± 90°.
• The coolant unit and external coolant tank can be removed for easy and complete emptying.
• Thick-walled cast column and extremely stable for high force absorption
• Solid base plate with parallel T-slots, precisely machined surface
• Optional foot switch available to switch between clockwise and counterclockwise rotation and for cutting threads (item number 3050032)

Optical Drill DH 45 V

• Electricly driven quill feed
• Programmable feed cutting
• Easy-to-read digital display
• Digitally adjustable drilling and threading depth
• Digital zero point can be set
• With infinitely variable speed control

OPTIdrill DH 45G

• Mechanical quill feed

TECHNICAL SPECIFICATIONS

Dimensions and weights

• Column diameter 150 millimeters
• Approx. length 880 millimeters
• Approx. width/depth 595 millimeters
• Approx. height 2445 millimeters
• Approx. weight. 550 kilograms

Drilling performance

• High-performance steel for drilling (S235JR) 40 millimeters
• High-performance steel for continuous drilling (S235JR) 35 millimeters
• Steel for threading (S235JR) M 30

Drilling table

• Working space length 530 millimeters
• Working space width 530 millimeters
• T-slot size 18 millimeters
• Number of T-slots 3
• T-slot spacing 125 millimeters
• Rotation 360°
• Angle 90°
• Load capacity 250 kilograms
• Maximum distance between spindle and drilling table 740 millimeters
• Minimum distance between spindle and drilling table 130 millimeters

Electrical data

• Drive motor output 2.2 kW
• Power supply voltage 400 volts
• Network frequency 50 Hz

Machine base

• Maximum distance from spindle to machine base 1210 millimeters
• Length of working area 435 millimeters
• Width of working area 445 millimeters
• T-slot size of machine base 18 millimeters
• Number of T-slots of machine base 2
• T-slot spacing of machine base 150 millimeters

Motor(s)

• Drive motor output of coolant pump 100 watts
• Speed range
• Speed range 30 – 2430 min¯¹
• Number of gears 4 steps
• Speed control electronic

Spindle

• Quill stroke 170 millimeters
• Spindle chuck MT 4
• Reach 350 millimeters
• Quill feed automatic
• Quill feed speed 0.1 – 0.2 mm/rev
• Quill feed gears 3 steps
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Keyless chuck 1 - 16 mm
• Morse taper MK 4-B16
• Transmission oil

FOR WHAT TYPE OF WORK IS IT SUITABLE

The industrial gear drill 4 speeds DH 45 V OPTIMUM is suitable for:

• Metal machining industry
• Manufacturing of precision parts
• Prototype workshops
• Production of industrial components
• Manufacturing of custom parts
• Machining of steel and other materials
• Projects requiring high concentricity and precision
