Bench drill for welding speed variator OPTIdrill DX 17V OPTIMUM

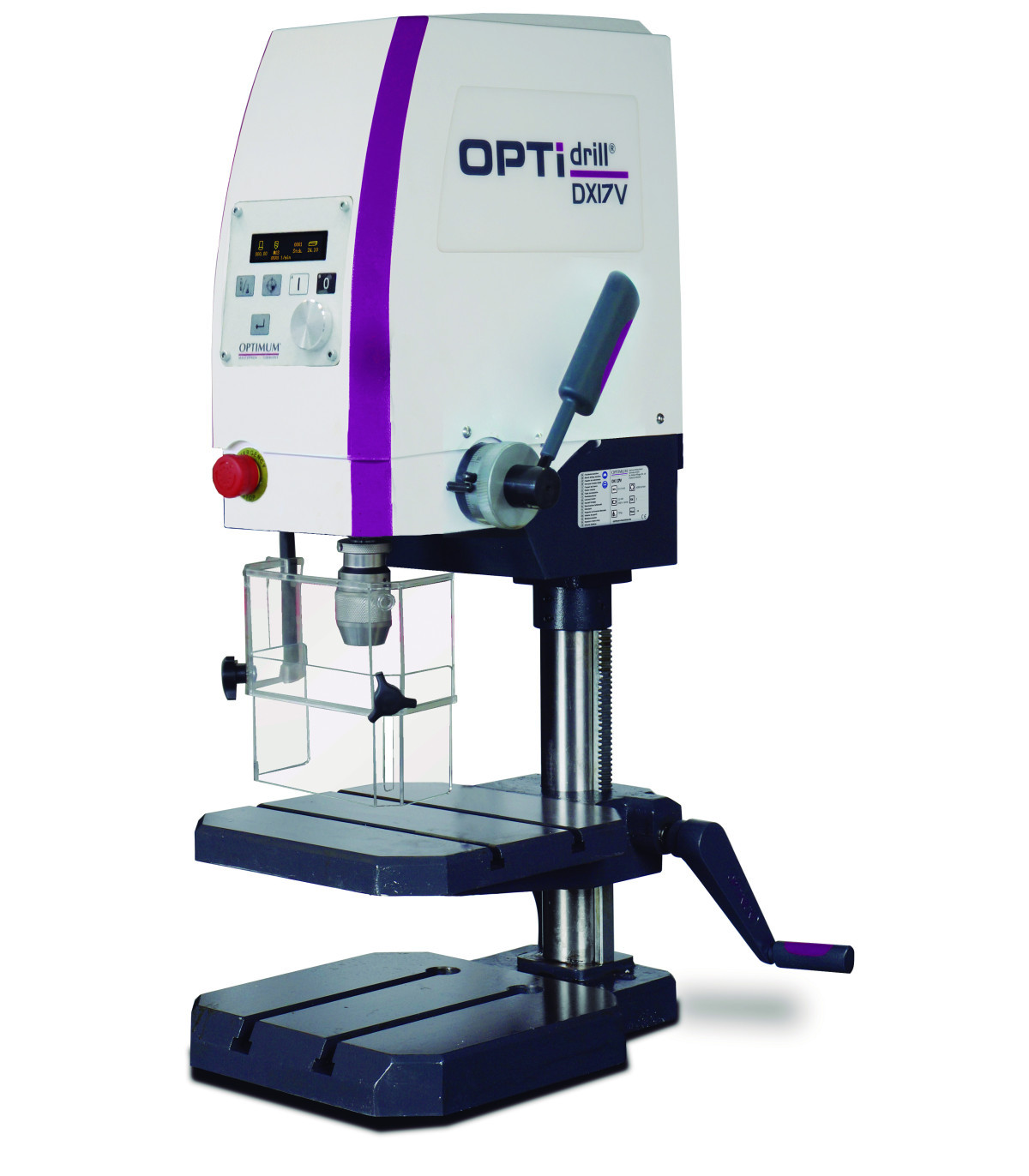

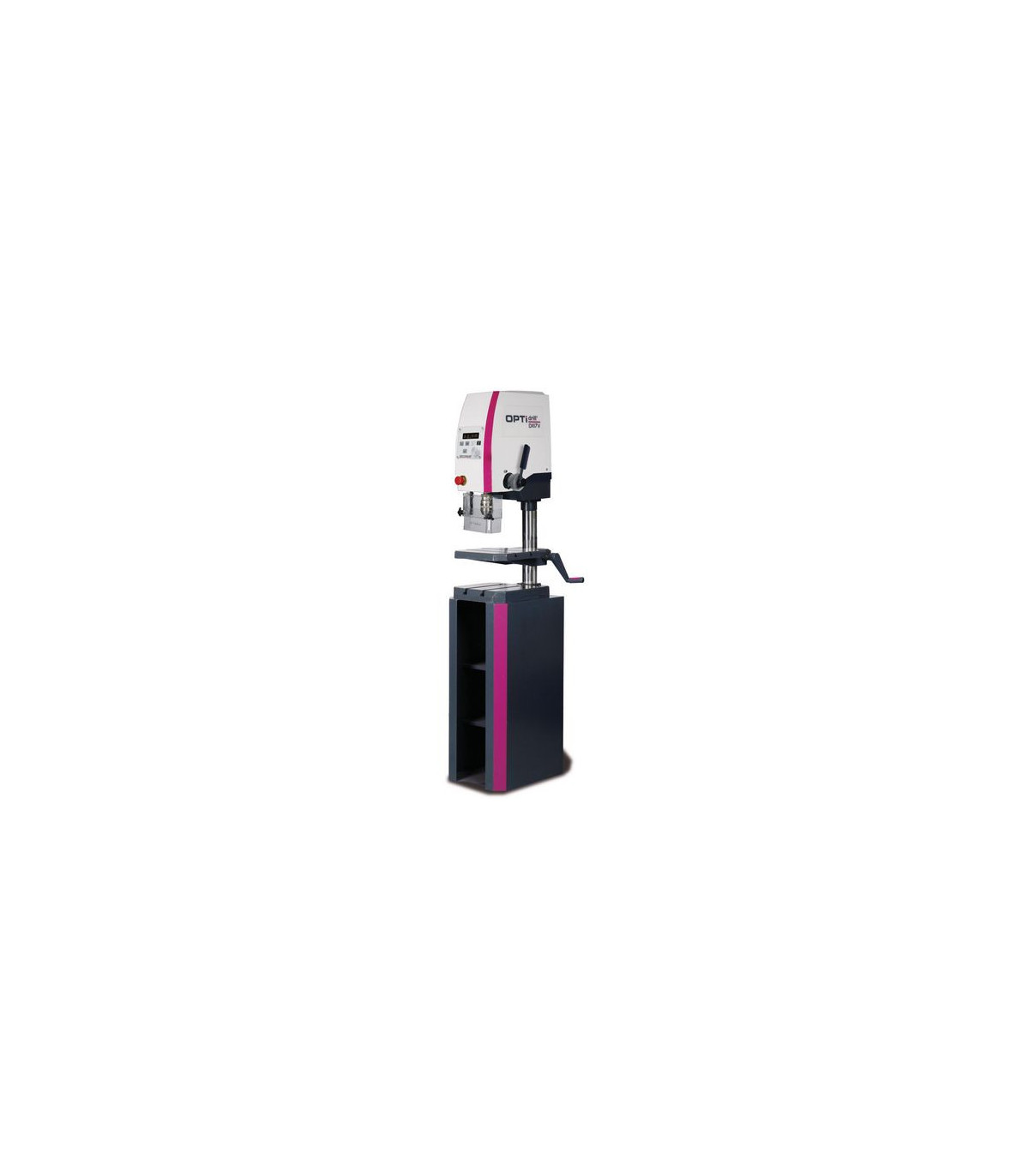

Bench drill for welding speed variator OPTIdrill DX 17V OPTIMUM. With spindle and precision ball bearings. It features a digital reference point and a digital piece counter.

Integrated glare-free LED lighting on the left and right of the drill head. No disturbing shadows.

FEATURES

The best power transmission through aluminum pulleys

Impact switch for emergency stop

Spindle drill with precision ball bearings

Guaranteed concentricity accuracy of less than 0.03 mm measured at the drilling spindle

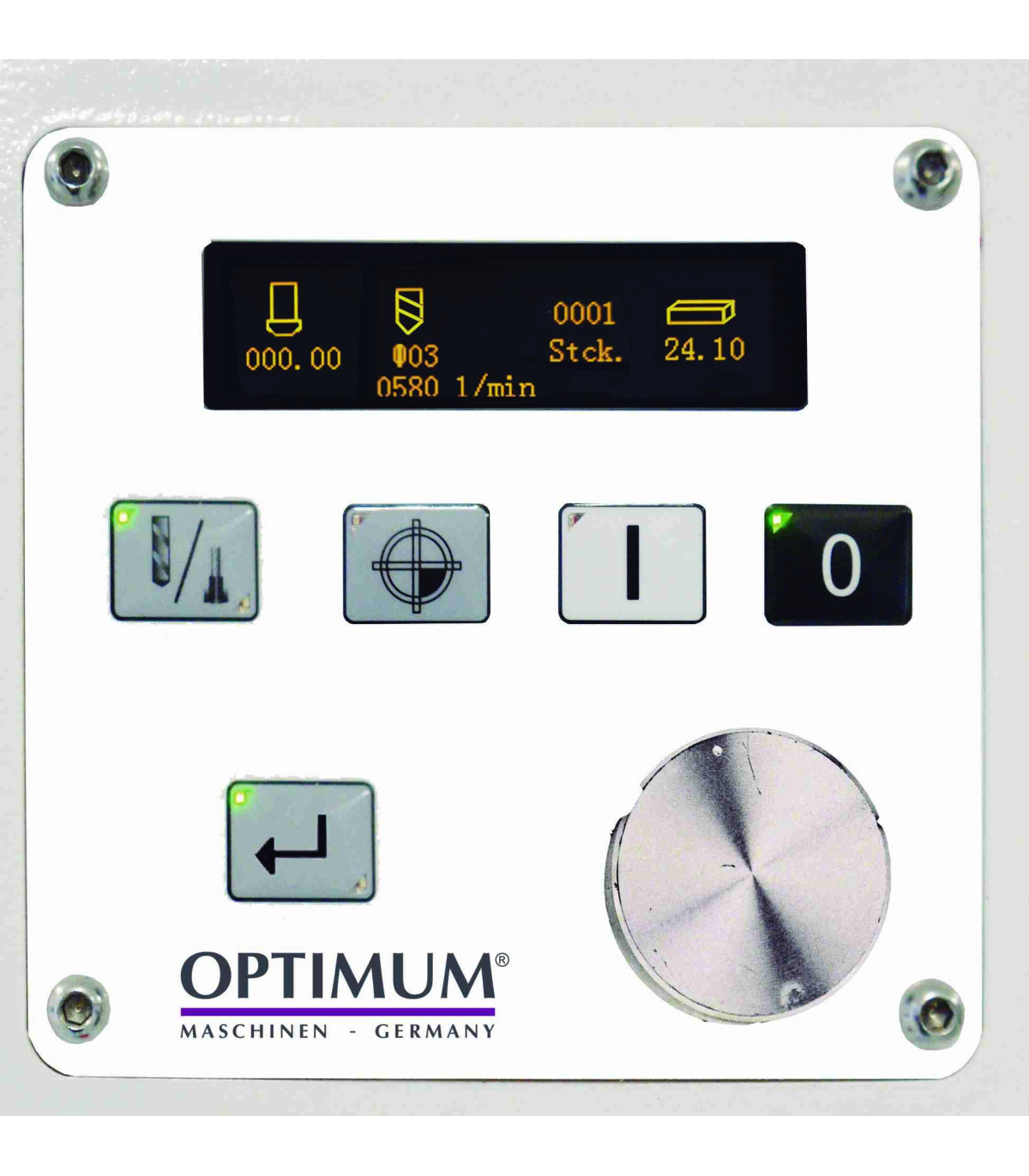

Membrane keyboard resistant to dirt and water, easy to clean with high-contrast OLED display

Integrated glare-free LED lighting on the left and right of the drill head. No disturbing shadows

Threading mode

Language selection in the display field optionally DE-EN-FR-RU

Digital reference point

Digital piece counter

Acoustic signal upon reaching the drilling depth

Reduced speed in tapping mode

Height-adjustable feed guard with micro switch for maximum protection

Precision machined drilling table with parallel T-slots, precision surface finish

Rotating drilling table

Solid base plate with parallel T-slots

Equipment:

When drilling and tapping, the machine automatically sets the optimal speed for the tool after specifying the diameter and material.

Pending patent DE 10 2015 006 876 A1

Siemens SINAMICS V20 inverter

TECHNICAL DATA

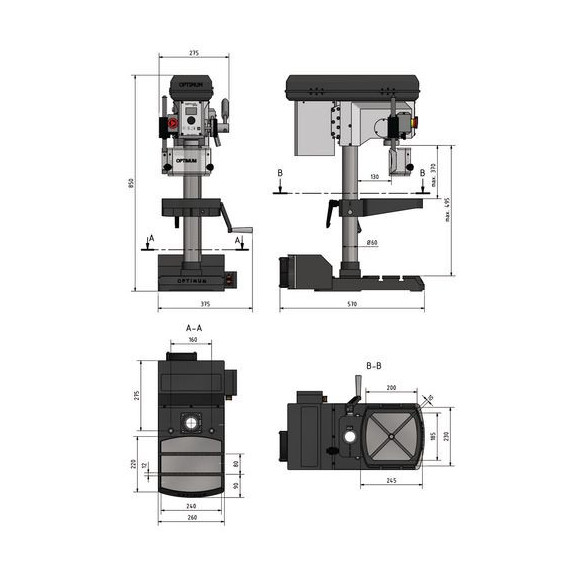

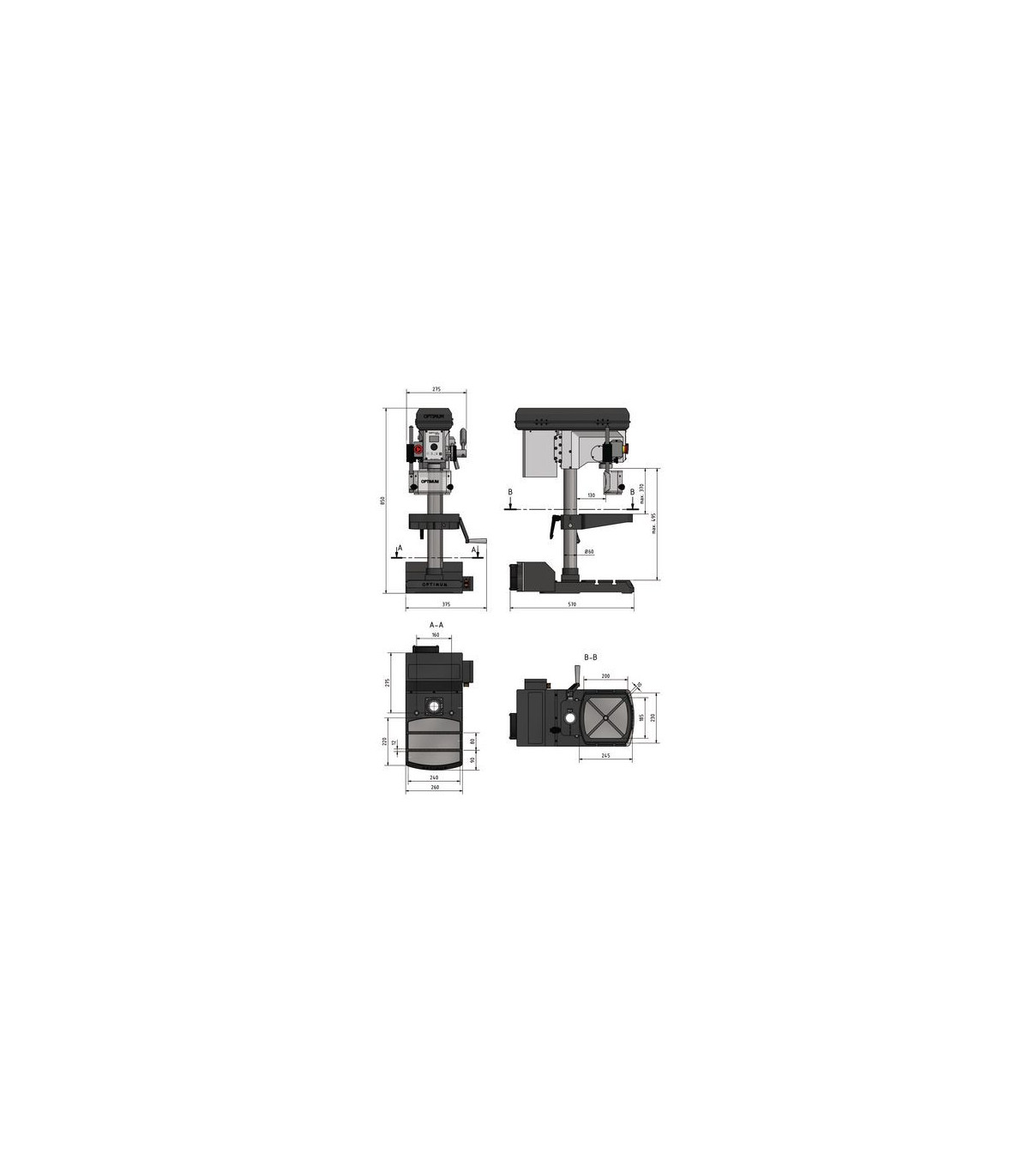

Dimensions and weights

Column diameter 60 mm

Approx. length 425 mm

Approx. width/depth 481 mm

Approx. height 910 mm

Approx. weight 73 kg

Drilling performance

Steel drilling performance (S235JR) 16 mm

Continuous steel drilling performance (S235JR) 13 mm

Threaded steel (S235JR) M8

Drilling table

Workspace length 290 mm

Workspace width 290 mm

T-slot size 10 mm

Number of T-slots 2

T-slot spacing 100 mm

Minimum distance from chuck - drilling table 98 mm

Maximum distance from chuck - drilling table 315 mm

Electrical data

Drive motor output 1.0 kW

Supply voltage 230 V

Network frequency 50 Hz

Machine base

Minimum distance from chuck - machine base 0 mm

Maximum distance from chuck - machine base 385 mm

Length of work area 290 mm

Width of work area 280 mm

T-slot size of machine base 14 mm

Number of T-slots of machine base 2

T-slot spacing of machine base 100 mm

Speed range

Speed range 50 – 4000 min¯¹

Speed control electronically adjustable

Spindle

Stroke length 60 mm

Spindle chuck MK2

Reach 235 mm

Standards and certifications

Standard DIN EN 55011

EMC class C2

VPE 1

PACKAGING

Unit: pc(s).

Packaging unit: 1

Keyless chuck 1 - 13 mm

FOR WHAT TYPE OF WORK IS IT SUITABLE

Metalworking industry

Automotive industry

Aerospace industry

Mold and die industry

Industrial maintenance
