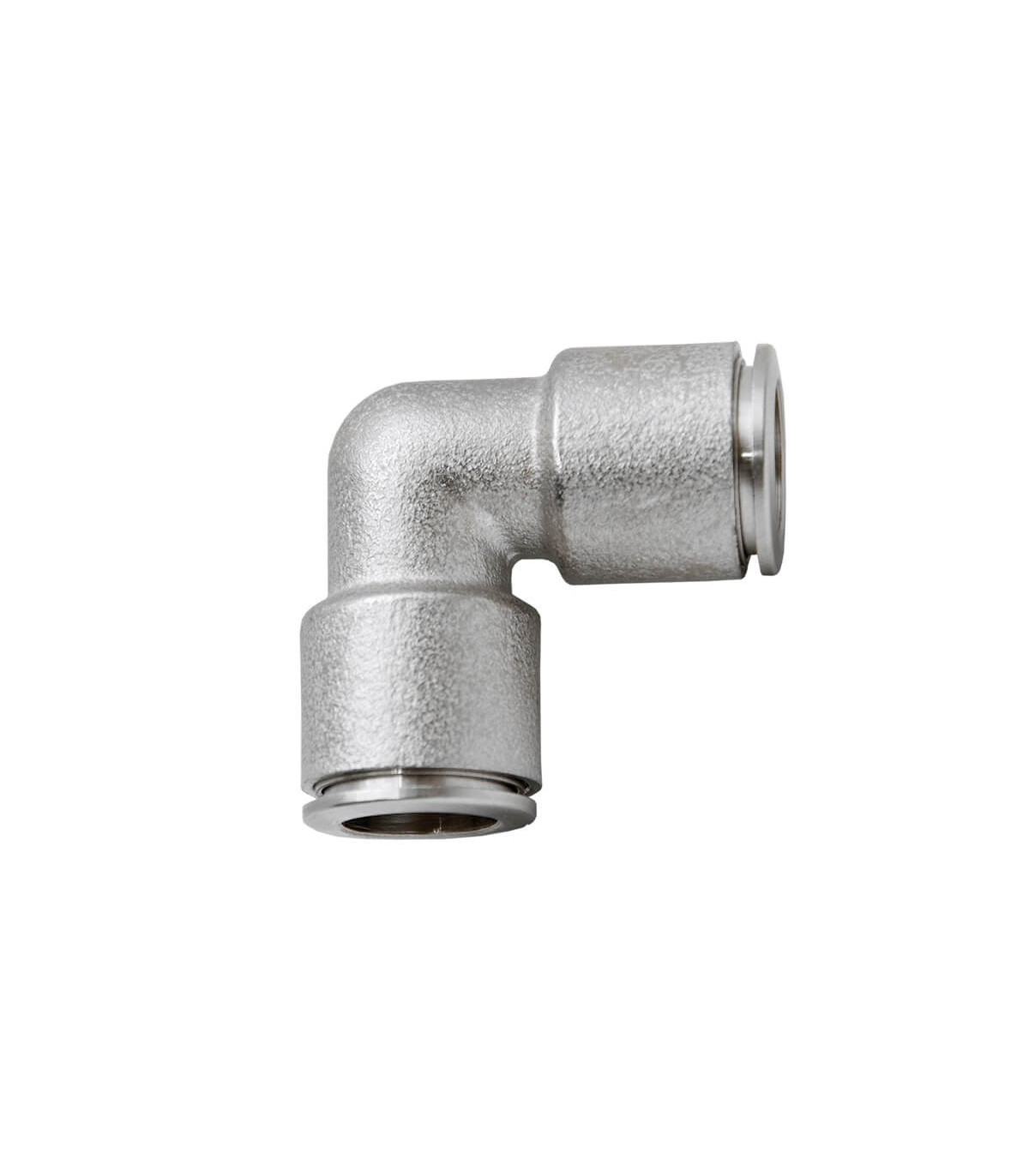

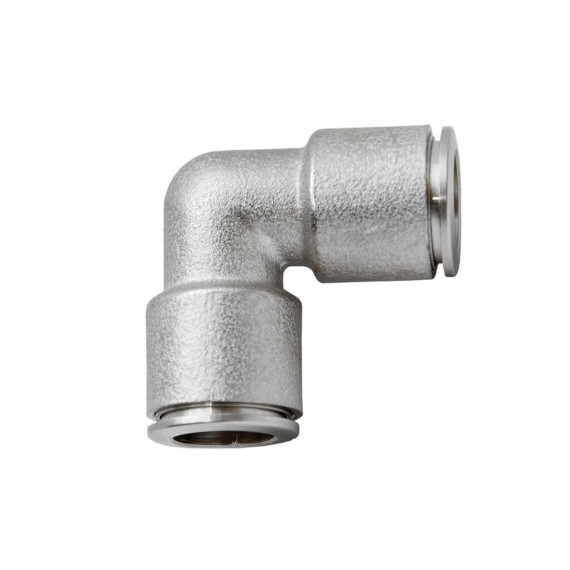

Metallic Elbow Connector 5 units COFAN

Recoverable angled metal couplings for instant connection, suitable for compressed air installations and brake circuits of V.I. Fully metallic body. Easy visibility of the fitting gauge. Total safety and tightness, even under extreme conditions. Corrosion resistant. Excellent value for money.

FEATURES

- Vacuum

- Instant connection

- Complex flow, without reductions

- Optimized dimensions

- Diameters from 4mm to 14mm and Threads from M-5 to ½”

- Operating temperature: -20°C +70°C

- Tolerance: ± 0.10mm

- Fluid: compressed air and other fluids

- Types of threads: BSPP cone UNI-ISO228 – ISO16030 with O-ring. BSPT UNI-ISO 7 with Teflon. Metric ISO/R 262. NPT ANSI-ASME B1-20 upon request

APPLICATIONS

• Compressed air installations: To connect compressed air pipes in compressors, pneumatic tools, distribution lines, and other system components.
• Brake circuits of V.I.: To connect pipes in the brake circuit of industrial vehicles, allowing the safe and efficient transmission of hydraulic fluid.
• Repairs and maintenance: Ideal for making repairs or modifications to existing compressed air installations or brake circuits, thanks to their easy installation and reusability.
