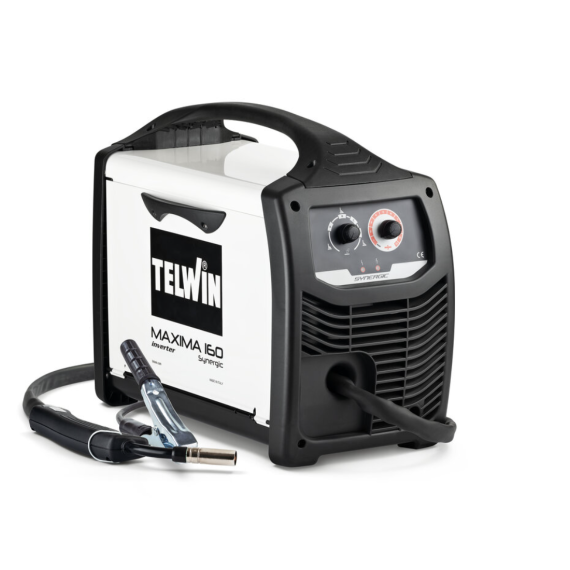

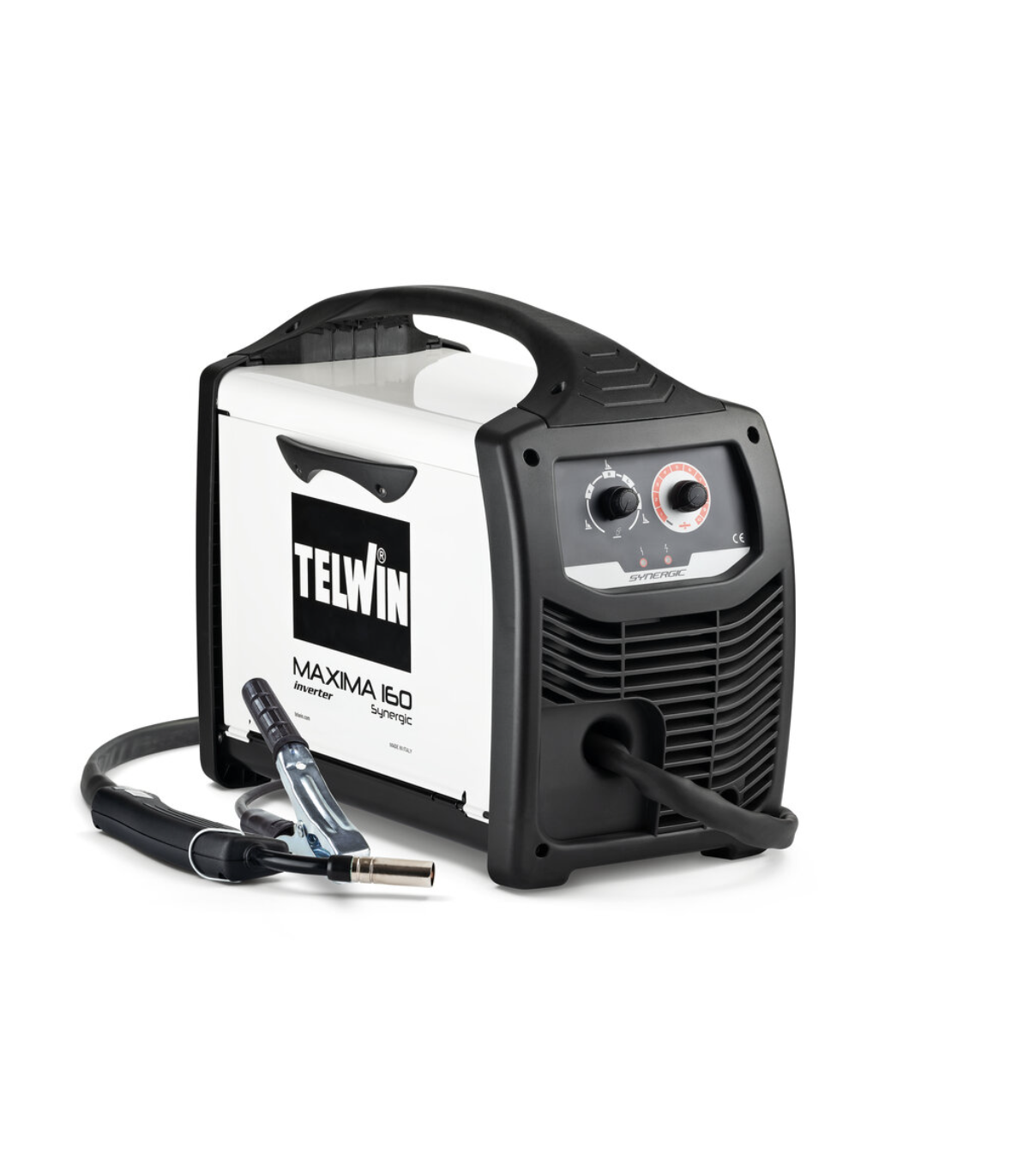

Inverter Welder Mig Mag Maximum 160 TELWIN

Inverter MIG-MAG Wire Welder Maximum 160 TELWIN. Inverter welder for MIG-MAG/FLUX/BRAZING wire controlled by a microprocessor. The great flexibility of use and the different materials welded (steel, stainless steel, aluminum) allow for a wide variety of applications, from maintenance to installation.

The rapid SYNERGIC adjustment of the welding parameters makes the product very simple to use even for the least experienced operator.

A low weight and maximum compactness also ensure easy transportability to all intervention locations, both indoors and outdoors.

FEATURES

• Inverter welder for WIRE WITH CORE, MIG-MAG/BRAZING, 150A. Includes MIG-MAG torch, cable, and ground clamp.
• SYNERGIC adjustment of parameters: intuitive panel with 2 settings (bead shape and thickness).
• Ready for use with coils with Ø 100 and 200 mm.
• Thermostatic protection, voltage rise and fall, current rise. Compatible for use with generator (230V +/- 15%).
• Ready for NO GAS welding (Flux), convertible to MIG-MAG (gas use) with optional kit.
• Lightweight and compact. Easily transportable.
• Low consumption thanks to inverter technology.

TECHNICAL DATA

CODE 816085

NETWORK FREQUENCY 50 / 60 Hz

REGULATION RANGE 20 - 150 A

DC INPUT CURRENT 65 A

ABSORBED CURRENT AT 60% 9 A

ABSORBED POWER AT 60% 1.2 kW

POWER FACTOR 0.7

WELDING WIRE DIAMETER STAINLESS STEEL 0.8 mm

WELDING WIRE DIAMETER FLUX 0.8 - 1.2 mm

PROTECTION DEGREE IP23

WEIGHT 9.29 kg

SINGLE PHASE NETWORK VOLTAGE 230 V

MAX OPEN CIRCUIT VOLTAGE 44 V

MAX CURRENT 115 @ 20% A

MAX ABSORBED CURRENT 18 A

MAX ABSORBED POWER 2.6 kW

EFFICIENCY 86 %

WELDING WIRE DIAMETER STEEL 0.6 - 0.8 mm

WELDING WIRE DIAMETER ALUMINUM 0.8 - 1 mm

WELDING WIRE DIAMETER FOR BRAZING 0.8 mm

DIMENSIONS 45 X 23.5 X 37 cm

NORMS

Ready for use for NO GAS/Flux welding, convertible to MIG-MAG with the optional kit.

Equipped with MIG-MAG torch, cable, and ground clamp.

SINGLE PHASE NETWORK VOLTAGE 230 V

CE: The product complies with the standards and regulations of the Eurasian Economic Union (EAEU)

EAC: The product meets the safety, health, and environmental protection requirements of the European Union (EU)

VIDEOS

FOR WHAT TYPE OF WORK IS IT SUITABLE

The Inverter MIG-MAG Wire Welder Maximum 160 TELWIN is suitable for:

• Workshops
• Metallurgy
• DIY
• Industry
• Construction
