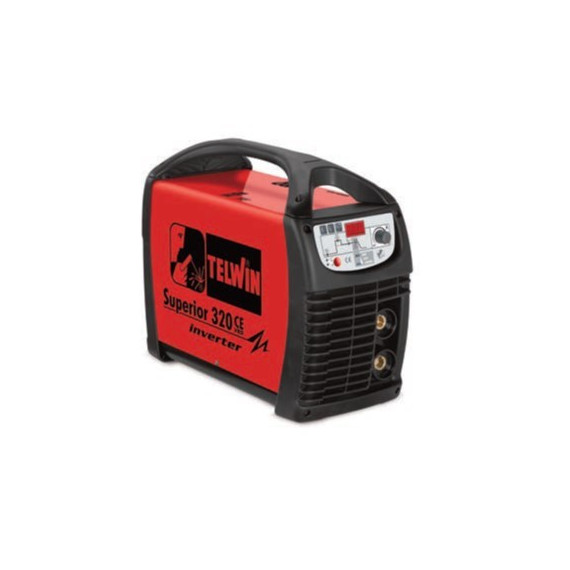

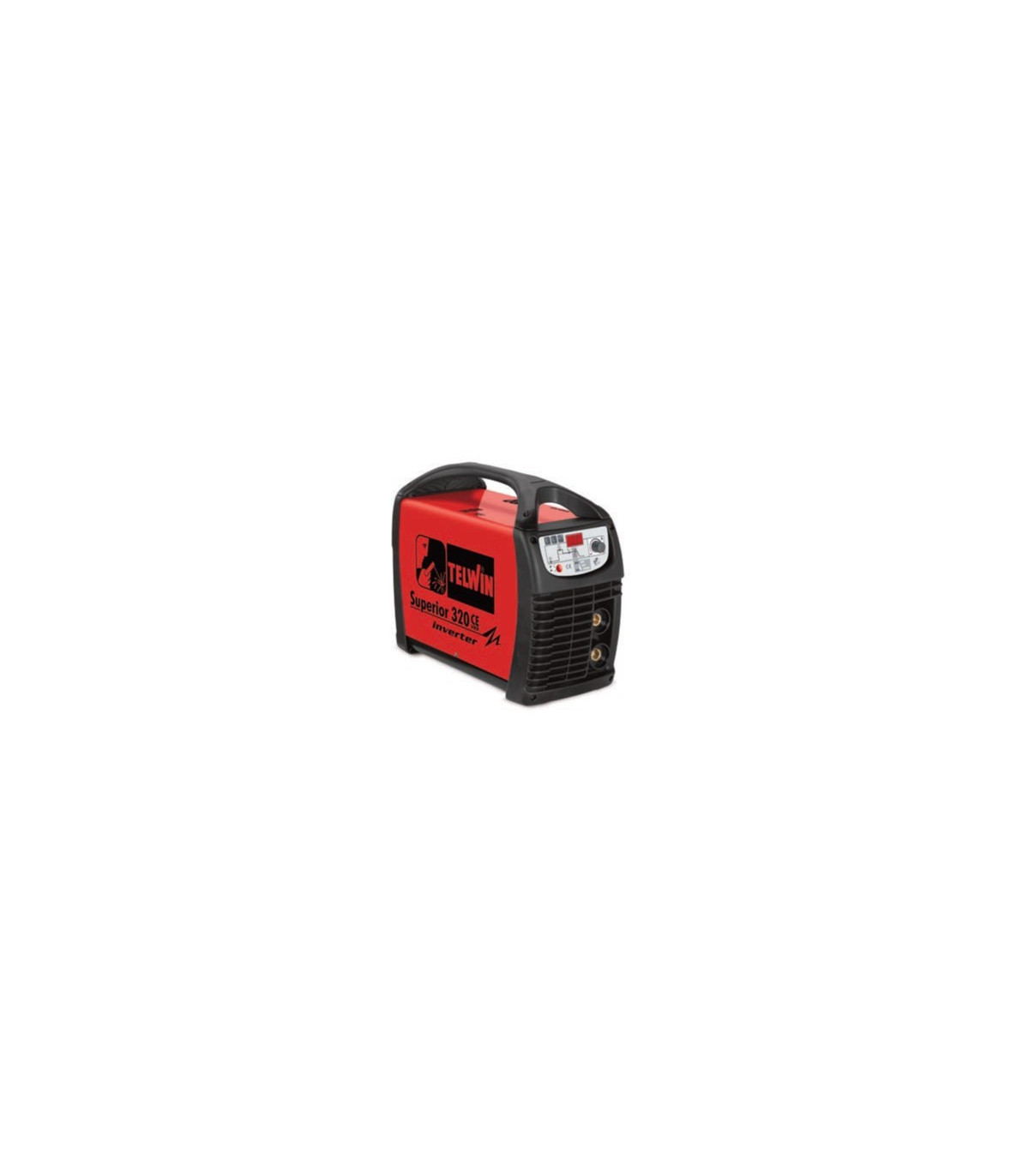

Superior 320 CE VRD MMA Inverter Electrodes

Inverter welders, MMA and TIG-LIFT in direct current (DC), with microprocessor control, designed for welding with cellulosic electrodes and coated electrodes of aluminum, rutile, basic, stainless steel, and cast iron up to a Ø 6 mm (model 320 CE VRD). Features: compact and lightweight, high stability of the welding current in the presence of variations in supply voltage, instant control of the transfer of welding droplets, arc force and hot start regulation depending on the type of electrode in use, anti-stick device, VRD device, predisposition for remote control, thermal, overvoltage, low-voltage, overcurrent protections, generator (+/- 15%).

Voltage 3 ph 50/60 Hz 230 / 400 V
Max. absorbed power 7 kW (230 V) / 9 kW (400 V)
Max. open circuit voltage 63 V
Regulation range 10 - 270 A (400 V) / 10 - 250 A (230 V)
Max. current 270 A (400 V) / 220 A (230 V)
Current at 60% 205 A (400 V) / 185 A (230 V)
Electrode diameter 1.6 - 6 mm
Dimensions (l x w x h) 460 x 190 x 360 mm
Net weight 10.2 kg
