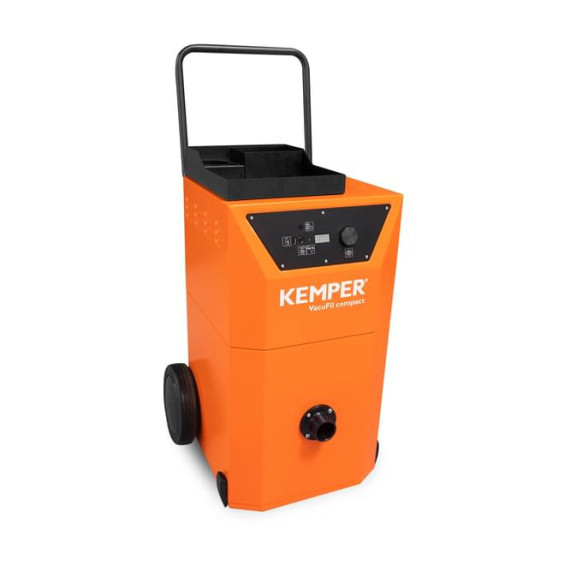

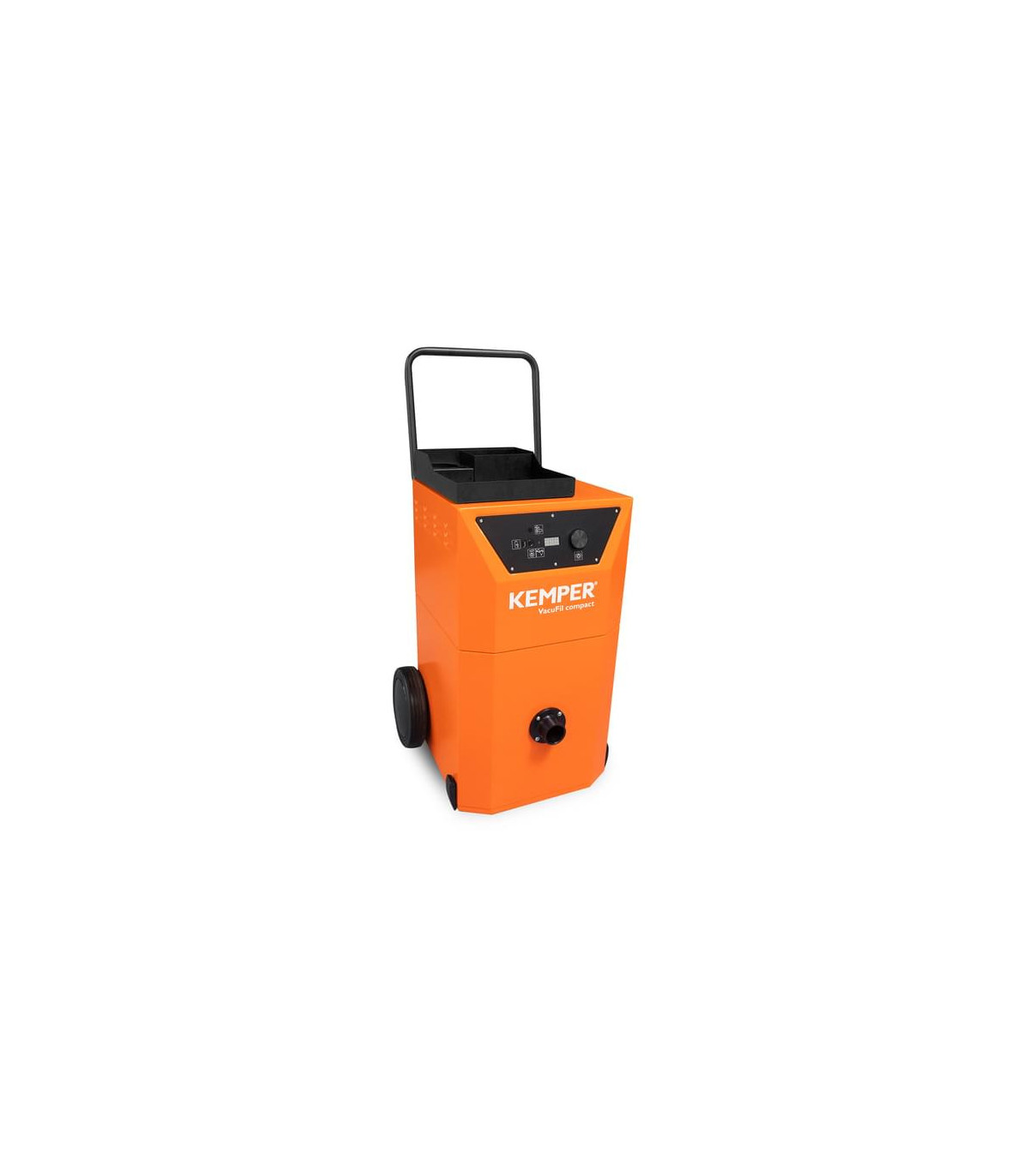

Vacuum system for KEMPER VacuFil compact torches

KEMPER VacuFil compact torch extraction system. Filtration levels 1. 1x 230 V single-use filter - 3x 400 V single-use filter - 1x 230 V cleanable filter - 3x 400 V cleanable filter.

The integrated welding fume extraction in the torch is already a trending topic in many countries and will become increasingly popular in the future. Our new KEMPER VacuFil compact is now available to adapt to this trend.

The industrial-quality machine is especially compact, has a very attractive price, and is available with unique technology - the automatic suction power control - included.

At the same time, the VacuFil Compact can be combined with all common welding torches. The easy operation with a single button simplifies the use and adjustment of the machine, even with gloves.

FEATURES

• Side channel compressor
• Intuitive operation with a single button
• Gradual adjustment of suction power
• USB type A charging port
• Compact design
• Monitoring of suction power

BENEFITS

The VacuFil compact is equipped with an extra-large vertical filtration cartridge that significantly improves cleaning efficiency.

It has a filtration grade of over 99.9% and effectively protects industrial welders even from the smallest particles of welding smoke.

The equipment can be easily adjusted using a single button, even with gloves.

Optionally, the VacuFil compact is also available with automatic suction power regulation. This option keeps the suction power constant, similar to cruise control.

To complete the set, numerous additional equipment can be added, such as an automatic start and stop system, a tool tray with cup holder, various suction hoses, and slotted and funnel nozzles.

APPLICATIONS

• Gradual pre-selection of suction power for the use of different torches with suction
• Intuitive operation with a single button, even with gloves
• Exceptional quality/price ratio and numerous additional equipment
• High suction power through a side channel compressor
• Suitable for variable workstations thanks to its compact design

TECHNICAL DATA

SPARE PARTS

• Funnel nozzle REF: 232 0010
• Circular nozzle: 23 200 06 M
• Automatic start-stop REF: 94 102 702
• Welding gun connection piece 42-44 mm REF: 106 0071
• Welding gun connection piece 30-38 mm REF: 106 0084
• Welding gun connection piece 39-42 mm REF: 106 0104
• Slotted nozzle 300 mm REF: 2320008
• Slotted nozzle 600 mm REF: 2320009
• Volume flow control for VacuFil Compact REF: 118 0838
• Tool tray with cup holder for VacuFil Compact REF: 1490776
• High vacuum hose up to 85°C REF: 93070004
• High vacuum suction hose up to 85°C REF: 93070005
• Medium weight PVC high vacuum suction hose up to 85°C REF: 93070006

ACCESSORIES

• Replacement filter for VacuFil Compact REF: 1090676
• Pre-filter mat (10 units) SmartMaster REF: 1090452
