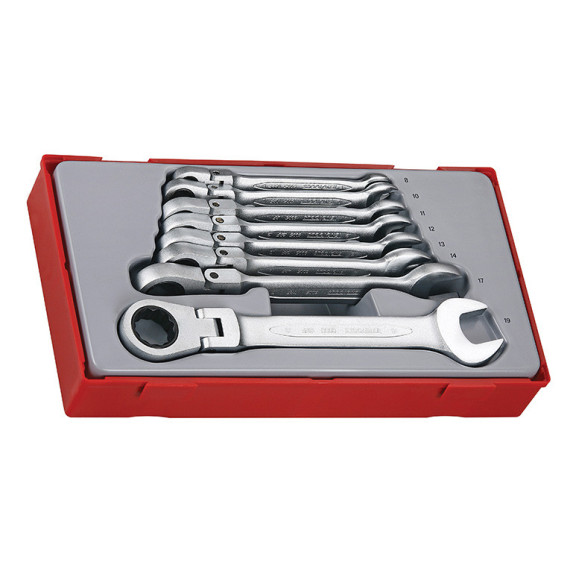

TT6508RF 8-Piece Combination Ratchet Wrench Set TENGTOOLS

8-piece ratchet combination ring wrench set made of chrome vanadium steel. The ring end rotates 180°. Same size on both ends. The wrenches rotate to switch from right to left.

Wrenches 8-10-11-12-13-14-17-19 mm.

FEATURES

72-tooth ratchet wrenches that provide a 5° increment between clicks.

Flexible head for use at an angle or to reverse the direction of use when using the ratchet.

Satin finish of chrome vanadium.

Removable cover and dovetail joints.

Organized in a size 1 tool tray module (TT1).

TECHNICAL DATA

USES AND APPLICATIONS

General Mechanics and Automotive: For tightening and loosening metric nuts and bolts in engines, chassis, transmissions, and auxiliary equipment.

Industrial Maintenance: Adjusting and repairing machinery, pumps, and pipes, using the 15° angle of the star side to access fasteners in confined spaces.

Installation and Assembly Work: Used by technicians to assemble structures, shelves, and equipment that use metric hexagonal screws in construction and engineering environments.

REGULATIONS

DIN ISO 1711-1 (Assembly tools for screws and nuts - Hand wrenches - Part 1: Combination open-end and ring wrenches - Technical requirements)

The DIN ISO 1711-1 standard establishes the technical and performance requirements for hand wrenches used in the assembly of screws and nuts, specifically covering fixed open-end wrenches, ring wrenches, and combination wrenches. It defines criteria for material hardness, torsional strength under specific loads, and tolerances in the openings of the jaws, ensuring a proper fit to the fastening element and minimizing the risk of tool deformation or rounding of the nut or bolt during use.

DIN 3113A (Metric combination open-end and ring wrenches - With angled jaws)

The DIN 3113A standard specifically focuses on metric combination wrenches that have a fixed jaw on one side and an angled ring jaw on the other. This specification details the precise dimensions of both jaws (the fixed and the angled), the angle of the ring (generally 15° to facilitate access to fastening elements in tight spaces), and the nominal length of the wrench. The "A" in the designation refers to this particular design of combination wrench with the angled ring jaw. By complying with DIN 3113A, it is ensured that the wrench will have the correct measurements to work with metric screws and nuts, in addition to providing the expected functionality and ergonomics to reach difficult access areas.
