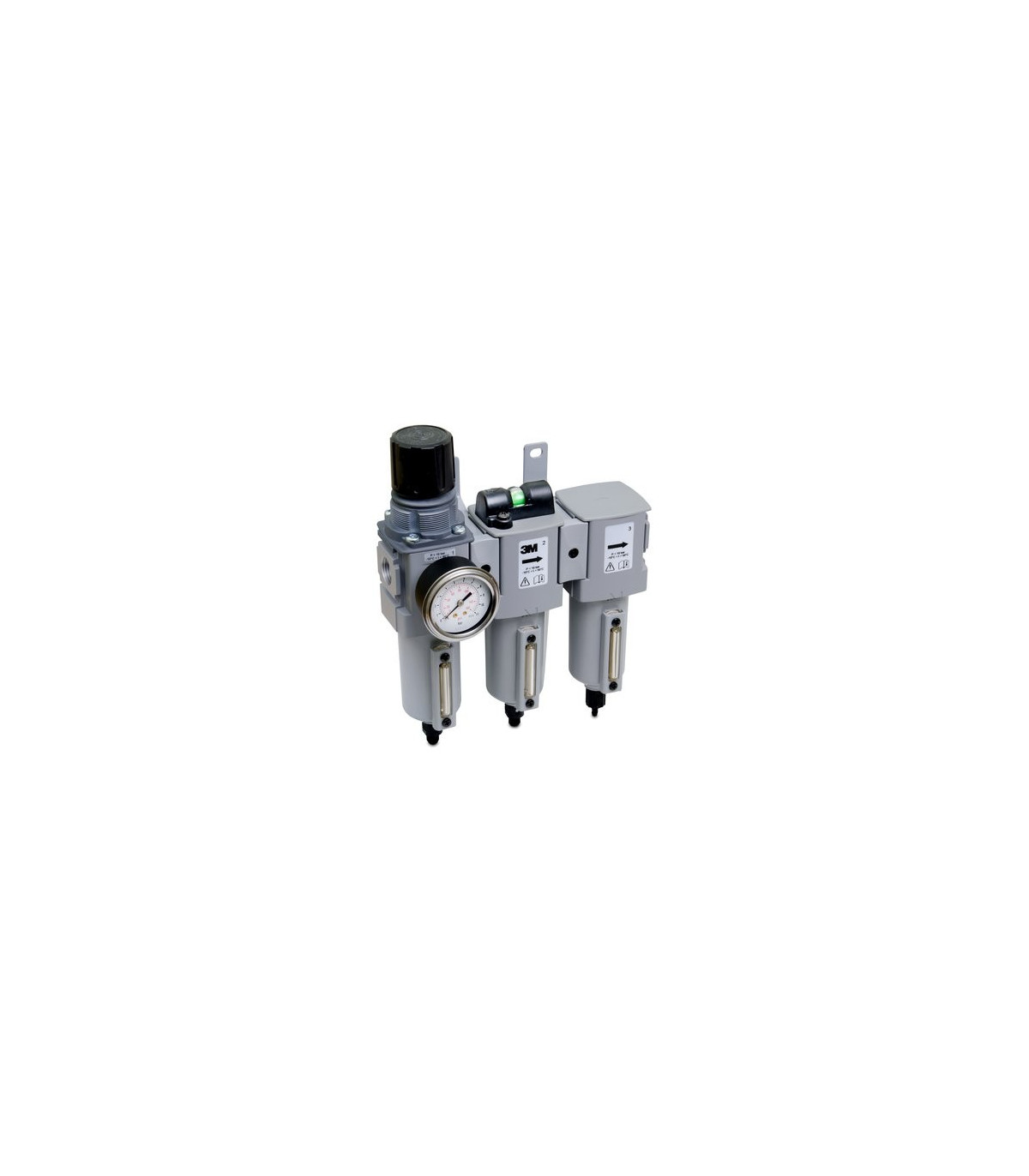

Air compression wall filtration unit ACU03 3M

Filtration unit for compressed air wall ACU03 3M. The Aircare Filtration Unit from 3M provides high-quality air from an external source of compressed air by removing water and oil droplets, solid particles, and odors.

The unit eliminates condensation and contamination from within the air system before it is delivered to the user.

FEATURES

• 3M™ Aircare™ ACU-03 wall-mounted filtration unit
• Inlet: 1/2" or 3/8" female thread. Outlet: 3/8" BSP
• Three-stage filtration system to remove particles, water and oil aerosols, and hydrocarbon vapors.
• Easy removal of filter bowls. No tools required.
• Simple filter elements with adjustment screw for easy and safe maintenance.
• Secure coupling of filter stages for greater confidence.
• Semi-automatic drains to empty the bowls of the first and second stages when the system is depressurized.
• Solid aluminum bowl construction for greater robustness.
• The differential pressure indicator shows when the second filter element needs to be changed/inspected.
• Provides an air flow of over 1200 l/min.
• Multiple users/tools – 2-way and 3 collectors available.
• The optional lock kit provides added security.

TECHNICAL SPECIFICATIONS

Compressed air for general use. Contaminant and purity classes. ISO 8573-1:2010 Class 6-1 standard

Inlet pressure: Maximum pressure 10 Bar

Outlet air characteristics: Maximum flow 1200 l/min

Operating conditions: -10oC to +50oC Weight:

Wall unit, 2.6kg

Floor unit, 3.8kg

Inlet connection: 1/2 “ BSP

Outlet connection: 3/8” BSP

Pressure gauge connection: 1/4” BSP

BENEFITS

• Can supply air to a maximum of three users (or two users plus one air tool)
• Wall-mounted unit
• Can supply air to a maximum of three users (or two users plus one air tool)

SPECIFICATIONS

WHAT TYPE OF WORK IS IT SUITABLE FOR

The Aircare filtration unit provides a continuous flow of high-quality compressed air. Its applications include:

• Pharmaceutical industry
• Mixing/handling of chemicals
• Laboratories
• Spray painting
• Handling fiberglass
• Chemical and agrochemical spraying
• Welding
• Foundries
• Grinding

REGULATIONS

• The AircareTM Filtration unit has been tested under ISO 8573-1:2010 Class 6-1. This defines the filter's performance for:
• Particles – Water vapor – Oil Class 6 (particles) defines a maximum mass concentration of < 5mg/m3
• The class ‘-‘ (water vapor) refers to the undefined class, as this parameter depends on the system's dew point
• Class 1 (oil) refers to the maximum oil concentration, 0.01 mg/m3

APPROVALS

This product has been approved by 3M United Kingdom Plc for use with 3M air-fed devices, where the applied pressure and flow rate are known.

Directive 89/686/EEC on Personal Protective Equipment does not apply to this type of device; therefore, this equipment does not have CE marking related to PPE.

LIMITATIONS OF USE

• The 3M AircareTM Filtration unit must only be used with industrial compressed air systems.
• The air feeding the equipment must be breathable quality according to EN12021 standard.
• The air entering the compressor must be free of gases such as carbon dioxide, carbon monoxide, and other toxic substances and gases.
• The filtration unit does not reduce concentrations of oxygen, carbon monoxide, or carbon dioxide in the air.
• Do not use with asphyxiating gases.
• Do not use outside the ambient temperature range of -10oC/+50oC.
• If used in high-temperature environments (+50oC to +80oC), consult the maintenance section of the user instructions.
• Do not exceed the maximum working pressure of 10 Bar.
• Do not use in immediately dangerous to life and health (IDLH) environments.
• Do not use in oxygen-deficient environments.
• If using in potentially explosive atmospheres, please contact 3M.
