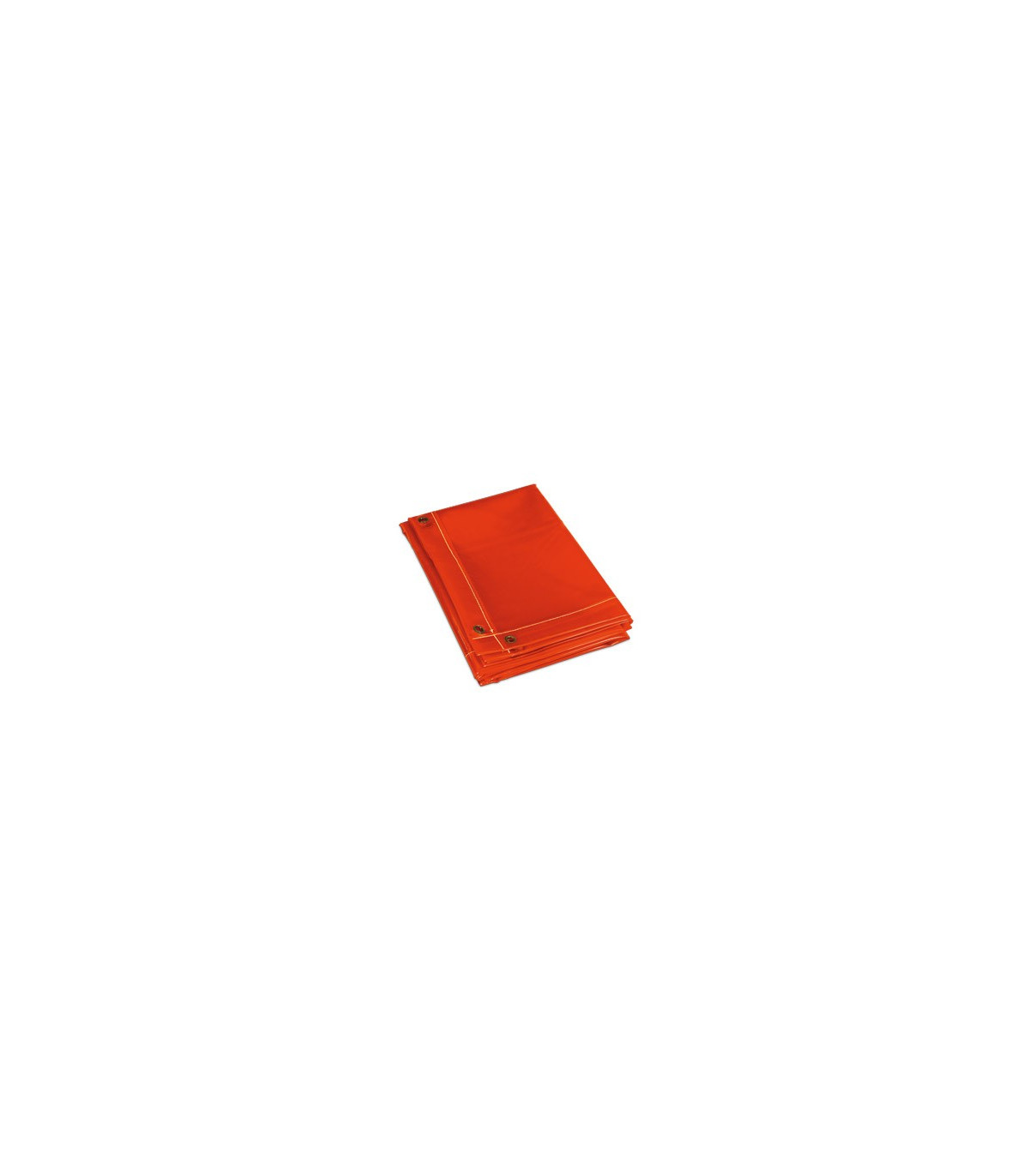

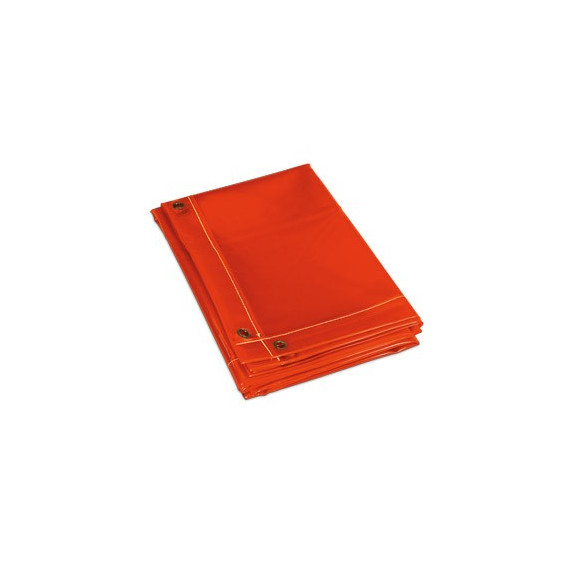

Protective panel without support 1740X1740 mm TELWIN

Protective panel without support 1740X1740 mm TELWIN. Red protective screen made of high resistance PVC to heat and sparks (up to 300°C). Dimensions 1740x1740 mm. Protective equipment complies with the standards DIN EN 1598:2011-12 and DIN EN ISO 15980:2014.

FEATURES

• Red protective screen made of PVC.
• Dimensions 1740x1740mm.
• Resistance up to 300°C.

TECHNICAL DATA

Material: vinyl

Size: 0.4mm +/-10%

Heat resistance: 300 °C

Dimensions: 1740 x 1740 +/-5% mm

Color: red

Weight: 1.8 kg

REGULATIONS

- DIN EN 1598:2011-12: This standard establishes the requirements and testing methods for personal protective equipment (PPE) intended for welding and related processes. Its aim is to ensure that PPE provides an adequate level of safety and protection for workers exposed to specific risks in the welding environment, such as radiation, heat, and molten metal projections. By defining clear criteria regarding the performance and reliability of this equipment, it seeks to improve workplace safety and reduce the risk of accidents.

- DIN EN ISO 15980:2014: This standard focuses on testing methods to evaluate the performance of personal protective equipment used in welding. In particular, it addresses the measurement of light transmission through filters used in welding screens. The regulation establishes procedures to determine the effectiveness of these filters in terms of eye protection against harmful radiation during the welding process. This is crucial to ensure that workers have adequate visibility while being protected from eye damage.

FOR WHAT TYPE OF WORK IS IT SUITABLE

The protective panel without support 1740X1740 mm TELWIN is suitable for:

Welding
