Anchor post height 300 and 500 mm in galvanized steel for horizontal lifeline cable KS 4000 KRATOS SAFETY

The Kratos Safety anchor post, with a height of 300 and 500 mm and made of galvanized steel, is an essential element for the installation of horizontal lifelines with cable KS 4000. Designed to withstand high loads, this post ensures a safe and reliable anchorage point for workers performing tasks at height. Its galvanized coating protects it against corrosion, extending its lifespan even in harsh environments.

FEATURES

• Compatible with the intermediate pin FA 60 204 00, the end plate FA 60 201 00.
• Material: Galvanized steel
• Weight: 18.30 kg
• Compliance: EN 795:2012 Type A combined with the end plate FA 60 201 00
• Tensile strength > 26 kN
• Height: 300 and 500 mm
• Width: 275 mm

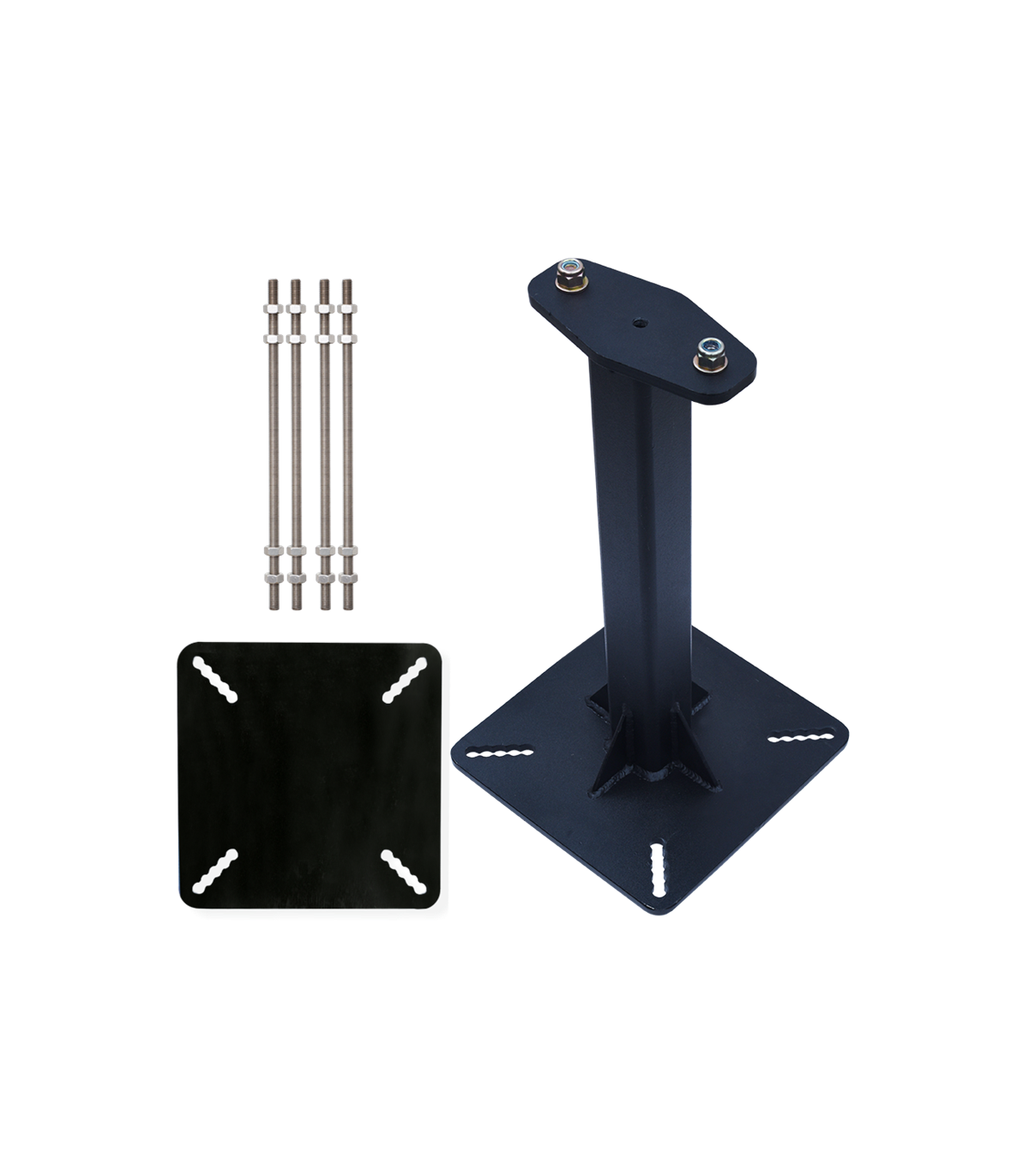

Fastening elements:

- 4 threaded rods M12x350, 16 M12 nuts, and 8 washers,

- 2 CSK screws M12x45, 2 locking nuts, and 2 washers to secure the end plate,

- 1 hex head screw M12x25, to secure the intermediate pin.

APPLICATIONS

Post kit with backing plate for fixing to a beam by means of strapping.

TECHNICAL DATA

• HS: 73269098

STANDARDS

- EN 795:2012 Type A refers to anchorage systems, but in this case focuses on portable anchorage devices. These devices are designed to be used on the ground or on flat surfaces and do not require a fixed installation on a structure. Type A includes requirements for their design, performance, and testing, ensuring that they are safe and effective in preventing falls. These systems are often used in situations where it is not practical or possible to install a permanent anchorage system, offering flexibility and mobility to workers performing tasks at height.
