Cold water pressure washer HDR-K 48-15 CLEANCRAFT

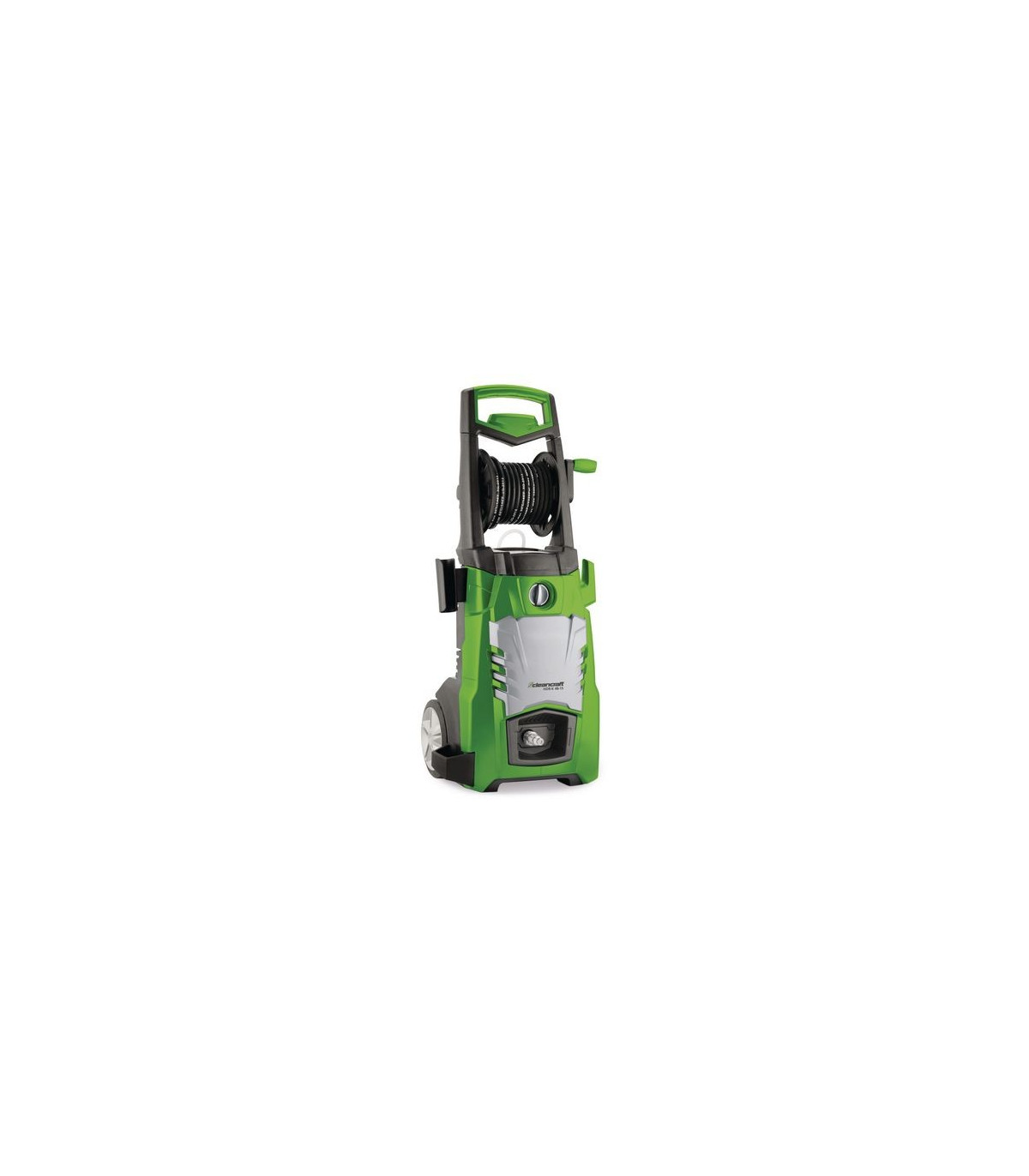

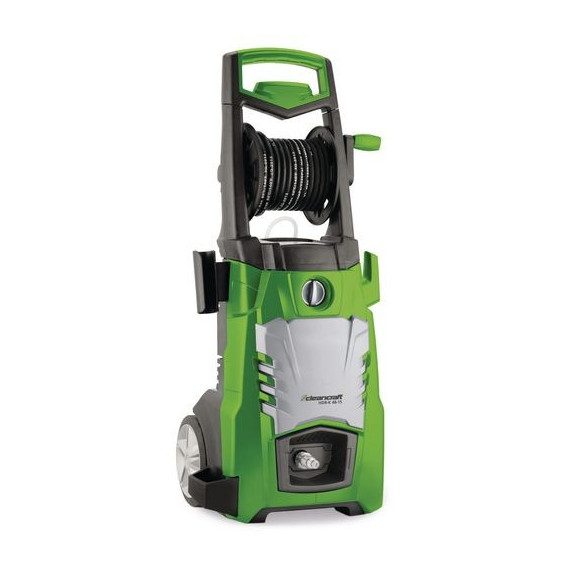

Cold water pressure washer HDR-K 48-15 CLEANCRAFT. The HDR-K 48-15 CLEANCRAFT pressure washer is a mobile model with wheels and a handle, ideal for daily use. With a 3-piston axial pump, brass head, and overload protection, it ensures durability and efficiency in cleaning.

FEATURES

• Mobile model with two wheels and a handle.
• Entry-level model in the induction motor class.
• Total Stop pump control: starts and stops the pump motor without delay when opening and closing the gun.
• Very robust 3-piston axial pump with brass head and stainless steel piston.
• Longer pump head lifespan thanks to the automatic safety valve.
• The integrated water filter protects the pump from dirt particles.
• The motor protection switch protects the motor from overloads.
• Practical holders for manual spray gun, jet tube, high-pressure hose, and power cord.
• High-pressure water hose resistant to abrasion.
• Can operate with a water tank or similar: the HDR-K is self-priming up to a depth of 0.5 m.
• Very robust 3-piston axial pump with brass head and stainless steel piston.
• Entry-level in the induction motor class.

TECHNICAL SPECIFICATIONS

Dimensions and weights

Approximate length: 420 millimeters

Approximate width/depth: 340 millimeters

Approximate height: 870 millimeters

Approximate weight: 22.5 kilograms

Electrical data

Input power: 2.5 kW

Connection cable length: 5 meters

Supply voltage: 220 – 240 V

Network frequency: 50 Hz

Noise emission

Sound pressure level: 81.96 dB(A)

Pump

Working pressure: 125 bars

Maximum pump pressure: 150 bars

Maximum flow rate: 480 l/h

Operating position: standing

Water connection

Maximum inlet water temperature: 50 °C

VPE: 1

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

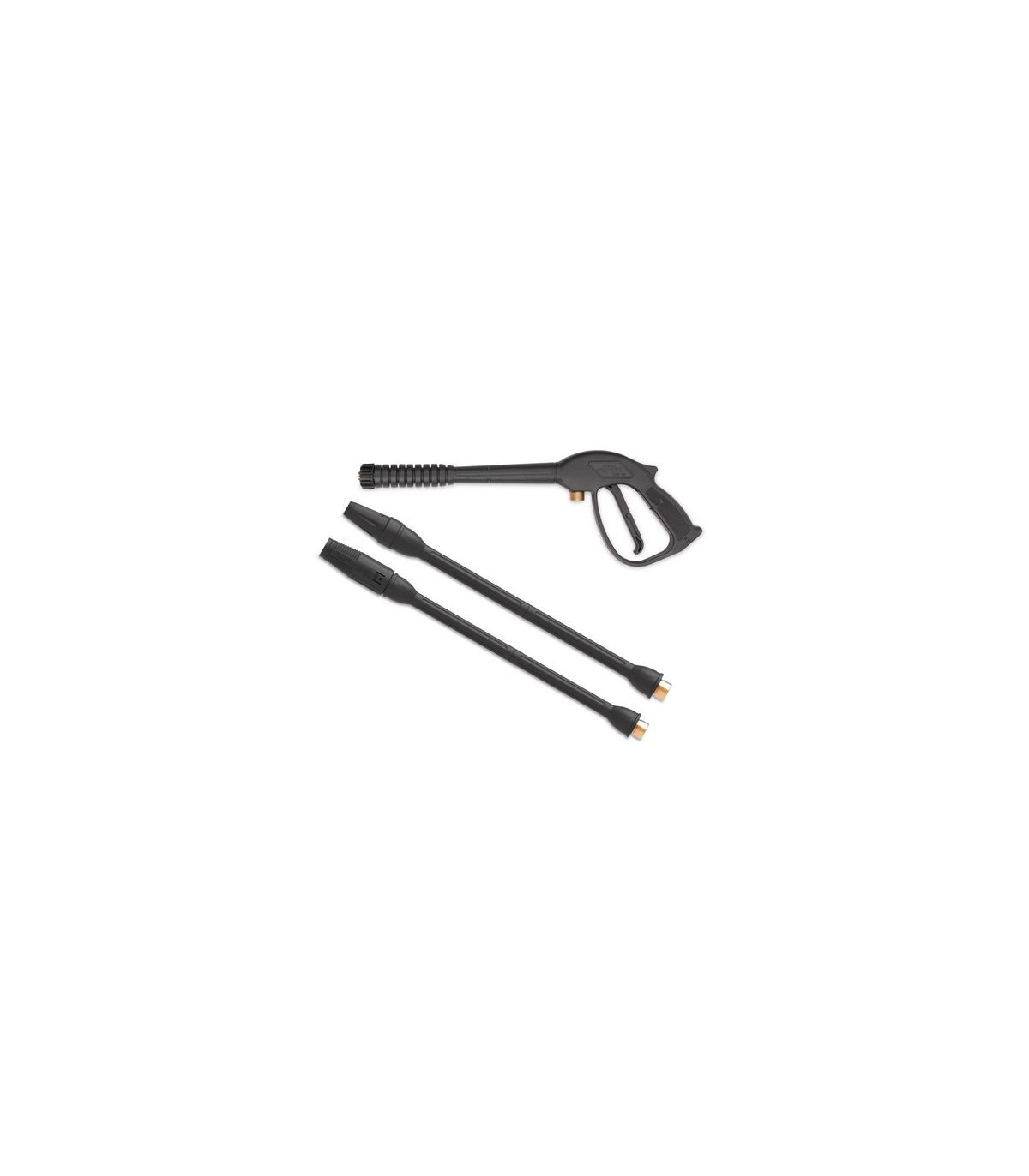

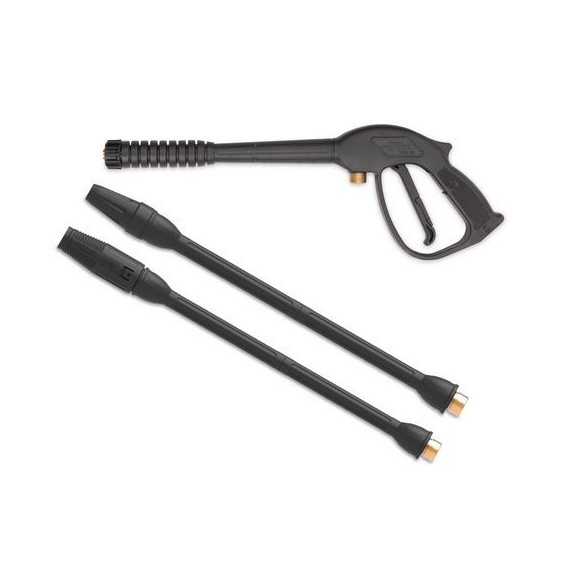

• Trigger gun
• Jet tube with rotating point jet nozzle
• Projection tube with multifunction nozzle for point projection and fan projection with stepped angle adjustment
• Nozzle cleaning needle
• Water connection set with filter
• Integrated detergent tank
• Integrated hose reel with handle
• High-pressure hose of 8 m

EQUIPMENT

Piston: stainless steel

Pump control: Total stop

Self-priming pump: ✔

Cleaning agent tank: 1.4 liters

High-pressure hose pressure bearing: textile insertion

Length of high-pressure hose: 8 meters

Water filter: ✔

Integrated hose reel: ✔

Pump outlet hose connection: Screw connection M22x1.5

Hose connection for manual spray gun: Screw connection M22x1.5

Wheels: 180 millimeters

Head material: Brass

FOR WHAT TYPE OF WORK IS IT SUITABLE

The cold water pressure washer HDR-K 48-15 CLEANCRAFT is suitable for:

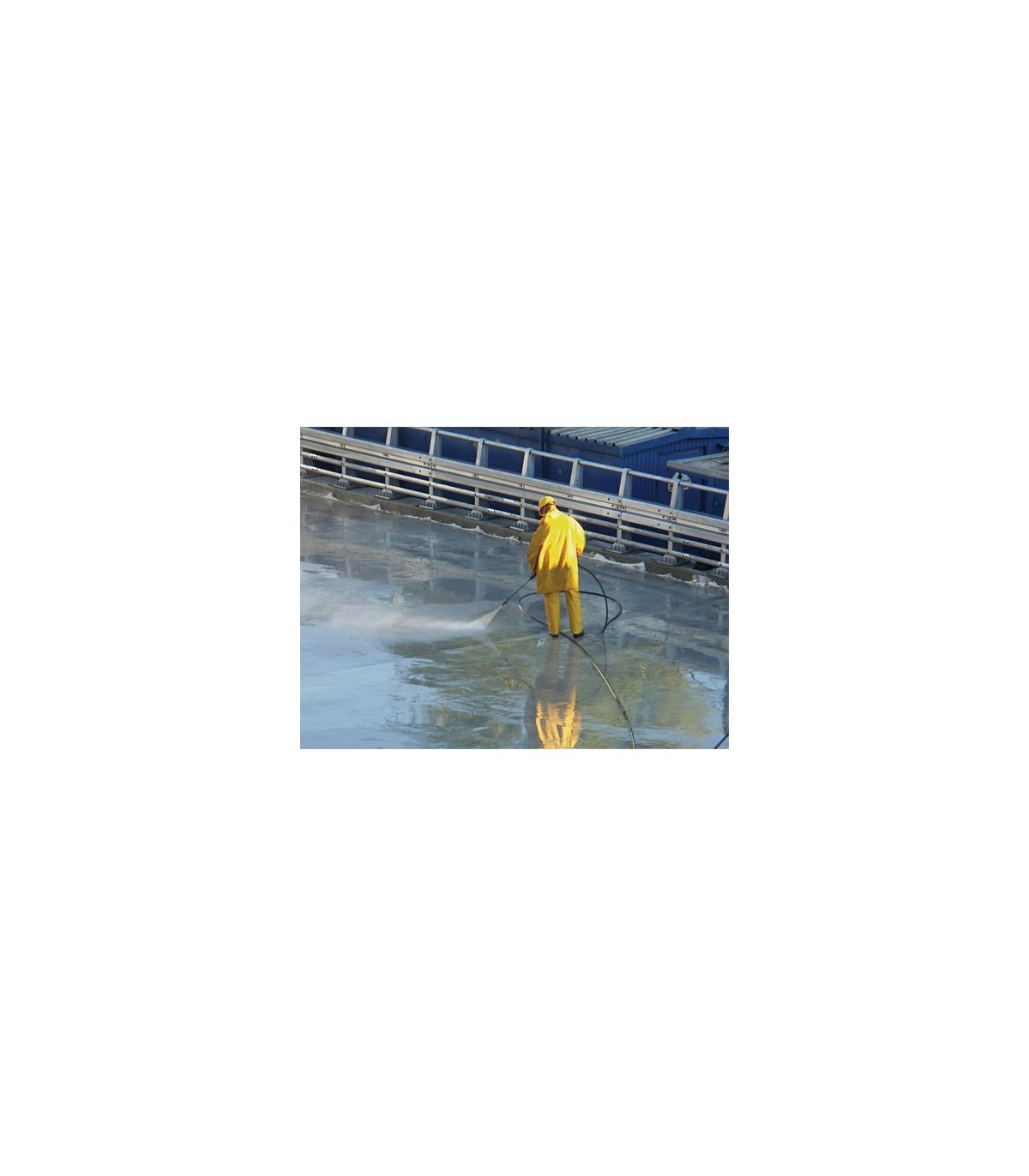

• Outdoors

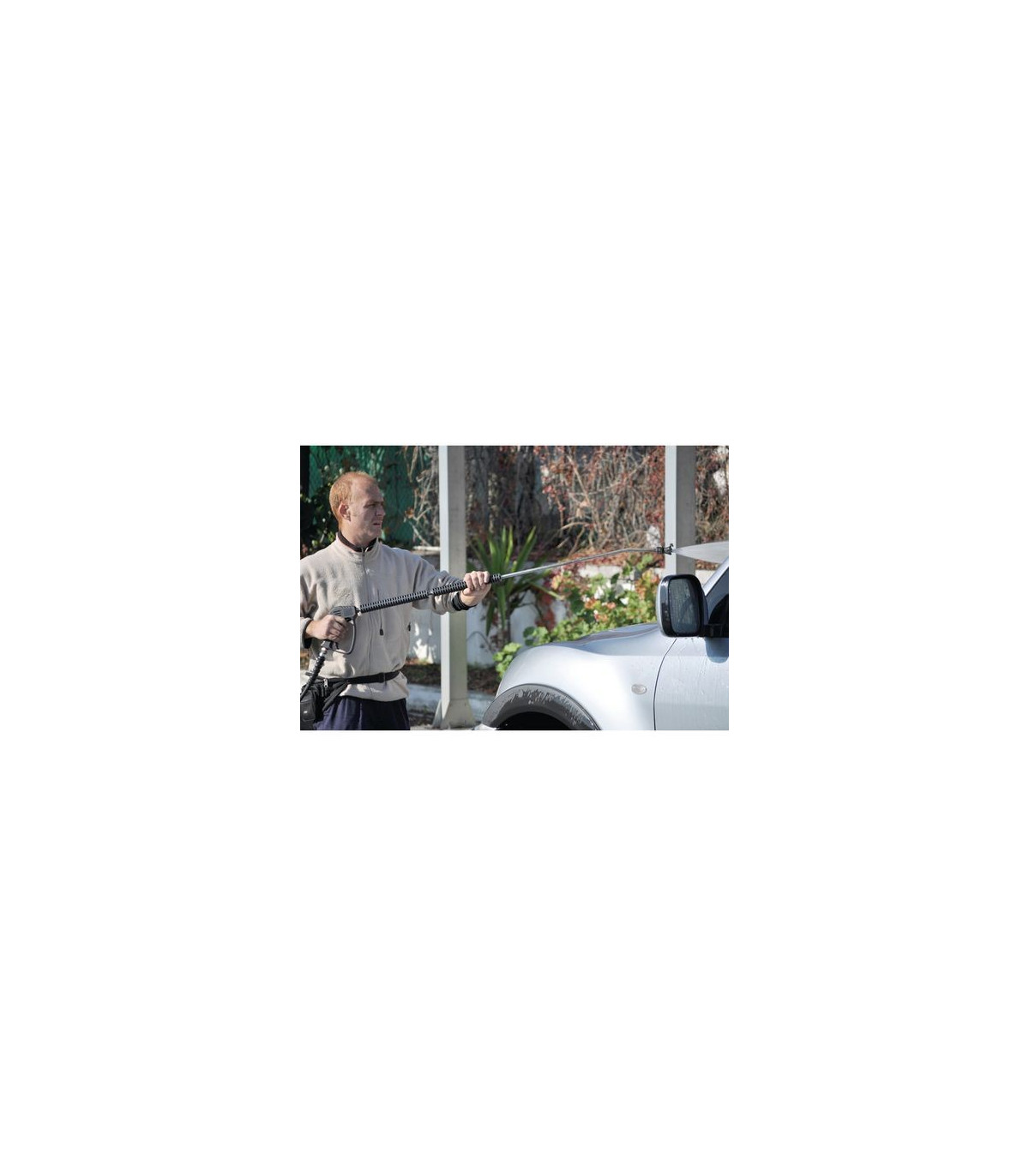

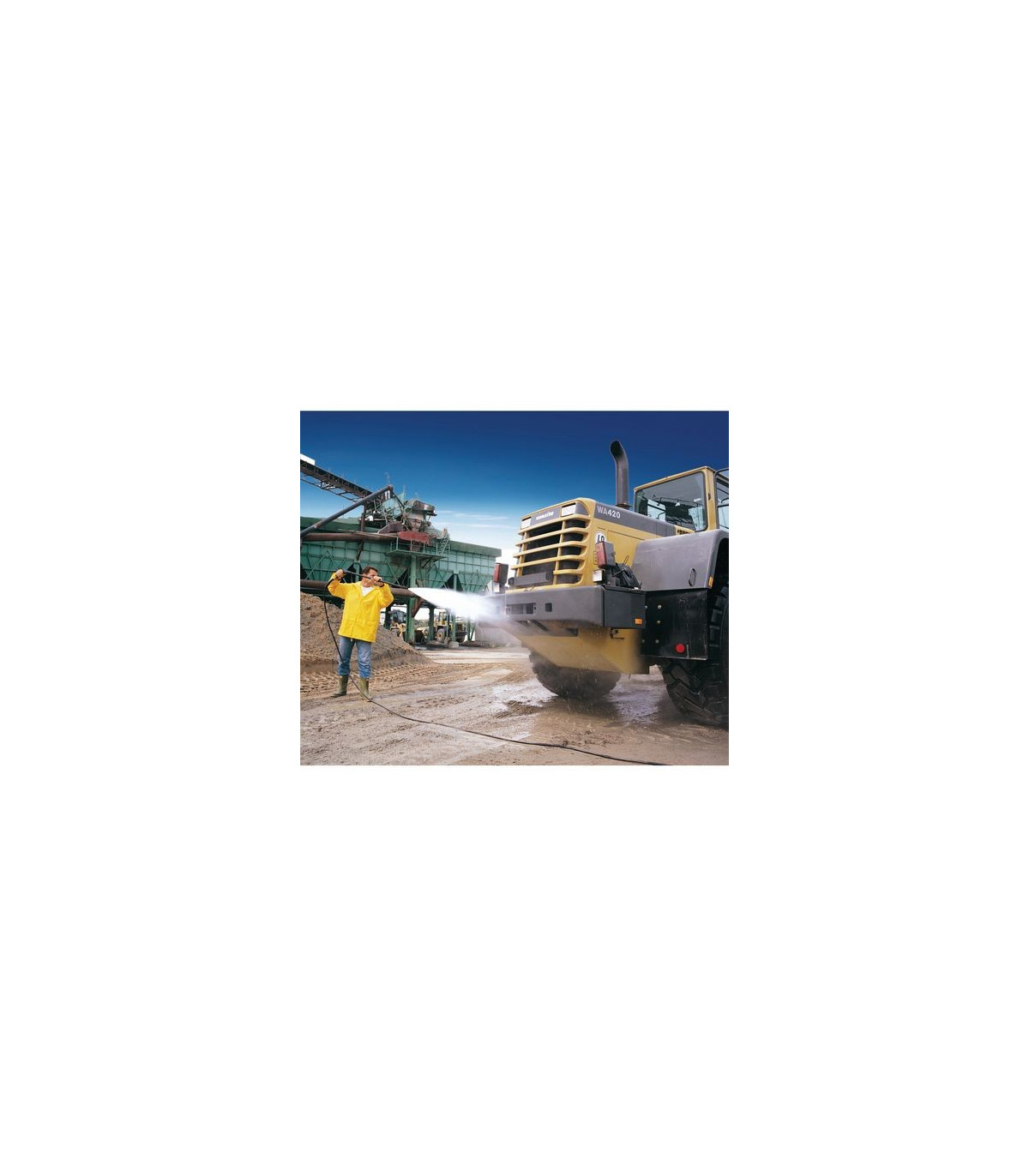

• Vehicles

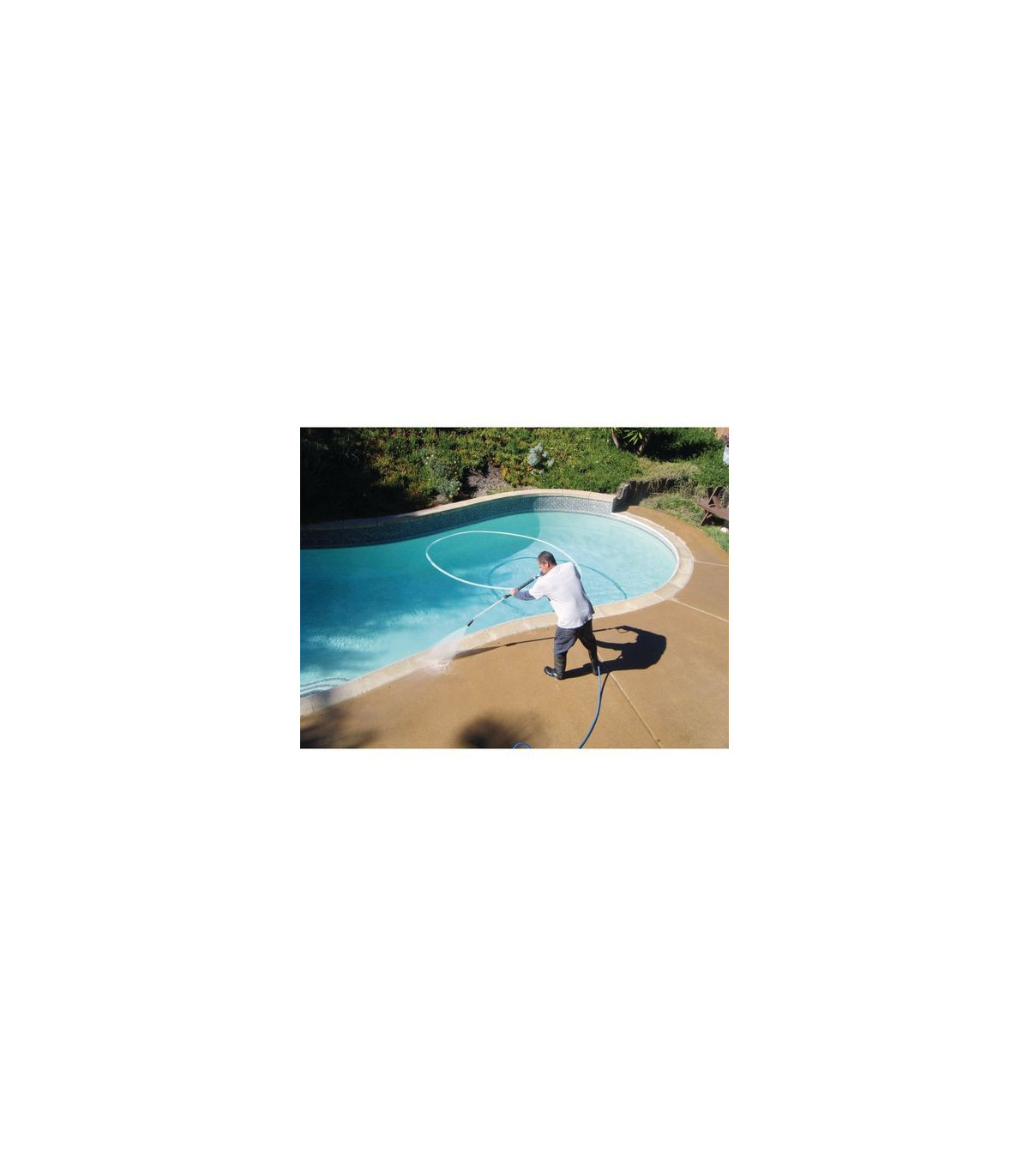

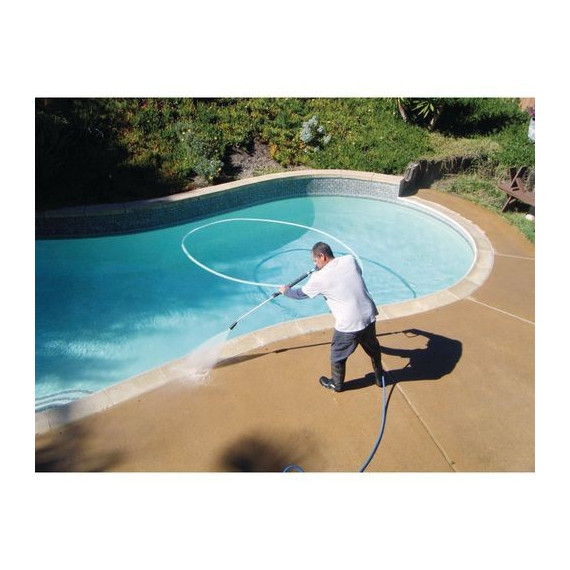

• Terraces

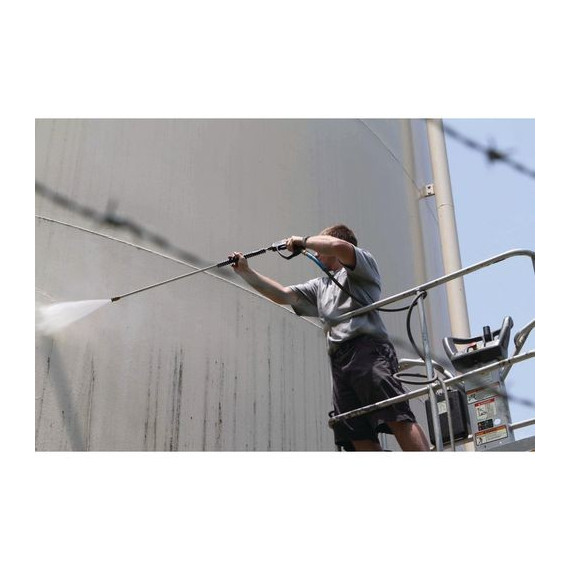

• Facades
• Garden

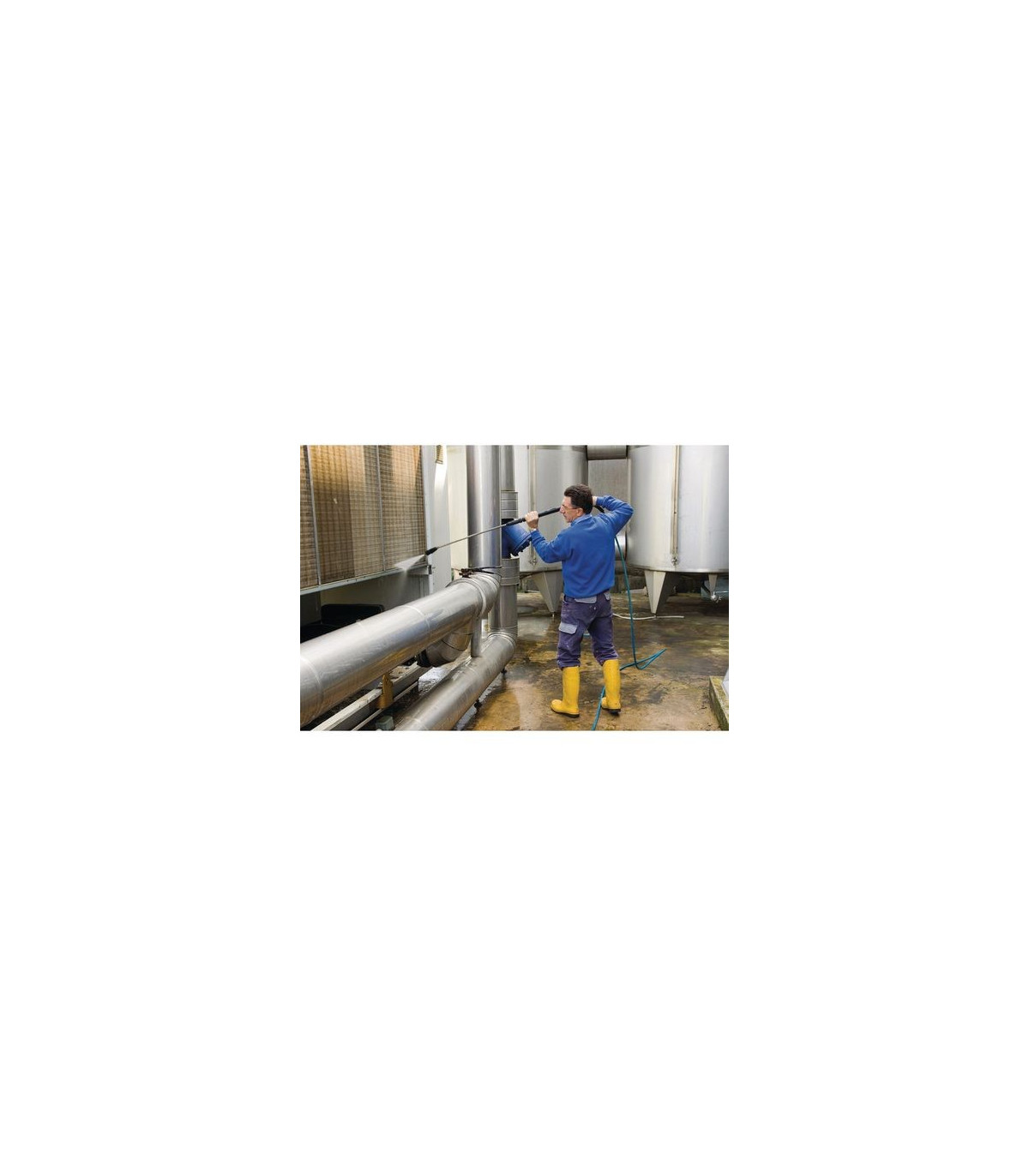

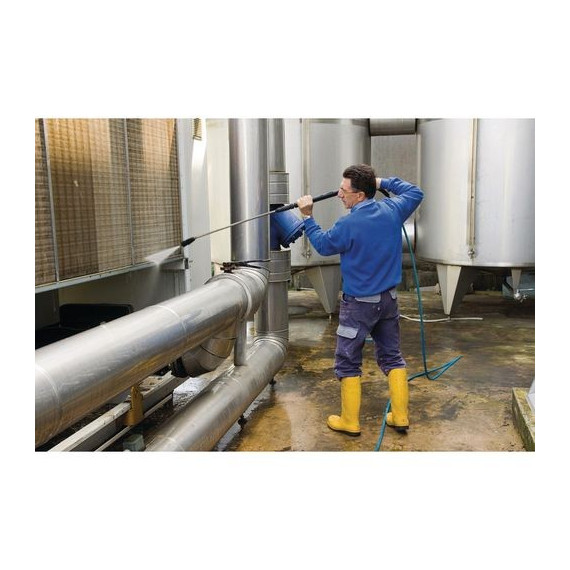

• Cleaning tools and work equipment
