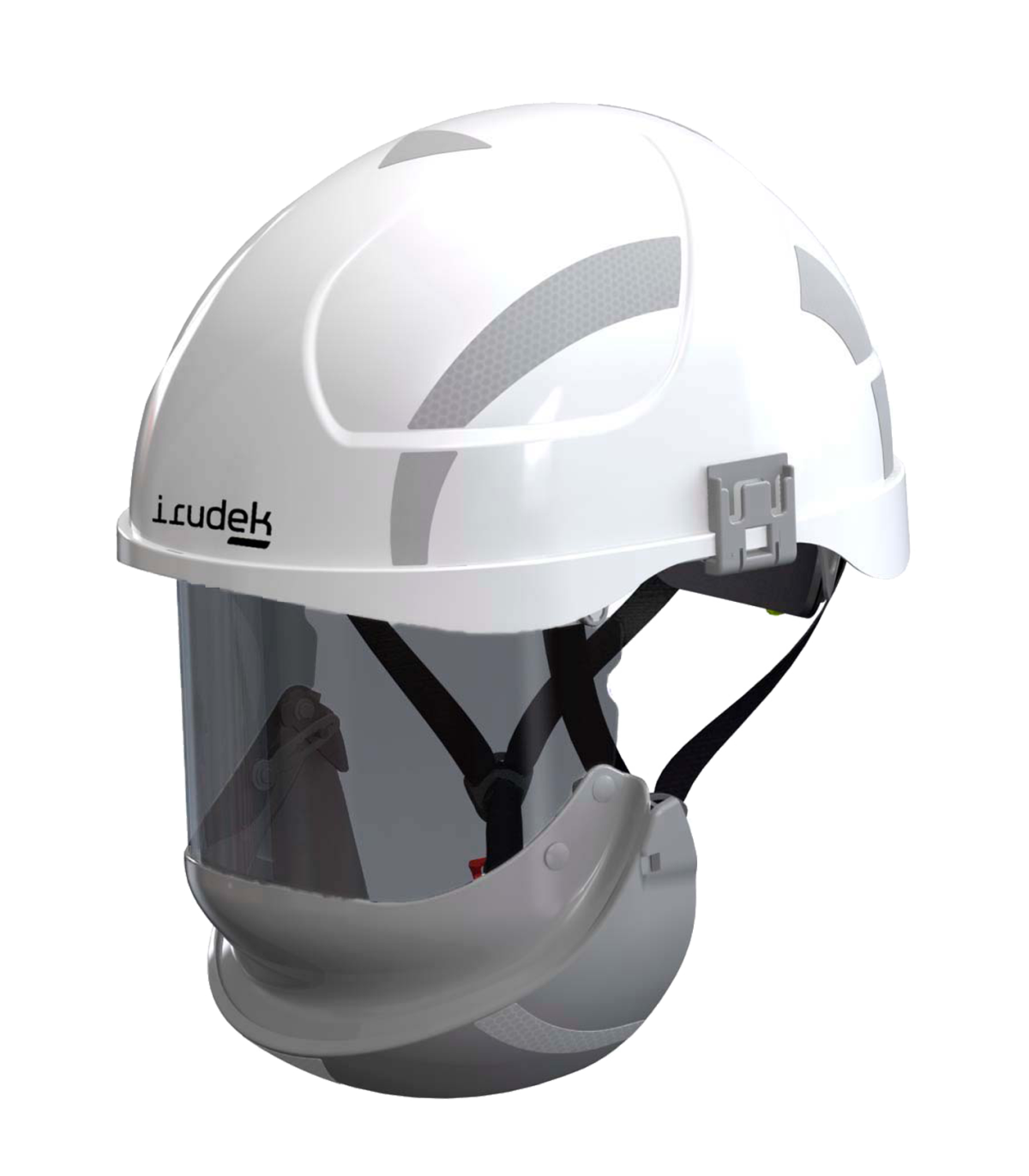

Safety helmet aSecra-2 E40

Dielectric safety helmet with integrated visor for work with electrical and arc flash risks. It incorporates class 2 protection (BOX TEST 7 kA/0.5 s) and a visor with UV filter. For professionals who need integrated facial protection and continuous use in the field.

FEATURES

• Electrically insulating helmet with integrated visor
• Protection against arc flash: class 2 (7 kA/0.5 s)
• Incident energy: ATPV > 25 cal/cm²
• Visor with UV filter 2C-2
• Light transmission of the visor (VLT < 50%): class 2
• Visor protection against molten metal and hot particles: 9
• Visor resistance to surface damage from fine particles: K
• Size range: 53–63 cm

BENEFITS OF the Secra-2 E40 Helmet

Allows working with head and face protection in a single piece, reducing changes of PPE when alternating tasks. The integrated visor provides eye and facial protection with UV filter and optical classification for environments where visibility and electrical risk are relevant. Its 53–63 cm adjustment makes it easy to fit different users.

USES AND APPLICATIONS: WHAT IT IS SUITABLE FOR

Suitable for maintenance and operation in electrical installations, work near panels and cells, industrial environments with projection and hot particle risks, and tasks that combine the need for cranial protection and facial protection with integrated visor.

TECHNICAL DATA

• Type: electrically insulating safety helmet with integrated visor
• Protection against arc flash: class 2 (BOX TEST 7 kA / 0.5 s)
• Incident energy: ATPV > 25 cal/cm²
• UV filter of the visor: 2C-2
• Light transmission (VLT < 50%): class 2
• Additional visor protection: 9 (molten metal and hot particles), K (surface damage from fine particles)
• Size: 53–63 cm
• Visor thickness: 1.9 mm
• Weight: 790 g
• Shell material: ABS
• Visor material: PC
• Indicated standards: EN 397+A1, EN 50365, ANSI/ISEA Z89.1 Type I, EN 166, EN 170, GS-ET-29, ASTM F2178/F2178M-20

REGULATIONS

EN 397+A1 (Protective helmets for industry): This standard specifies the physical and performance requirements for safety helmets intended to protect the top of the head from falling objects. Certified tests under this standard guarantee the helmet's ability to absorb impacts and its resistance to penetration, ensuring that the user is protected against possible skull fractures or brain injuries in construction and general industry environments.

EN 50365 (Electrically insulating helmets): This standard applies to helmets used for work in low voltage installations or near live parts not exceeding 1000 V AC or 1500 V DC. Unlike standard helmets, these must be fully insulating and lack conductive parts (such as unprotected ventilation holes), preventing dangerous electrical current from passing through the worker's head in case of accidental contact.

ANSI/ISEA Z89.1 Type I (Industrial head protection): This is the American standard that classifies helmets according to the type of impact protection. The Type I certifies that the helmet is specifically designed to reduce the force of an impact resulting from a blow exclusively to the top of the head. It is the reference standard for safety compliance in American markets and sectors that follow high-demand international regulations.

EN 166 (Personal eye protection): This is the fundamental technical standard that covers all requirements for eye protection against various hazards, such as mechanical impacts, chemical splashes, dust, or radiation. It ensures that lenses and frames do not break or shatter upon low, medium, or high energy impact (according to their specific marking), being the minimum essential requirement for any professional safety eyewear.

EN 170 (Filters for ultraviolet): This standard specifies the levels of protection and transmittance requirements for filters intended to protect the eye against ultraviolet (UV) radiation. It is essential for workers exposed to intense artificial light sources or persistent sunlight, ensuring that the filter blocks harmful wavelengths without distorting color perception or reducing the visual acuity necessary for the task.

GS-ET-29 (Protection against arc flash): This is a complementary and rigorous certification for face shields that guarantees safety against the thermal effects of a short circuit arc. The standard evaluates the visor's ability to protect the worker's face and eyes from severe burns, molten metal projections, and the intense radiant energy produced during an electrical failure in high-power systems.

ASTM F2178/F2178M-20 (Eye and face protection against arc flash): This American standard determines the Arc Thermal Performance Value (ATPV) of eye or face protectors. Unlike other standards, this specifically measures how much thermal energy (heat) the equipment can withstand before the user suffers a second-degree burn, allowing classification of the equipment according to the level of electrical risk (PPE Category 1 to 4) of the work environment.
