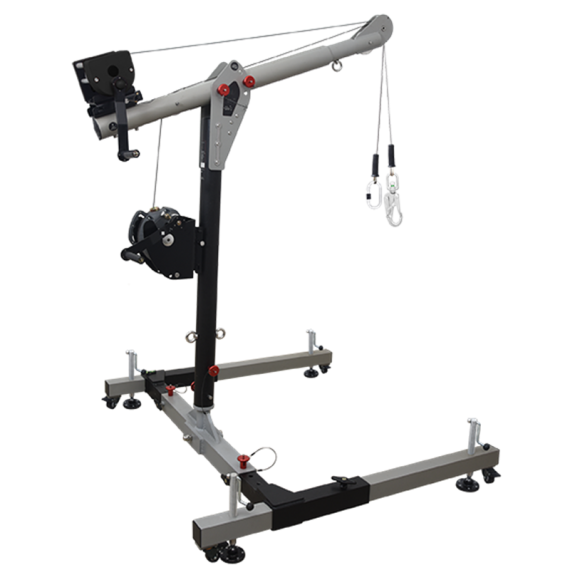

H base for mobile crane EasySafeWay 1 KRATOS SAFETY

The H-base for the EasySafeWay 1 KRATOS SAFETY mobile crane is the foundation on which a safe and efficient working system is built. Designed with an H-shaped structure, this base provides exceptional stability, even on irregular surfaces. Its height adjustable legs allow to perfectly level the equipment, ensuring a safe and accurate operation. In addition, the base has reinforced anchor points that support high loads, providing tranquility to the workers.

It should be installed in combination with FA 60 105 03 (EasySafeWay 1 - height 1370 mm) or FA 60 105 04 (EasySafeWay 1 - height 915 mm), and FA 60 105 05 ( EasySafeWay 1 crane) to obtain a full EasySafeWay 1 mobile crane.

CHARACTERISTICS

• Minimum base opening in H: Ø 1100 mm.
• Minimum base opening in H: Ø 1510 mm.
• Material: Aluminium.
• Weight: 35 kg.

APPLICATIONS

Construction: For the lifting of heavy materials and the installation of structures in construction works.

Manufacturing: In factories where large or heavy parts are manipulated during the production process.

Logistics and transport: To load and download containers and heavy goods in ports or distribution centers.

Mining: In mineral extraction, where mobile cranes are required to move heavy equipment and materials.

Energy: In the installation and maintenance of structures in wind farms, power plants and other energy facilities.

Petrochemical: For handling equipment and materials in refineries and petrochemical plants.

USE

There is no good anti-tach system without a good anchoring point. Whatever type of intervention that should be performed and that this is temporary or regular, it is essential to choose your anchor point well and to check that the host structure (edifice, metal structure, post is resistant enough.

HOW TO CHOOSE

The anchor point is indisputably the element of a more delicate anticed system to be chosen to ensure a safer time. When choosing the anchor point it is necessary first to determine where to install the anchor point. To this end, it is necessary to take into account the following aspects: static resistance of the anchor point :  10 kN installation height: high enough regarding the 1st potential obstacle in case of fall (see drop factor scheme) situation: vertical of the work station in order to avoid the risks associated with the pendular effect (see effectpendular scheme)

ON SAFETY KRATES

Kratos Safety offers you a complete anticated solution with high-end, customer-oriented services. The Kratos Safety range is designed to meet the requirements of the European Standards, as well as the comfort and ergonomic expectations of users in their workplace.
