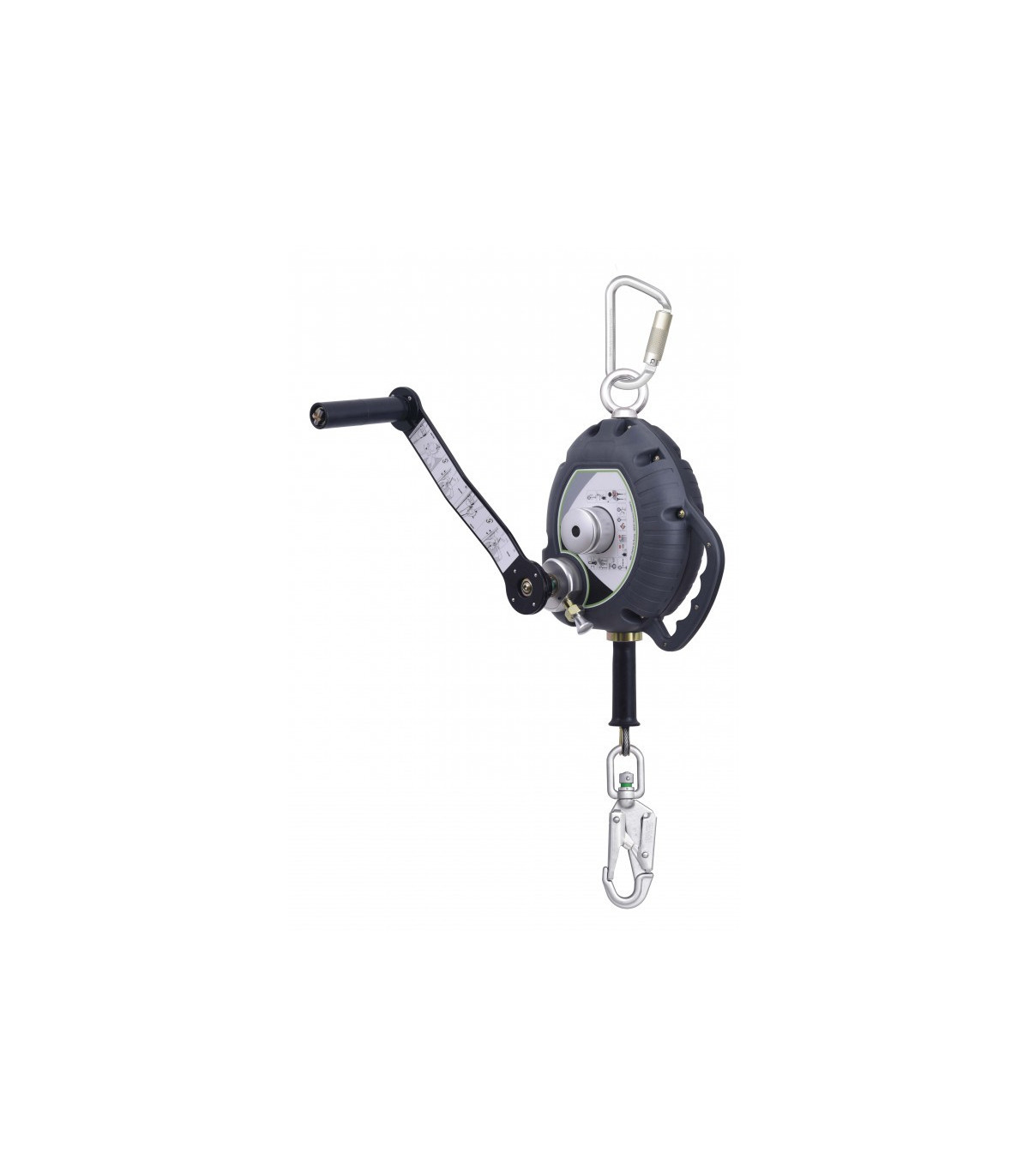

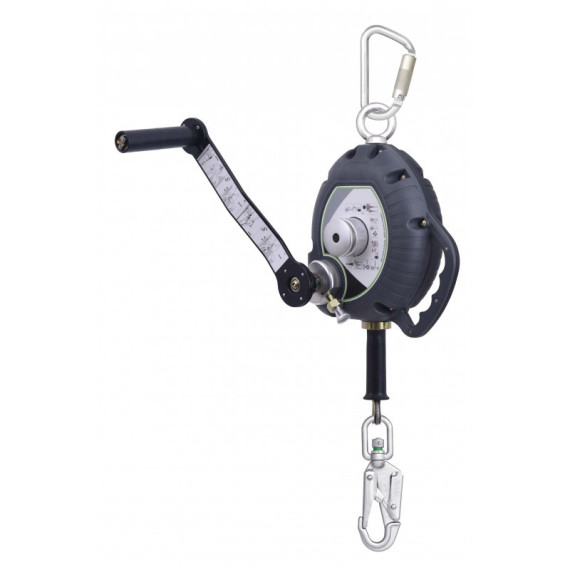

Retractable anti-fall device of 10m with integrated rescue winch KALYPSO stainless steel cable and resistance 12 kN KRATOS SAFET

The KALYPSO retractable fall arrester from Kratos Safety, with a 10-meter stainless steel cable, is a premium safety solution designed for work at heights that require both personal protection and rescue capability in corrosive environments. Its high-quality stainless steel cable, with a breaking strength of over 12 kN, offers exceptional durability and high corrosion resistance, making it ideal for applications in marine, chemical, or high-humidity environments.

The integrated rescue winch allows assistance to a colleague in case of emergency, and the automatic braking system ensures a safe stop in the event of a fall. Additionally, its compact and robust design, along with the high-strength polymer housing, makes it ideal for demanding industrial environments.

FEATURES

• Stainless steel cable with a diameter of 4.5 mm and a grip handle on the cable.
• Integrated brake system to achieve an impact force of less than 6 kN.
• Swivel link and stainless steel connector for connection at the anchor point and FA 50 203 20 connector with fall indicator on the cable.
• Integrated recovery system.
• Compatibility: Adaptable to our TRIPODS (FA 60 001 00 - FA 60 002 00) with the help of kit FA 60 001 04. It can also be installed on the tripod with a double pulley head (FA 60 101 00 / FA 60 102 00) using the FA 60 101 01 adapter plate set, as well as on the MultiSafeWay (FA 60 022 00) using the FA 60 022 05 adapter plate set.
• Weight: 7.40 kg.
• Product delivered with cord (FA 20 904 20) to assist in the winding of the cable.
• HS Code: 8428 9090
• Compliance: EN 360:2002, EN1496:2017 class B, ATEX Directive 2014/34/EU. Breaking strength > 12 kN.

TECHNICAL DATA

• Maximum User Weight (Vertical Use) 140 Kg
• Standard(s): EN360:2002
• PPE / NON-PPE PPE
• Connector: 1 Steel Snap Hook With Swivel And Fall Indicator, Automatic Locking Opening 21mm - 1 Steel Screw-Locking Karabiner Opening 17mm

STANDARDS

- EN360:2002: A retractable fall arrester is a device equipped with a harness (made of cable or strap) that is kept constantly under tension, following the movements of users. The system automatically locks and immobilizes in the event of a user's fall. They come in various lengths. Breaking strength > 12 kN (cable harness) or > 15kN (textile harness).

- EN 1496:2017, class B, refers to height rescue systems, specifically to evacuation and rescue devices used in emergency situations. This standard establishes the design, manufacturing, and performance requirements for this equipment. Class B indicates that the device must be capable of performing a controlled evacuation from a considerable height, ensuring the user's safety during descent. This includes aspects such as material strength, ease of use, and effectiveness in various conditions.

USE

It should only be used in work that requires significant movement.

HOW TO CHOOSE

The choice of fall arrester should be made based on the movements that need to be performed. Obviously, when choosing the fall arrest system, the position of the attachment point should be considered.

If the movement is purely vertical (along a ladder, for example), a sliding fall arrester on a safety support should always be favored. They have the advantage of being able to be installed (some of them) permanently on the structure.

If the movements can be horizontal and vertical, an automatic retractable fall arrester should be preferred. This is the fall arrester that provides the greatest freedom of movement.

Sliding fall arresters should always be used vertically from the anchor point.

Automatic retractable fall arresters are particularly suitable for low-height work, as the locking is almost instantaneous, thus limiting the necessary free height.

For work on an inclined plane with a sliding fall arrester, it is necessary for the fall arrester to be equipped with a manual locking system.

APPLICATIONS

It can be used wherever the user needs great freedom of movement and has to navigate obstacles while remaining safe.

Fall arresters on safety supports are mainly used for the following professions:

• Work on poles
• Work on rocky walls
• Work on lifts
• Window cleaner
• Rope access technician
• Rescuer
• Roofer-sealing technician
• Antenna and telecommunications technician

Automatic retractable fall arresters will be used more for the following professions:

Facade work, on terraces, on scaffolding, on platforms, and in maintenance.
