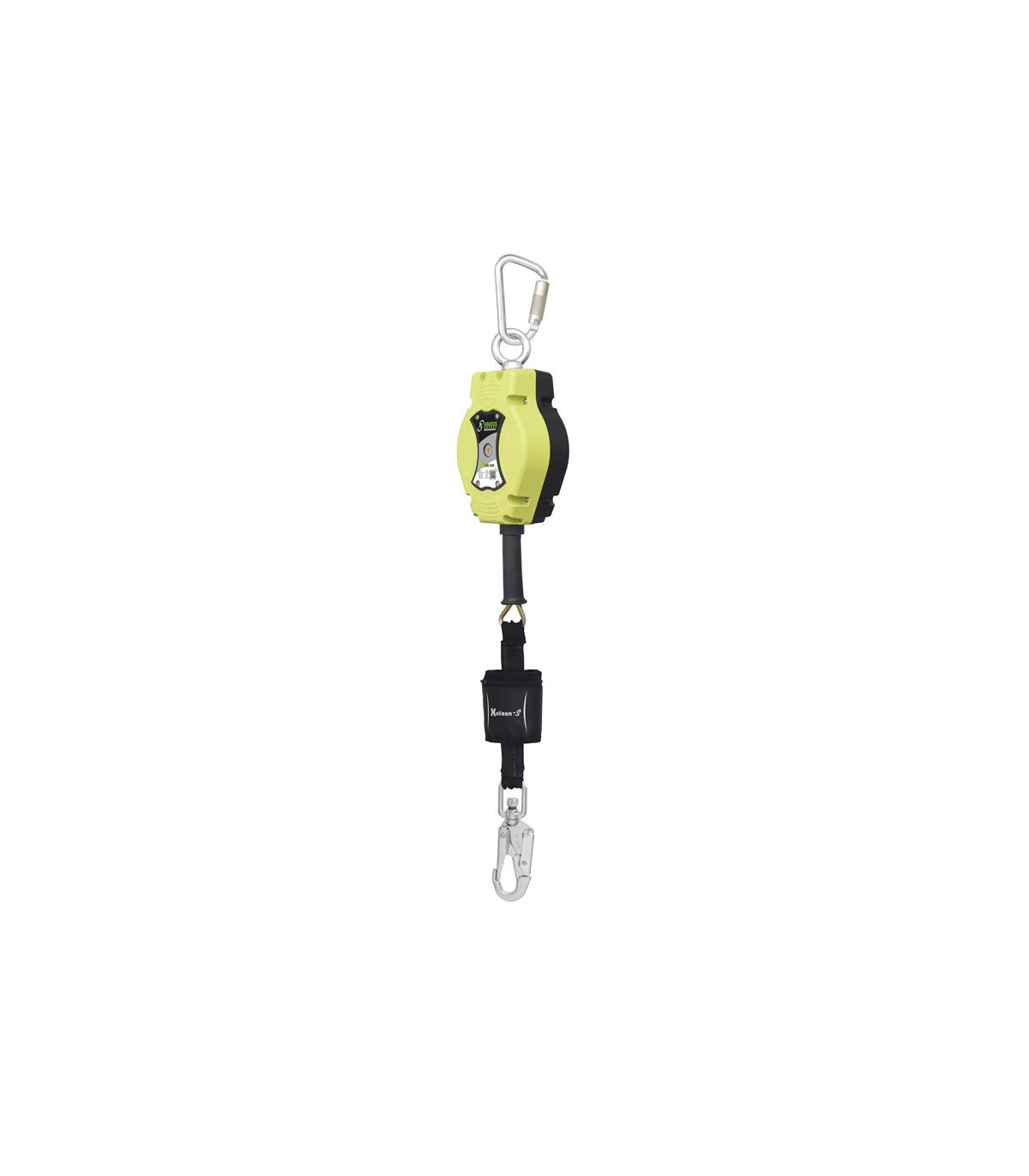

Retractable anti-fall for vertical and horizontal use, 12 kN resistance HELIXON-S KRATOS SAFETY

The HELIXON-S retractable fall arrester from Kratos Safety is a versatile and safe solution for working at heights that require both vertical and horizontal movements. Its galvanized steel cable, with a breaking strength of over 12 kN, offers the user a wide range of movement, allowing access to different work points without restrictions.

The compact and lightweight design of this equipment, combined with its integrated braking system, ensures a smooth and controlled stop in the event of a fall, minimizing the risk of injury. Additionally, its high-strength polymer casing protects the internal components and facilitates transportation.

FEATURES

• High-strength polymer casing, which includes: a carrying handle, an easily removable window for access to the internal mechanism, allowing inspection without the need to fully open the box.
• Galvanized steel cable diameter 4.8 mm, which includes: a FA 50 203 20 connector with fall indicator; a grip handle, an external energy absorber.
• Integrated braking system to achieve an impact force of less than 6 kN.
• Swivel shackle and FA 50 225 23B connector for connection to the anchor point.
• Weight: 4.08 kg.
• Compliance: EN 360:2002, VG11.060.
• Breaking strength > 12 kN.
• Approved for a user with a maximum weight of 140 kg in vertical use and horizontal use.

TECHNICAL DATA

• Maximum User Weight (Horizontal Use) 140 Kg
• Maximum User Weight (Vertical Use) 140 Kg
• Standard(s): EN360:2002
• PPE / NON-PPE PPE
• Connector: 1 Steel Snap Hook With Swivel And Fall Indicator, Automatic Locking Opening 21mm - 1 Steel Screw-Locking Karabiner Opening 17mm

VIDEO

STANDARDS

- EN360:2002: A retractable fall arrester is a device equipped with a lanyard (made of cable or strap) that is kept constantly under tension, following the movements of users. The system automatically locks and immobilizes in the event of a user fall. Available in various lengths. Breaking strength > 12 kN (cable lanyard) or > 15kN (textile lanyard).

USAGE

It should only be used in work that requires significant movement.

HOW TO CHOOSE

The choice of fall arrester should be made based on the movements that need to be performed. Obviously, when choosing the fall arrest system, the position of the attachment point should be considered.

If the movement is purely vertical (along a ladder, for example), a sliding fall arrester on a safety support should always be favored. They have the advantage of being able to be installed (some of them) permanently on the structure.

If the movements can be horizontal and vertical, an automatic retractable fall arrester should be prioritized. This is the fall arrester that provides the greatest freedom of movement.

Sliding fall arresters should always be used vertically from the anchor point.

Automatic retractable fall arresters are particularly suitable for low-height work, as the locking is almost instantaneous, thus limiting the necessary free height.

For work on an inclined plane with a sliding fall arrester, it is necessary for the fall arrester to be equipped with a manual locking system.

APPLICATIONS

It can be used wherever the user needs a great freedom of movement and has to navigate obstacles while remaining safe.

Fall arresters on safety supports are mainly used for the following professions:

• Work on poles
• Work on rocky walls
• Work on lifts
• Window cleaning
• Rope access technician
• Rescuer
• Roofer-sealing technician
• Antenna and telecommunications technician

Automatic retractable fall arresters will be more suitable for the following professions:

Facade work, on terraces, on scaffolding, on platforms, and in maintenance.
