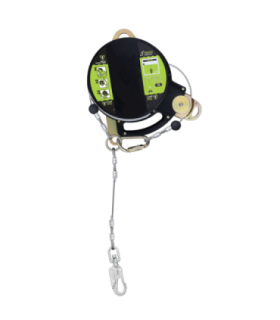

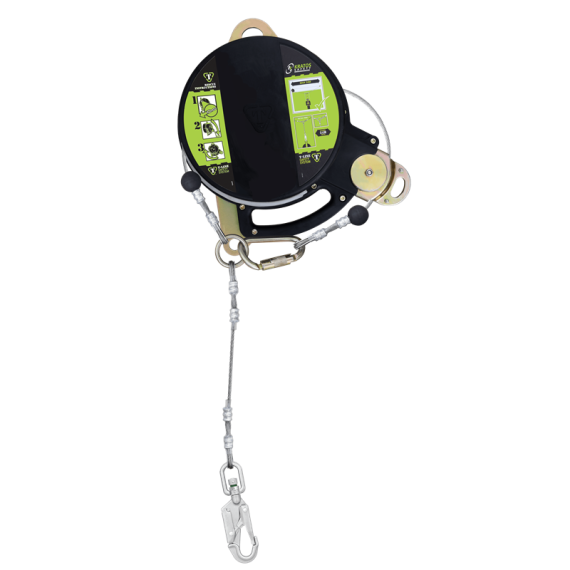

Retractable anti-fall device with double steel safety cable, lg. 12 m T-LINE KRATOS SAFETY

Discover T-Line, the innovative 2-in-1 system that combines a lifeline and a fall arrest system, providing complete fall protection for workers at height. Thanks to its exclusive design, T-Line can easily navigate obstacles such as posts and pipes, offering workers maximum freedom of movement. T-Line is quick and easy to install, and with its V-Line mode, it significantly reduces the free height. It can be fixed to IPNs, walls, or even one side on IPNs and the other on a wall, providing great installation flexibility. Its annual inspection is straightforward and can be done on the ground, reducing the cost and complexity of inspections.

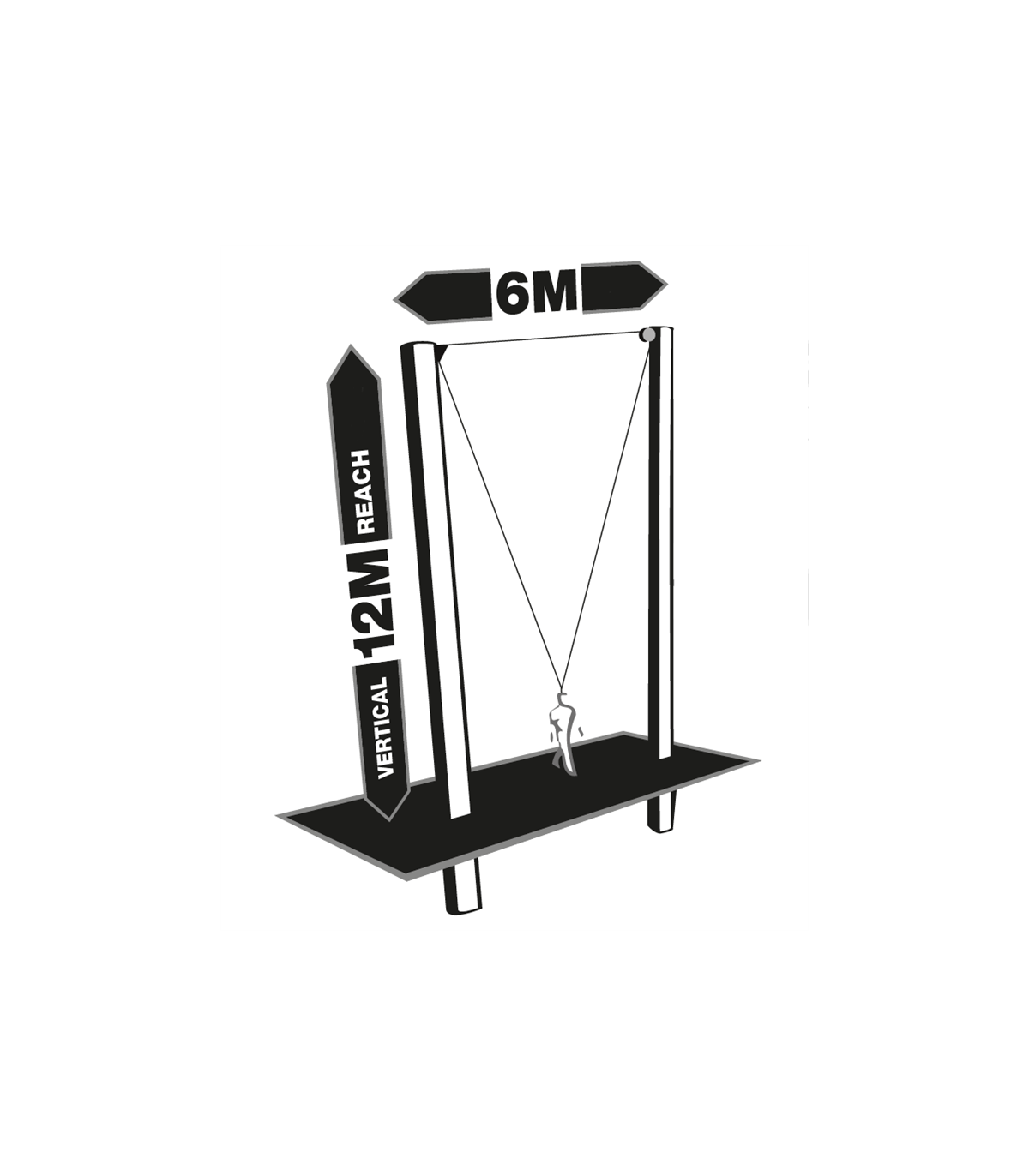

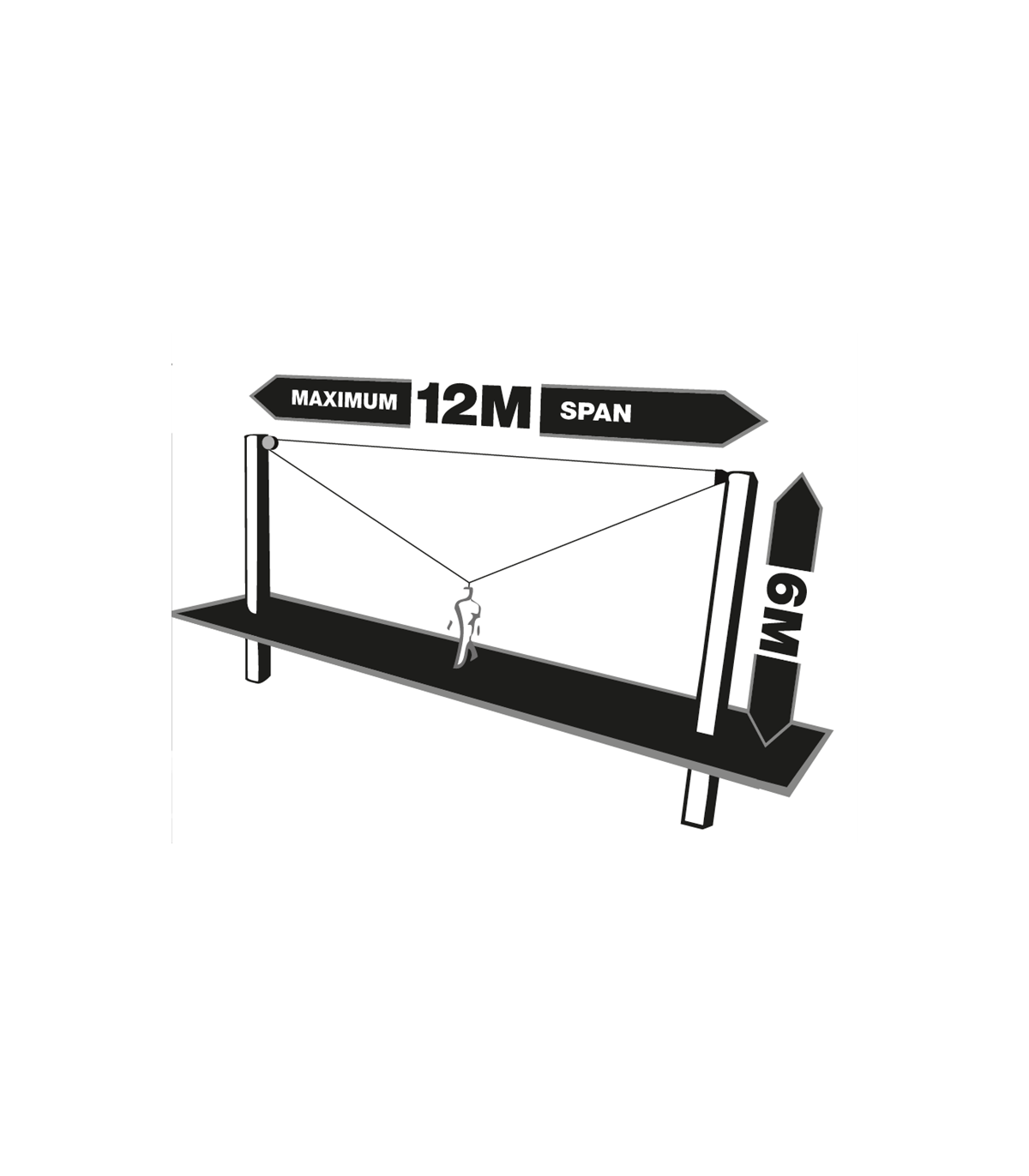

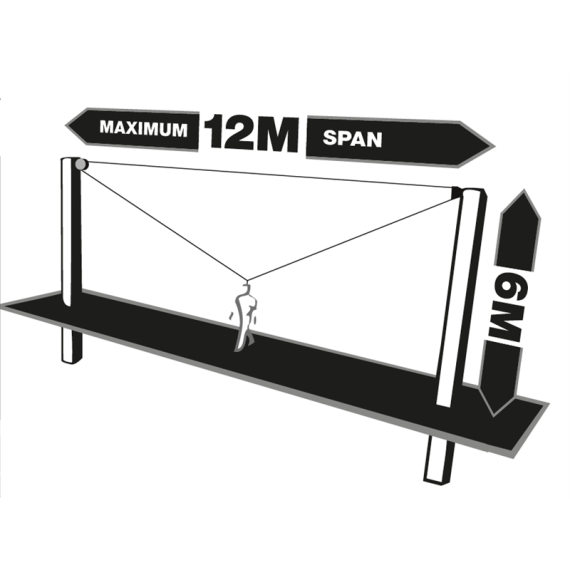

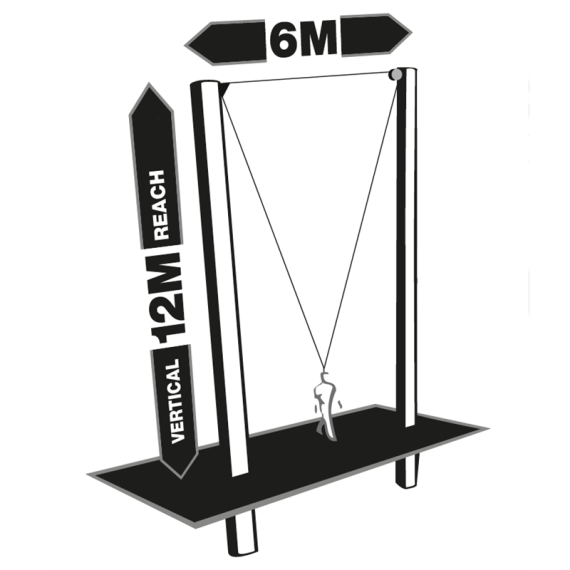

The goal of the T-LINE system is to ensure that a person can move horizontally and vertically without constantly considering the possibility of a pendulum fall. The triangulation of the cables prevents pendulum movements and also reduces the fall arrest distance, allowing installations in areas with limited free height available.

FEATURES

• Thanks to its exclusive design, T-Line can easily navigate obstacles such as posts and pipes, offering workers maximum freedom of movement.
• T-Line is quick and easy to install, and with its V-Line mode, it significantly reduces the free height.
• It can be fixed to IPNs, walls, or even one side on IPNs and the other on a wall, providing great installation flexibility.
• Its annual inspection is straightforward and can be done on the ground, reducing the cost and complexity of inspections.
• The T-LINE system is particularly suitable for work on walkways, platforms, loading and unloading areas for tank trucks, etc.
• The goal of the T-LINE system is to ensure that a person can move horizontally and vertically without constantly considering the possibility of a pendulum fall. The triangulation of the cables prevents pendulum movements and also reduces the fall arrest distance, allowing installations in areas with limited free height available.

TECHNICAL DATA

• Maximum User Weight (Vertical Use) 100 Kg
• Standard(s): EN360:2002
• PPE / NON-PPE PPE

VIDEO

STANDARDS

- EN360:2002: A retractable fall arrest device is a device equipped with a harness (made of cable or strap) that is constantly kept under tension, following the movements of users. The system automatically locks and immobilizes in case of a user's fall. They come in various lengths. Breaking strength > 12 kN (cable harness) or > 15 kN (textile harness).

USAGE

It should only be used in work that requires significant movement.

HOW TO CHOOSE

The choice of fall arrest system should be made based on the movements that need to be performed. Obviously, when choosing the fall arrest system, the position of the attachment point should be considered.

If the movement is purely vertical (along a ladder, for example), a sliding fall arrest system on a safety support should always be favored. They have the advantage of being able to be installed (some of them) permanently on the structure.

If the movements can be horizontal and vertical, an automatic retractable fall arrest system should be preferred. This is the fall arrest system that provides the greatest freedom of movement.

Sliding fall arrest systems should always be used vertically from the anchor point.

Automatic retractable fall arrest systems are particularly suitable for low-height work, as the locking is almost instantaneous, thus limiting the necessary free height.

For work on an inclined plane with a sliding fall arrest system, it is necessary for the fall arrest system to be equipped with a manual locking system.

APPLICATIONS

It can be used wherever the user needs great freedom of movement and has to navigate obstacles while remaining safe.

Fall arrest systems on safety supports are mainly used for the following professions:

• Work on posts
• Work on rocky walls
• Work on lifts
• Window cleaning
• Rope access technician
• Rescuer
• Roofer-sealing technician
• Antenna and telecommunications technician

Automatic retractable fall arrest systems will be more suitable for the following professions:

Facade work, on terraces, on scaffolding, on boats, and in maintenance.
