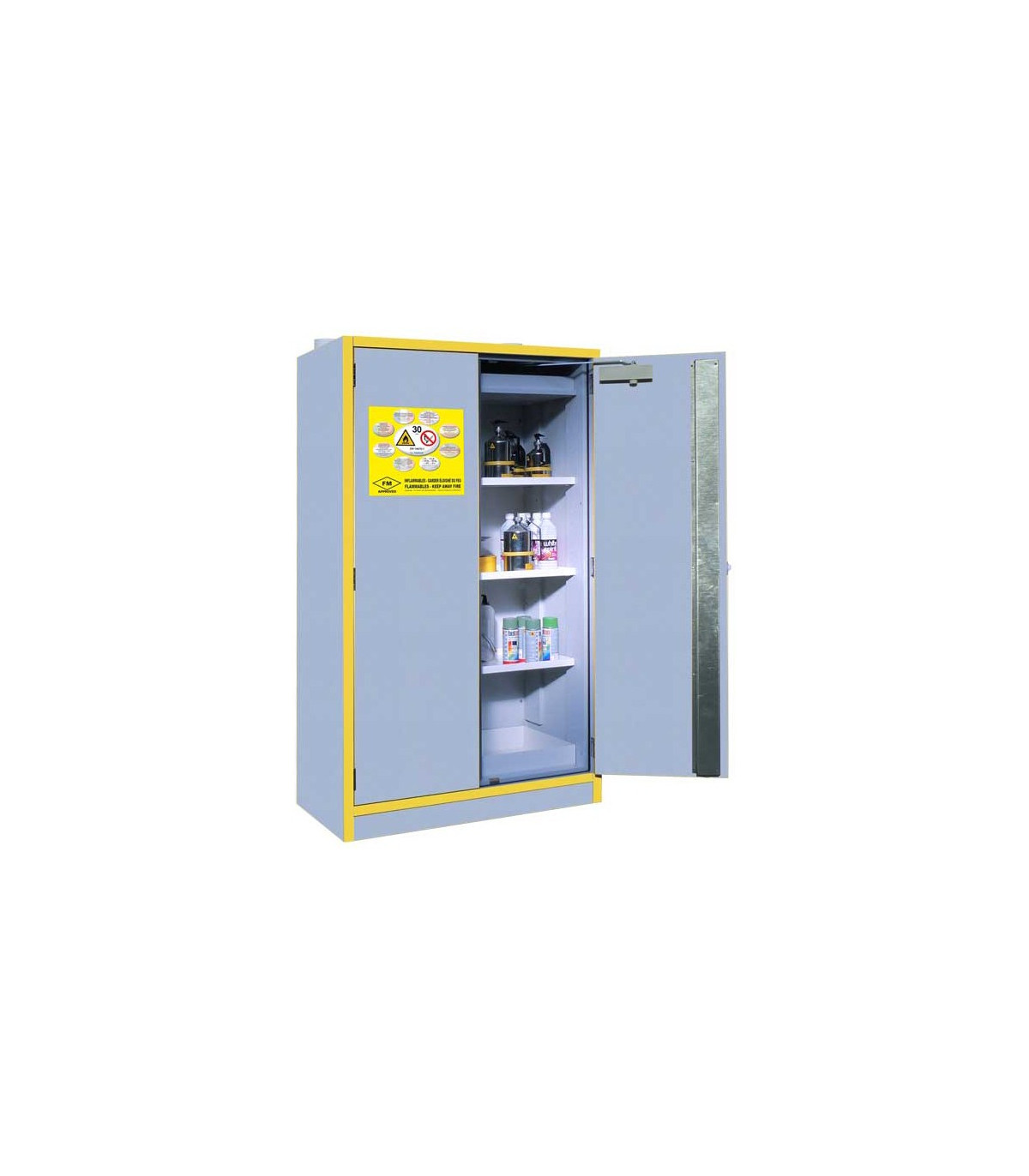

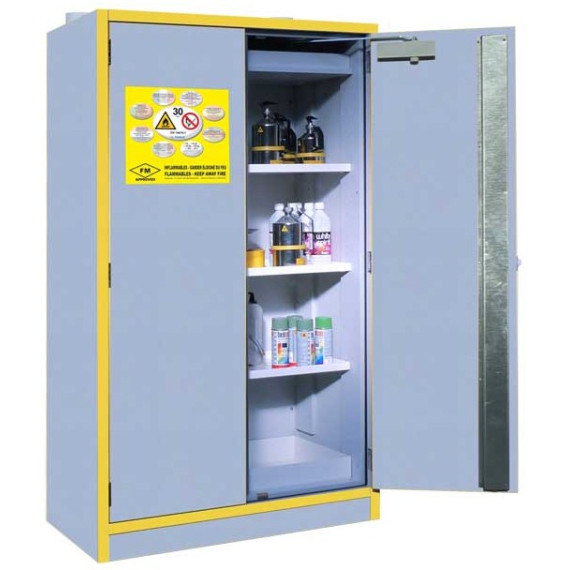

Safety cabinet TYPE 30min. flammable product EN 14470-1 & FM 6050 (H 1980 x W 1115 x D 550mm)

o. CHARACTERISTICS

- Type: Tall.
- Number of door(s): 2
- External dimensions: H 1980 x W 1115 x D 550mm
- Internal dimensions: H 1581 x W 1001 x D 419mm
- Storage capacity: 250L
- Number of shelves: 3
- Number of base trays: 1
- Weight: 210kg

CERTIFICATION
- Tested and approved Type 30 according to EN 14470-1 (04-2004) and EN 1363-1 (06-2000).
- (1) Tested and approved Type 10 minutes according to FM 6050 (Factory Mutual International).
- Standardized labeling according to ISO 3864 and EN 14470-1 (04-2004) standards, 92/58 / EEC Directive FM European regulations.

ADVANTAGES
- Fire resistance of 30 minutes according to ISO 834 fire heating curve.
- Manageable low pedestal area by a forklift by removing the panel (except for smaller bench models).
- Automatic closing doors with the possibility of keeping the door(s) open. If the temperature rises to 43°C, a fusible link automatically closes the door(s).

PASSIVE SAFETY
- Built in melamine: good chemical resistance in general.
- Gray structure (RAL 7035), yellow edges (RAL 1023).
- Safety labeling according to EN 14470-1.
- Height-adjustable containment shelves (step every 32 mm).
- Removable lower containment sump.

ACTIVE SAFETY
- Air inlet of Ø100 mm and outlet for natural ventilation ducts or connection with forced ventilation/filtration system.
- Automatic closing doors.
- Doors with three-point locking mechanism with lock.
- Spark-free locking system.
- Adjustable leveling feet to improve stability.

OPTIONS
- Additional containment shelf.
- Perforated cover for containment sump.
- Retractable platform.
- PVC containment platform and containment sump.
- Easy connection with an exhaust system or a filtration box.
- Industrial absorbent mat (P/N: JF10D).

Product made to order (approx. 3 weeks). No order cancellations or changes and/or returns of this product are accepted.

-------------------------------------------------------------

In any work environment, it is essential to have the appropriate Personal Protective Equipment (PPE), as well as other safety measures, but it is also necessary to have the most suitable furniture for the type of products to be stored. In this sense, there are products that are flammable and must be stored in a specific cabinet specially designed for this purpose, such as the Type 30min safety cabinet for flammable products EN 14470-1 & FM 6050.

The Type 30min safety cabinet for flammable products EN 14470-1 & FM 6050 is a tall cabinet that includes two doors and has internal dimensions of 1581 x 115 x 550 mm, with an internal storage capacity of 250 liters. It also has three shelves and one base tray. It is tested and approved Type 30 according to EN 14470-1 (04-2004) and EN 1363-1 (06-2000), meeting the necessary certification to be used in a wide variety of work sectors.

Among the advantages of this cabinet is its fire resistance for 30 minutes, also featuring a manageable low pedestal area by a forklift by removing the panel and automatic closing doors with the possibility of keeping the door open. If the temperature reaches 43 degrees Celsius, the door closes automatically.

The Type 30min safety cabinet for flammable products EN 14470-1 & FM 6050 has various safety elements, both passive (built in melamine to provide good chemical resistance, height-adjustable containment shelves, removable lower containment sump...) and active safety features, with air inlets and outlets, automatic closing doors, doors with a three-point locking mechanism with lock, spark-free locking system, and leveling feet to improve stability.

Additionally, optionally, it can include an additional containment shelf, retractable platform, perforated cover for containment sump, PVC containment platform and containment sump, easy connection with an exhaust system or a filtration box, etc.

These types of cabinets are essential in all work environments where there is a high risk that the stored products could cause a fire due to their high flammability. This way, they will be stored in a safe place, significantly reducing the risk of any problems occurring.
