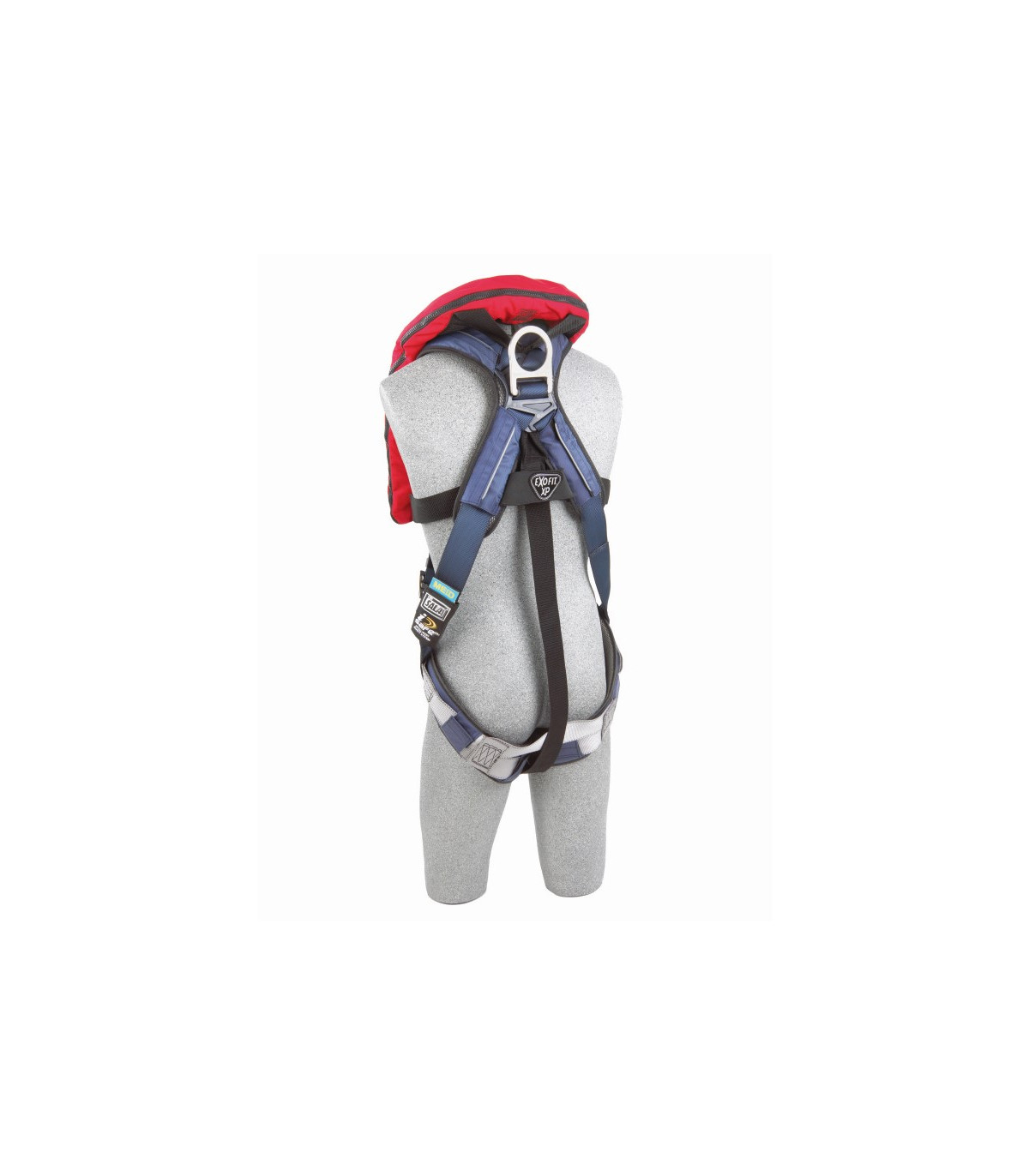

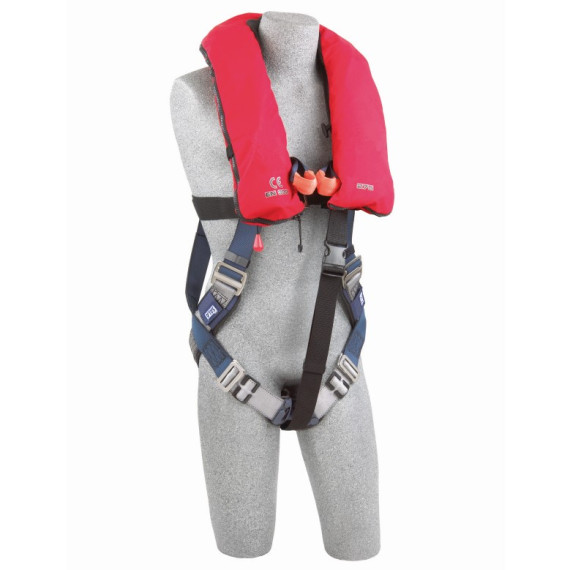

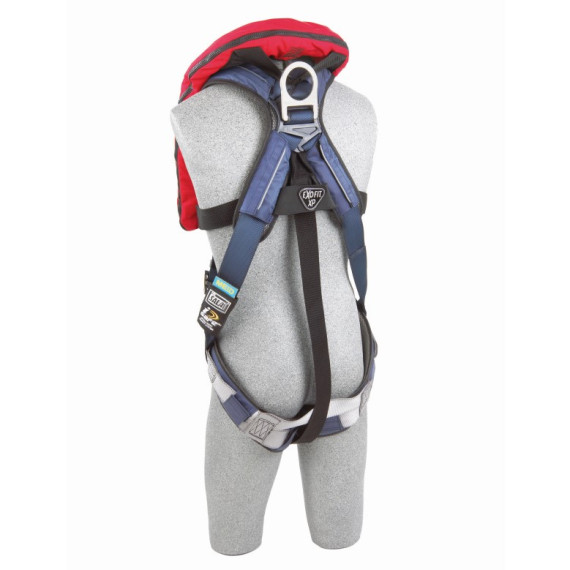

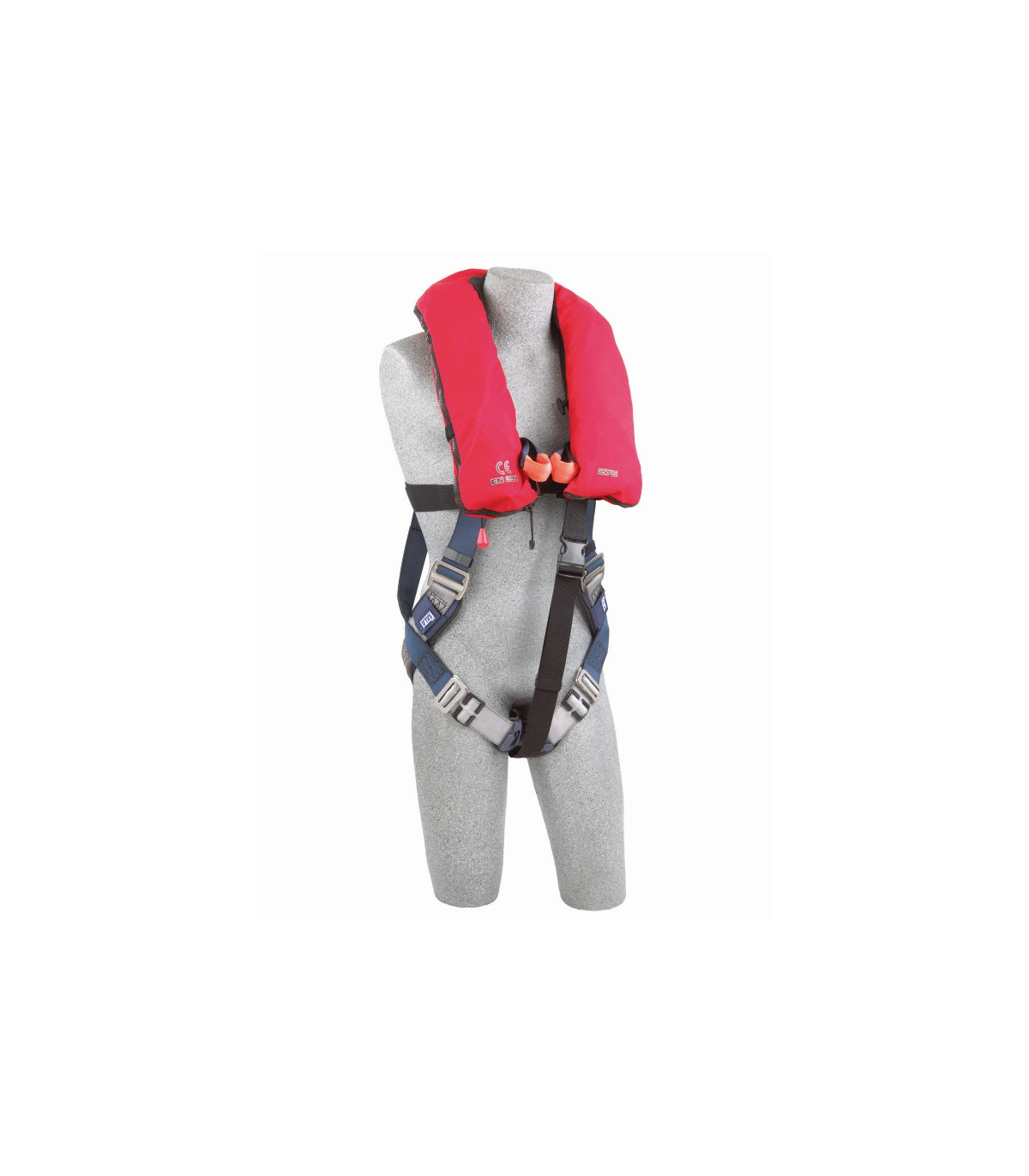

Security harness with personal floating device 3M DBI-SALA ExoFit XP 1102170

Security harness 3M DBI-SALA ExoFit XP with personal floating device

Previously confirmed with Sekureco.eu date of delivery approx.

CHARACTERISTICS

• Ring Locations in D behind and in front.
• Dorsal stop point for steel drops.
• Type of belt buckle for the leg, Passing buckle.
• Hybrid comfort pads and ultra soft edges.
• Molded slings.
• Half-anchor web anchor point.
• It passes through the buckles.
• Labels covered in i-Safe.
• iSafe equipped: yes
• Physical weight: 2.70 kg.
• Sizes: Medium 1102169, Large 1102170, X Grande 1102171.
• Product style floating harness.
• EC Standards, EN361.

BENEFITS

• Automatic operation and PDF manual (personal floating device)
• Stainless steel hardware for increased corrosion resistance in hostile environments.
Front loops for arrest of falls and large rear D ring for connections to protection systems against falls.
• Reflexite reflective patches ensure high visibility for rescue and recovery after inflation.
• Silbato helps attract attention in rescue and recovery situations.
• The inflated/orally deflated tube allows the user to fill with air if necessary and deflate the PFD after use.
• Built-in lift valve for quick and easy rescue and recovery of water.

APPLICATIONS

How the personal floating device works (PFD).
It will be activated and started to inflate once it has submerged in the water for three seconds. Inflated technology is based on water pressure, eliminating activation due to accidental or accidental contact with water, such as rain or dew. The device can also be operated manually; simply pull the lever. There is an inflated tube for the oral inflation, which can also be used to deflate the life jacket.

Flemish protection is measured in Newtons (N).
Our integrated PFD have 275 Newtons of floatability to provide additional support and safety in the water, as well as an exceptional turning capacity to straighten the user. The floating of the units makes it ideal for use along with clothing and industrial equipment.

TECHNICAL DATA

• Arnés - Cincha: 100% polyester, width - 45 mm, minimum breakage load 26 kN
• Hilo: 100% polyester.
• Herrajes: stainless steel with rear D ring, minimum breakage resistance 22 kN, cross buckles - legs and chest, stainless steel, shoulder adjusters - with spring, stainless steel.
• ExoFitTM XP back and legs pad: nylon Hydrofil® and 3-D mesh lining.
• Weight (approx.): 2.7 kg (with 275N PFD)
• Capacity: 136 kg.
• Standards: CE EN361, ANSI OSHA.

• PFD - Dimensions (packaged): 275N - H - 40cm, W - 30cm, D - 4cm Exterior.
• Cover: Fabric - Nylon coated with high resistance polyurethane, Color - Red.
• Inflatable Camera: Fabric - Nylon 210 Denier with welded polyurethane coating, Color - International Orange, Visibility - MED / SOLAS Retro reflective patches.
• Closure: Black Delrin zipper with double fast opening.
• Silbato: marine grade - orange color. SOLAS / MED approved.
• Floating: 305N (total inflation)
• Inflated system: through the inflated/deflated tube of the mouth or automatic inflator of moulders attached with manual annulation.
• Capacity: for all people 40 kg - 150 kg
• Standards: model 275N - ISO 12402-1 and EN399-1993.
