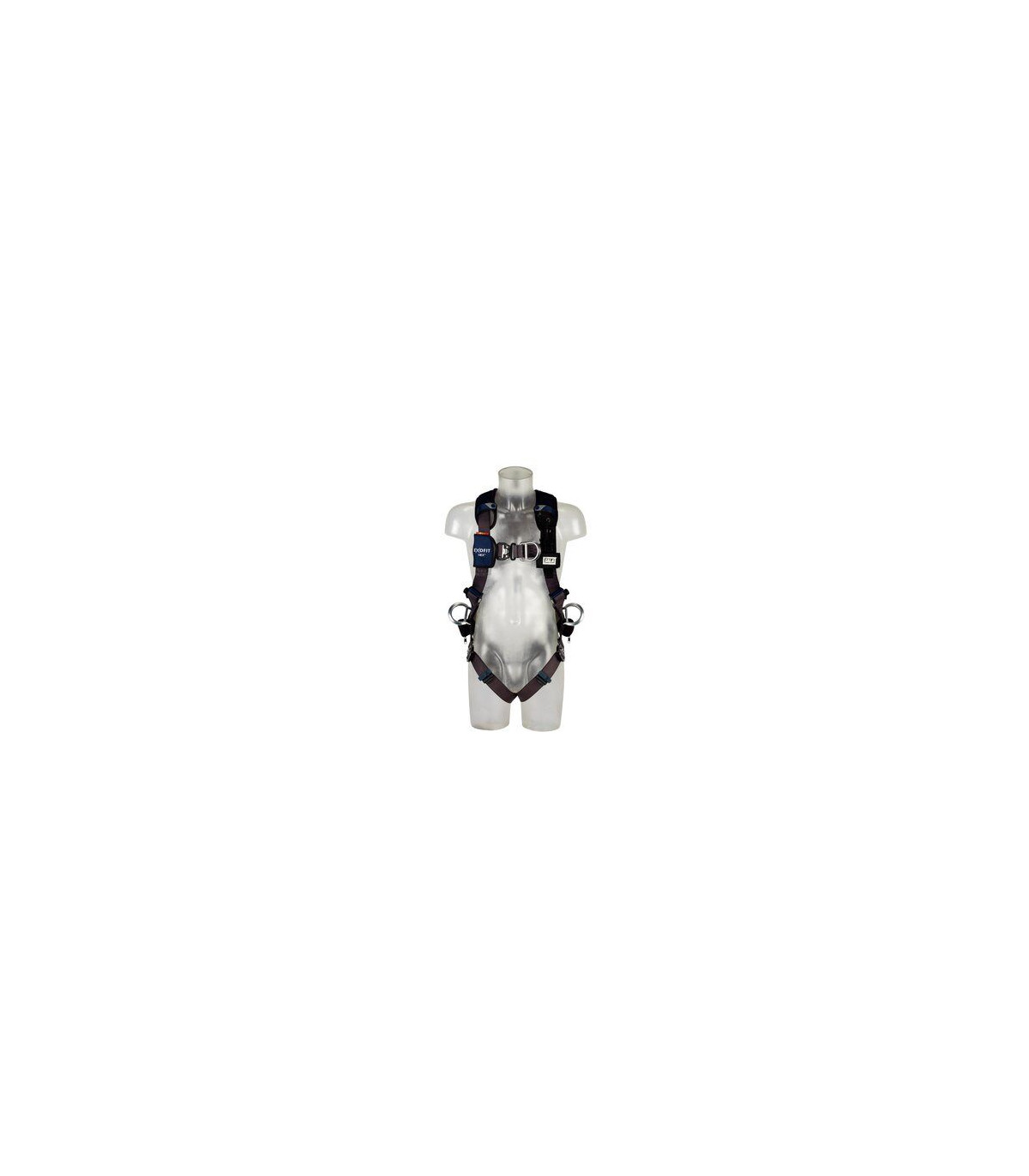

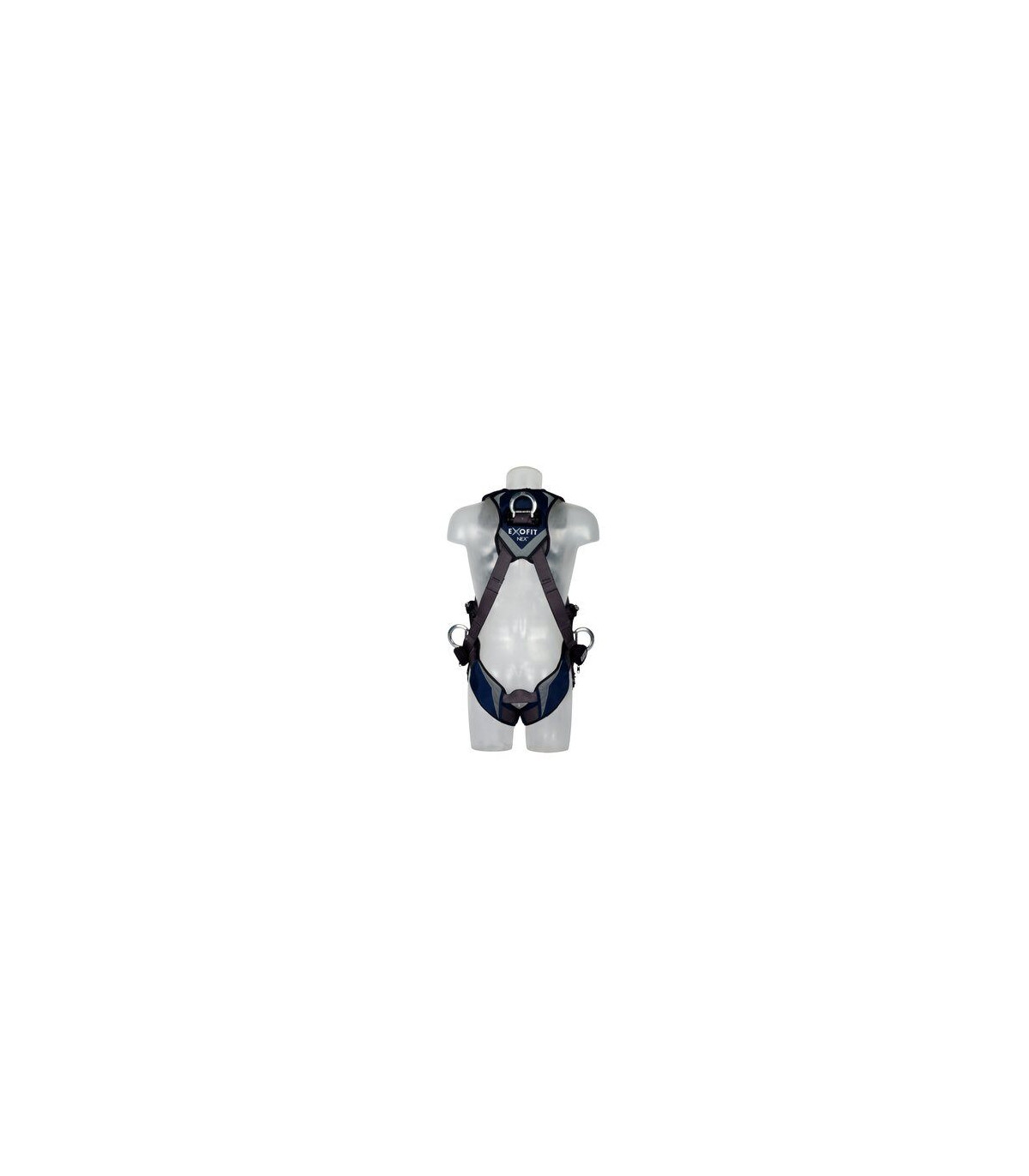

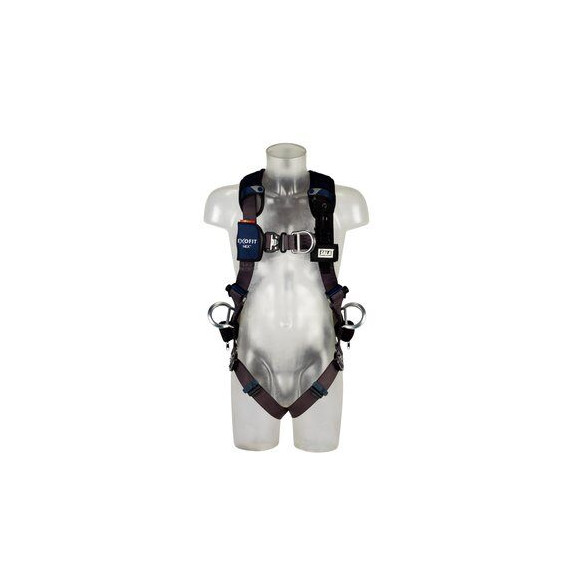

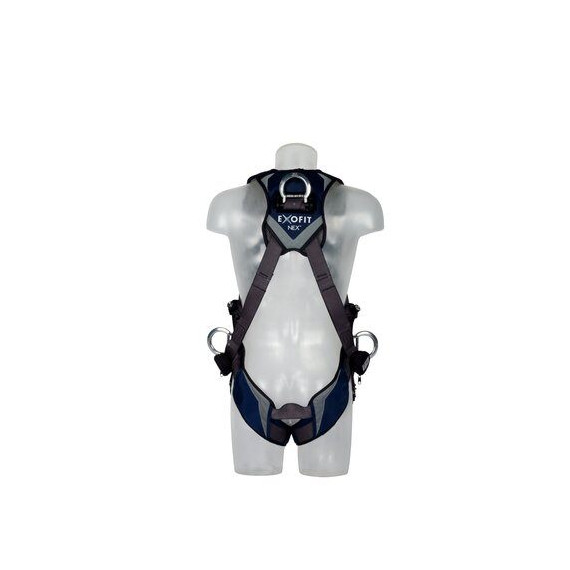

Small harness for climbing and positioning for wind energy 3M DBI-SALA ExoFit NEX

Small ascent and positioning harness for wind energy 3M DBI-SALA ExoFit NEX. The safety harness for wind energy is comfortable, durable, made with lightweight materials, and helps you work efficiently and effectively.

Confirm approximate supply date with Sekureco.eu beforehand.

• Allows for comfortable and protected ascent to wind turbines
• Water-repellent and abrasion-resistant straps that stay dry and strong
• Safety housing with easy-open hooks
• The Revolver adjuster provides quick and easy vertical adjustment on the torso

FEATURES

• The straps of this ascent and positioning harness repel water to keep it dry, preventing mold and dirt buildup.
• These abrasion-resistant straps have lasting durability and respond to the most demanding daily conditions.

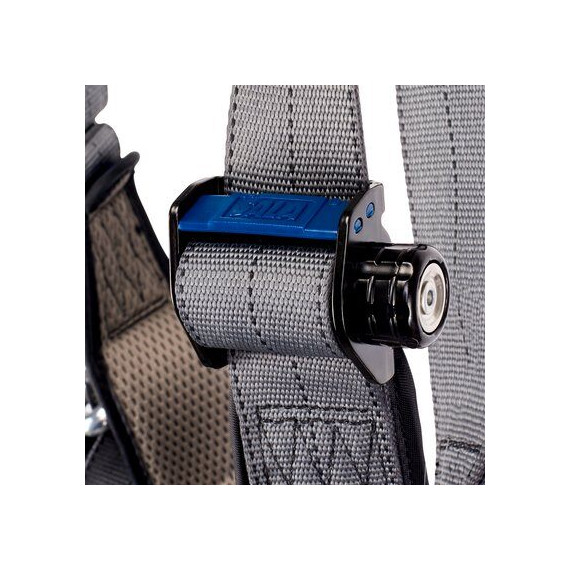

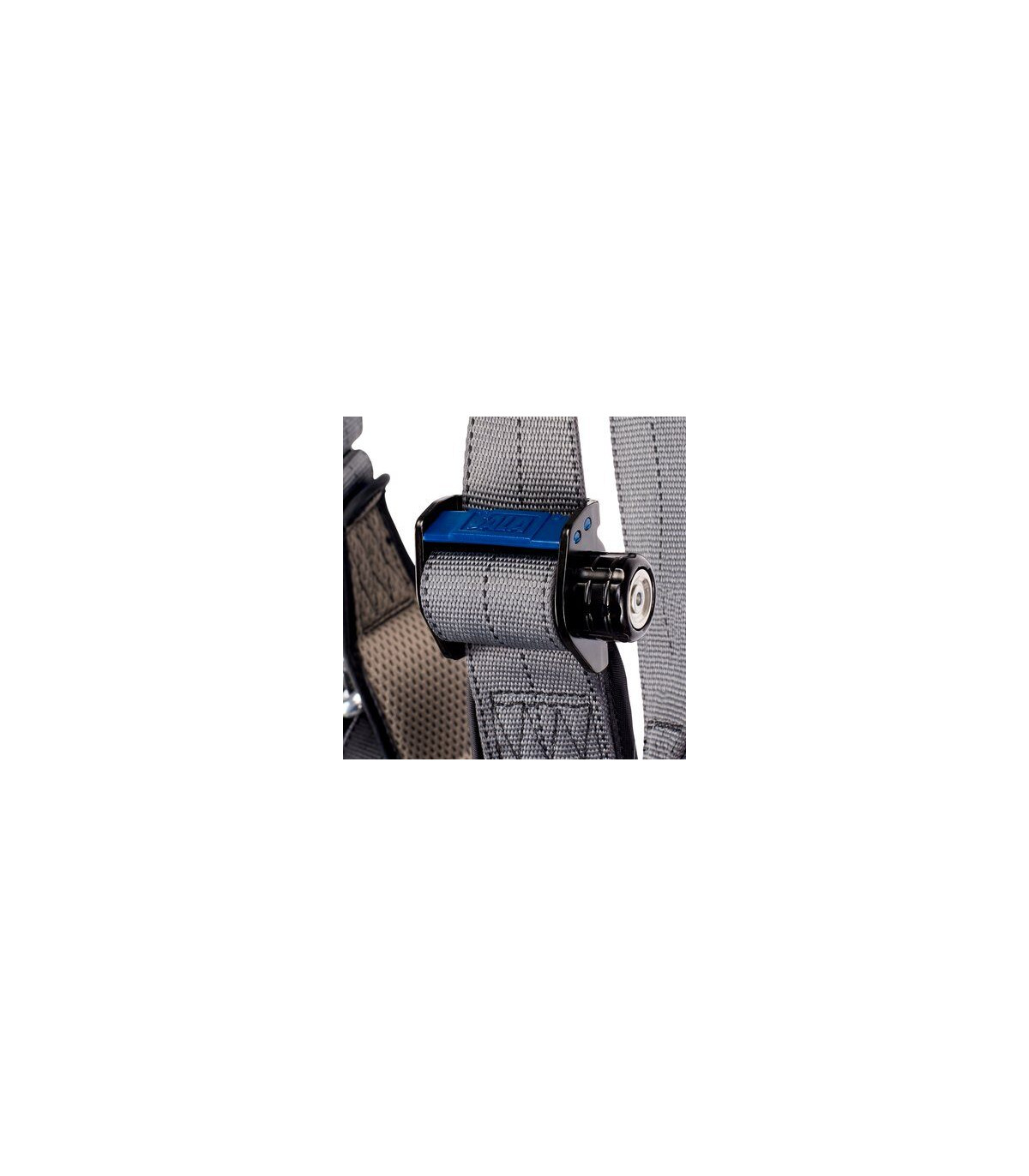

• The Revolver vertical adjusters provide simple and quick adjustments on the torso straps, eliminating loose ends and preventing misalignment.
• Impact indicators make it easy to check for damage to the harness and help ensure its safe use.
• The sling hook housings are easy to open to avoid tripping hazards.

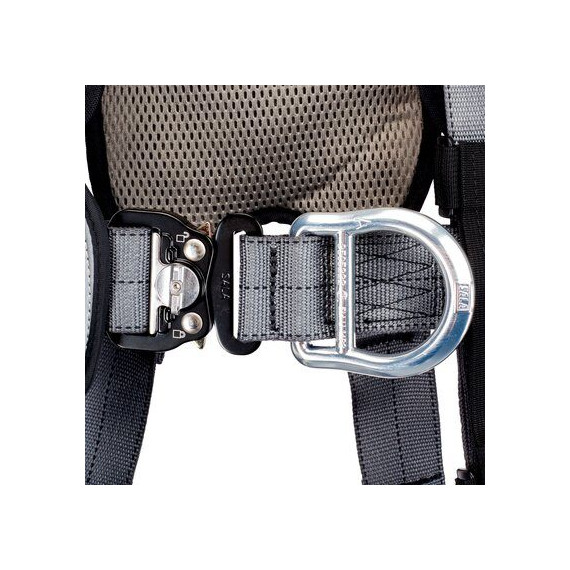

• Thanks to their lightweight design, the Dual-lock quick-connect buckles can be used with one hand, and the strap blockers maintain adjustments for quick and slip-free connections.
• In the event of a fall, the integrated anti-trauma suspension straps provide a continuous loop that relieves pressure and increases leg movement range to improve circulation.
• The covered identification labels help protect important information throughout the harness's lifespan.

BENEFITS

• Allows for comfortable and protected ascent to wind turbines.
• Water-repellent and abrasion-resistant straps that stay dry and strong.
• Safety housing with easy-open hooks.
• The Revolver adjuster provides quick and easy vertical adjustment on the torso.
• Dual-lock quick-connect buckles that allow for quick, easy, and secure connections.
• Vertical D-ring on the back.
• Front and side D-rings made of lightweight aluminum.

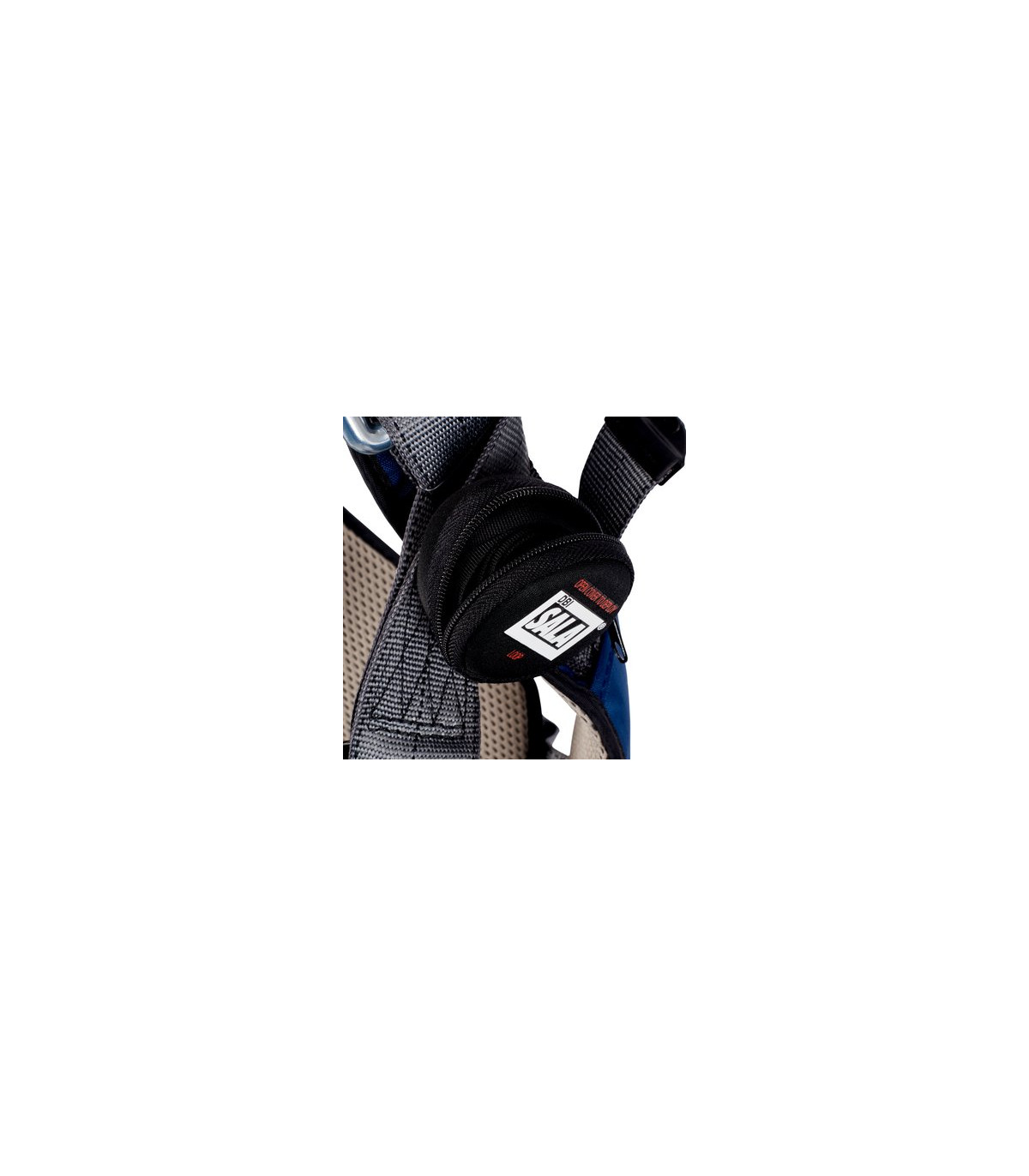

• Integrated radio pouch.
• Integrated anti-trauma suspension straps.
• Impact indicators make it easy to check for damage to the harness and help ensure its safe use.
• Covered identification labels.

RECOMMENDED APPLICATIONS

Suitable for safe work in the wind energy sector.

TECHNICAL DATA

Enhanced straps: Abrasion-resistant and water-repellent to reduce mold and dirt buildup.

Sling hook housings: Prevents having to carry the sling in hand when not in use.

Comfort pads: On the underside of the shoulder, hip, and leg straps. TM® Harness 3M DBI-SALA

Quick-connect buckles: Lightweight buckles made of aluminum for quick and easy connections. (There are also models with pass-through buckles).

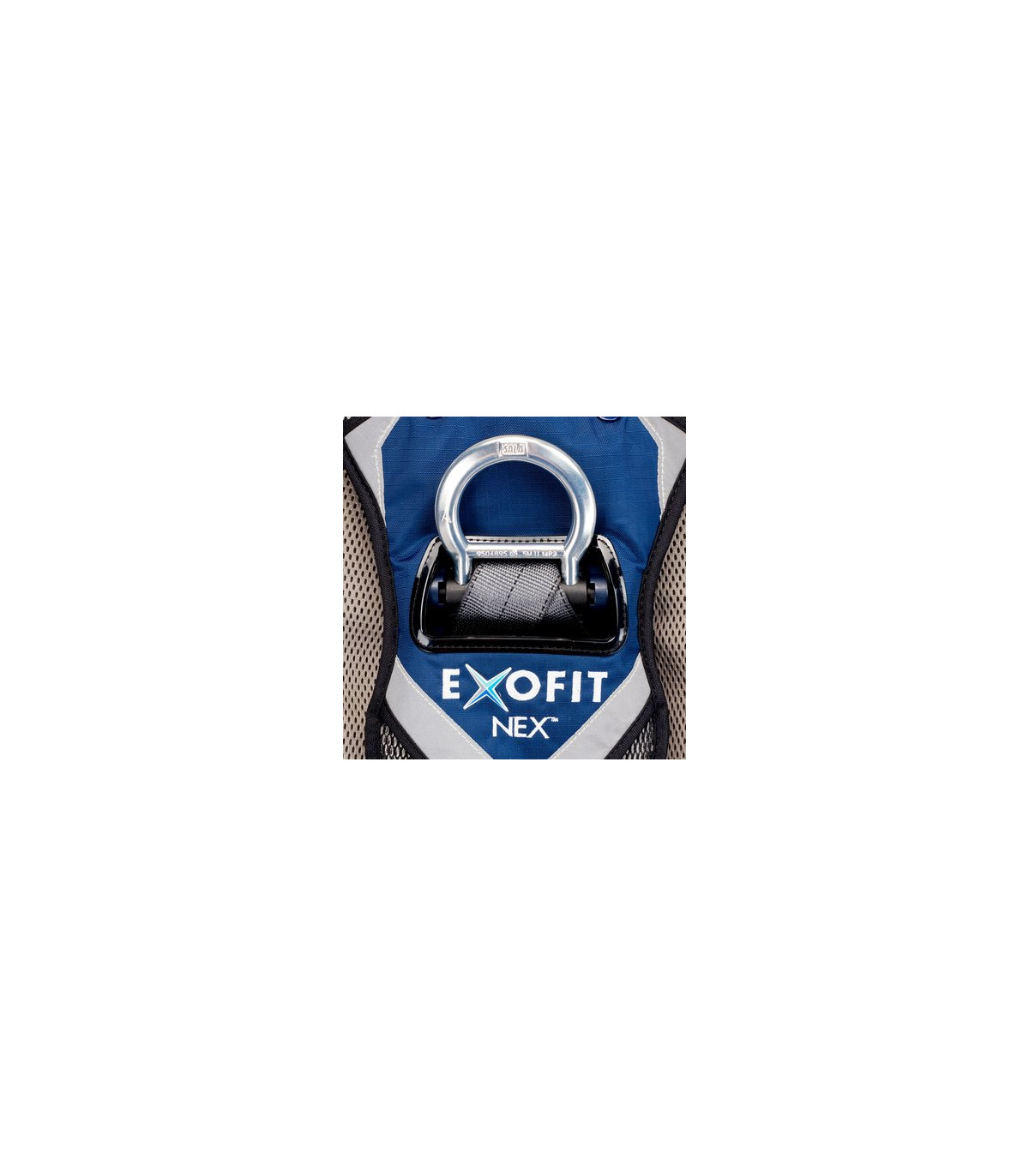

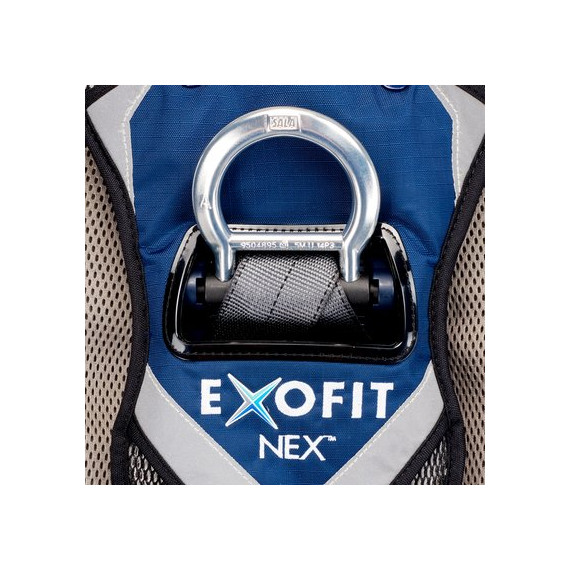

Vertical D-ring on the back: The vertical D-ring on the back ensures quick, easy, and secure connections to your fall arrest system. Rigid belt: Allows carrying 27 kg of tools without breaking. Protected labels: Harness labels protected with hook-and-loop closure.

USAGE INSTRUCTIONS - ADJUSTING THE FALL ARREST HARNESS

Before starting. Empty your pockets, as during work or, more importantly, in the event of a fall, items in your pockets can get caught between the harness straps and the user's body causing injury. Always refer to the usage instructions provided with the specific harness regarding proper installation and adjustment.

Step 1. Start. Hold the harness by the dorsal D-ring, which is often secured through a D-pad, and ensure that the straps are not twisted.

Step 2. Shoulder straps. Slide the harness over your arms and place it on your shoulders. Ensure that no strap is tangled and that they hang freely.

Step 3. Leg straps. Place it between your legs and secure the leg strap on your left side. Bring the strap up between your legs and connect it to the left-side buckle. Connect the right leg strap using the same procedure.

Step 4. Chest straps. Attach the chest strap buckle to the corresponding opposite side buckle.

Step 5. Waist strap (if applicable). Attach the waist strap buckle to the corresponding opposite side buckle.

Step 6. Adjust the harness to fit snugly. Tighten the shoulder straps until they are snug with the adjusters. The left and right sides of the shoulder straps should be adjusted to the same length, and the chest strap should be centered at the bottom of the chest, about 15 cm below the shoulder. The chest D-ring of the vest-style harness moves up or down by adjusting the shoulder and leg straps. Center the dorsal D-ring between the shoulder blades. Note: In applicable models, the dorsal D-ring can be raised or lowered on the harness strap as needed for a proper fit. Readjust the leg straps to ensure they are snug. There should be at least 8 cm of strap beyond the buckle on the leg straps. Adjust the waist strap (if equipped).

You are all set! A properly fitted and adjusted full-body harness will effectively distribute impact forces throughout the body and provide the proper support during suspension and rescue after a fall.

REGULATIONS

EN 813: 2008 - Fall arrest harnesses for restraint systems

EN 361: 2003 - Personal protective equipment against falls from height. Fall arrest harnesses

RECOMMENDATIONS FOR THE USE OF PPE

Do not use this safety equipment unless you have received training from a competent person (this training may be repeated as often as necessary). Contact CAPITAL SAFETY for information about classes or if you have questions about using this equipment. Training should be conducted without exposing the user to a fall hazard and should be repeated periodically. (See the complete guide in the usage instructions).
