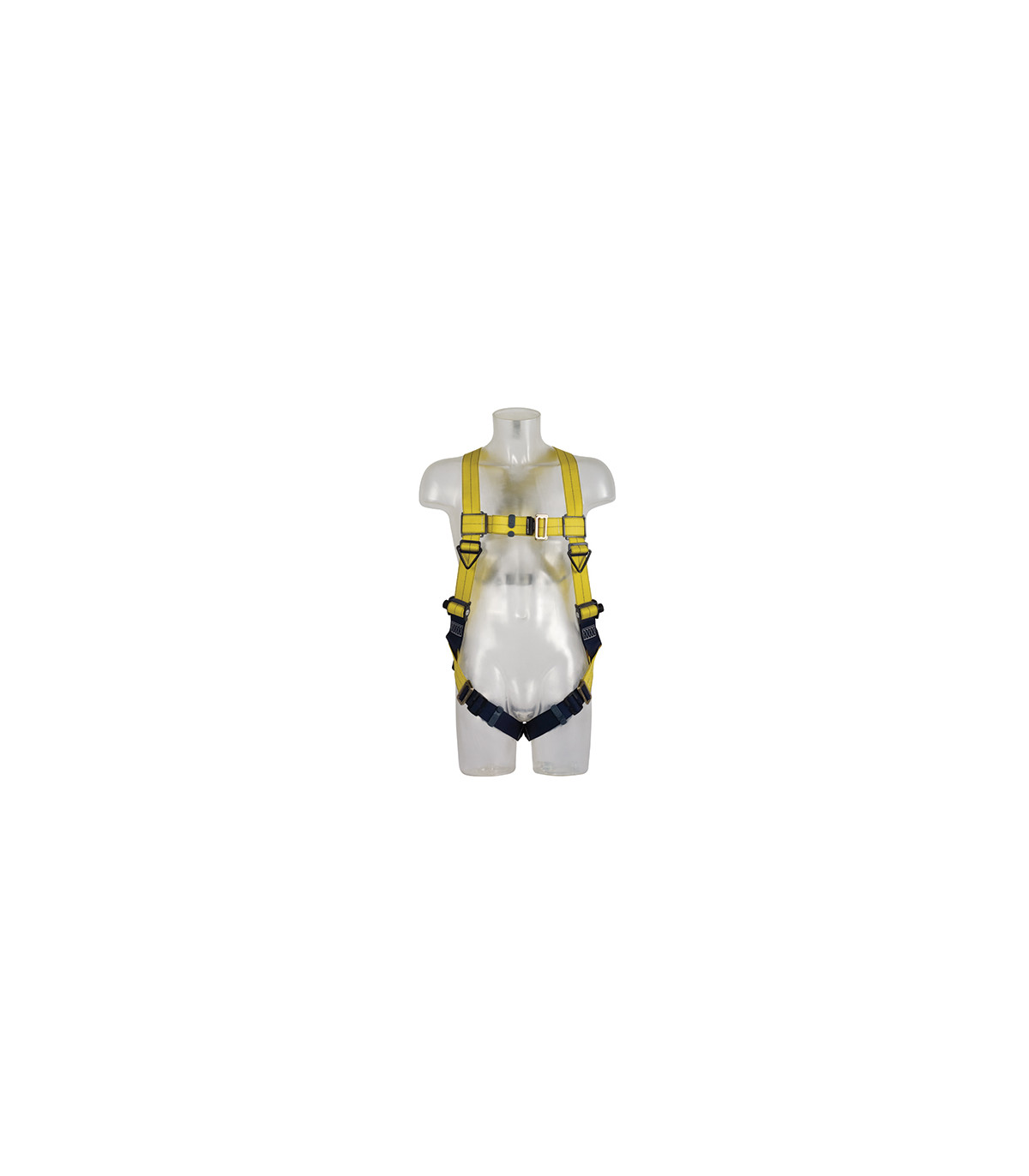

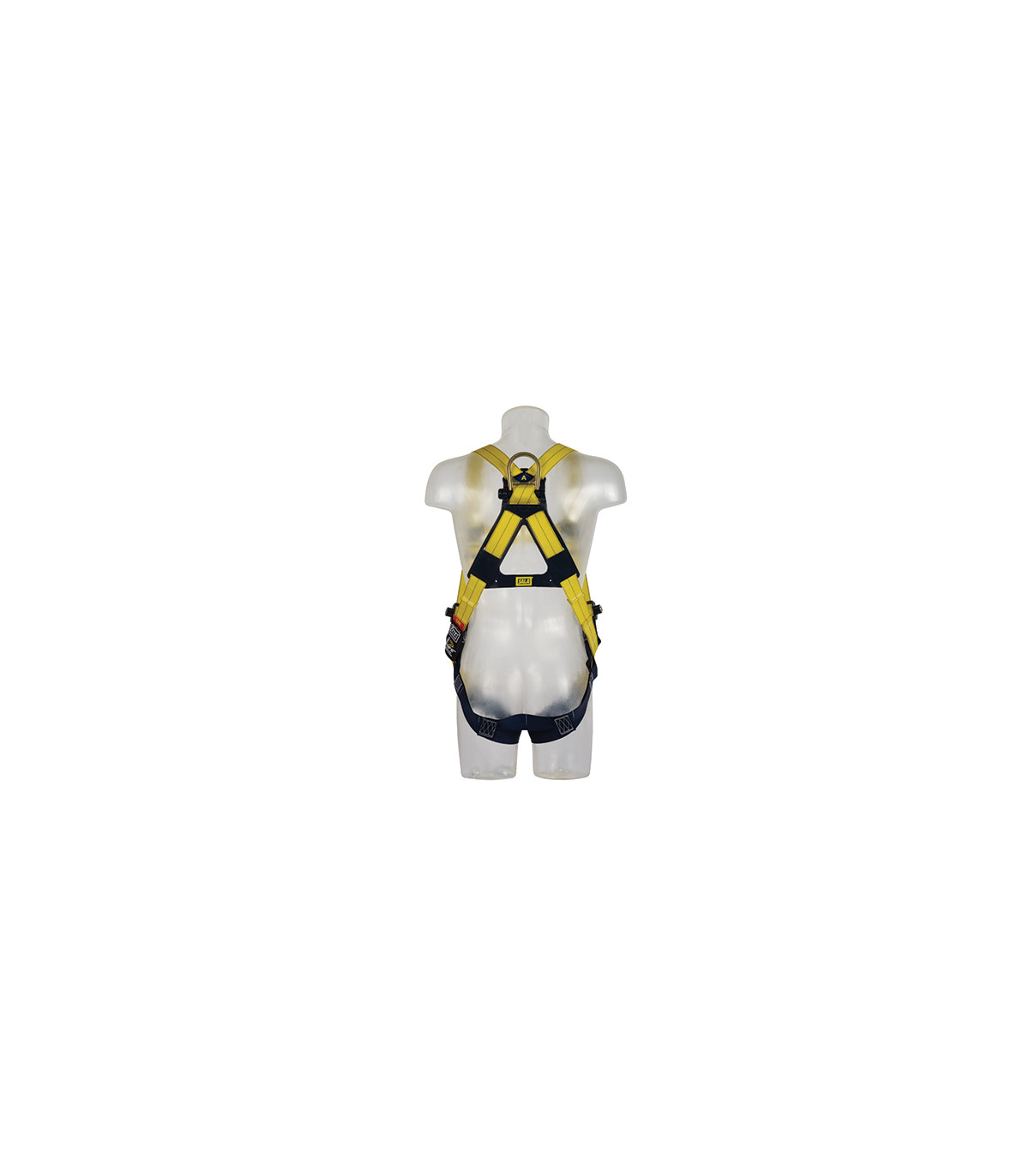

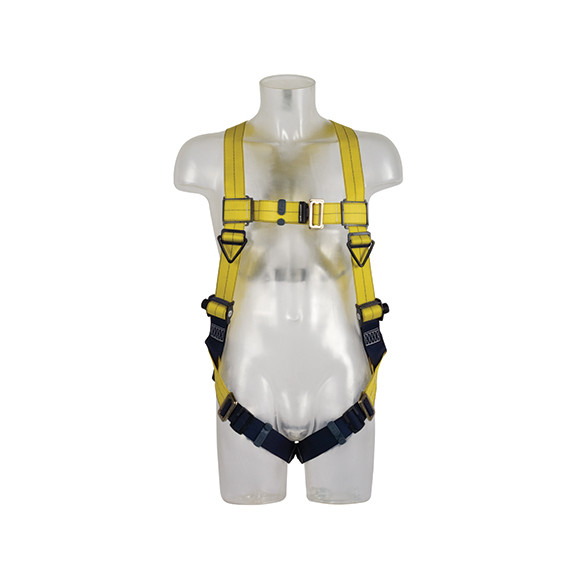

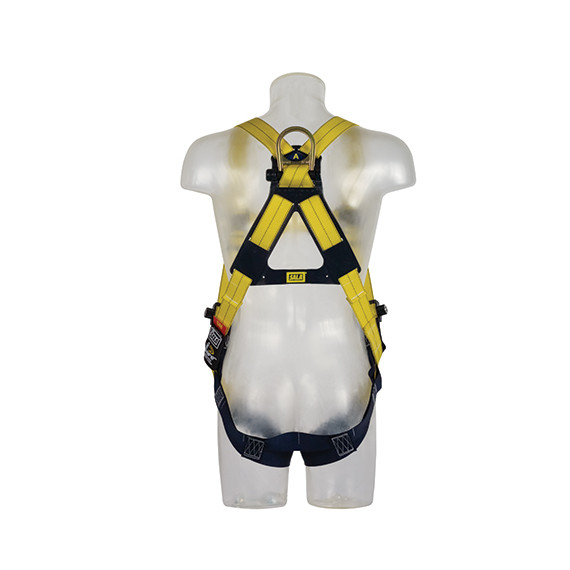

Security harness with rear fixing point Delta 3M DBI-SALA

Security harness with rear fixing point Delta 3M DBI-SALA. From the most sold range of harnesses in the world, the new full-body harness DBI-SALA Delta offers the first features of the industry, such as a better fit and ergonomic feel, lighter buckles and high-strength straps. Sizes: S, M, L

Previously confirmed with Sekureco.eu date of delivery approx.

CHARACTERISTICS

Repel technology straps
Water repellent to reduce the attraction of mold and dirt, also has up to 5 times more resistance to abrasion.

Lanyard Keepers
Avoid the need to carry laces with your hand when it is no longer in use.

Vertical torso Adjusters Revolver
Simple and fast settings that remove loose ends and crash in place, avoiding slide.

Surefit design without entanglements
Surefit guarantees a correct fit of the harness in case of a fall, while providing additional comfort for daily use.

Ring in D dorsal standing
The patented spring design is automatically lifted, ensuring fast, easy and secure connections to your fall detention system.

No-tangle design
By defining the name DBI-SALA Delta, the patented triangular design creates a framework that allows the harness to fit into place when it puts it.

Inbuilt impact indicators
Rated stitch indicators allow you to inspect the harness at a glance, to detect previous harmful impact loads.

Covered labels and i-Safe
A Velcro cover protects the harness labels and contains the DBI-SALA i-Safe identification label. The i-Safe label provides an efficient way to record and store information on inspections.

BENEFITS

The use of a patented triangular pattern No-Tangle creates a framework that allows the harness to be easily placed in place when placed.

The new DBI-SALA Delta harness features Repel liquid-resistant straps and Revolver Torso adjusters, which allow for quick adjustment and eradicate the loose ends of the belt.

Equipped with i-Safe

TECHNICAL DATA

• Weight (Kgs): 1.40
• Features: mooring devices, Revolver vertical torso adjuster, untangled rear pad.
• Size: small, unique, extra large.
• Accreditation: BS EN 361.
• Straps: repel the waterproof straps.
• Adjustment: adjustable shoulders, chest and legs.
• Buckles: Standard.
• Capacity: 140 kg
• Ring Locations in D: rear fixing point.

Improved belts: Resistant to abrasion and water repellent to reduce the generation of mold and dirt.

Accommodation for the slinga hook: Avoid having to carry the sling in your hand when not in use.

Comfort pads: On the lower side of shoulder straps, hips and legs. TM® harnesses 3M DBI-SALA

Quick connection buckles: Light buckles with aluminum alloy for quick and simple connections. (There are also models with passing buckle.).

Vertical dorsal ring in D: The vertical dorsal ring on D ensures fast, easy and safe connections to your drop detention system. Rigid belt: It allows transporting 27 kg of tools without breaking. Protected Tags: Protected harness labels with attachment and fastening.

USE INSTRUCTIONS - AJUST OF ANICAL ARÉS

Before we begin. Empty your pockets, as, during work or, what is even more important, in the case of a fall, the objects that you carry in your pockets can be trapped between the harness's belts and the user's body causing injuries. Always consult the instructions of use supplied with the specific harness regarding the correct installation and adjustment.

Step 1. Start. Hold the harness down the dorsal ring in D, which is often subjected through a D pad and make sure the straps are not twisted.

Step 2. Shoulder straps. Slide the harness above your arms and place it on your shoulders. Make sure no strap is entangled and hang freely.

Step 3. Leg straps. Place it between your legs and hold the belt for your legs on your left side. Up the strap between the legs and connect it with the buckle on the left side. Connect the belt for the right leg using the same procedure.

Step 4. Hair belts. Fix the buckle of the chest belt to the corresponding opposite side buckle.

Step 5. Belt for waist (if you have). Fix the belt buckle for waist to the corresponding opposite side buckle.

Step 6. Set the harness to tighten. Adjust the shoulder straps until tightened with the adjusters. The left and right sides of the shoulder straps should be adjusted to the same length and the breast belt should be centered at the bottom of the chest, about 15 cm below the shoulder. The chest ring in D of the shawl-like harness moves up or down adjusting the shoulder and legs straps. Centre the dorsal ring in D between the shoulder blades. Note: In the applicable models the dorsal ring in D can be uploaded or lowered in the harness belt as necessary to achieve a correct fit. Go back to adjust the belts for the legs to tighten. They must remain at least 8 cm of the belt beyond the buckle on the legs straps. Adjust the belt for the waist (if equipped).

It's ready! A properly placed and adjusted whole body harness will effectively distribute impact forces throughout the body and provide you with the right grip during suspension and rescue after a fall.

NORMATIA

EN 361: 2003 - Individual protection against height drops. Anticated Arnes

EN 365: 2005 - Individual protection against height drops. General requirements for instructions on use, maintenance, periodic review, repair, marking and packaging.

RECOMMENDATIONS FOR THE COUNTRY OF EPIS

Do not use this security team unless you have received the training of a competent person (this training may be repeated as often as necessary). Contact CAPITAL SAFETY for information about the classes or if you have questions about the use of this equipment. The training must be done without exposing the user to a risk of fall and must be repeated on a regular basis. (See the full guide in the use instructions.).

ON THE 3M

3M Fall Protection, part of the division of Personal Protection Products 3M, a reputation has been gained as high-quality, safe working experts with our market innovations and high-performance anaticidance and rescue solutions. The definitive protection against falls. For more than 75 years, workers worldwide have trusted DBI-SALA® products to do their job well and get home safely. Today, 3M Fall Protection continues with that proud tradition, offering high-quality DBI-SALA® anti-protection solutions, which allow workers to do their job better safely and comfortably.
