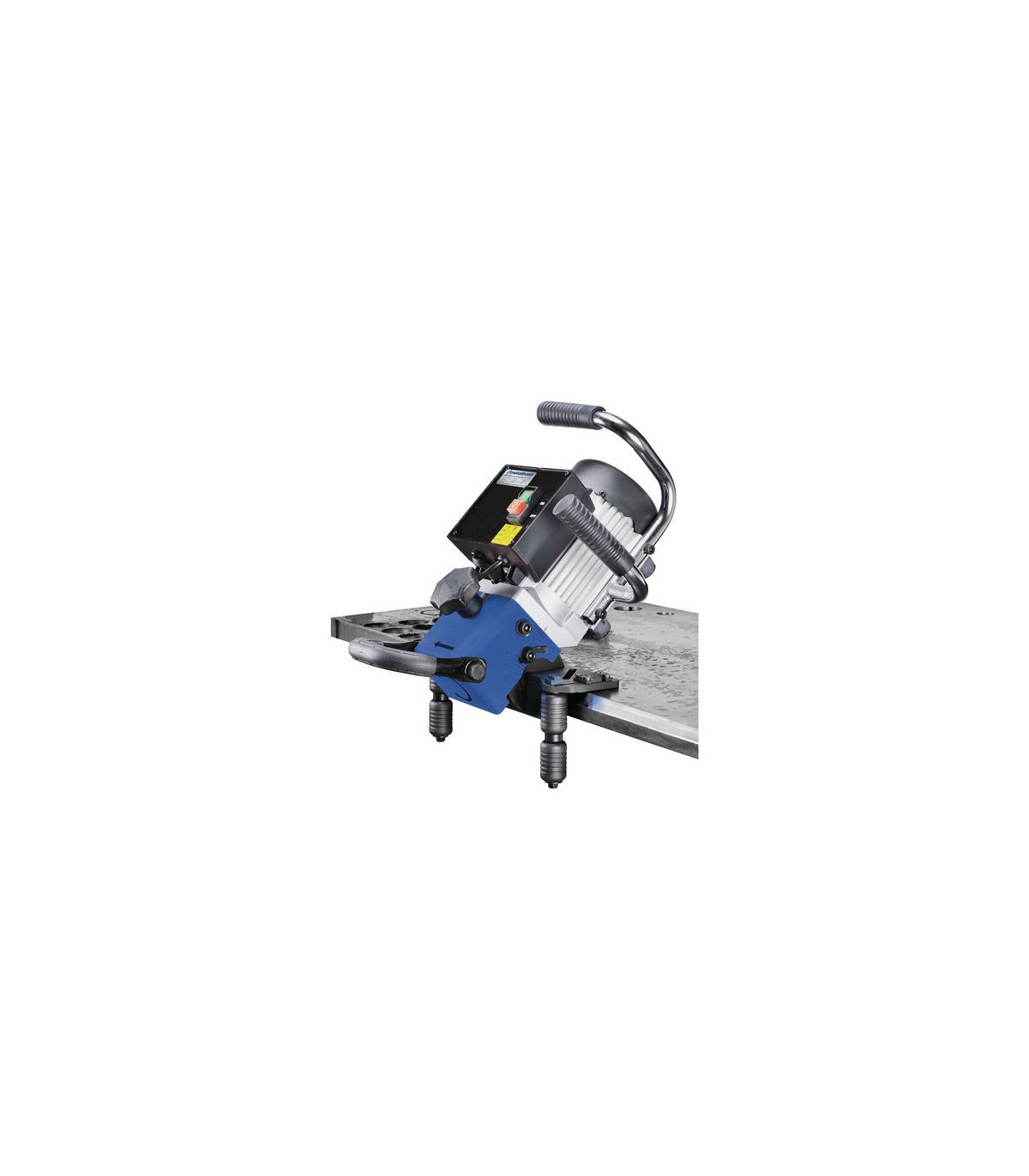

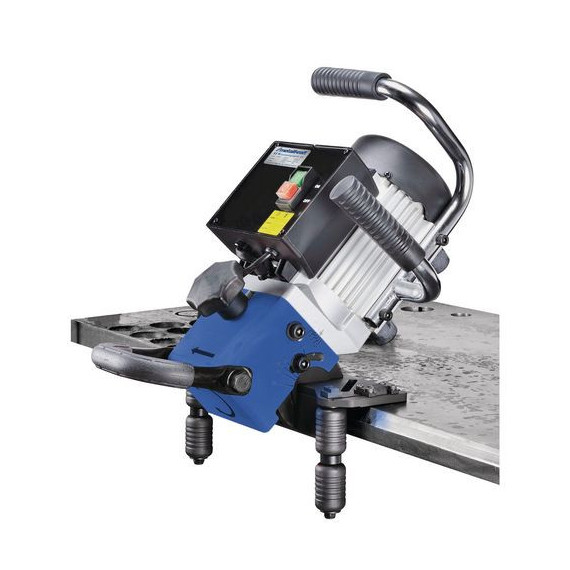

Edge beveling machine for welding preparation KE 16-2 METALLKRAFT

BEVELING MACHINE for visible edges and preparation of weld seams with an adjustable bevel angle from 15 to 60°. It is also suitable for beveling pipes thanks to the adjustable guide rollers.

FEATURES

_ Ideal for preparing clean and visible edges and preparing weld seams.

_ For machining steel and aluminum.

_ Practical and powerful.

_ Tool-free adjustment of bevel height.

_ Suitable for deburring pipes with a diameter of 150-350 mm

(optionally 300-600 mm) thanks to the adjustable guide rollers.

_ With an adjustable bevel angle of 0°-60°.

_ With two heads of 6 plates.

INCLUDES AS STANDARD

Plastic case, 2 heads of 6 plates, set of 12

plates, tools, handle.

DESCRIPTION

Excellent for producing clean and visible edges and preparing welds.

For machining steel and aluminum.

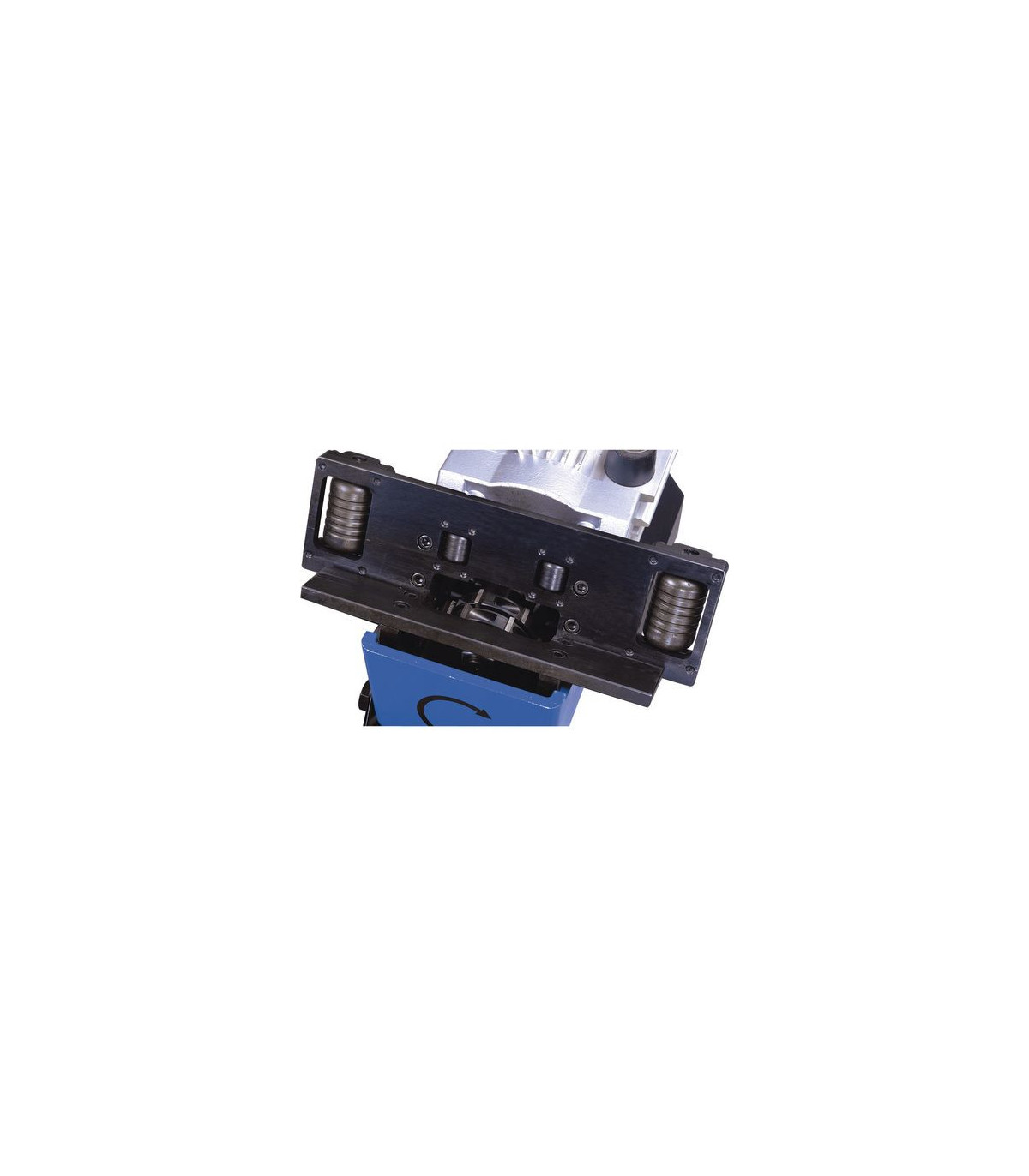

Thanks to the adjustable guide rollers on the support table, it is also suitable for deburring pipes with a Ø of 150 - 350 mm (optionally 300 - 600 mm).

Tool-free adjustment of bevel height.

Continuously adjustable angle from 0 to 60°.

Practical and powerful device.

With two 6-way insert supports.

Feeding is done manually.

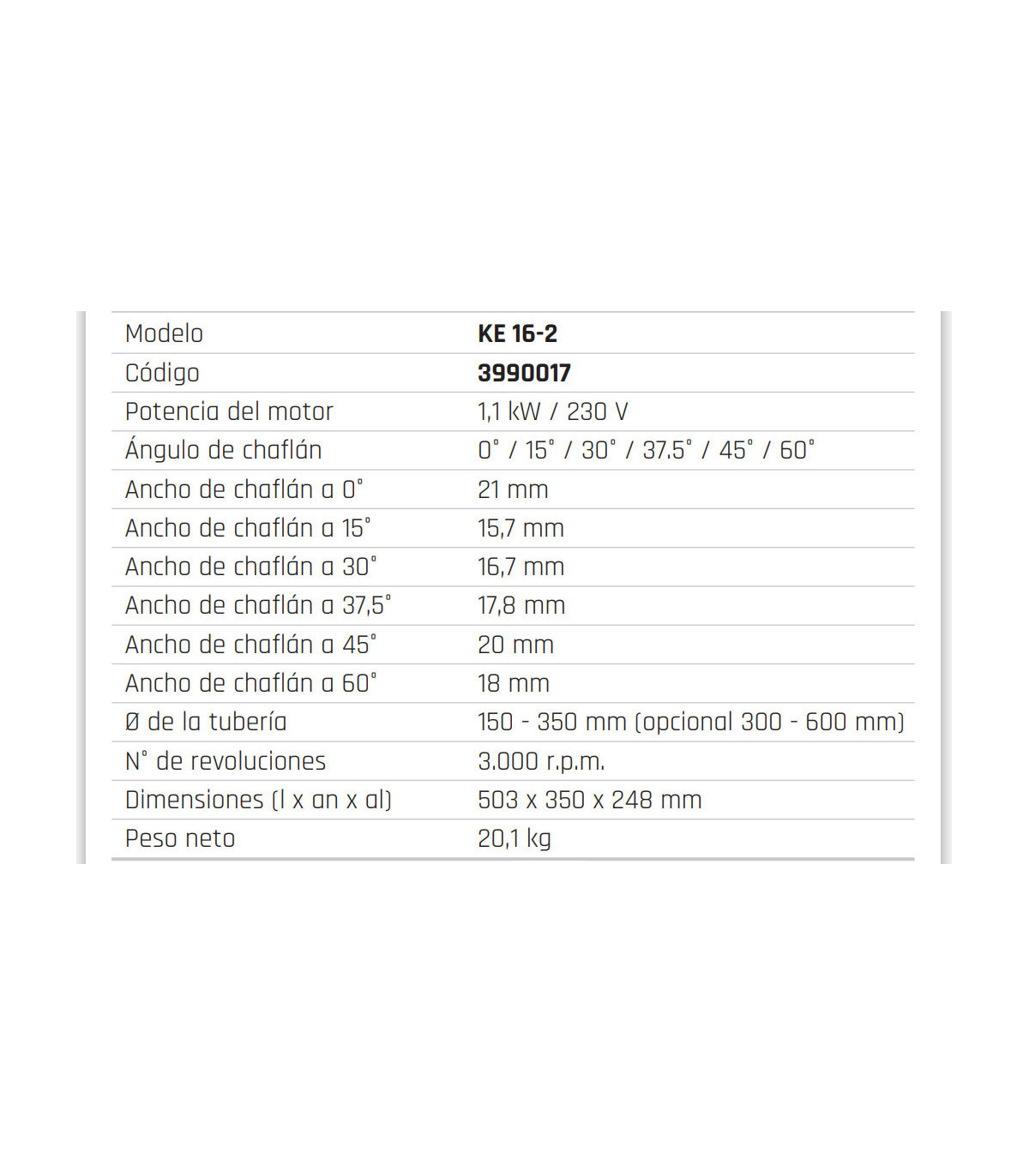

TECHNICAL DATA

Bevel angle 0/15/30/37.5/45/60°

Bevel width at 0° 21 millimeters

Bevel width at 15° 15.7 millimeters

Bevel width at 30° 16.7 millimeters

Bevel width at 37.5° 17.8 millimeters

Bevel width at 45° 20 millimeters

Bevel width at 60° 18 millimeters

Pipe diameter 150 – 350 (optionally 300 – 600) mm

Speed(s) 3000 minutes

VPE 1

Dimensions and weights

Approximate length 503 millimeters

Approximate width/depth 350 millimeters

Approximate height 248 millimeters

Approximate weight. 20.1 kilograms

Electrical data

Drive motor output 1.1 kW

Power supply voltage 230 V

Network frequency 50 Hz

SUPPLY VOLUME

Unit: piece(s).

Packaging unit: 1

Plastic case

2 x 6-slot insert holders

1x set of inserts consisting of 12 inserts

1x tool set

1x front handle

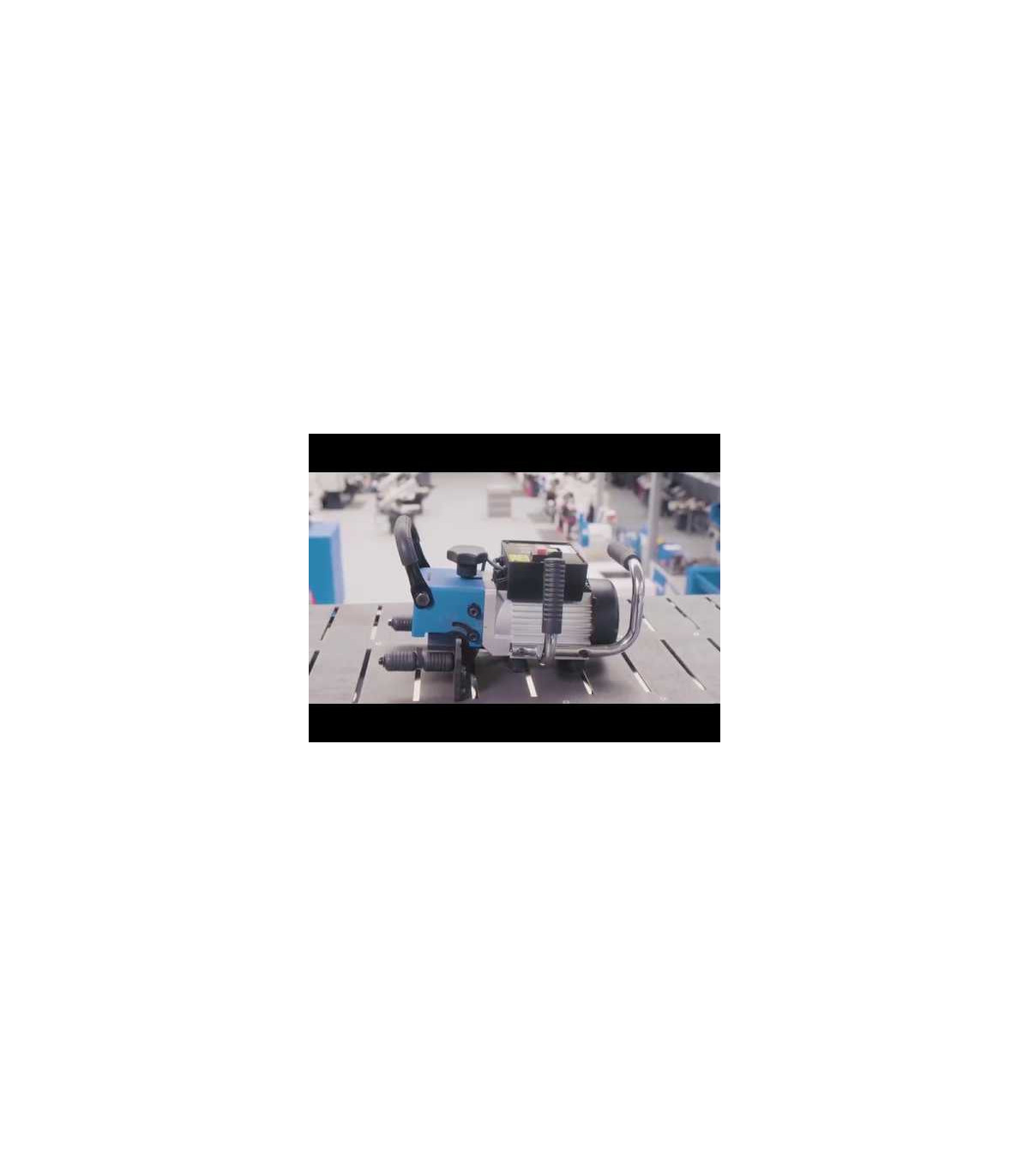

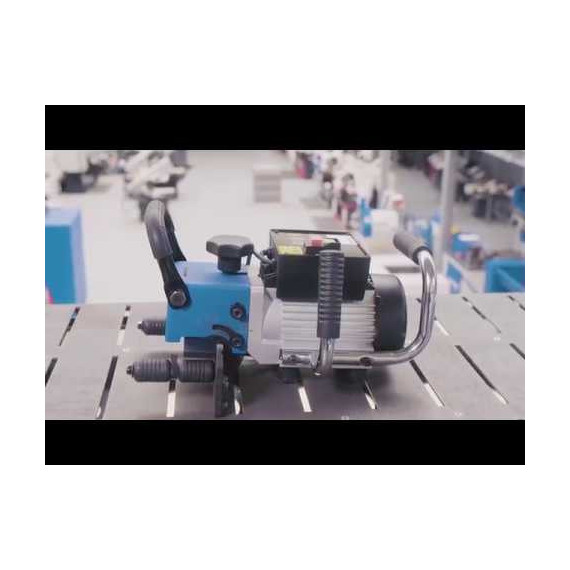

VIDEOS
