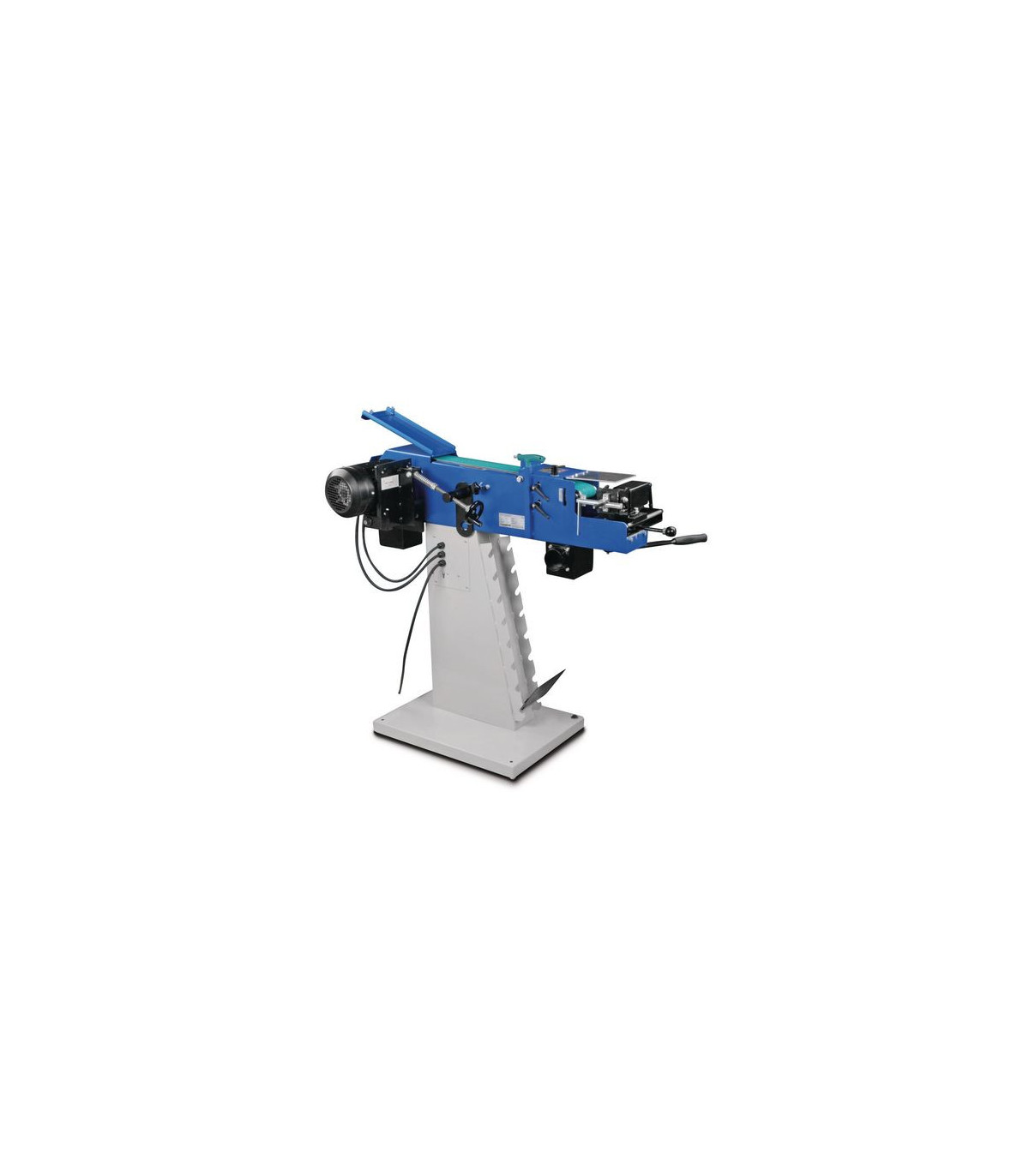

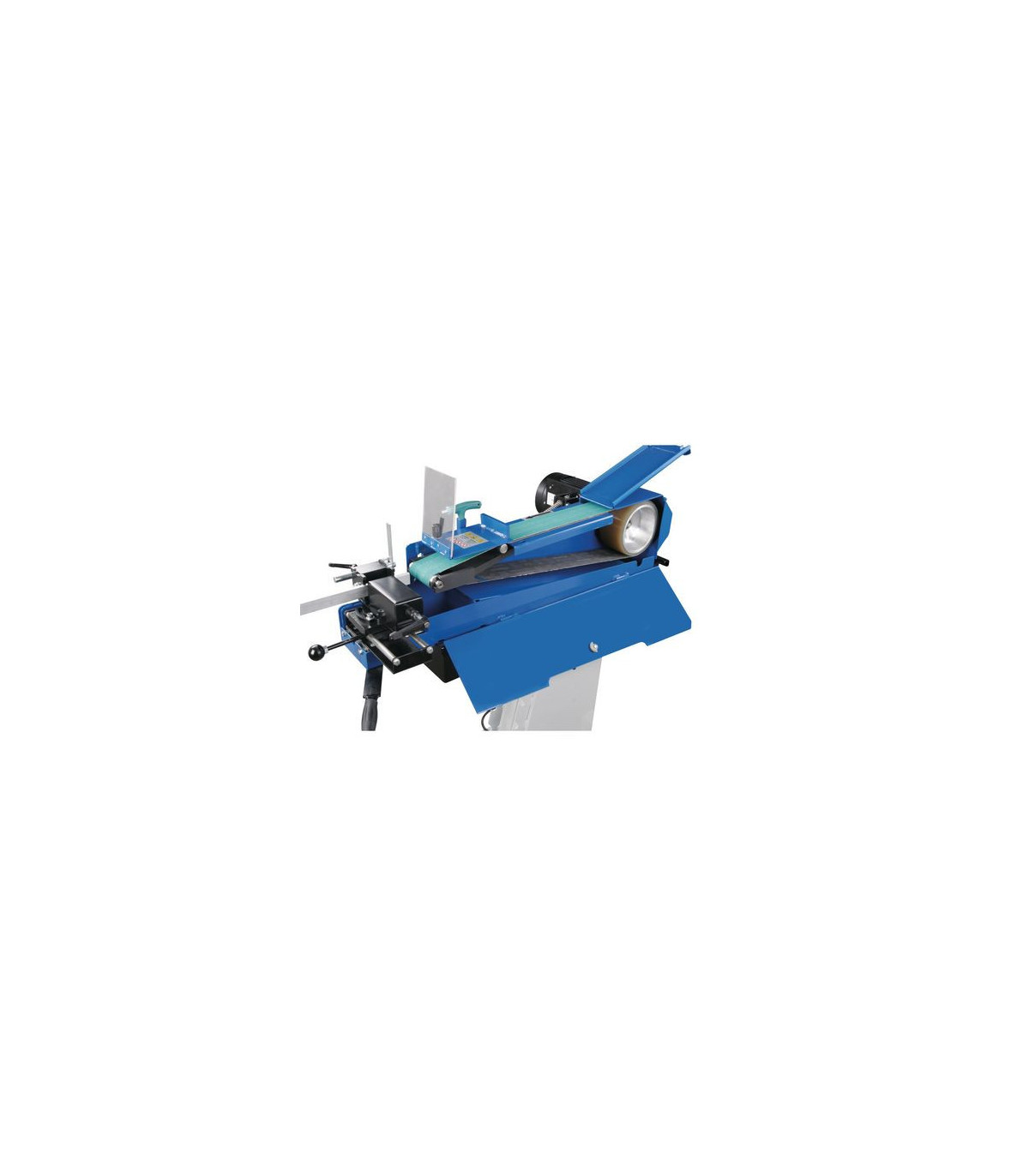

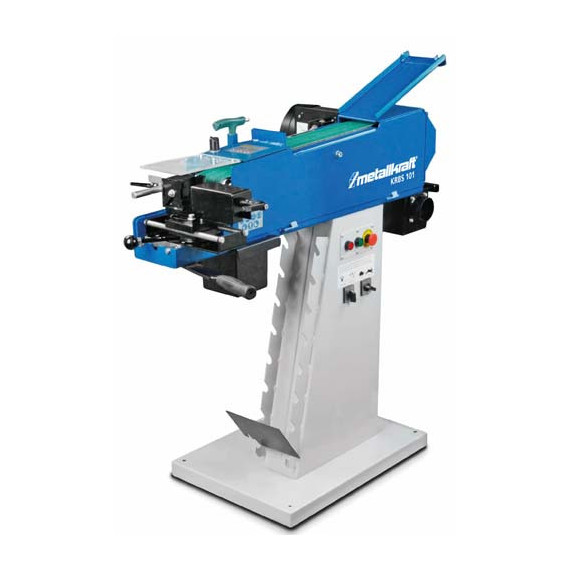

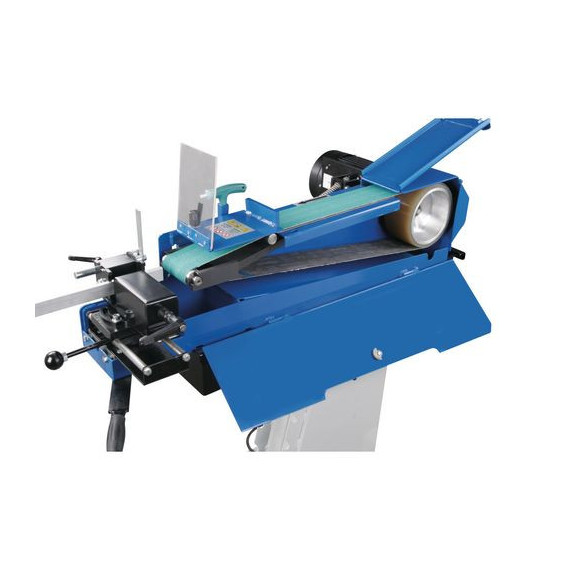

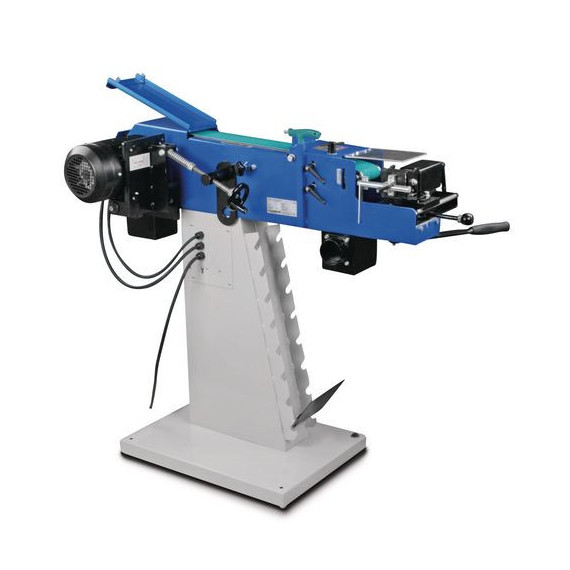

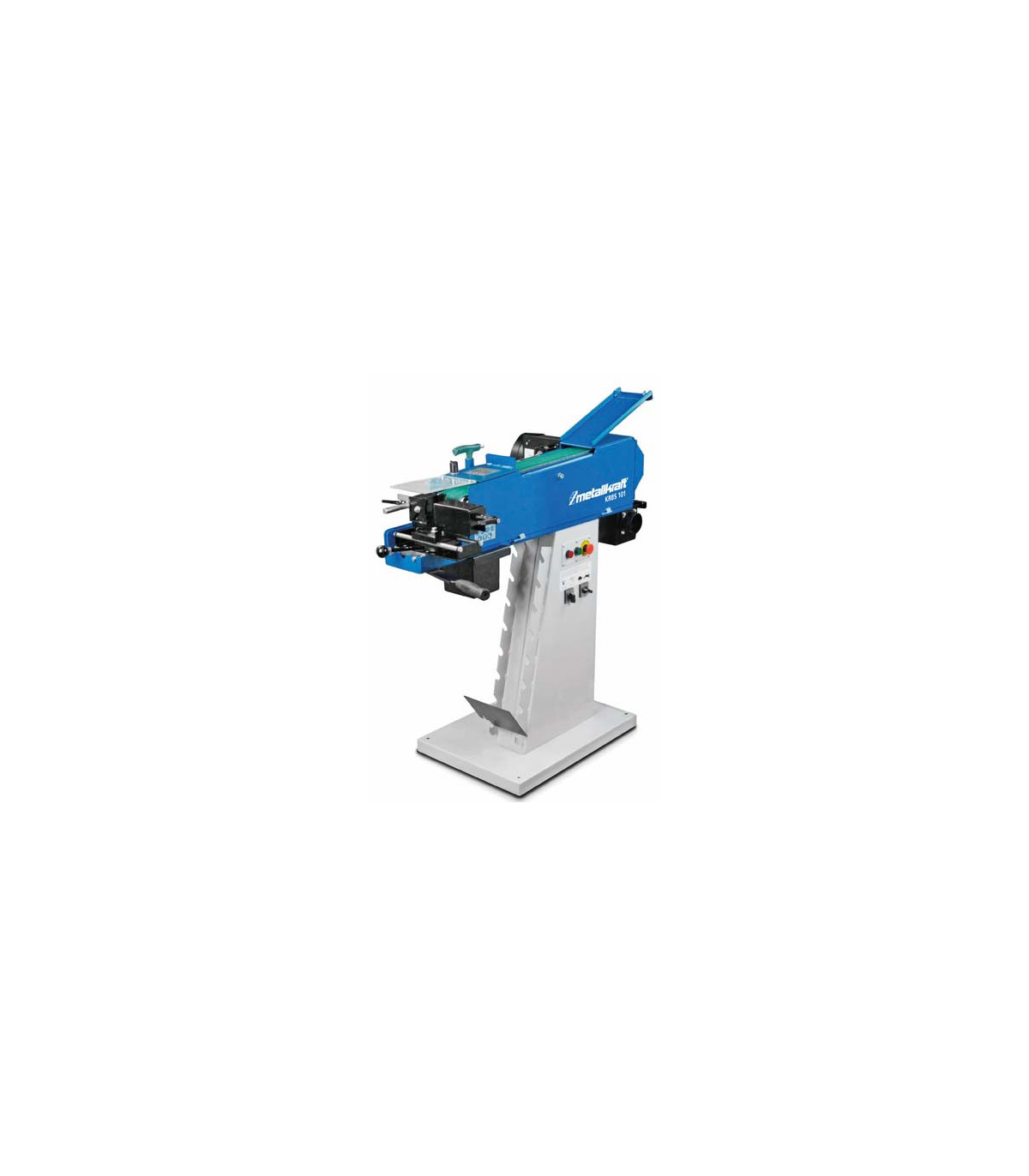

Combined tube, profile, and belt sander KRBS 101 METALLKRAFT

Combined tube, profile, and belt sander KRBS 101 METALLKRAFT. A combined sanding machine with multiple functions for front polishing of tubes and profiles, surface polishing, and beveling at the rear.

FEATURES

· Rotating clamping device with secure clamping jaws for steel tubes, square, round, and flat.
· Adjustable sharpening angle 30-90° (0°- 60°).
· Easy and quick replacement of the sanding belt without tools.
· Large foldable rear protective screen with optimal field of vision.

INCLUDES AS STANDARD K36 sanding belt, 2 containers for sanding chips, 1 sanding roller for 42 mm.

Motor power (2 stages) 2.5 KW / 3.3 kW / 400 V
Belt dimensions 100 x 2,000 mm
No. of revolutions 1,400 / 2,800 r.p.m.
Belt speed 15 / 30 m/s
Ø sanding 20 - 76 mm
Adjustable sanding angles 30 - 90° (0 - 60°)
Ø suction connector 2 x 100 mm
Dimensions (l x w x h) 1,250 x 750 x 1,140 mm
Net weight 159 kg

SPECIFICATIONS

For deburring with practical workpiece support and chip collection container

Comfortable handling thanks to the easily adjustable clamping device

The rotating clamping jaws of the clamping device allow for secure clamping of square tubes, round tubes, and flat steel.

Adjustable polishing angles of 30 - 90° and 0° - 60°

Thanks to the optimized quick-change support, the tensioner can be changed easily and quickly without tools.

Especially durable due to larger and improved roller bearings

Practical supports for abrasive wheels integrated into the base

Wide range of abrasive wheels for different pipe diameters available as accessories

Possibility to quickly switch between tube grinding and belt grinding

Powerful motor

Almost all adjustments can be made without tools (operating tool included)

Large foldable protective glass with an optimal field of vision

Optimal adaptation to the respective material thanks to 2 belt speeds (15 m/s ideal for stainless steel and aluminum, 30 m/s perfect for steel)

With two easily removable chip collection containers

Extraction nozzle (Ø 70 mm) for available extraction systems

TECHNICAL DATA

Dimensions and weights

Approx. length 1250 millimeters

Approx. width/depth 750 millimeters

Approx. height 1140 millimeters

Approx. weight. 159 kilograms

Electrical data

Drive motor output 2.5 / 3.3 kW

Motor speed(s) 1400 / 2800 minutes

Supply voltage 400 volts

Network frequency 50 Hz

Extraction

Nominal external width of the extraction duct 2 x 74 mm

Nominal internal width of the extraction duct 2 x 70 mm

Sanding machine

Length of the sanding belt 2000 millimeters

Width of the sanding belt 100 millimeters

Speed(s) of the circumferential belt 15/30 m/s

Adjustable grinding angle 30 – 90 (0 – 60) °

Workpiece

Minimum pipe diameter 20 millimeters

Maximum pipe diameter 78 millimeters

VPE 1

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its assessment basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management

VIDEOS

WHAT TYPE OF WORK IS IT SUITABLE FOR

The combined tube, profile, and belt sander KRBS 101 METALLKRAFT is used in woodworking and related trades.
