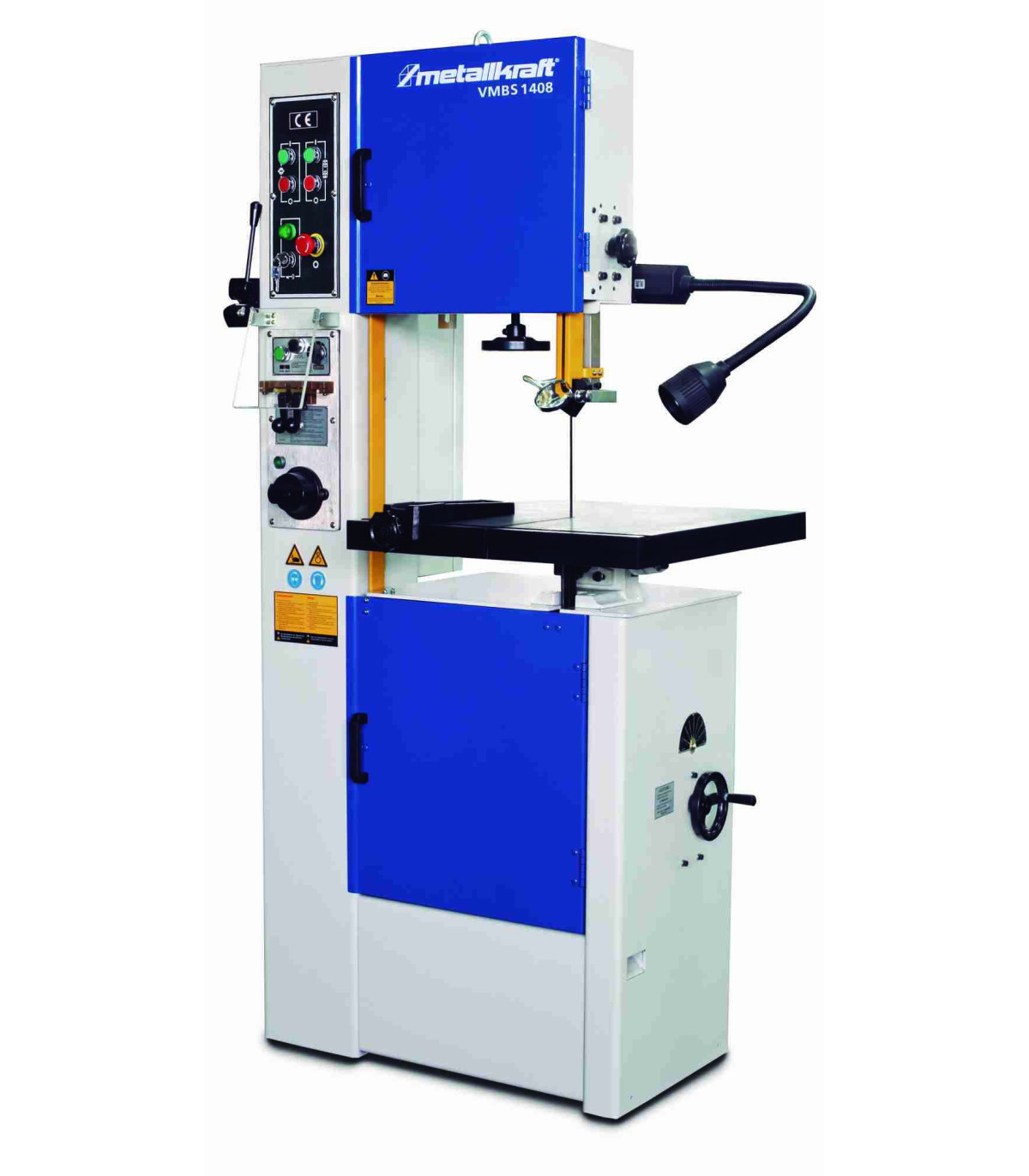

Vertical band saw for metal VMBS 1408 METALLKRAFT

Vertical metal band saw VMBS 1408 METALLKRAFT. The vertical band saw VMBS 1408 METALLKRAFT stands out for its extremely stable construction, made entirely of steel, ensuring durability and resistance. Its design allows for easy and comfortable handling, complemented by lighting at the workplace for better visibility. The work table, made of cast iron, is tiltable and offers continuously adjustable speed, allowing it to adapt to different cutting needs.

FEATURES

• Extremely stable construction, machine body made entirely of steel.
• User-friendly handling concept
• With lighting at the workplace
• Tiltable work table made of cast iron
• Continuously adjustable speed
• Tension and speed display of the belt
• Blowing device for sawdust
• Integrated strip welding unit with annealing, cutting, and grinding device
• With parallel stop

TECHNICAL SPECIFICATIONS

Maximum cutting height 205 millimeters

Blade speed(s) 20 – 80 m/min

Blade length 2865 millimeters

Maximum band saw length. 2895 millimeters

Band saw width 13 millimeters

Download 356 millimeters

Table length 500 millimeters

Table width 500 millimeters

Maximum table load. 150 kilos

Working height 990 millimeters

Table tilt range for miter cuts 12/15°

Table tilt range forward and backward 8/8°

Performance of the band saw welding machine 13 millimeters

Impeller diameter 368 millimeters

Sound pressure level 64.9 dB(A)

PU 1

Dimensions and weights

Approximate length. 850 millimeters

Approximate width/depth. 600 millimeters

Approximate height. 1740 millimeters

Approximate weight. 275 kilos

Electrical data

Drive motor power 0.75 kW

Connection voltage 400 volts

Network frequency 50 Hz

COMPONENTS/PACKAGING

Unit of measure: piece

Packaging unit: 1

Band saw blade 2890 mm x 8 mm x 0.65 mm 14T

FOR WHAT TYPE OF WORK IS IT SUITABLE

The vertical metal band saw VMBS 1408 METALLKRAFT is suitable for:

• Metallurgy workshops
• Carpentry
• DIY
• Construction

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
