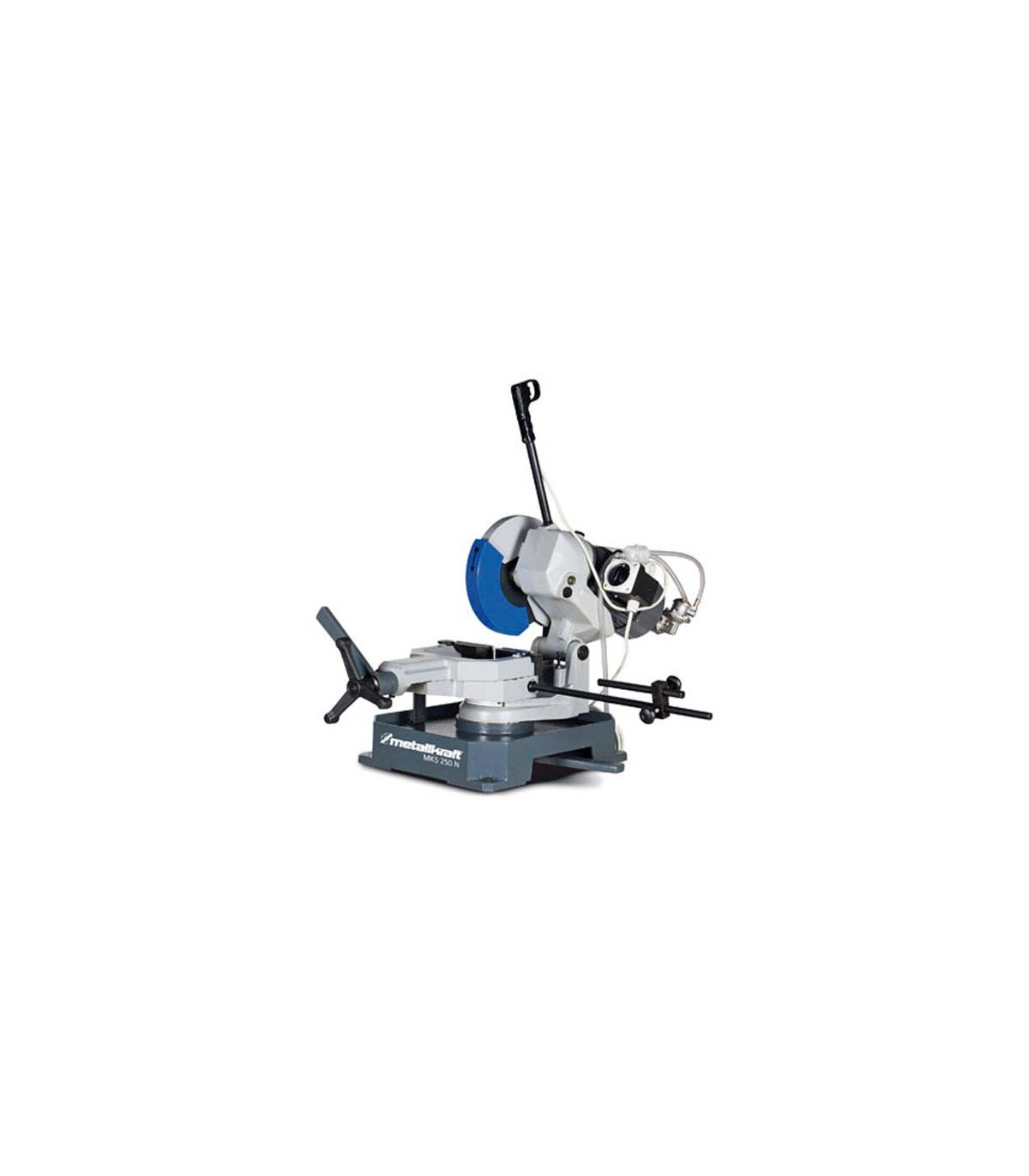

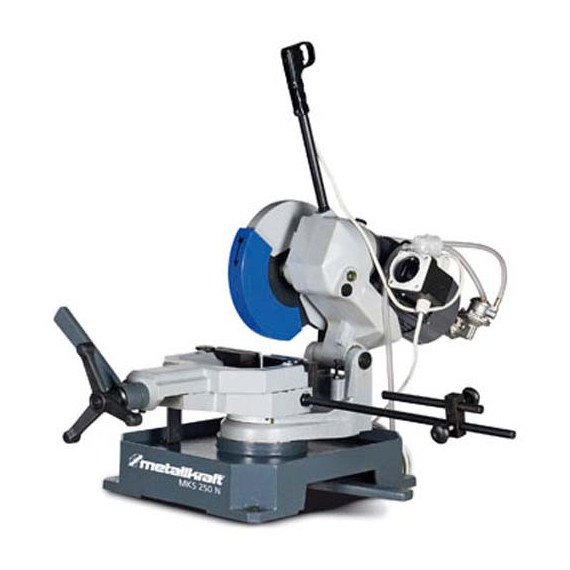

Metal cutting saw with clamp MKS 250N 230V METALLKRAFT

Metal cutting saw with MKS 250N 230V METALLKRAFT vice. The MKS 250N 230V metal cutting saw from METALLKRAFT is ideal for steel. It features a quiet reduction gear, automatic coolant, mobile protection, and a quick-release vice for precise cuts.

FEATURES

• For steel
• Reduction gear that operates quietly in an oil bath.
• Automatic diaphragm coolant pump with standard coolant filter
• The mobile protection device ensures optimal safety during cutting.
• Control handle with safety switch
• Low voltage electrical system 24 volts, with emergency stop switch, main switch, speed selector, and overload protection.
• The machine head can be rotated 45° on both sides.
• Quick-release vice that can be rotated 45° on both sides
• Quick clamping vice with double clamping device that ensures precise and burr-free cutting.
• Quality made in Europe

TECHNICAL SPECIFICATIONS

Blade speed 40 minutes

Blade diameter 250 millimeters

Mitre angle -45 – +45 °

VPE 1

Dimensions and weights

Approximate length 800 millimeters

Approximate width/depth 830 millimeters

Approximate height 755 millimeters

Approximate weight 83 kilograms

Electrical data

Drive motor power 1.1 kW

Supply voltage 230 V

Network frequency 50 Hz

Cutting capacity

Solid material at 0° (round) 40 millimeters

Tube at 0° (round) 70 millimeters

Tube at 0° (square) 70 x 70 mm

Tube at 0° (rectangular) 55 x 95 mm

-45° (round) solid material 35 millimeters

Tube at -45° (round) 65 millimeters

Tube at -45° (square) 55 x 55 mm

Tube at -45° (rectangular) 55 x 65 mm

Solid material at +45° (round) 35 millimeters

Tube at +45° (round) 65 millimeters

Tube at +45° (square) 55 x 55 mm

Tube at +45° (rectangular) 55 x 65 mm

COMPONENTS/PACKAGING

Unit of measure: piece

Packaging unit: 1

• cooling system
• length stop 500 mm
• operating tool
• No saw blade
• No substructure

FOR WHAT TYPE OF WORK IS IT SUITABLE

The Metal cutting saw with MKS 250N 230V METALLKRAFT is suitable for:

• Workshops
• Manufacturing
• Industry
• Metal carpentry
