Cylindrical beacon milestone H75

DESCRIPTION
Cylindrical beacon H75 made of high-quality polyethylene with maximum flexibility that allows it to withstand large impacts, as it has high shape memory properties and resistance, and excellent performance against ultraviolet solar rays, thanks to the Anti-UV additive it incorporates.

TECHNICAL DATA.
Identification: The H-75 has the month and year of its manufacture at the bottom.
Reflective Material: Equipped with two reflective strips 10cm wide of level 2 from 3M and in accordance with Standard UNE 135.363, with retroreflectance values and in accordance with Standard UNE 135.330 and with the European Standard, EN 471.

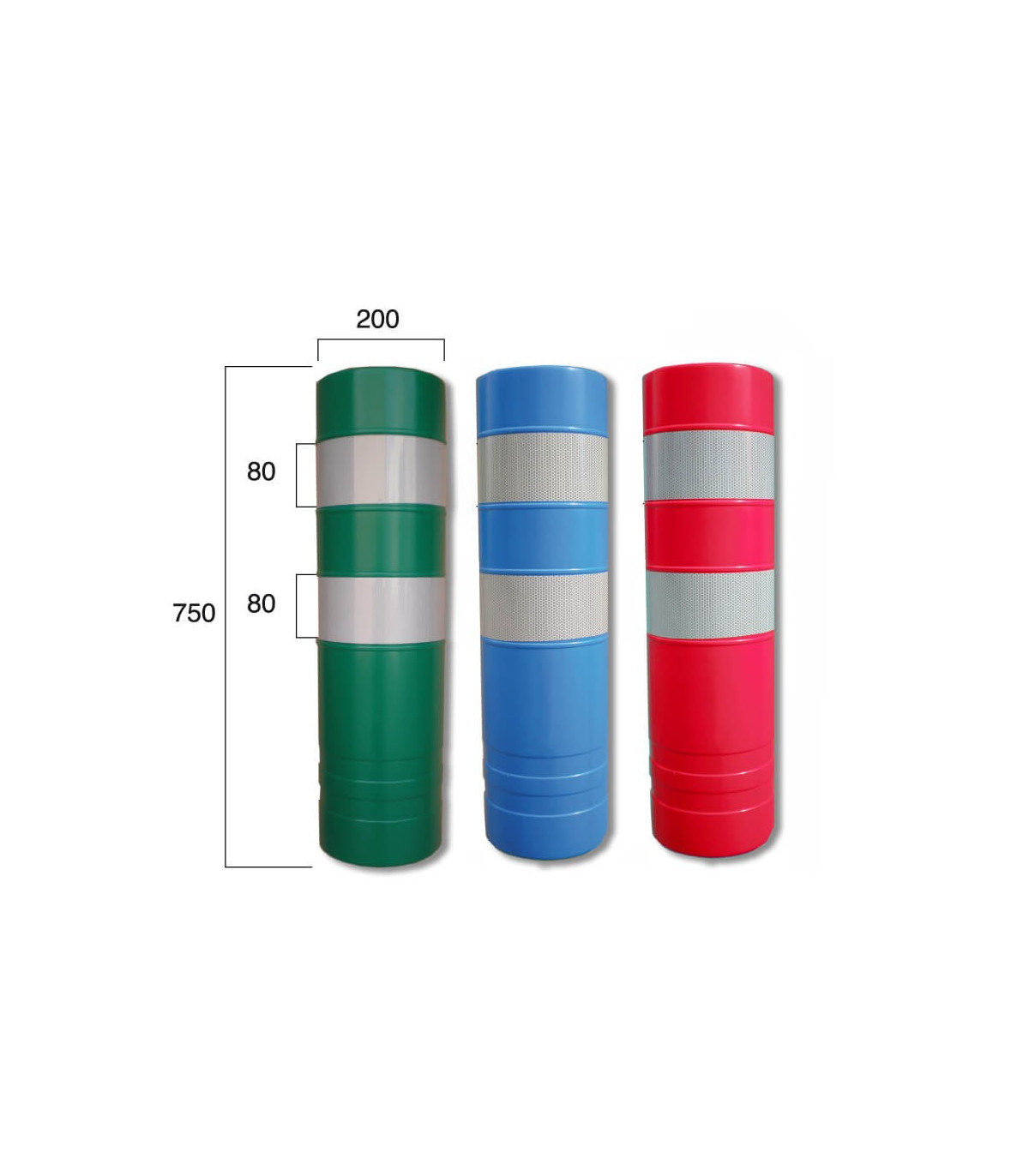

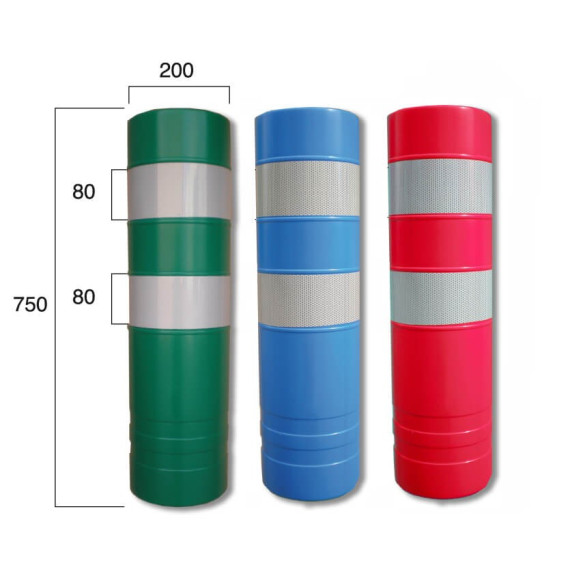

Dimensions:
- Height: 750mm.
- Width: 200mm.

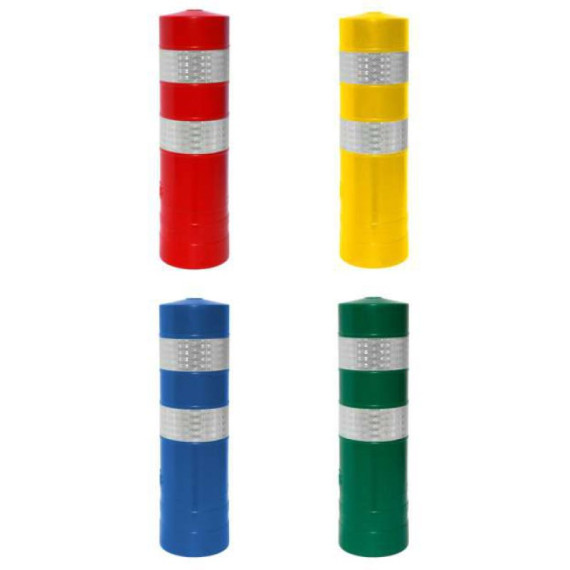

Colors: available in green, blue, and red, although the color of the body of the beacon can be whatever the user desires.

ANCHORING ELEMENTS.
Inside, at the bottom, the marker contains a circular metal and galvanized plate with a diameter of 165mm and a thickness of 1.5mm.
- Plastic plug with M-10 screw.

NORMS
Manufactured in accordance with the following standards:
UNE 135 363 Standard for polymeric origin materials.
UNE 135 330 Standard regarding retroreflective materials. Characteristics and
testing methods.
UNE 135 350 Standard regarding retroreflective materials. Determination of
nighttime visibility through the retroreflection coefficient.
UNE 53 118 Standard on plastic materials. Determination of the softening temperature.
UNE 53 104 Standard on plastic materials. Accelerated artificial aging of
plastic materials.
UNE 53 28 Standard regarding water absorption.
